In Sheet Metal Fileds,It always needs punching holes in metal.These days with the develop of fiber laser technology ,cutting small thickness holes is easy.But for heavy duty metal punches hole in sheet metal,choose

heavy duty metal hole punch machine is also an good idea.For changing the tool for punching holes in metal,

you can punch any shape and size holes.

Feature:

1.Overall welded and processed structure.

 2.High mechanical strength and strong rigidity.

3.Oil cylinder has been forged,quenched and tempered ,fine grinding ,hard chromium plating and other processes.

4.The hydraulic system adopts integrated hydraulic system of oil road .Reduce the installation of the pipeline.

5.Use the latest hydraulic technology

6.It can punch round hole ,slot holes ,square holes on sheet plate.

7.It can also punch different shape hole on profile steel ,like angle steel ,H steel ,I steel and so on.

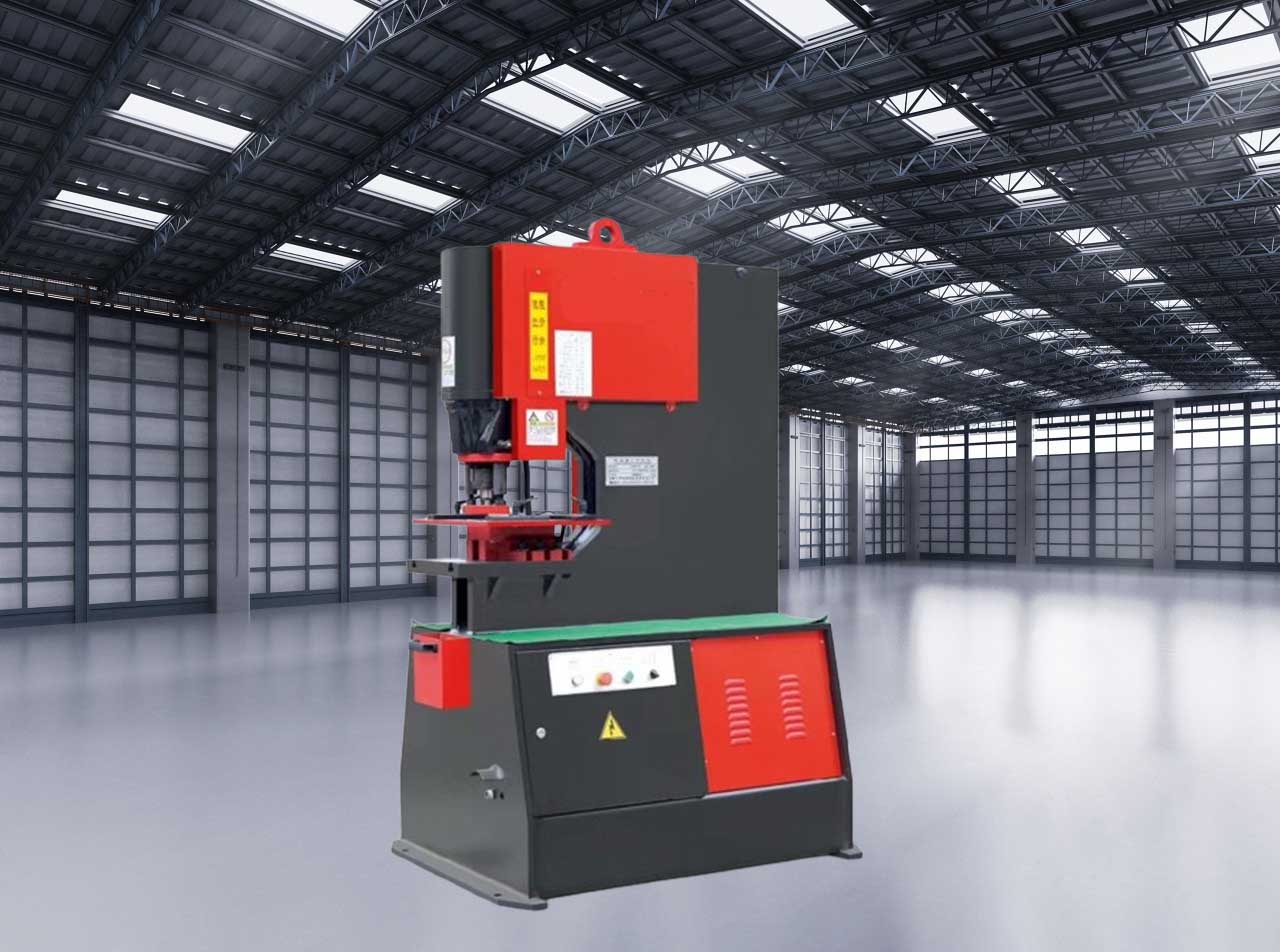

The structure of hydrualic punching machine:

1.The machine is the broadest line of Hydraulic Punching Machine available anywhere.

Hydraulic Punching Machine are built for long service in multishift industrial production applications.

Our Hydraulic Punching Machine are designed using the latest engineering techniques to provide you with a more compact, faster press. We offer an unusually wide range of standard equipment,special features, accessories and options.

2. The frame is welded steel "C"type frame structure. Maximum rigidity and minimum deflection

 for accurate parts and long tool life.After annealing to stress, with a strong structure stability.

Deep ribbing under the bed forms a stable mounting surface for tools and dies. All our electrical,

hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.

3.The use of hydraulic punching machine equipment, reasonable structure, from the rack, hydraulic systems, electrical three parts. Machine hydraulic punching machine

have been designed and built to the highest quality standards in the industry. This profitable

 machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries

Parameters:

Hydraulic Punching Machine Function:

1.Punch round hole ,metal slot punches ,punching square holes in metal,punch different metal shapes holes

2.Punch in mild steel ,stainess steel ,Aluminum and copper plate

3.Punch holes in sheet metal plate ,pipe steel ,channel steel ,angle steel ,I-beam steel

4.Punch single hole,double holes, triple holes

Hydraulic Punching machine application:

1.Steel Structure Processing

2.Elevator Car and Accessories Processing

3.Trailer Parts Processing - Spare tire parts, trailer hinges, plate hooks, pins, and waler boards.

4.Construction Machinery Industry Processing - Conveyor belts and parts for mixing stations.

5.Agricultural and Animal Husbandry Machinery Processing - Thresher frame and trailer body parts.

6.Food Industry Machinery Processing - Slaughter equipment frames and accessories.

7.High and Low Voltage Tower Accessories Processing

8.Wind Power Generation Equipment Processing - Staircases and tread plate accessories for wind power towers.

9.Machining - Embedded construction parts/conveyor supports and other components.

10Grain Machinery Processing - Supports, casings, and small parts for grain and oil equipment and starch equipment.

11.Railway Freight Car/Automobile Parts Processing

12.Steel Processing - Cutting, punching, and bending of channel steel, square steel, round steel, H-beam, I-beam, etc.

 Optional:

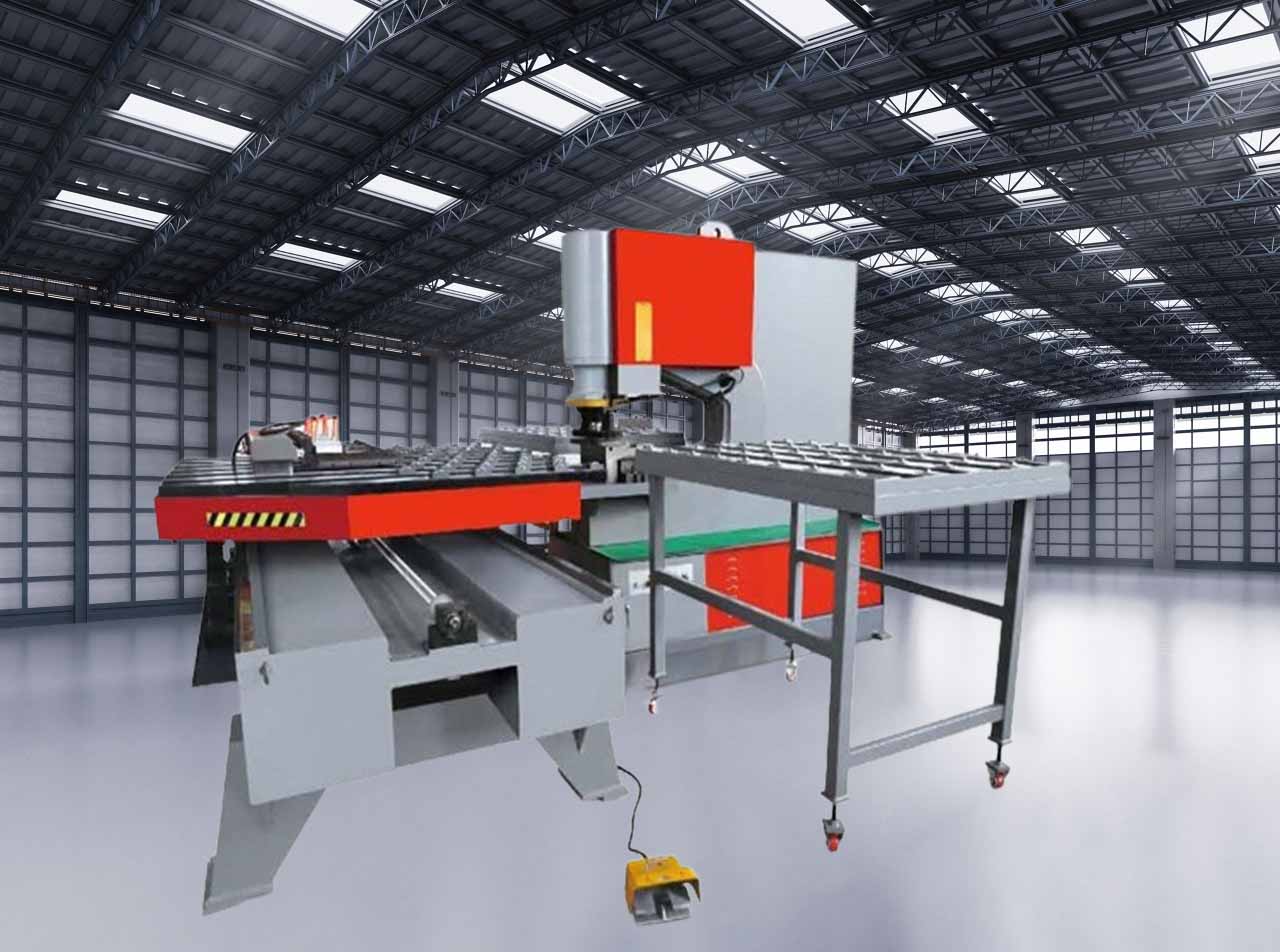

1.Semi-automatic Punching Machine

It is 2 axis(x and y axis ) programmable cnc punching press.The max punching thickness is 30mm.Table is 500*800mm.Its position accuracy is ±0.05mm.

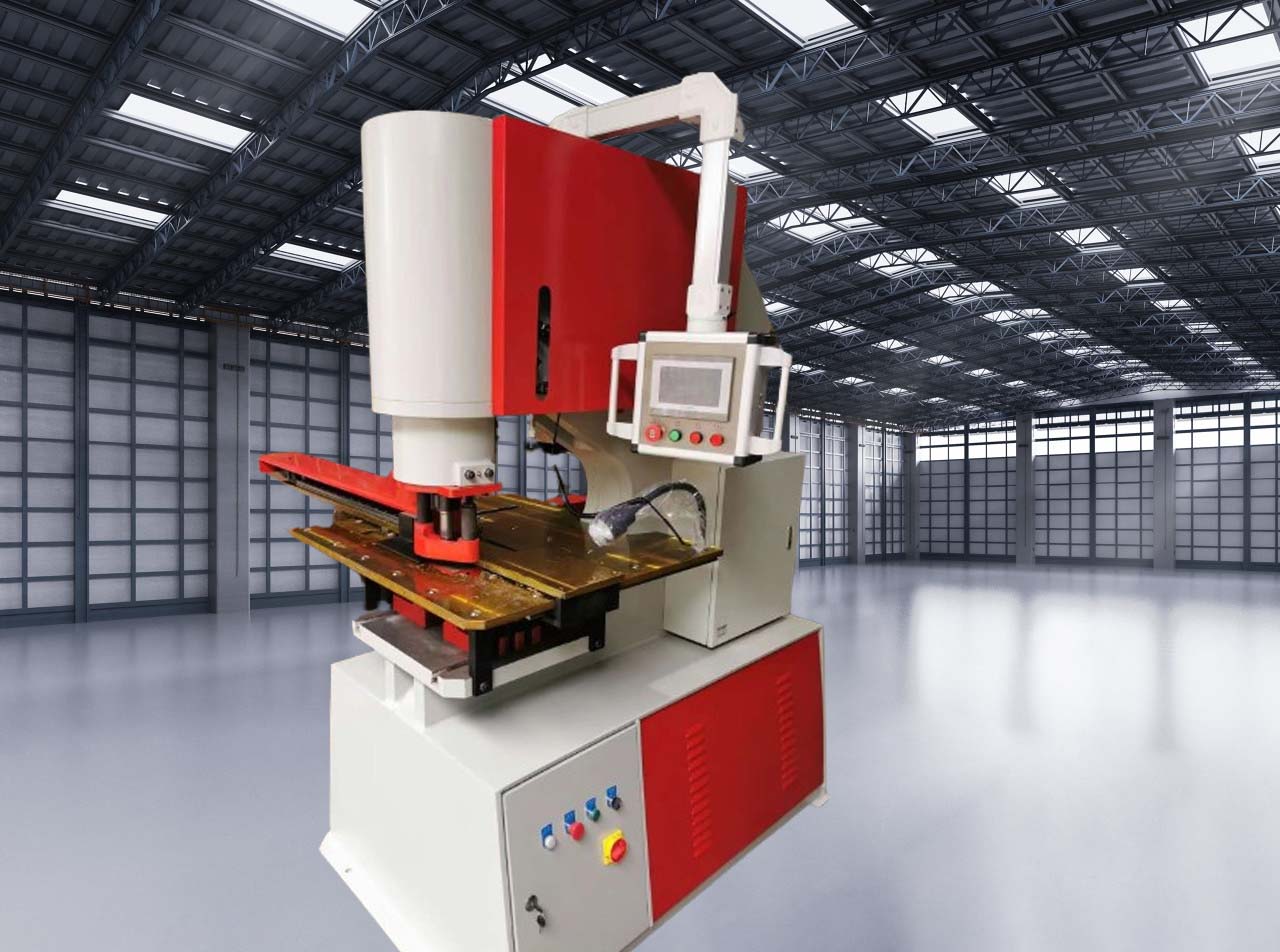

2.Fully Automatic Punching Machine

It is auto feeding and locating .
