Combined function
It combined punching and cutting plate,shearing angle§ion function etc.
Simple operation
Simple operation,flexible movement,high cutting efficiency,smooth section without a trace.
Big range capacity
Range from 60 tons to 160 tons.Max punching thickness from 16mm to 30mm.
Flexible operation
Automatic holding system and cooling system available.

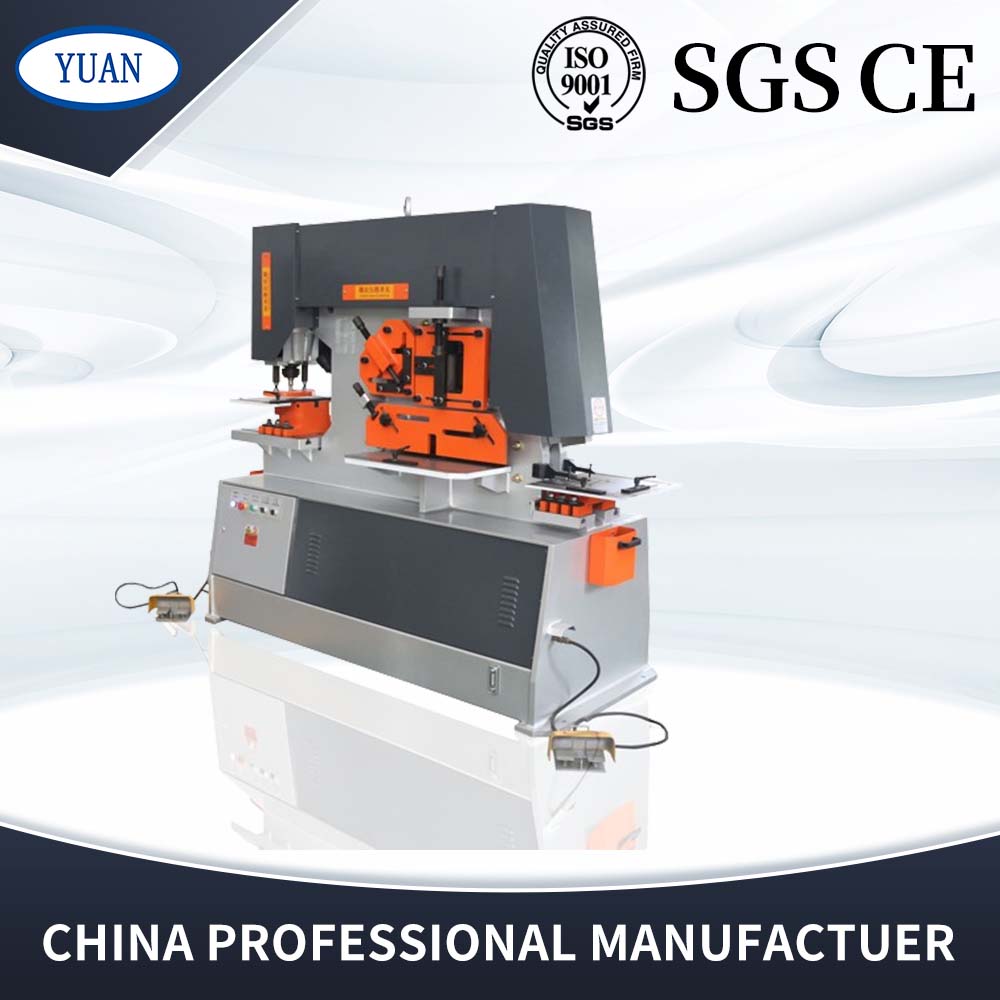

Universal Iron workers Machine for punching, cutting, notching and bending. You also can do special workpiece after changing the molds.You might need to buy a punching machine, shears, press brake, profile cutting machine and notching machine to complete the processing of various workpieces.Then an ironworker will meet all the request.“Safety” has always been the most important for Ironworker. We have always been committed to the safety of the machine. So, the emergency stop switch is installed in the electrical cabinet and stations of the machine.
In an emergency, you can stop the machine at any time to prevent accidents. At the same time, the safety point is installed in the notching station. for instance，If you open the safety shield for non-safe operation, the machine does not work.
Every year we have more than 300 sets of 90 tons Hydraulic Ironworker Machines export to 67 countries.
A hydraulic iron worker, also known as a metalworker, is a versatile and powerful machine used in metal fabrication and manufacturing processes. It combines several metalworking functions into a single unit, allowing operators to perform various tasks, including shearing, punching, notching, bending, and other operations. Hydraulic ironworkers are commonly used in workshops, fabrication shops, and manufacturing facilities where the processing of metal sheets and profiles is required.
Parameters:
Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 |
|---|---|---|---|---|---|
Pressure(Ton) | 60 | 90 | 120 | 160 | 200 |
Max Cutting Thickness(mm) | 16 | 20 | 25 | 30 | 40 |
Cutting angle(°) | 7° | 7° | 7° | 7° | 7° |
One size shearing stroke(mm) | 16x250 8x400 | 20x330 10x480 | 25x330 16x600 | 30x355 20x600 | 35x400 25x700 |
Ram Stroke (mm) | 80 | 80 | 80 | 80 | 100 |
Throat depth (mm) | 300 | 355 | 400 | 600 | 600 |
Max Punching Thickness(mm) | 16 | 20 | 25 | 30 | 40 |
Max Punching Dia(mm) | 25 | 30 | 35 | 38 | 41 |
Power (KW) | 4 | 5.5 | 7.5 | 11 | 15 |

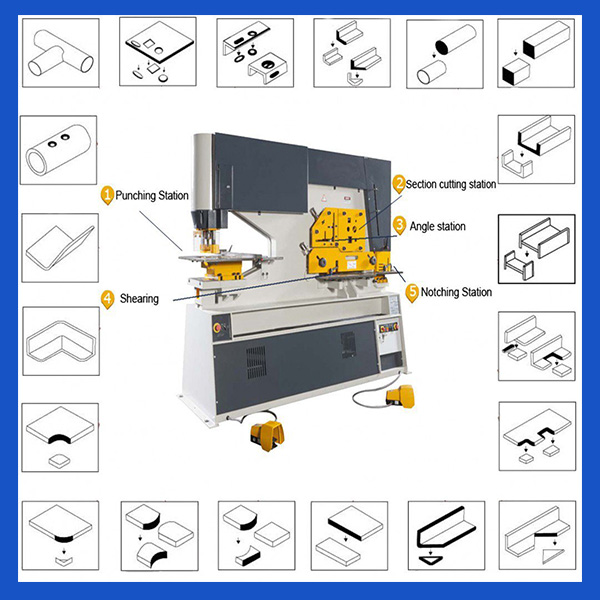

The iron workers has 5 working station.It combines various functions such as metal cutting, punching, shearing, bending, etc. Ironworkers has the advantages of simple operation, low energy consumption ,and low maintenance cost. The hydraulic ironworker are generally suitable for machining small workpieces and can work at multiple stations at the same time.
The left footswitch controls the punching station separately, and the right footswitch controls other operations at the same time.

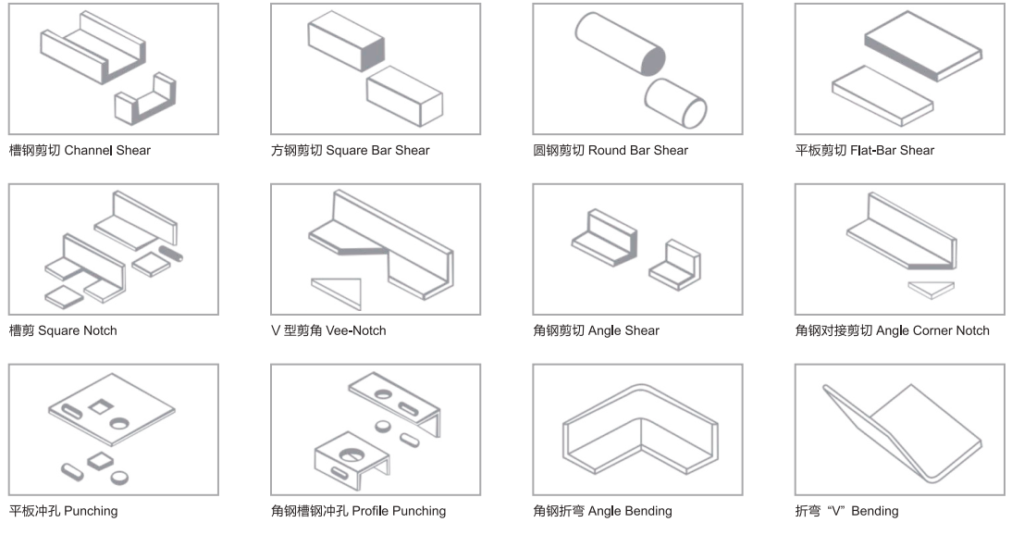

Fuction

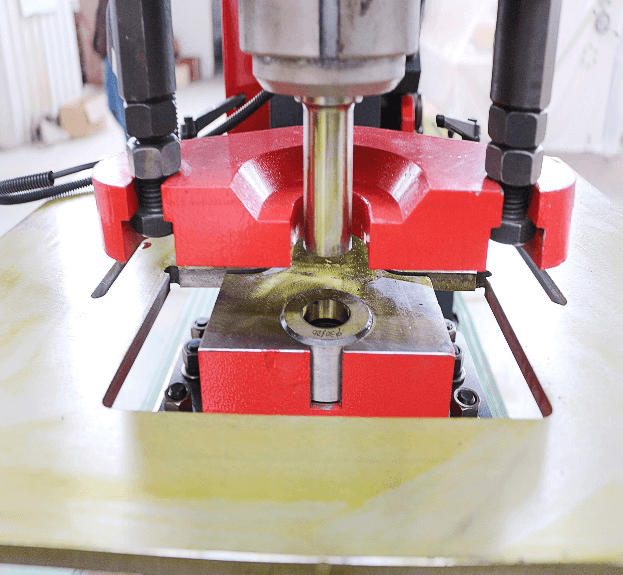

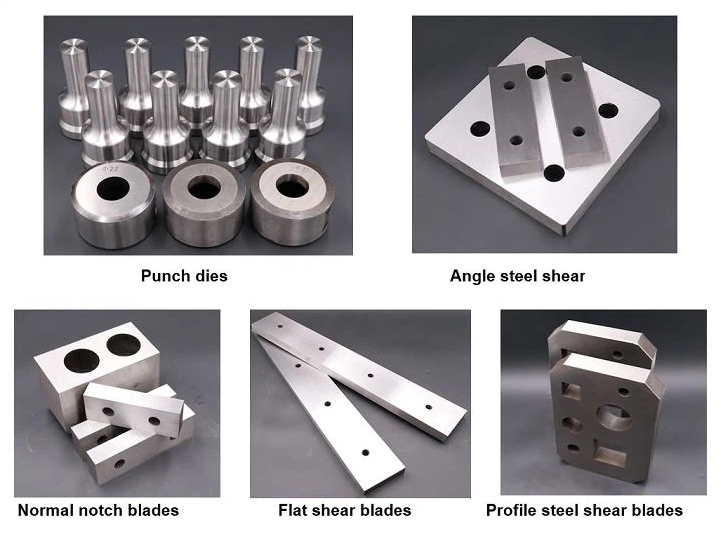

Punching holes The punching function is located at the left station of the iron worker machine and is controlled by the left foot switch. Holes of different sizes and shapes can be punched by changing different upper and lower molds.Each set of the die has a certain life time, after the service life, you need to change the mold. If the punching machine model is Q35Y-25, 25 is the maximum shearing plate thickness 25mm. |  |

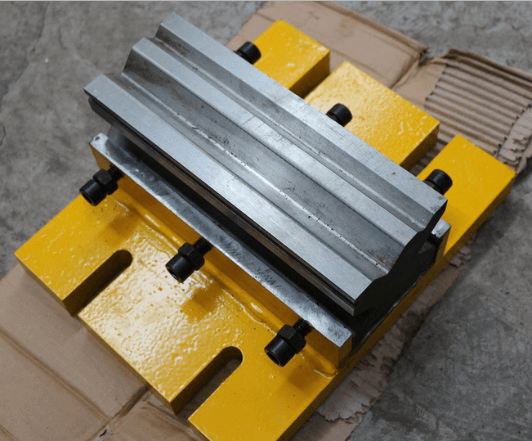

Bending This station is shared with the punching station and needs to replace the upper and lower molds at the same time. |  |

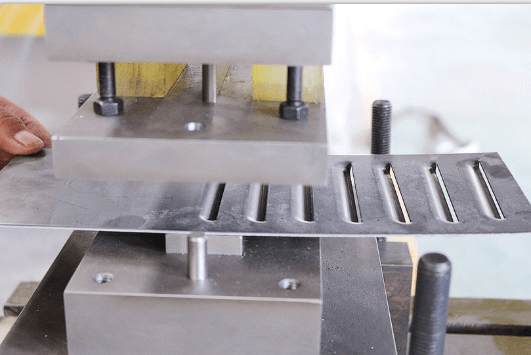

Punching louver This station is shared with the punching station and needs to replace the upper and lower molds at the same time. |  |

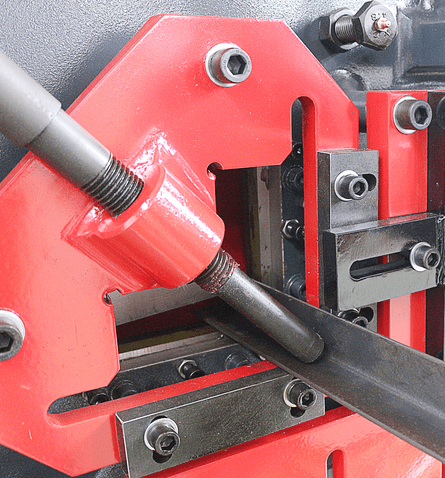

Angle Cutting This station is used to cut the angle steel as shown on the left. The specific cutting size is required to refer to the parameter table. |  |

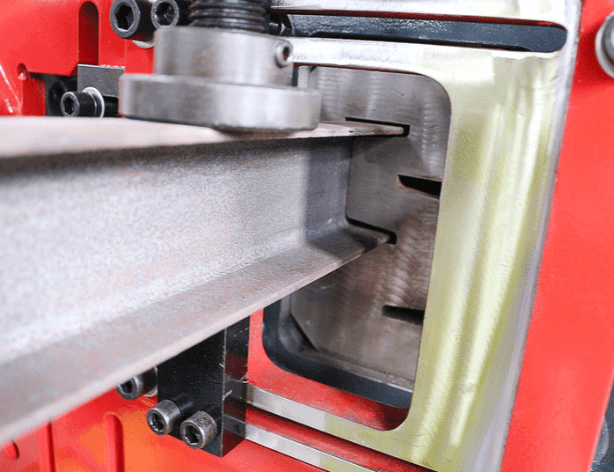

Channel Cutting The specific cut channel size needs to refer to the parameter list. |  |

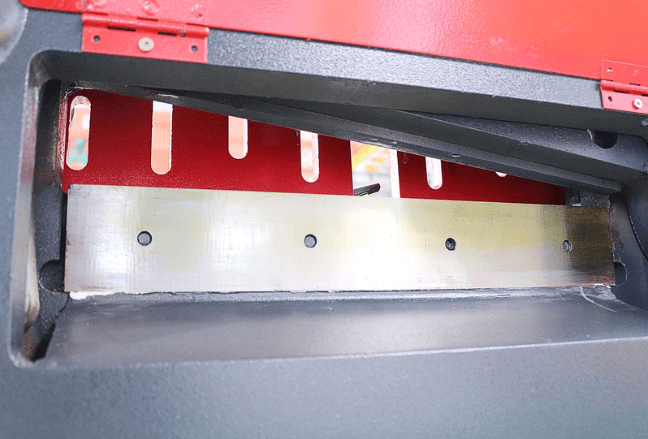

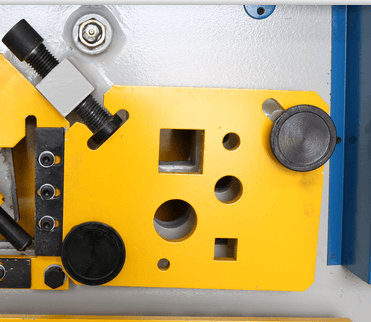

Steel Plate Cutting It is equivalent to the function of the shearing machine and is used to cut small steel plates. The specific cutting size needs to refer to the parameter table. |  |
Round steel square steel shear It shares the same station with the shear channel, but only one of them can be selected. If the round steel square shear function is selected, the channel shear function cannot be selected. |  |
An ironworker is a versatile machine which can cut, punch, shear, and shape various types of metal. These machines are commonly used in metal fabrication shops and construction sites for processing structural steel and other metal materials.The versatility of ironworkers makes them a valuable asset in metalworking and fabrication, allowing for a wide range of operations to be performed on a single machine. They are commonly employed in industries such as construction, metal fabrication, and manufacturing where the processing of metal components is a routine part of the production process.
Application:
1.PEB manufacturing,like base plated manufacturing ,joint plate.
2.Copper plate punching hole
3.Anti-skid plate
4.Fishplate punching hole
5.Punching Dimple Plate
6.Slotting and Tenoning channel steel
7.Punching Louver plate
8.Angle Steel and Channel Steel Cutting and Bending
