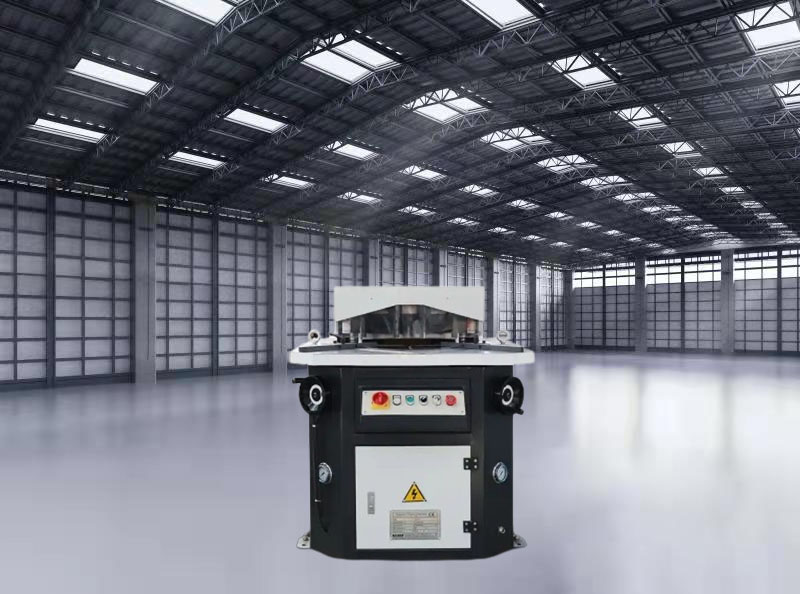

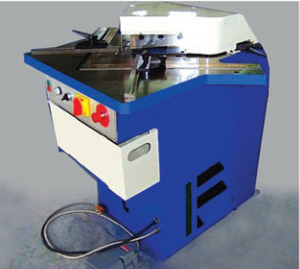

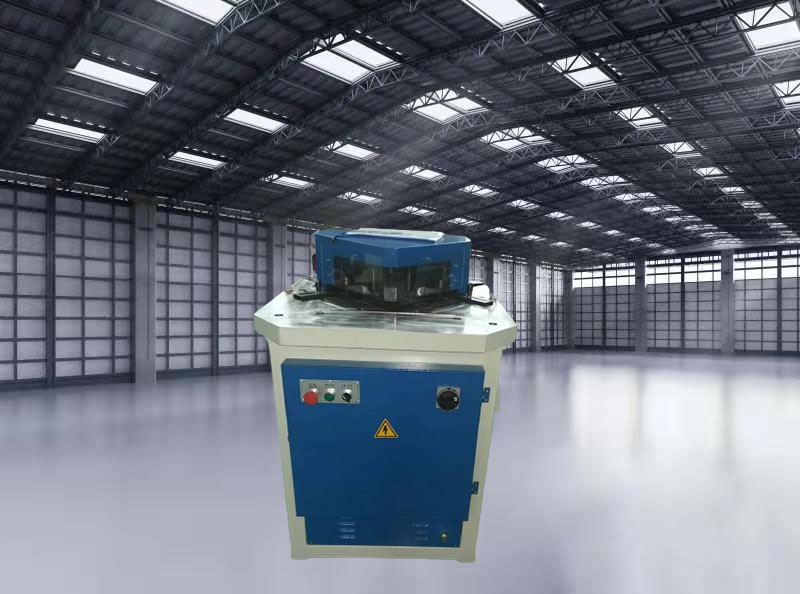

Hydraulic Angle Cutting Machine

A hydraulic angle cutting machine is a specialized tool used in metalworking and fabrication for cutting angles, channels, and other structural metal profiles. This type of machine is designed to provide efficient and precise cutting of angles at various degrees. It is commonly used in industries such as steel fabrication, construction, and manufacturing where accurate and clean-angle cuts are essential.The machine is hydraulic driven and constructed with steel welded plate.Giving a rigid working platform.The machine can be adjusted through a range of 30°-145°.It is suitable for using in various notching industries,Pneumatic system.

Hydraulic System:
Hydraulic angle cutting machines are powered by hydraulic systems. These systems use hydraulic fluid to generate the force required for cutting through the metal. Hydraulic systems provide consistent and powerful force for efficient cutting.

Cutting Blades:
These machines are equipped with cutting blades or shearing blades designed to cut through angles with precision. The blades are typically made of high-quality steel to withstand the forces involved in cutting thick metal profiles.

Parameters:

Model			QF28Y-4x200	QF28Y-4x250	QX28Y-6x200
Max Notching Thickness(mm)		Mild Steel	4	4	6
Max Notching Thickness(mm)		S.S	2	2	3
Min Notching Thickness(mm)	Mild Steel		0.5	0.5	0.5
Min Notching Thickness(mm)	S.S		0.5	0.5	0.5
Notching Length(mm)			200	250	200
Notching Angle Range			90°	90°	30°-145°
Main Motor Power(KW)			4	4	5.5
Dimension			1500x1000x1400	1500x1000x1400	1500x1000x1400
Net Weight(KGS)			1100	1350	1500

Adjustable /Fixed Cutting Angles:
Hydraulic angle cutting machines are designed to cut angles at various degrees. Operators can adjust the cutting angle to meet the specific requirements of the project. This flexibility allows for the creation of angled cuts in metal profiles.

Foot Pedal :
Operators can control the operation of the machine using a foot pedal , allowing for hands-free operation during the cutting process. This feature enhances safety and convenience for the operator.

Sturdy Construction:
Hydraulic angle cutting machines are built with a robust and sturdy construction to withstand the forces involved in the cutting process. The materials used in construction are typically chosen for their durability and longevity.

Precision and Accuracy:
Hydraulic systems, combined with accurate positioning mechanisms, enable these machines to achieve high precision and accuracy in the cutting process. This is crucial for ensuring that the cut angles meet the required specifications.

Ease of Operation:
Hydraulic angle cutting machines are designed to be user-friendly, with intuitive controls and easy setup procedures. This makes them accessible to operators with varying levels of experience.
