Single Table Fiber Laser Cutting Machine

Single table fiber laser cutting brings a wide range of advantages to the cutting process,such as delivering high accuracy,producing a low- heat influence,and low maintenance and high efficiency.

Inquiry Now

Description

Single Fiber Laser Cutting Machine Repesent Economical&cost Performace

Description	Unit	3015	4015	4020	6020	6025	8025
Max Sheet Size	mm	3000x1500	4000x1500	4000x2000	6000x2000	6000x2500	8000x2500
X-axis stroke	mm	3050	4050	4050	6050	6050	8050
Y-axis stroke	mm	1550	1550	2050	2050	2550	2550
Z-axis stroke	mm	200	200	200	200	200	200
X,Y axes positioning accuracy	mm/m	0.02	0.02	0.02	0.02	0.02	0.02
X,Y axes repetition accuracy	mm/m	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
X,Y axes Max speed	m/min	120	120	120	120	120	120
Laser Power	watt	1000W/2000W/3000W/4000W/6000W

Configuration

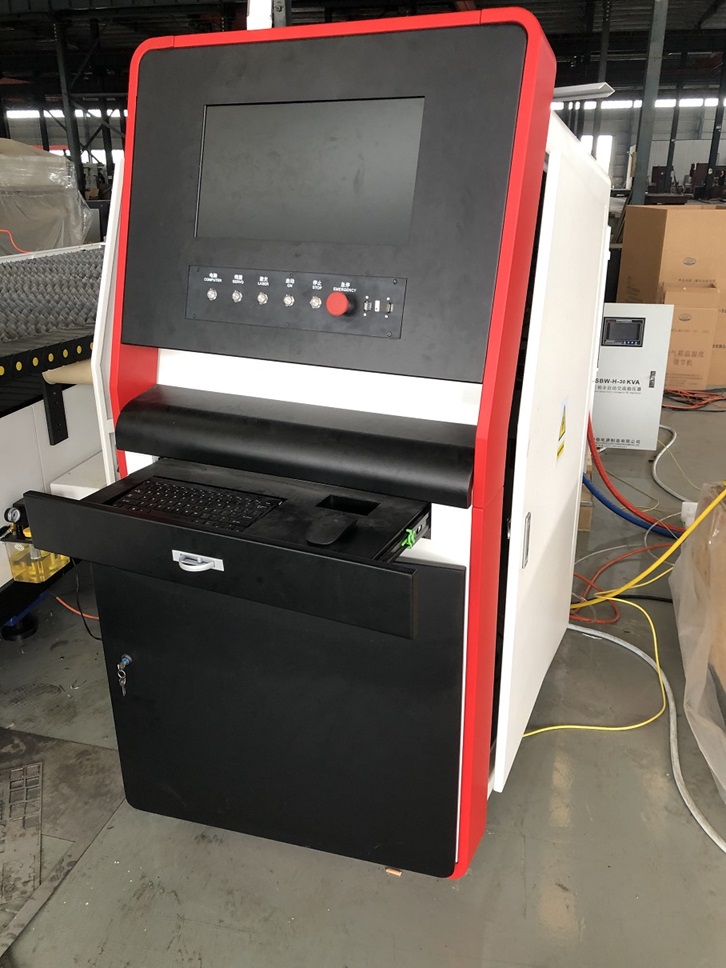

♢Controlling system: FSCUT2000

♢Servo drive and motor:YASJAWA servo motors system

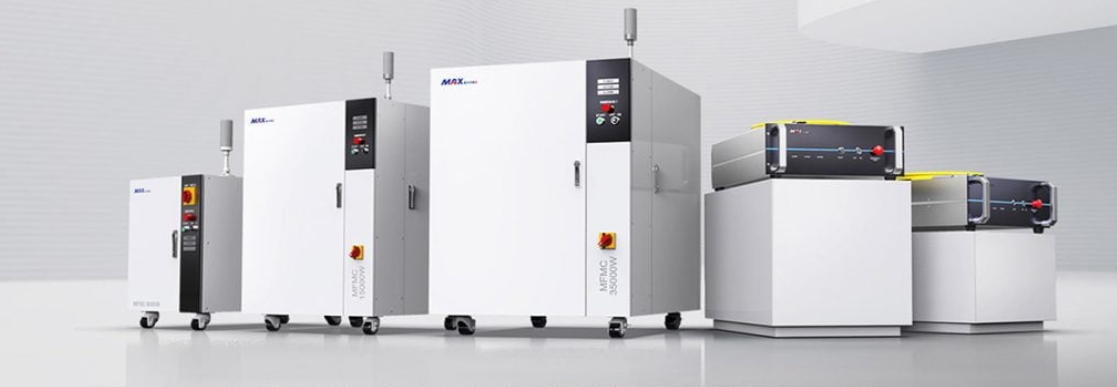

♢Laser source:IPG,USA/Germany,RAYCUS/China,JPT/Sigapore,MAX/China

♢Equipped with water cooling unit:Hebei Tongfei

♢Japan SHIMPO reducer/FRANCE MOTOREDUCER

♢Equipped with ventilated type dust exhausting device(Fab blower)

♢Taiwan HIWIN square rail

♢Frence Schneider electronic parts

♢Taiwan YYC Rack

♢Japan SMC pneumatic parts

♢Auto lubrication system

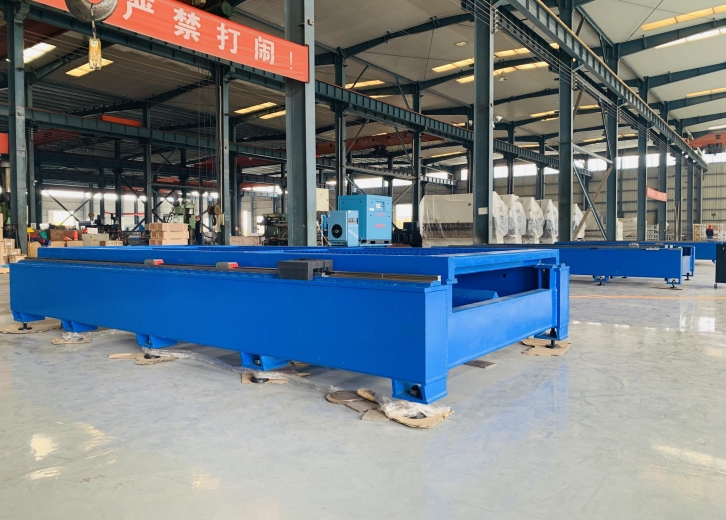

MACHINE BODY YUAN laser cutting machine body use steel box welding process ,twice annealing and on the large gantry CNC lathe processing
		LINEAR GUIDE AND RACK YUAN laser cutting machine gantry structure under the dual drive,lineatheer guide and rack pair inclined installation,the stress state is more reasonable ,the movement is more stable.
CAST ALIMINUM BEAM the cast aluminum beam,laser cutting machine with light weight ,good dynamic response,faster acceleration,better comprehensive cutting effect.
		SHIMPO REDUCER YUAN laser cutting machine adopts international first-class brand transmission components,THK linear guide ,YYC grinding gear rack,SHIMPO flange output precision reducer ,ensure the high precision of the machine tools.

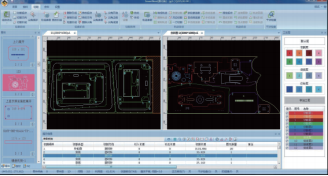

NESTING SOFTWARE With professional automatic typesetting software,the cutting plate availability increase 1%-5% ,cutting productivity10-30% ,significantly improve the cut quality,process data management,data collection and statistics and other data management functions,visualization integrated interface,simplte operation,easy to learn.
