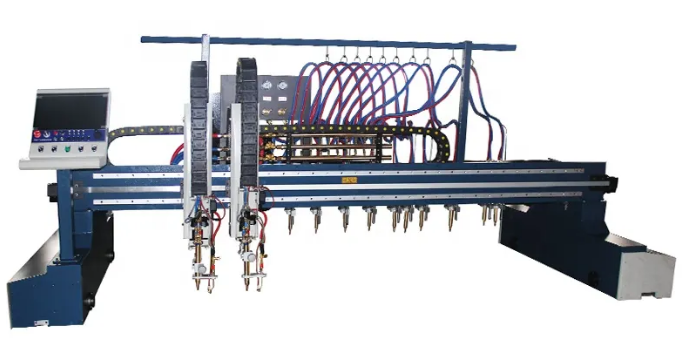

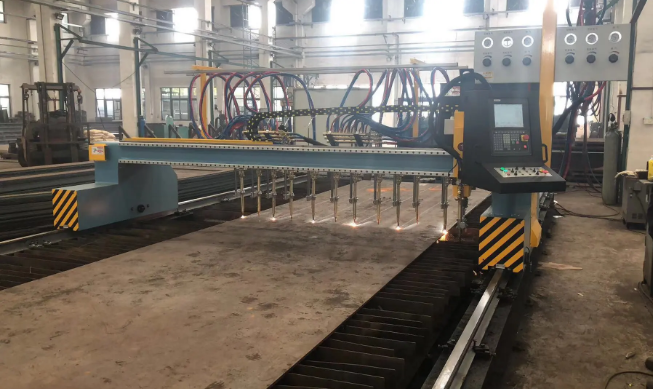

CNC Plasma Gantry Cutting Machine is applicable to all kinds of thick sheet metal precision machining industry, such as: sheet metal processing, steel, shipyards, mechanical processing and other large enterprises.

The components of the plasma &gas cutting machine include CNC System,drive system,control system ,mechanical system,and pneumatic system.The machine is mainly used for flame plasma cutting of various shaped of metal sheet plane with complete functions,high degree of automation,advanced configuration,high cutting precision ,good quality and good dynamic stability.The CNC system and servo system adopt well-known domestic and foreign brands,products with excellent performance,convenient man-machine interface,friendly operation,rich software and high-quality hardware configuration,and comprehensive protection measures ti provide users with a high-quality product.

Main Features:

1.The plasma machine is gantry structure with double-side drive .X&Y axis track are precise cylindrical linear guide rails,precise gear and rack drive,runs stably.

2.The Plasma Machine frame adopts the whole welding and annealing treatment,main frame is made by medium-sized steel pipe through welding ,rail base plates are made through the planer precision processing high strength,good precision and no deformation.

3.Crossbeam ,side panels and all movable parts are made by aluminum alloy through fine casing and milling with features of high strength and small inertia,ensuring the high strength and avoiding the cutting positioning instability caused by high inertia.

4.Adopting HP105 portable arc-pressure height regulator which can automatically regulates the height between cutter and plate to ensure the cutting quality .Scientific structure can effectively avoid collision between cutting head and steel plates owning to reaction rate cannot matches with that of cutting head.

Standard Configuration:

1.Shanghai Fangling F2300A CNC System

2.X-Axis ,Y-Axis using linear track,Z-Axis using ball screw

3.HIWIN ball screw and polished rod,control accuracy 0.05mm

4.Movable operation system

5.FASTCAM/SMARTCUT CNC cutting software

6.Japanese Panasonic P80 cutting head

7.X-Axis with double motor drive ,Y-axis single motor drive

8.France Schneider Electrics

9.Safety Standard (2006/42/EC)

Shanghai Fangling F2300A CNC System:

1.Up to 45 commonly used graphics libraries

2.Graphics scaling ,rotation,mirroring functions

3.Graphics matrix,interleaved ,and repetitive

4.Automatically limit the speed in the corner according to the thickness of the steel plate ,effectively prevent over-buring.

5.Quickly convert between metric and imperial measurements.

6.Graphical steel plate calibration

7.Coordinate system is customizable

8.Customizable 10

9.Backup system and parameters,online upgrade

10.Chinese/foreign language(English ,Japanese,Russian ,French ,other custom language)

Operation menus,easy one-key switch between Chinese and foreign languages.

11.Line or number is selective

12.Support edge cutting ,offset cutting

13.With power-off and breakpoint memory-protecting function

14.Dynamic /Static processing grapghics display,graphics zoom in/zoom out,dynamic tracking cutting ponitunder the amplified state

15.Compatible with wentai,TYPELIII,PM2000 and other special nesting software

16.File storage :electronic storage disk,1G

17.User program space:1G

18.Control Accuracy:±0.0001mm

Arc-pressure height regulator:

1.HP105 portable arc voltage height regulator is desinged for portable CNC cutting machine and light

gantry CNC cutting machine.

2.Embedded cabinet panel ,good integration,simple wirting.

3.New design ,using SMT (Surface Mount Technology) and latest chip.

4.Comprehensively enhance the stability and anti-interference alility of the machine ,adding a variety

of protection circuit.

5.With liquid crystal display,real-time display status and parameters,simple and intuitive.

6.Built -in "isolated voltage plate " can match 1:1 or 50:1 arc voltage input.

7.Intelligent arc voltage ,control accuracy ,manual speed ,automatic sensitivity and other parameters and adjuatable.

8.Fully functioned ,compact body ,integrated worktable the can directly embedded into cutting machine.

9.High precision voltage collection,PWM control DC motor ,smooth operation,high sensitivity.

1.Using Beijing Starfire control system.
The interface is clear and easy to understand, easy to operate, automatic typesetting and blanking.

2.StarCAM Nesting software, rich shapes and simple operation.

It can cut any plane shape part graphics formed by straight lines and arcs. You can program directly on the machine. You can also draw CAD on a computer or using ready-made CAD files, it can be directly converted into a code program file through the included STARCAM software and transferred to the machine through the USB interface to realize cutting.

3.Plasma power supply

Using China's well-known brand Huayuan industrial-grade plasma power supply, precise cutting, no burrs, small bevel, energy saving and low consumption, more stable performance.

Production Processing:
   First of all, the steel material of our equipment is casting → annealing → rough machining → secondary annealing → semi-finishing → placing for half a year (stress relief) → fine finishing → and then selecting steel production to start production equipment.
   For the production and processing of equipment, other suppliers should not have these production and processing/schedules.
   Meanwhile, Our many parts/accessories of our mechanical equipment are also heat treated through this production processing.
