Semi Auto Hydraulic Punching Press Machine

Semi Auto Hydraulic Punching Press Machine

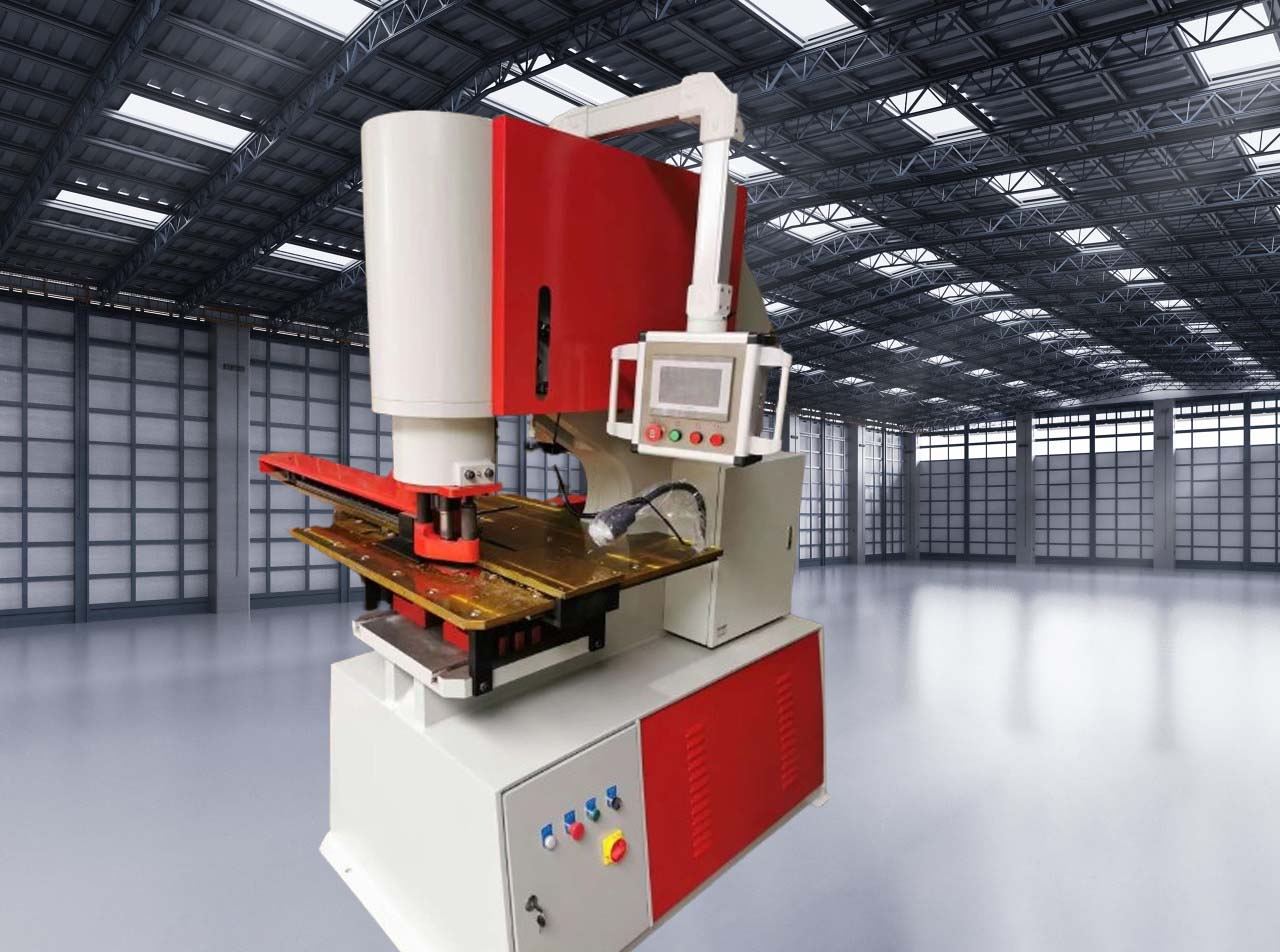

The CNC punching machine offers easy programming, precise positioning, and quick setup for efficient punching holes.

Inquiry Now

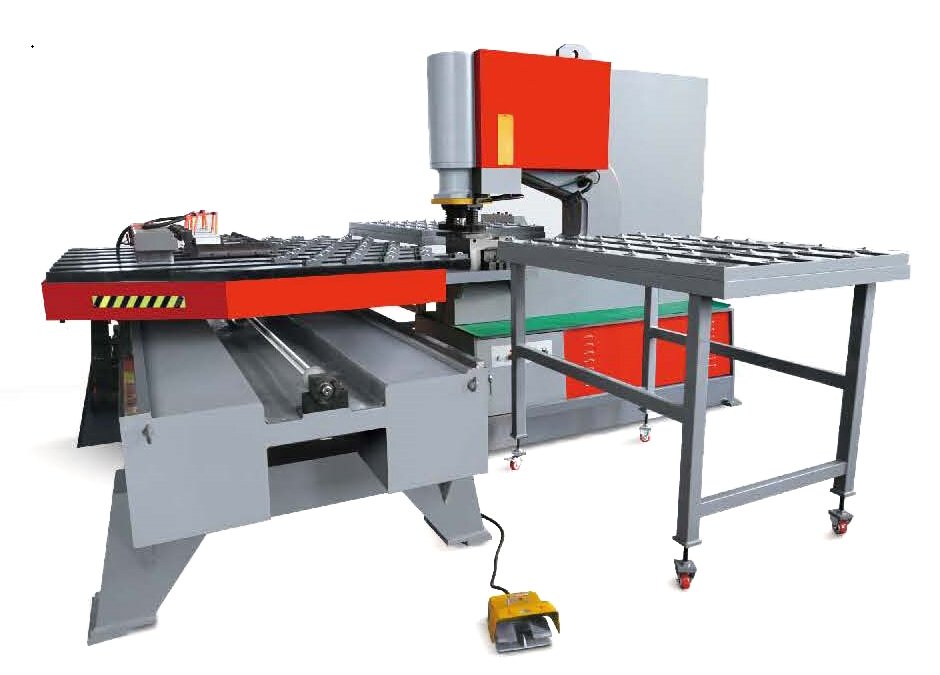

Hydraulic Hole Punching Machine,Hydraulic Punching Machine for Sheet Metal

The hydraulic punching machine is designed to punch a variety of holes, slots, and other shapes. It has a tonnage range from 60 tons to 160 tons and is a vital piece of equipment for sheet metal workshops.

This machine can punch through various metals, including mild steel, stainless steel, iron, copper, galvanized sheets, and more. It is capable of creating different hole shapes, such as round, oval, and slot shapes.

The maximum punching thickness ranges from 1mm to 30mm. It also features a positioning table with a 2-axis CNC-controlled, fully automatic option, which can be added as an upgrade for improved precision and efficiency.


 punching press

 Hydraulic Punching Machine Application:

1.Punching round,slot ,oval,square  hole or special holes,Punching bolt holes, installation holes, or assembly slots in steel beams, columns, bridge components, etc.

2 .Punching mild steel ,stainless steel or copper plate

3.Punching mild steel thickness from 16mm to 30mm

4.Punching tonnage capacity is from 60 ton to 160 ton

5.Can punching multi-holes by one stroke

6.Hole positioning be set on programm,the precision is high.

Description:

The operation is CNC-controlled with a pendant-mounted controller that offers easy programming and a nearly indestructible design. It's user-friendly and simple to operate—just input the X and Y-axis coordinates and you're ready to go. No need to remember complicated codes, and anyone can learn to use the system in just minutes. This makes it perfect for quick setups and immediate use, ideal for base plates, connection plates, and more.

  • Working Table Size: 800 x 500 mm

  • Max. Punching Thickness: 30 mm

  • Positioning Accuracy: ± 0.05 mm

  • X and Y Axis Programming


Features:

1.Hydraulic punching machine is Q345 steel materail welded,then heat treatment for long term use.

2.CNC Controller is very simple and operator friendly to use.

3.The table is delivered complete with servomotor and 2 axis measuring system.

4.Before operating machine ,you can set program on the control.The program can  is program step by step by entering each X and Y value.

5.Moved to position and punched, moved to next position and punched until all holes are completed.

6.Distance between holes is always correct.

7.Four pre-programmed patterns: Line, Array, Arc, and Custom.

8.Maximum table travel speed without load is 8m/min.

9.Positioning accuracy without load ± 0.05mm.

10.Ball transfers on table for smooth material handling.

11.Ideal for heavy base plates.

12.No marking out required.

Parameters:

Model

RZ-60T

RZ-90T

RZ-120T

RZ-160T

Punching   pressure(KN)

600

900

1200

1600

Max   Punching Capacity(D*T) (mm)

Φ   25*16

Φ30*20

Φ35*25

Φ38*30

Depth   of throat (mm)

300

355

400

550

Ram   stroke (mm)

80

80

80

80

Number   of Stroke(times/min)

8-22

8-22

8-22

8-22

Material;   Tensile Strength(N/mm2)

450

450

450

450

Motor   Power (KW)

4

5.5

7.5

11



Size

Length(mm)

1500

1550

1650

1700

Width(mm)

800

900

980

1060

Height(mm)

1780

2000

2100

2380

Weight(Kg)

1600

2000

3200

4200

(New design and parameter subjected to change without notice)

Configuration:

No

Name

Brand

1

Electric  Components

Schneider,French

2

Motor

Weiteli,China

3

Pump

Atos,Italy

4

Valve

Yuken   ,Japan

5

Time   relay

OMRON   ,Japan

6

Wiring   Terminal Block

Weidmuller,Germany

7

Oil   Seals

NOK   ,Japan


Application:

CNC Hydraulic Punching machine is also called Connection plate punching.It  is mainly used for transmission tower, communication tower or connection of steel structure processing board processing, and other machinery industries on a flat plate materials, for punching and seal.

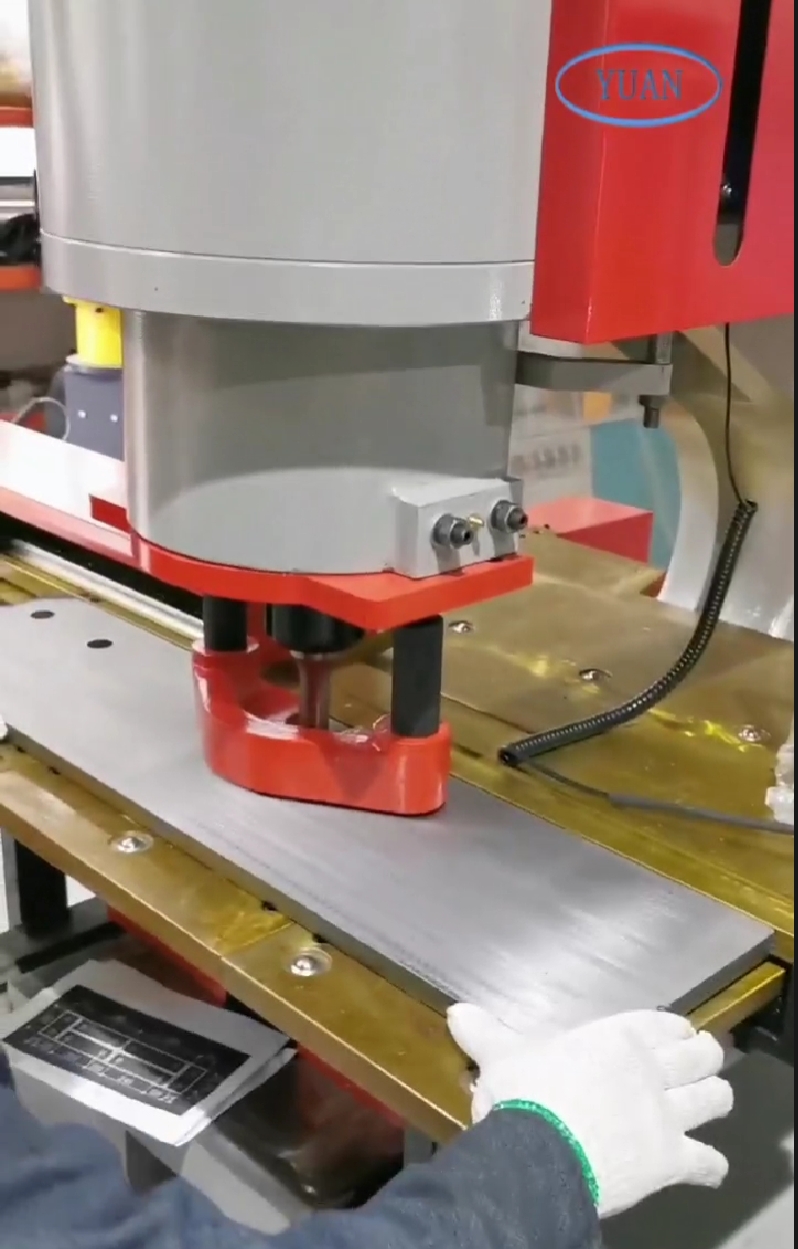

hydraulic punching machine for hole

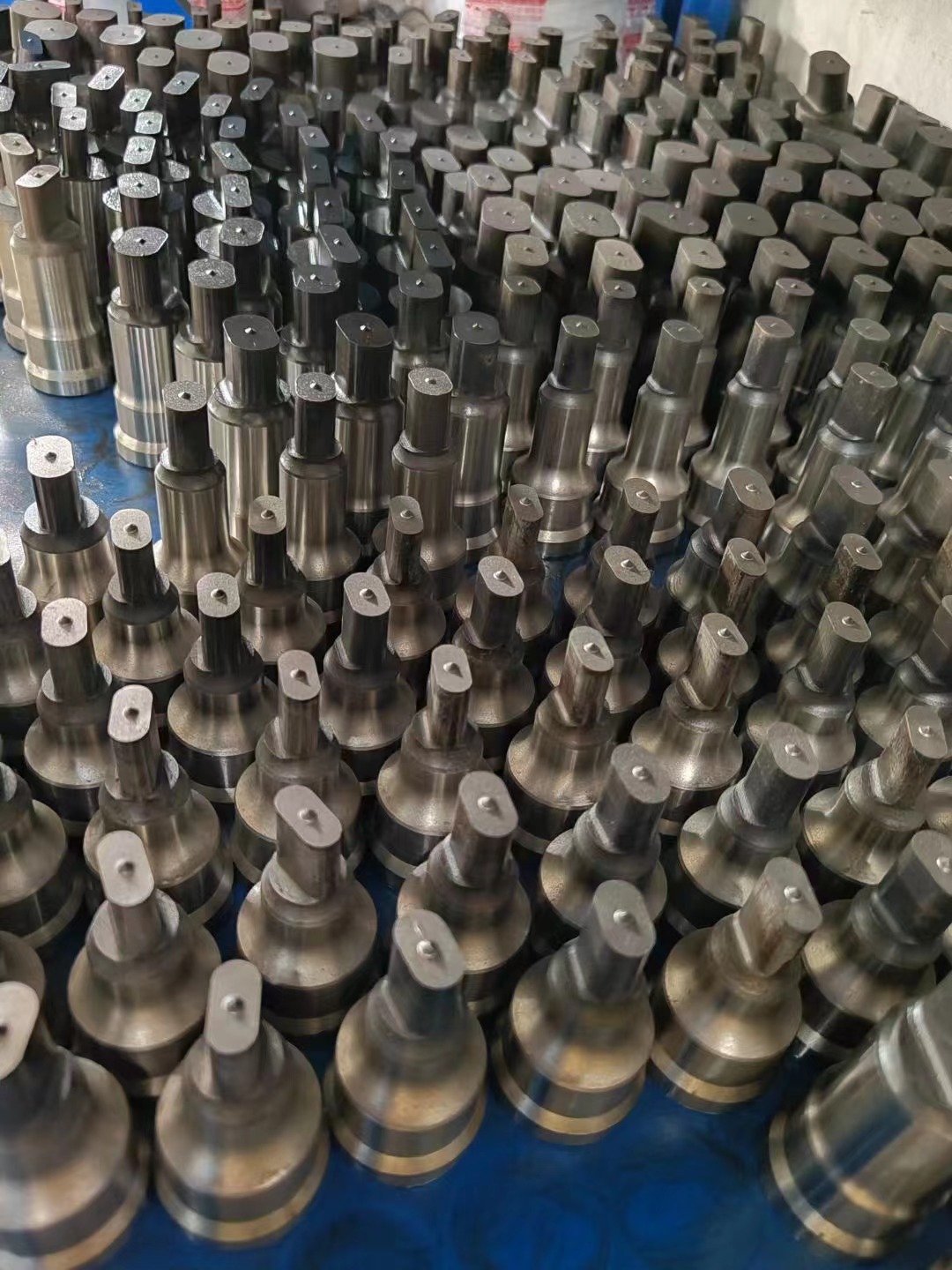

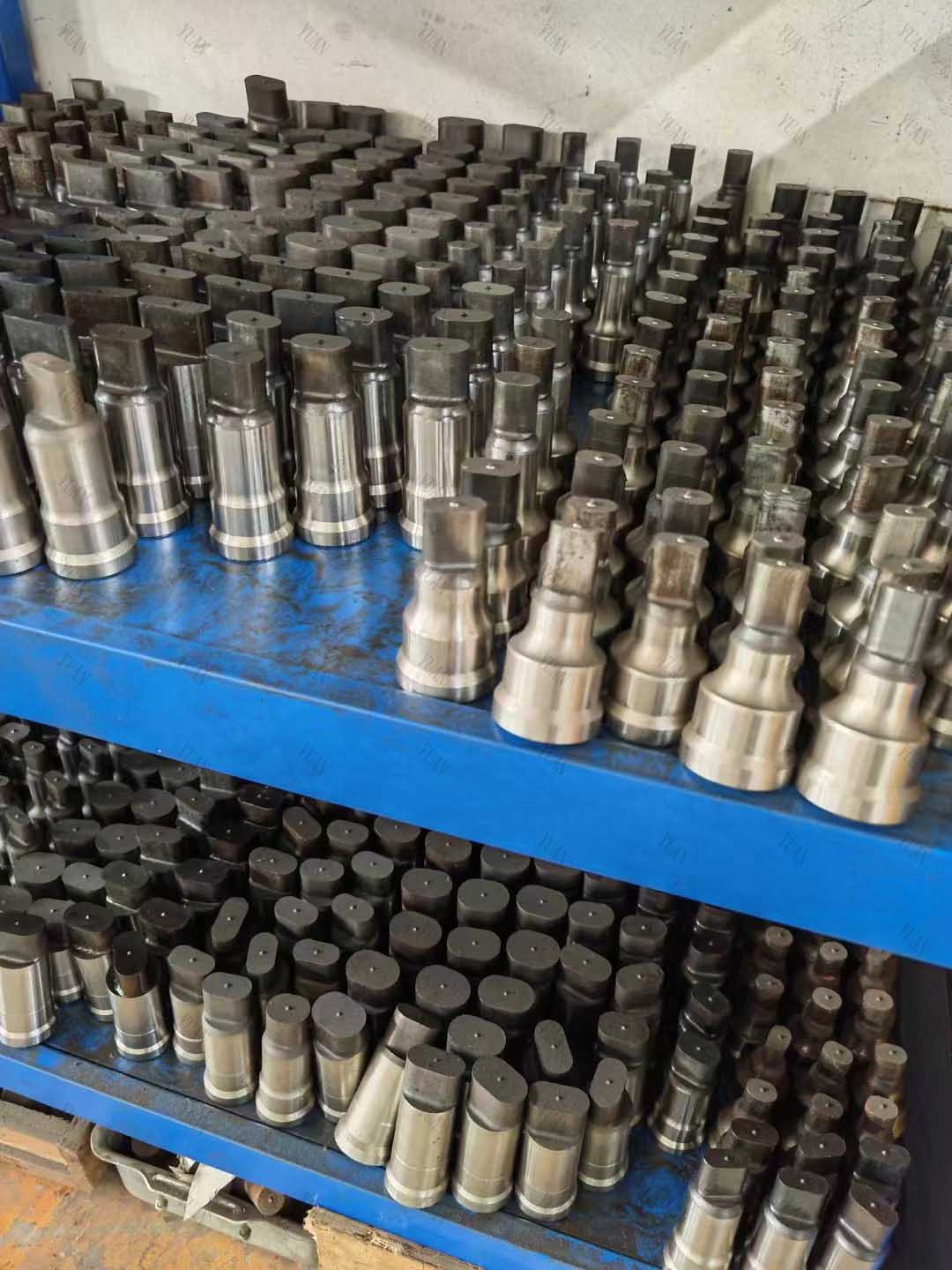

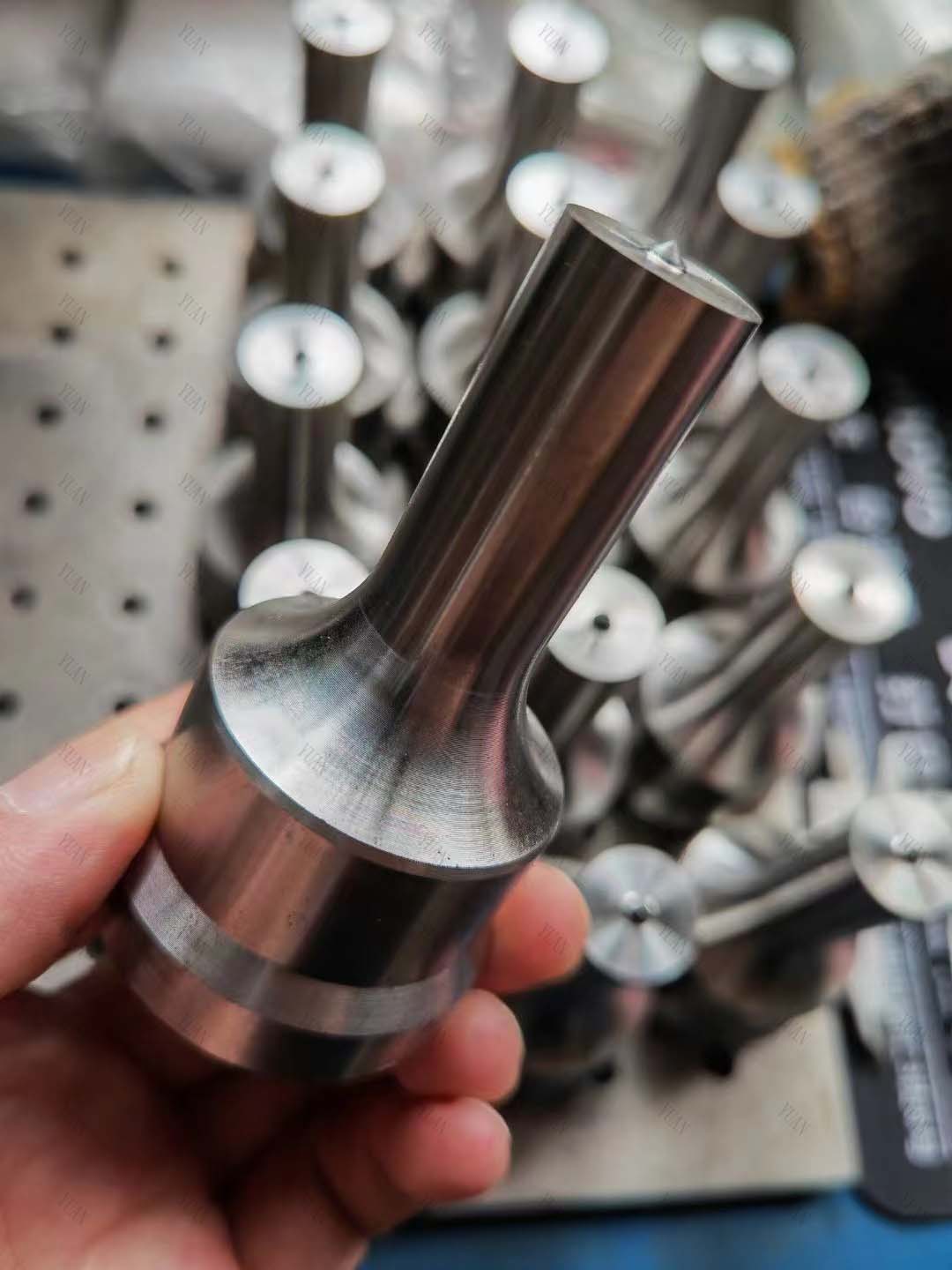

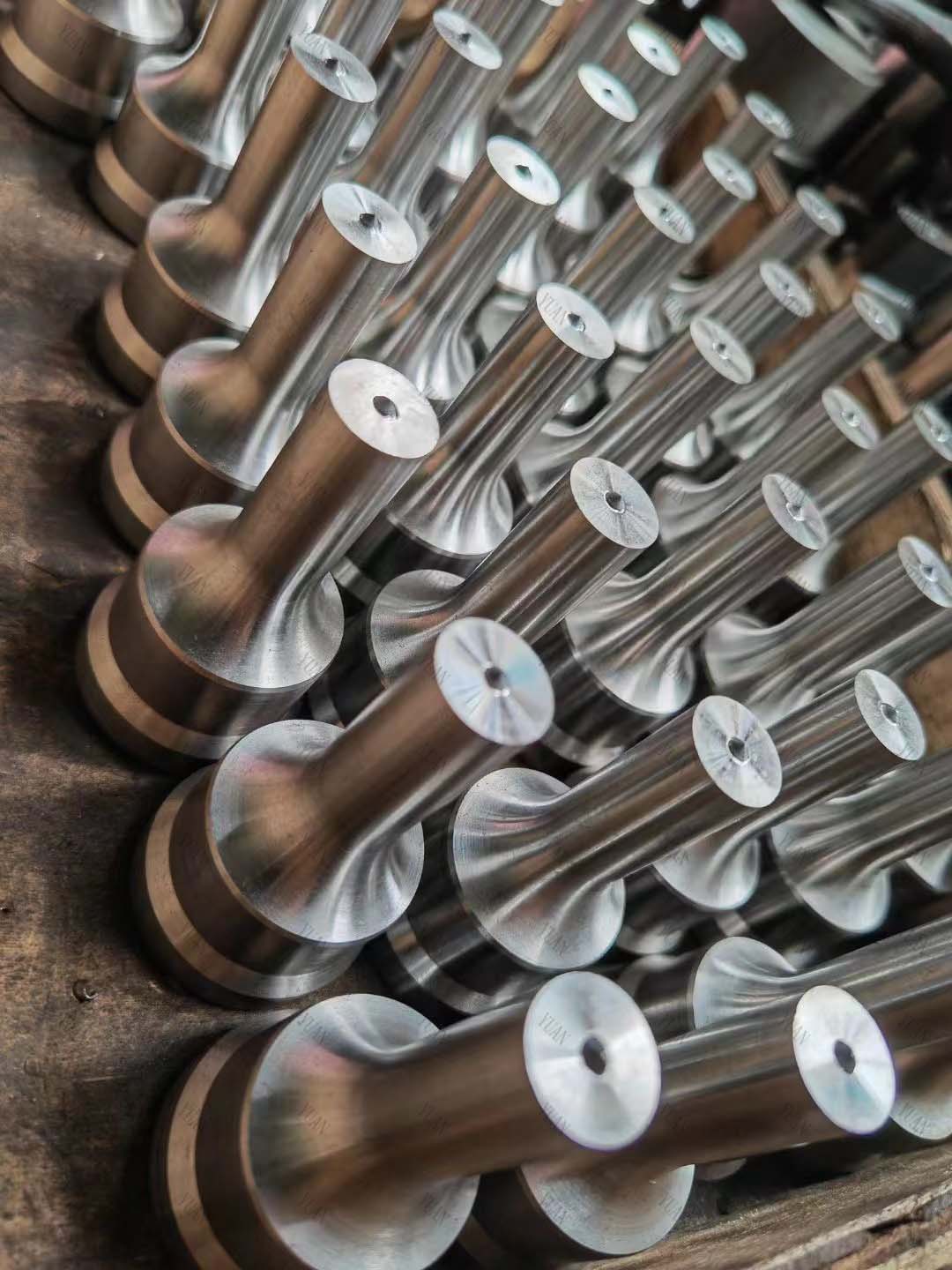

Hydraulic Punching Press Mould:

We can provide multi punch and die for ironworker machine

ironworker tool

 punching press machine price

steel hole punching machine

ironworkers machine

Optional:

 punching press machine price

Package:

hydraulic punching machine

Application industry:

1.High-rise building frameworks, industrial plants, and stadium steel joints.
 2.Mining machinery, agricultural equipment, and hydraulic system components.
3.Truck frames, train carriage connectors, and subway brackets.
4.Heat dissipation holes in high-voltage cabinets, solar panel mounting holes.
5. Supermarket shelf connectors, security door lock holes.
6.Ship bulkhead reinforcements, offshore platform brackets.
7.Refrigerator backplates, server rack installation holes.
8.Non-critical components like ground support equipment or tooling fixtures.
9.Maintenance tool racks, testing device frames.
10. Creating artistic patterns or designs in decorative panels and installations.
11. Architectural facade screens, interior metal partitions.
12.Perforating connectors or filter plates in farm machinery and wastewater treatment systems.
13.Seeders, harvester parts, and sludge filtration grids.
