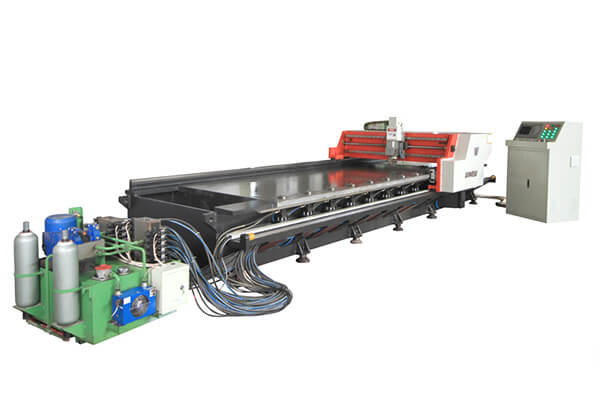

1.Horizontal CNC V Grooving machine's frame and beam are designed with frame structure. The overall rigidity of the machine is good and durable.

2.Strictly in accordance with the machine tool processing technology, using electric furnace tempering, eliminating welding stress and reducing equipment deformation.

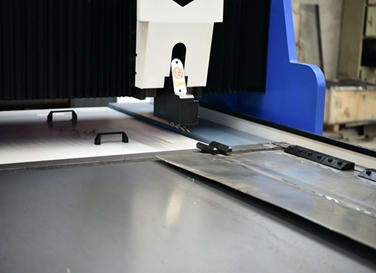

3.The metal sheet is fixed by hydraulic clamping system, which has high slotting speed and ensures strong clamping force. The hydraulic system has accumulator compensation and servo motors can save energy and decrease oil temperature.

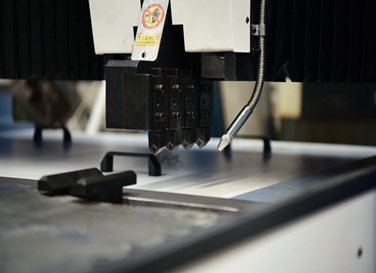

4.The Horizontal CNC V Grooving machine uses four knives to make the “V” groove, so the cutting result will be uniform and the deformation of the workpiece will be reduced. The optional micro-cooling system can extend the tool life and reduce production costs.
5.This machine can work both vertically and horizontally, also can work on both front and back side of the metal sheet.
6.Working speed can be adjusted according to the material and operator.

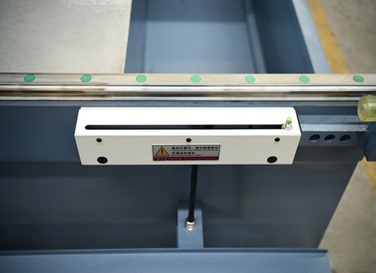

7.Use ball screw and line guide,gear and rack transmission to enhance the machine durability and precision.The repeat positioning accuracy is ±0.1MM.

CNC Horizontal V Grooving Machine Advantages :

1.Low requirements for operators

2When V grooving ,the users donnot need to move the sheet metal.And it will not scratch the surface of plate.

3.After grooving ,the garbage is easy to clean up.

4.The price of horizontal V Grooce machine is lower than that of vertical type.

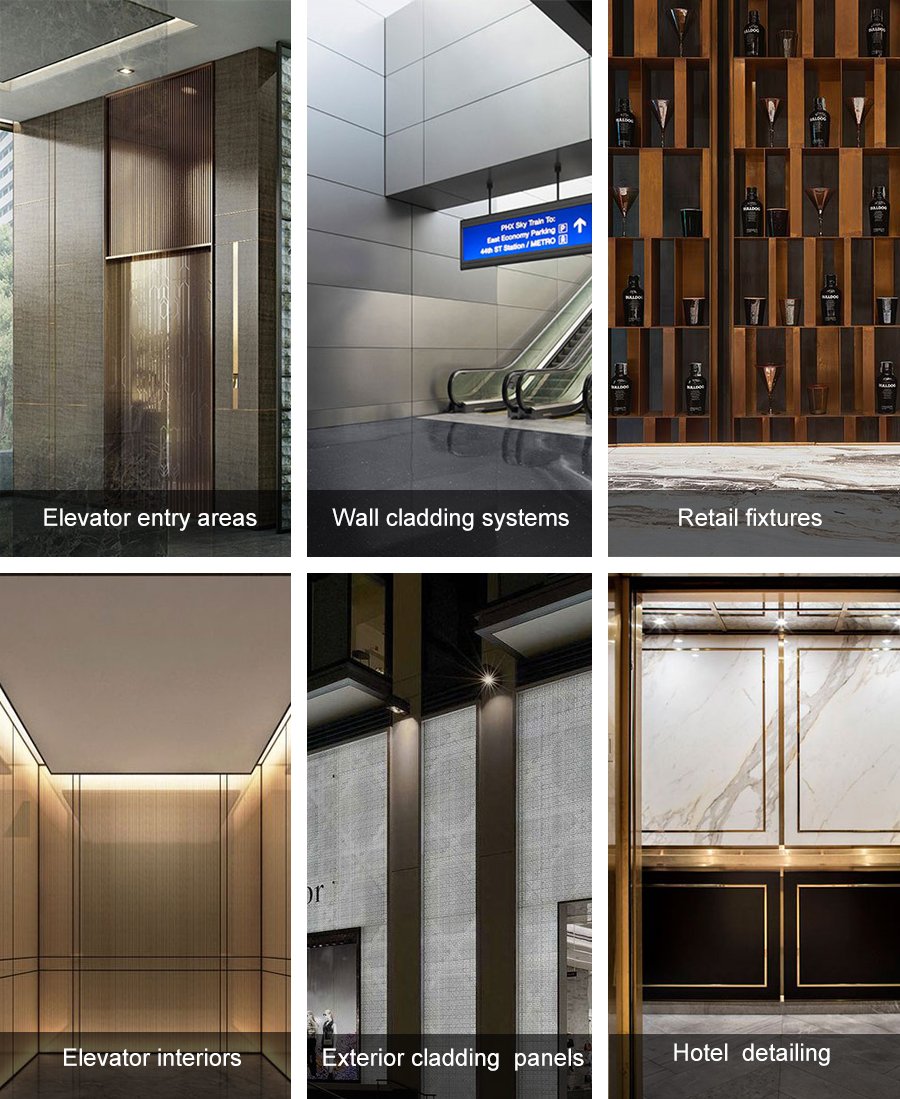

5.Horizontal v grooving machine is a good choice for decoration manufacturers.

6.High stability ,strong rigidity and also convenient in usage.

7.The CNC control system has several parameter to choose ,big in storage and easy in operation.

8.CNC control system has 5 axis is AC servo motor drive,high in control precision.

CNC V Grooving Machine Components:

1.Control System:Japan

2.Hydraulic System:Taiwan famous brand

3.Frequency converter:Mitsubishi

4.Servo motor:Mitsubishi

5.Seal Rinf:VALQUA,Japan

6.Motor:SEW

7.Air switch:Schneider

8.Contactor:Schneider

9.Breaker and button:Schneider

10.Blade:KORLOY ,Korea

11.Linear guide:HINWIN ,Taiwan

12.Wire:IGUS,Germany

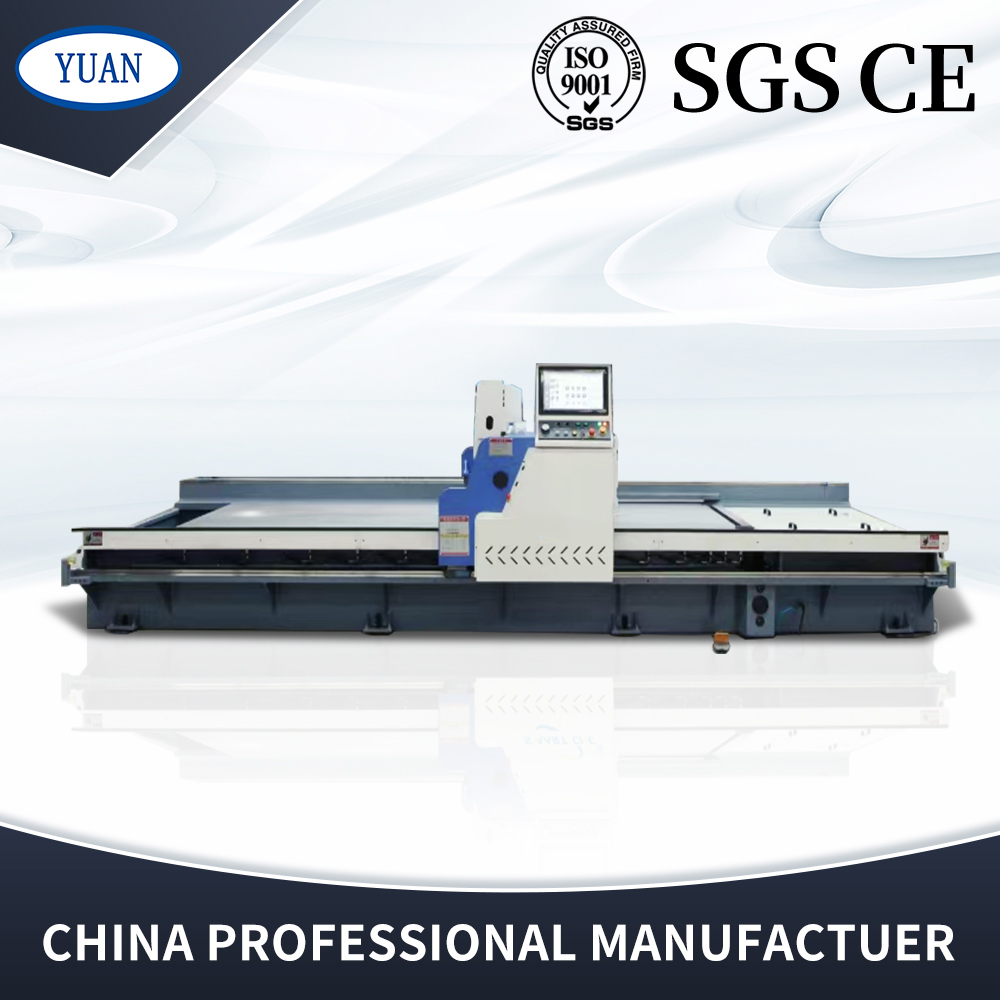

Horizontal CNC V Grooving Machine

1.Suitable for plates less than 3mm.

2.Low reuqirements for operators.

3.When v-grooving ,the users donnot need to move the sheet metal.And it will not scratch the surface of the plate.

4.After grooving,the garbage is easy to clean up.

5.The price of horizontal V groove machine is lower than that of vertical type.

6.Horizontal v-grooving machine is a good choice for decoration manufactuers.

Benefits of CNC V Grooving

High Speed
V-Groover can machine more grooves in one hour than a traditional milling machine or router can perform in eight hours.
High Accuracy
Sheet metal grooving machine is set to a highly accurate measurement – so much so that a grooved sheet could be put through a second time with no deviation or alteration to the first groove.
No Wastage
Channelling out solid bar material creates waste from an expensive commodity. V-Grooving and folding creates minimum waste and is on average a tenth of the cost of working with solid bar metals. Precision folding – V-Grooving allows for folding to a tight radius, creating sharp bends.
Groove shape options
V-Grooving can be created not just in one shape of V. Wider V, semi-circular and square grooving is also possible allowing for a range of design variations.
Aesthetic

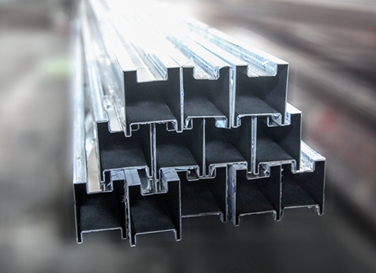

V-Grooved and folded profiles in appearance look as if they are cold-drawn or extruded metal.

CNC Grooving Machine Application:

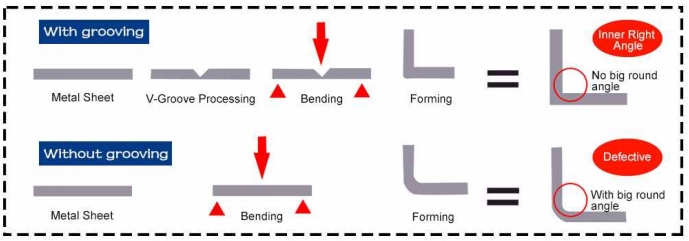

Use CNC V Grooving Machine to line and planer v-shaped groove on the position where the metal plate needs to be bent.

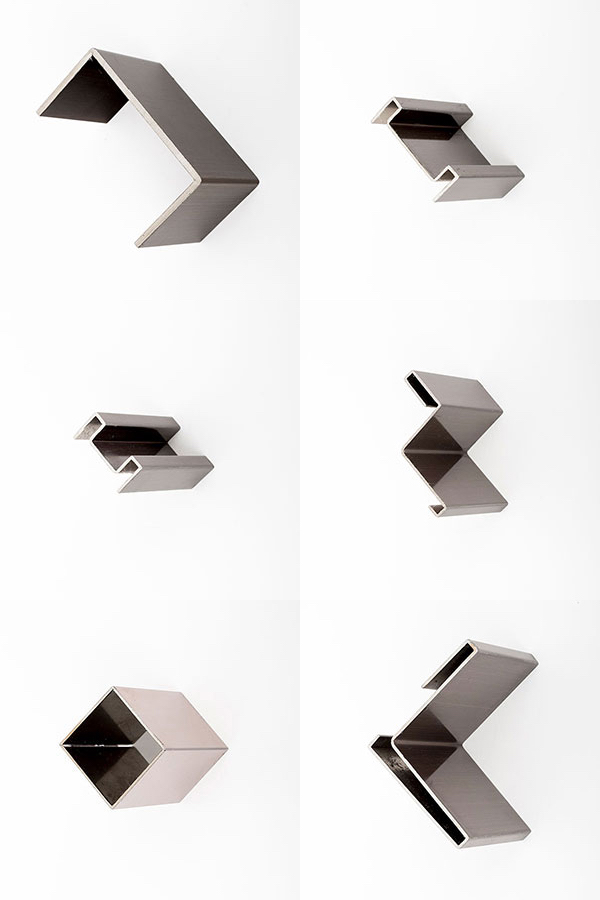

After grooving ,you can use the general mold to bend the speical closed shape materail on the common bending machines.

The iron plate after grooving is eaier to bend.And then ,the quality and shape of press brake bending will be better.

Horizontal groove machine is suitable for slotting large sheet metal with high requirements.
