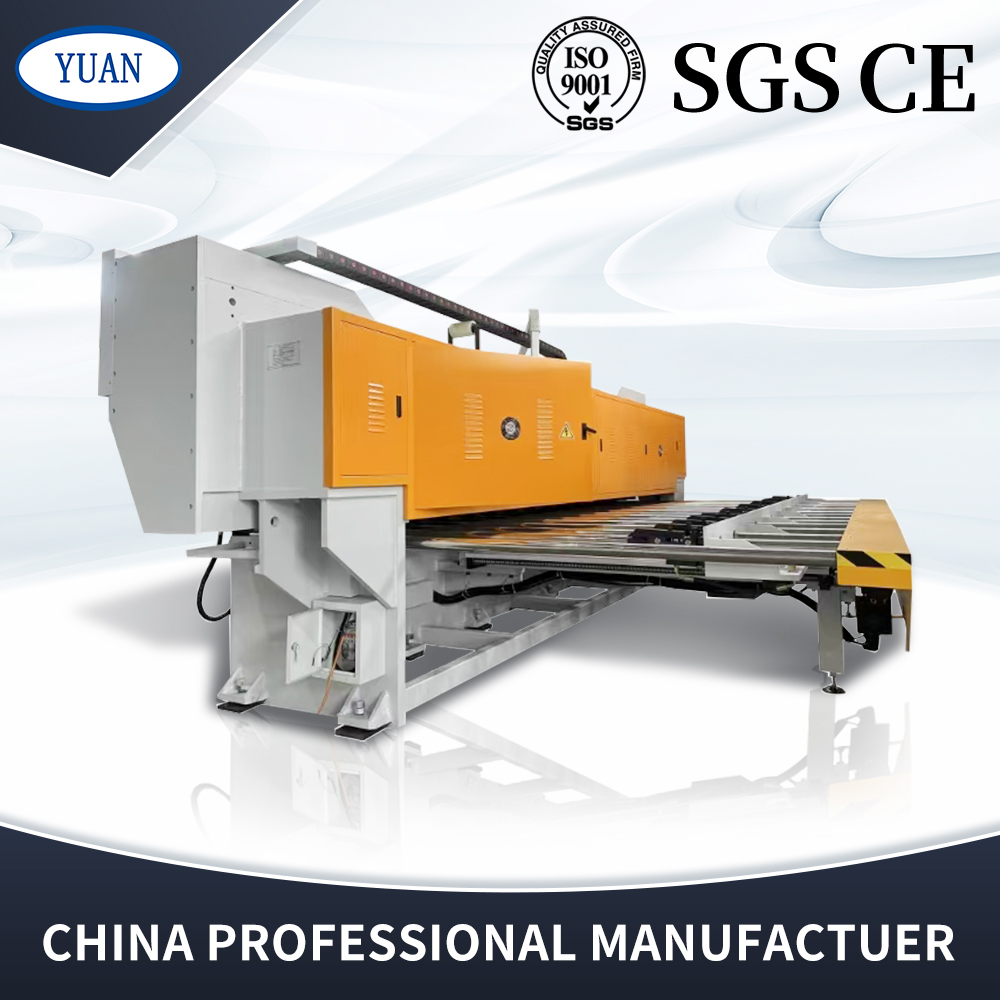

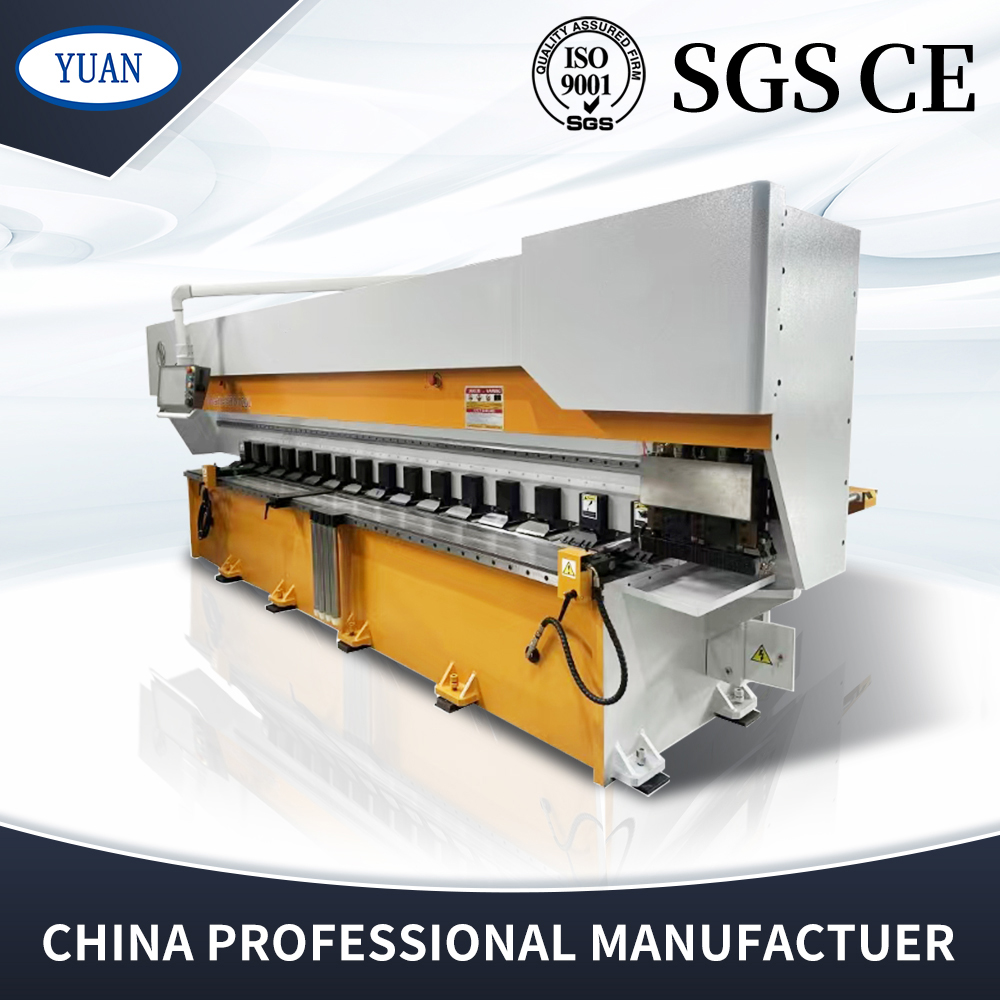

A Vertical V Grooving Machine, also known as a V-groover or V-grooving equipment, is a specialized machine used in metalworking industries. It is designed to create V-shaped grooves or notches on the surface of sheets or panels.

1.Bevelling available.Available to groove not from one side of plate and end not at another side.
2. Applying the numerical control systems provided by Taiwan Yitu , so the technology is mature, and the performance of products is more stable and reliable.
3.The electronics are original products provided by the one of the three well-known global manufacturer-- Schneider, which can ensure life and stability of the circuit.
4.Work table surface is equipped with a mechanical compensation, after long-time use it can adjust error of depth of V groove
5.Mitsubishi servo motor cutting feed, with high accuracy and is reliable, and the accuracy even be 0.01mm.
6.Mitsubishi servo motor control turret and feeding device, has accurate chipping and precise positioning.
7.Allowing using three knives to process "V" groove, thus the cutting amount can be allocated evenly,and the deformation of the workpiece can be reduced.
8.Using pneumatic control system of Taiwan Yadeke, clamping and release of the platen and jaws are fully automated, and the board will not get pined, the pressure is stable and reliable during the process.
9.Work tables are made of carbon tool steel,the hardness of high-frequency surface can reach 55-60HRC (ordinary table<30HRC) after hardening .

Adopt all steel welded structure,via high temperature to eliminate internal stress ,with high mechanical strength and good rigidity.These grooves are often used for various purposes, such as facilitating bending or forming operations, improving the aesthetics of a material, or creating joints.

Equip with double tool carriage and largely improve the grooving efficiency.

Hydraulic clamping system and hydraulic independent clamp,which make the grooving efficiently.

The left and right movement of the tool rest adopts the gear rack transmission structure,the slotting process is smooth and efficient surface is smooth.

Integrated hydraulic station ,imported brand hydraulic valve parts ,compact strycture and low failure rate.

Automatic lubrication system reducies mechanical friction.

Foot pedal with emergency stop.

Large torque,high quality reducer.

High efficiency chip blowing device to avoid workpiece damage.

Imported special blades.

Repeated positioning accuracy of rear tube position:+-0.03mm

Less power consumption.

Low noise &smooth  operation gives higher efficiency of operator.

Water cooling system,cooling blades ,reduced wear,increase using life.

There are 4 axes,which are controlled by AC servo motor system with high control accuracy.

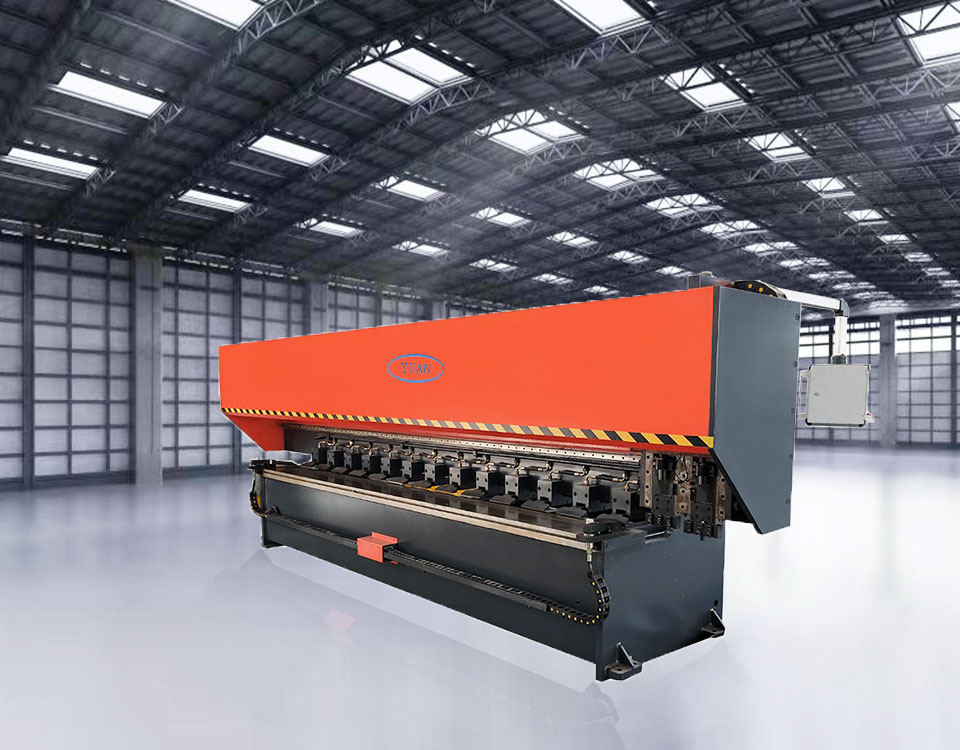

Vertical CNC Grooving machine

1.Suitable for 3-5mm thickness plate

2.Used for grooving special-shaped plates.

3.Better for aluminum plate

4.Compared with horizontal grooving machine ,the surface of aluminum plate is easy to be uneven.If you use a horizontal v grooving machine

the aluminum plate is likely to be broken down.

5.The price is relatively high,compared with the horizontal model.

6.In the use of vertical V grooving machines,users need to move the plate.And there are certain requirements for the site and space.

Parameters:

Advantage and Differences:

1.Suitable for 3-5mm thickenss plate.

2.Used for grooving for special-shaped plates

3.Better for aluminum plate:When placed horizontally,the surface of aluminum plate is easy to be uneven.If you use a horizonal v-groove machine,

the aluminum plate is likely to be broken down.

4.The price is relatively is high,compared with horizontal model.

5.In the use of vertical V grooving machine ,users need to move the plates.And there are certain requirements for the site and space.

6.High stability ,strong rigidity and also convenient in usage.

7.The CNC control system has several parameter to choose,big in storage and easy in operation.

8.Machine worktable use carbon steel .The hardness after quenching reaches HRC55 or more.Wear the table surface is small and can be changed.

9.Use ball screw and line guide,gear and rack transmission to enhance the machine durability and precision.The repeat positioning accuracy is ±0.03MM.

Applications:
Vertical V Grooving Machines are used in various industries for applications such as architectural metalwork, sign making, cabinetry, and panel processing.
