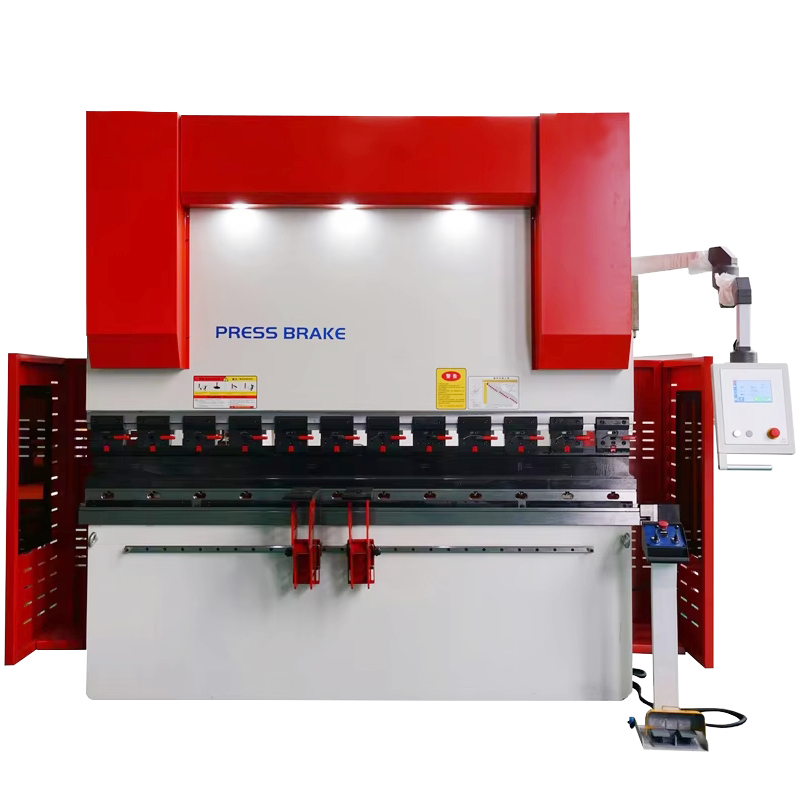

Hydraulic Press Brake With Tp10 Control  Feature:

1.All components are engineered to ensure minimal deflection and maximum rigidity, meeting international standards.

2.The hydraulic cylinders are synchronized by a heavy-duty torque tube welded to the levers, ensuring perfect parallelism between the cylinders and the working surfaces of the table.

3.The low-noise hydraulic system is designed according to international standards and assembled using components from globally recognized manufacturers.

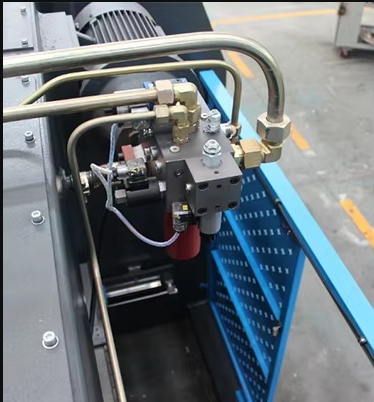

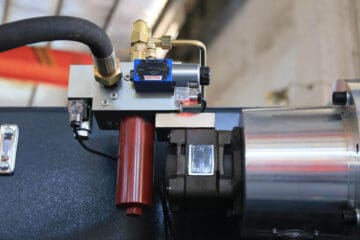

4.The valves are mounted on a specially designed, compact manifold block to minimize piping and reduce the risk of leaks. The large oil reservoir ensures efficient cooling.

5.The imported sealing kit protects the bore from scratches in case of seal failure. An additional backup seal provides extra sealing, allowing the machine to operate temporarily at a reduced pressure while waiting for seal replacement, thus avoiding downtime.

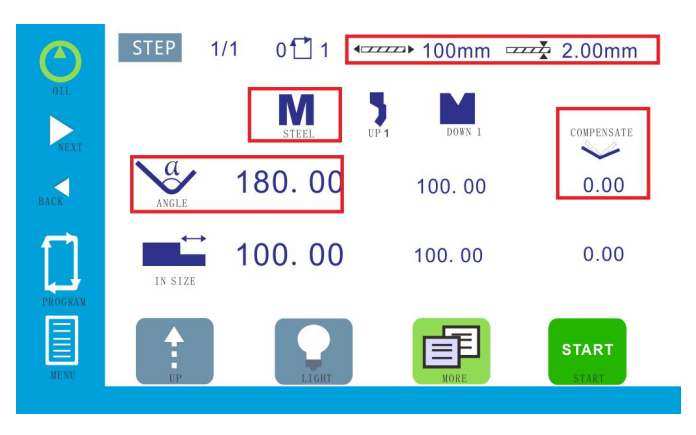

  TP10 CNC Touch Screen Control:

The TP10 CNC Controller features a 10-inch high-definition TFT touch screen with excellent contrast, making it easy to read and interact with. The user interface is simple and intuitive, with easy button operations and a clear menu layout. You can switch between English and Chinese, making it versatile for international use.

Key features include:

• Automatic Bending Calculations: The system automatically calculates bending angles and lengths, improving accuracy and efficiency in your bending operations.

• Angle & Height Compensation: Ensures precise bends by automatically adjusting for variations in material thickness or machine alignment.

• Mold Management: Simplifies tool changes with an intuitive mold management system, making it easier to track and select the right tooling for each job.

• Multi-Step Bending Sequences: Supports complex bending processes with multiple steps, allowing for more flexibility in production.

Hydraulic Press Brake Machine  Configuration:

Innomotics Motor

The motor from a renowned German brand enhances the machine's lifespan and ensures it operates in a low-noise environment.

American Sunny Brand Hydraulic Pump

The hydraulic pump from a world-renowned American brand delivers excellent performance and provides strong power for the entire hydraulic system.

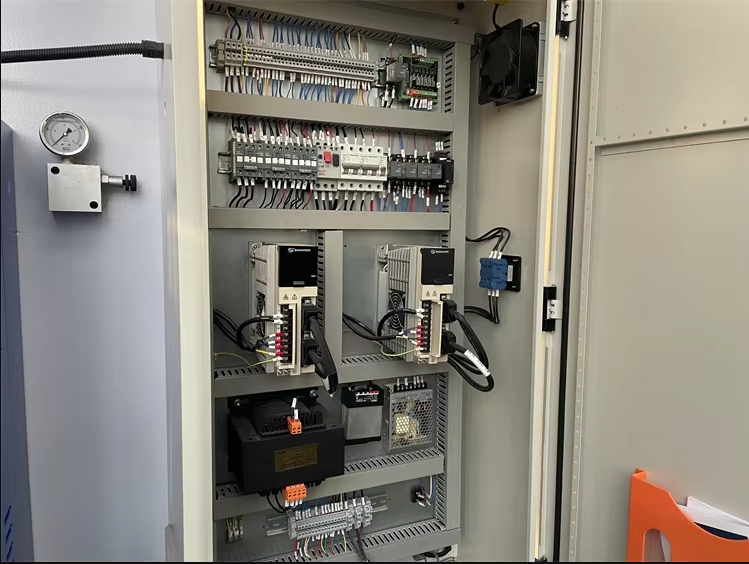

Schneider Electrical Components:

High-quality electrical parts are designed to perform reliably even in unstable power conditions, and customers can easily find replacements anywhere around the world.

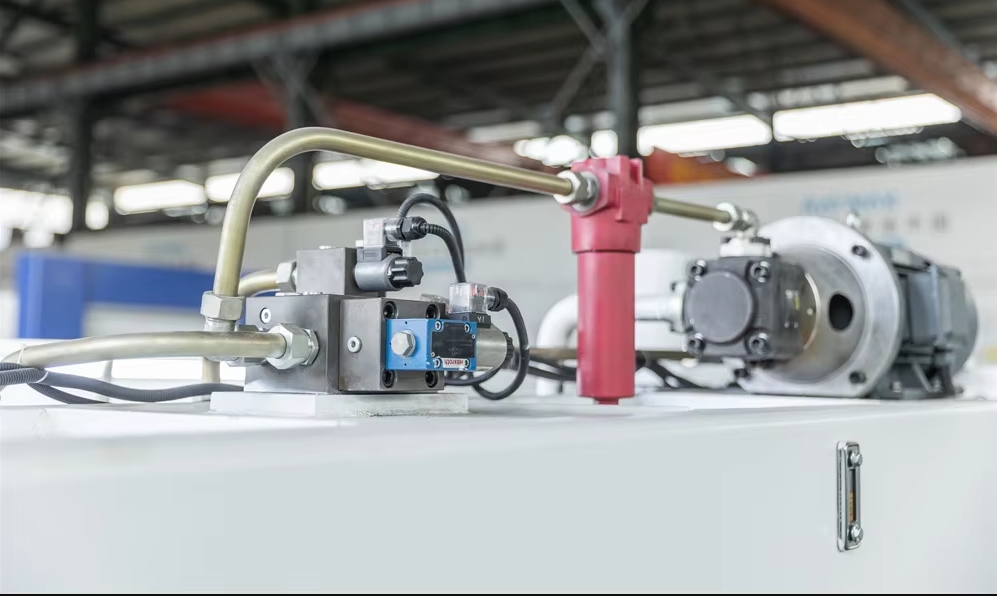

Rexroth-Bosch Valve

The world-renowned brand Rexroth, a part of Bosch, is a leading supplier of professional hydraulic valves.

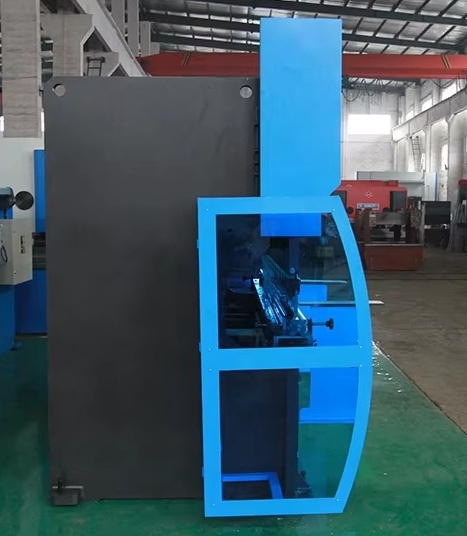

Hydraulic Press Brake Safety Fence:

press brake side protective guard on each side ,protect operator safey.

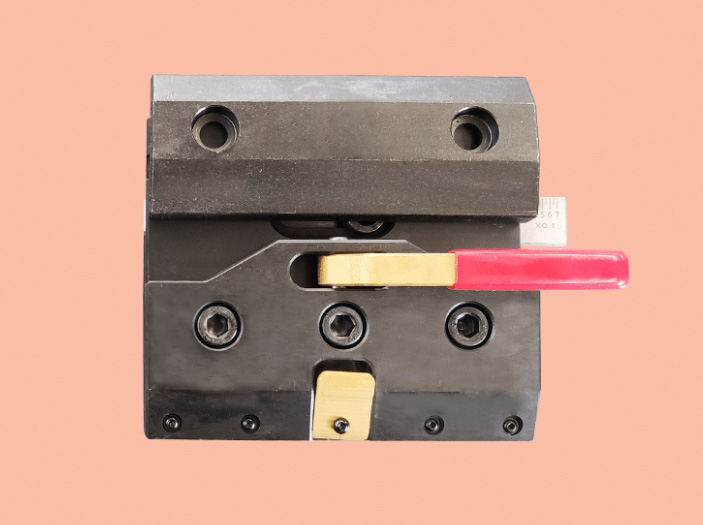

Press Brake Express Clamp

The press brake fast clamp is standard equipment designed to quickly replace the press brake top punch. It allows you to easily unclamp from the side or bottom, saving time and increasing convenience

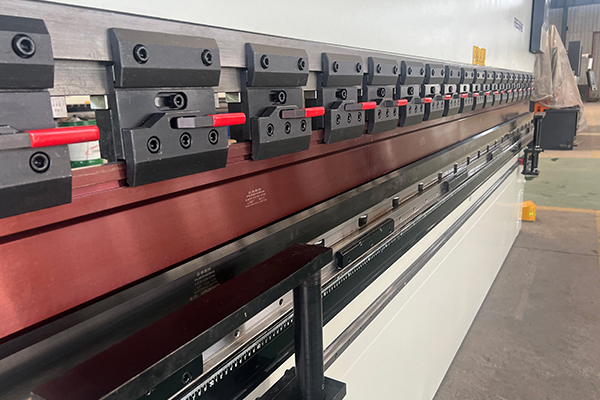

Hydraulic Press Brake Punch & Die

The standard top punch and multi-V bottom die are suitable for bending sheet metal of various thicknesses. Additional press brake tooling options are available based on your specific needs.

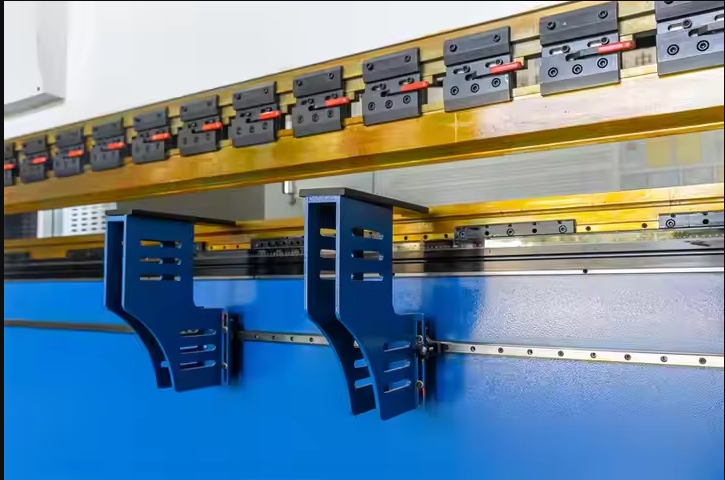

Press Brake Front Arm

The press brake fron arm with linear guide can move in many directions.

Hydraulic  Press Brake Parameters:
