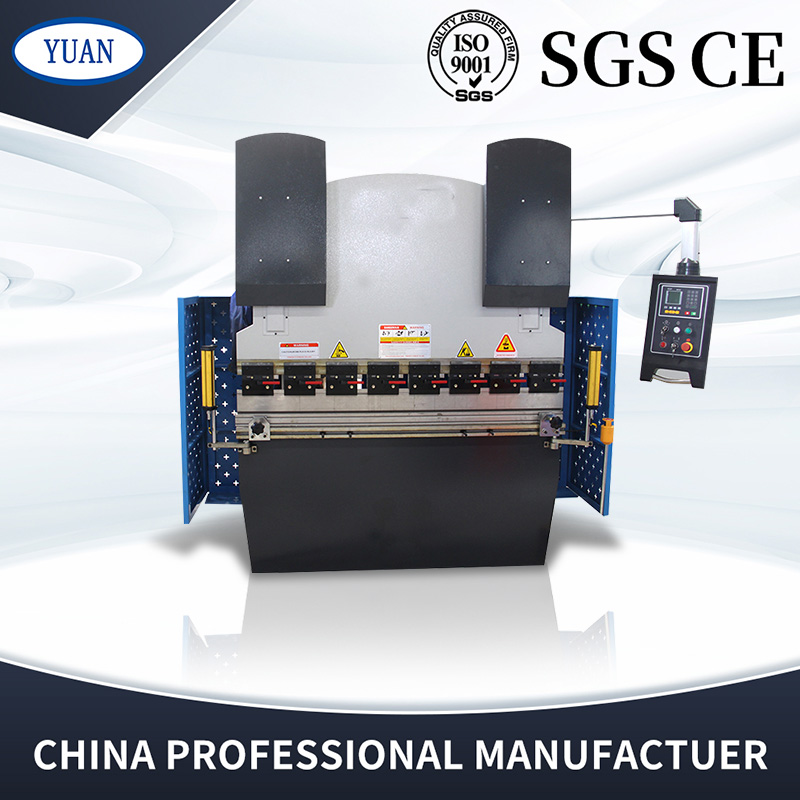

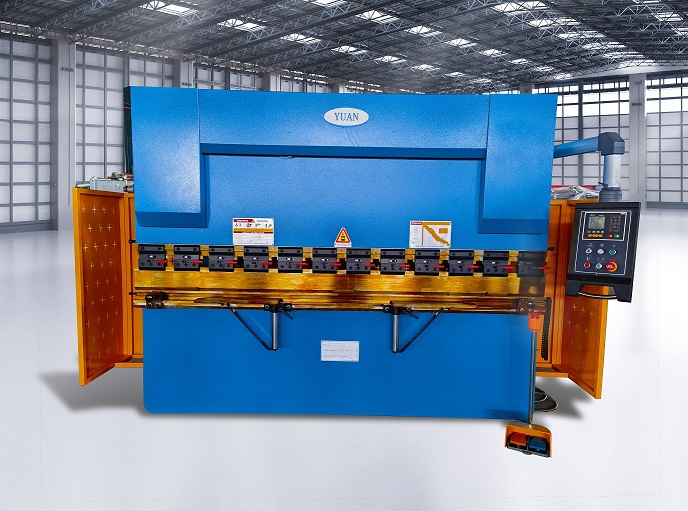

The small press brake torsion bar press brakes are optimal for the forming of parts with a low operation cost.
40 Ton Small Hydraulic Press Brake uses the mold (punch and die to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
The 40 ton Press Brake Machines system is E21,and is equipped with a frequency converter and a ball screw to ensure the accuracy and speed of the machine.
The positioning of back gauge is more accurate.At the same time ,the system has 40 program programming ,each program up to 25 steps can be stores.The operator will get a powerful output to ensure that sensitive bending work can be completed perfectly.In addition, the equipment can be made according to individual requirements,so you can meet the functions required for specific sheet metal production needs.
Standard components

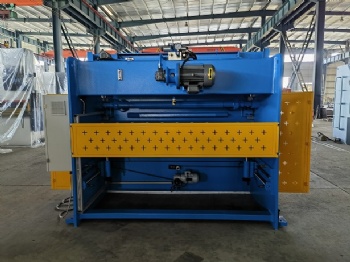

1.The frame is heavy-duty welding structure and it assures precise results.It is made of high quality mild steel
and it has undergones systematic mechanical processes.

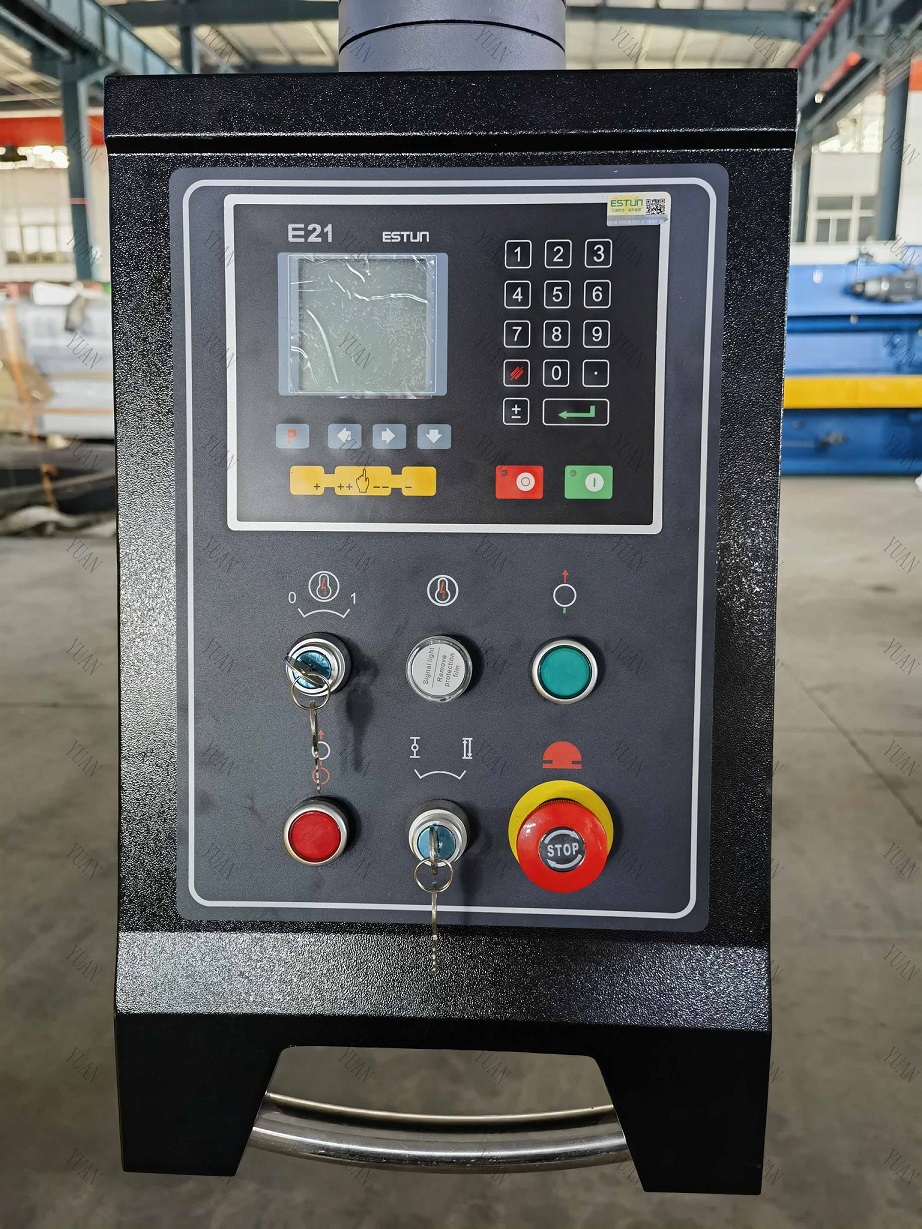

2.Estun E21 NC Controller
3.Multi 4 side V die of 835mm and a fractioned punch

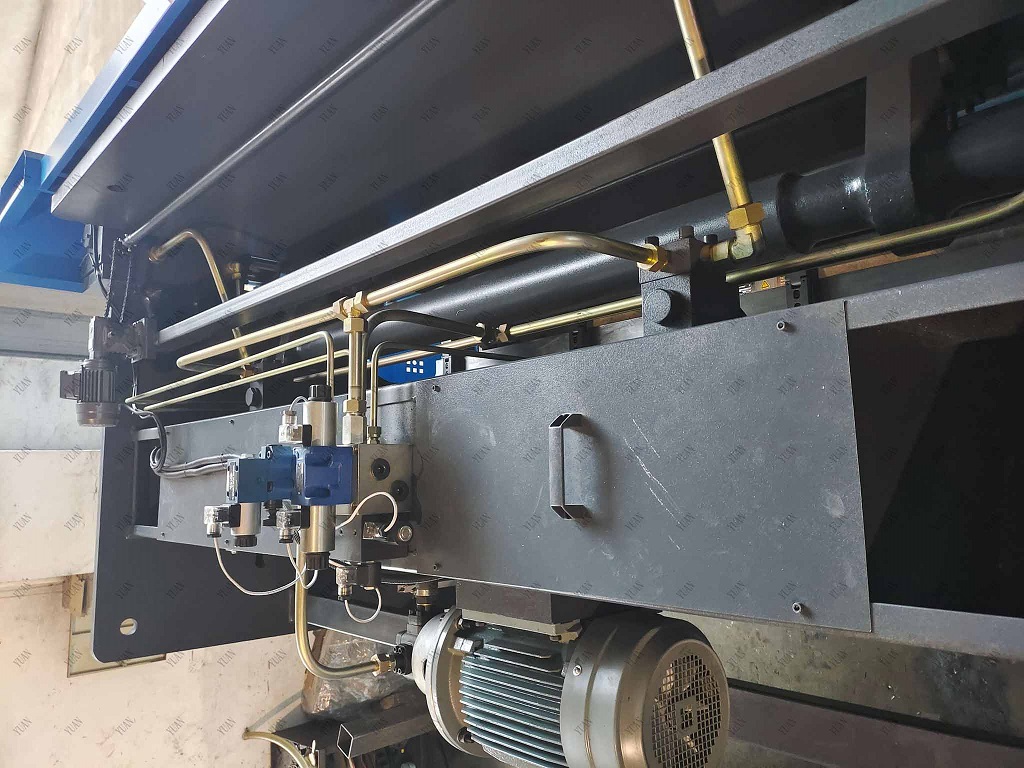

4.Bosch-Rexroth Hydraulic System
5.Siemens Motor
6.X,Y-Axis Motorized Back Gauge
7.High Speed Servo Back Gauge
8.Sunny Pump from USA
9.Standard top and bottom mould with manual clamps
10.Two piece press brake fingers
11.Schneider electrical cabinet
12.Delta inverter with ball screw and polished rod with 0.05mm accuracy.
Main configuration:
1.Estun E21 Control unit
Control X axis working into position accurately.
Work precision with frequency transformer.
Program the software for future usage and has memory.
Set up different steps in one program timer.
Control the bending time .

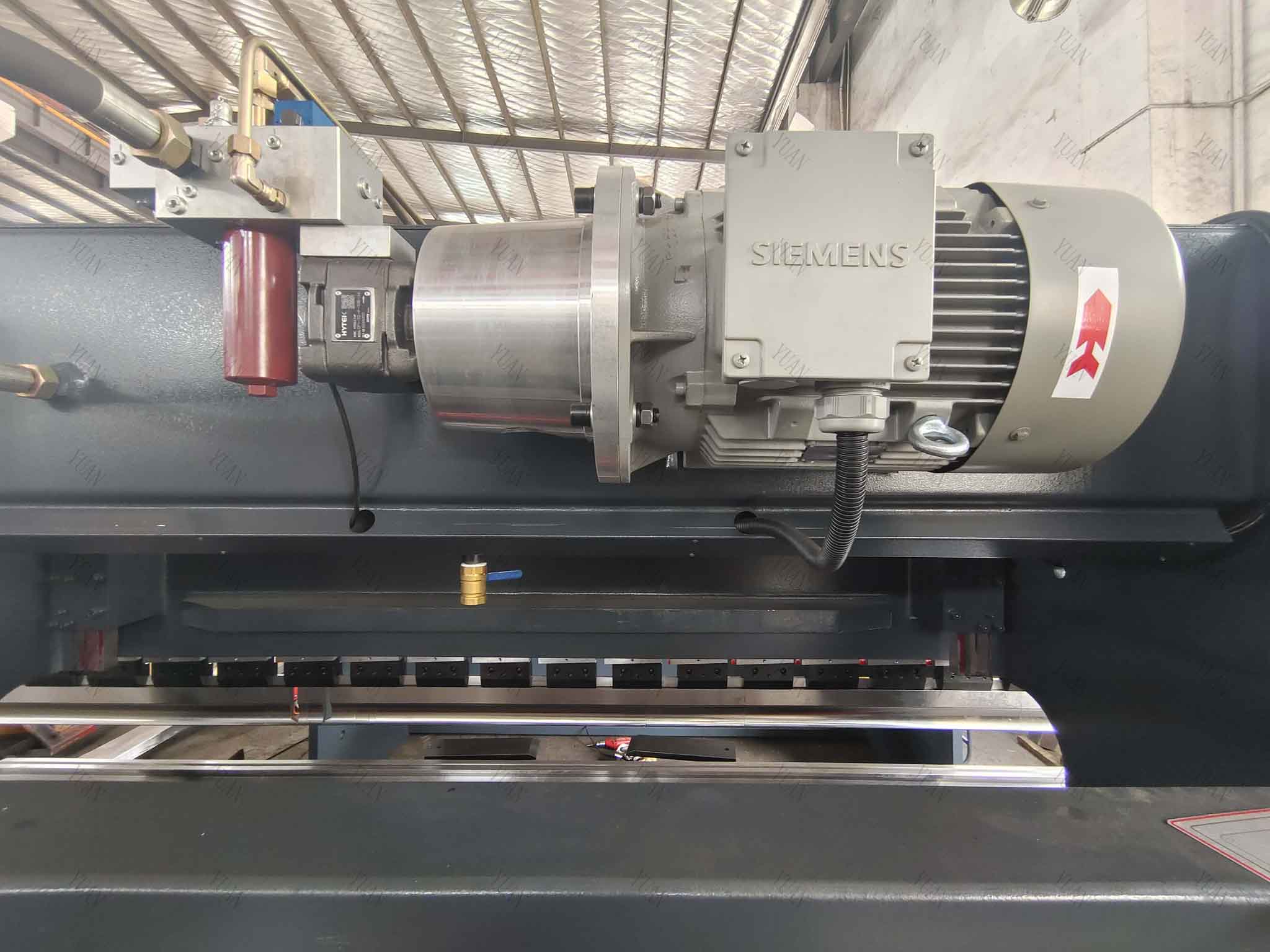

2.Siemens Motor
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment.
3.EMB Oil Tube Connection From Germany
Using Germany EMB Tube and connectos reduces the adds againest welding slag jaming the valves and affect oil flowing

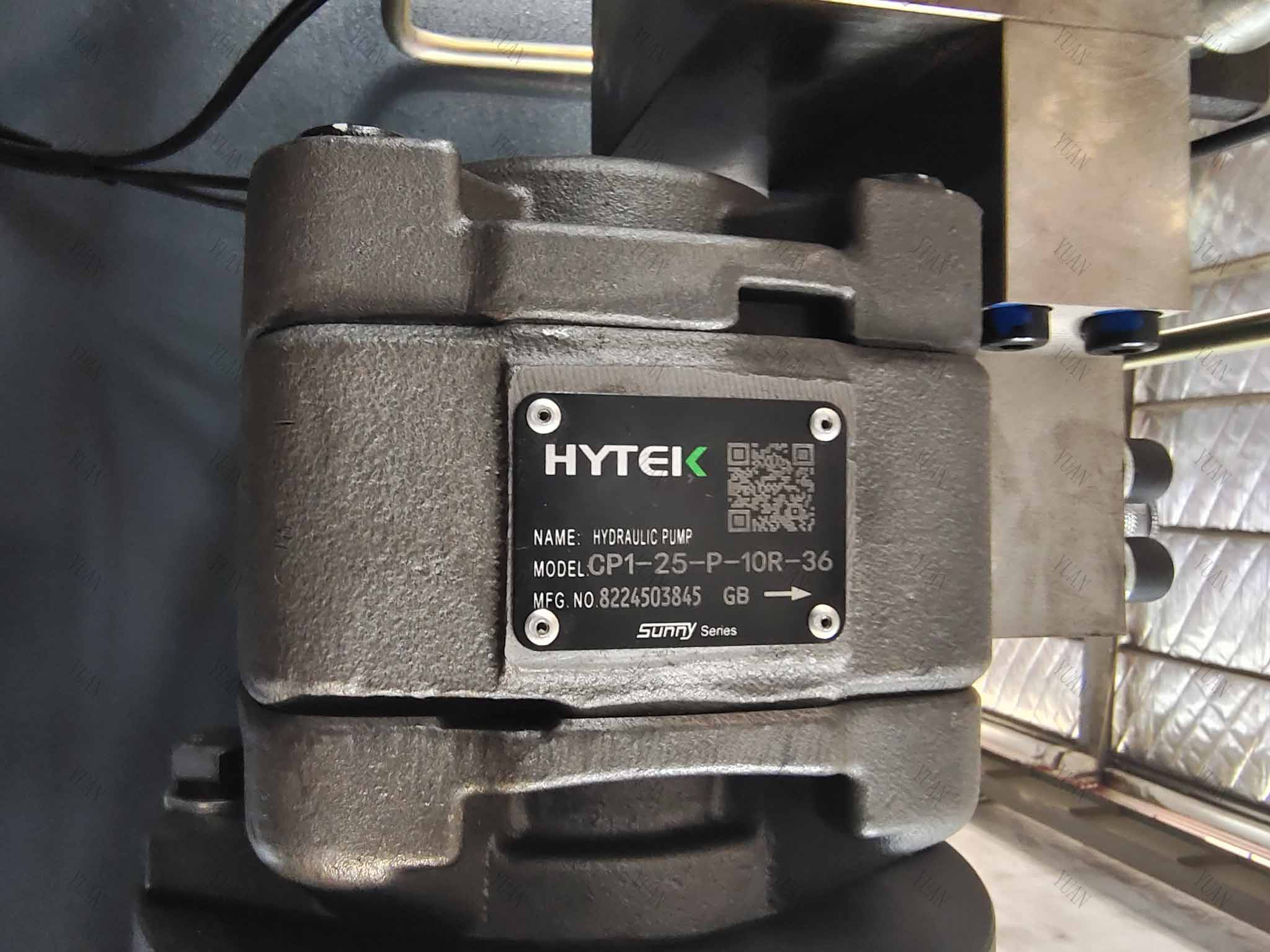

4.USA Sunny Hydraulic Pump
5.Back Gauge Ball Screw

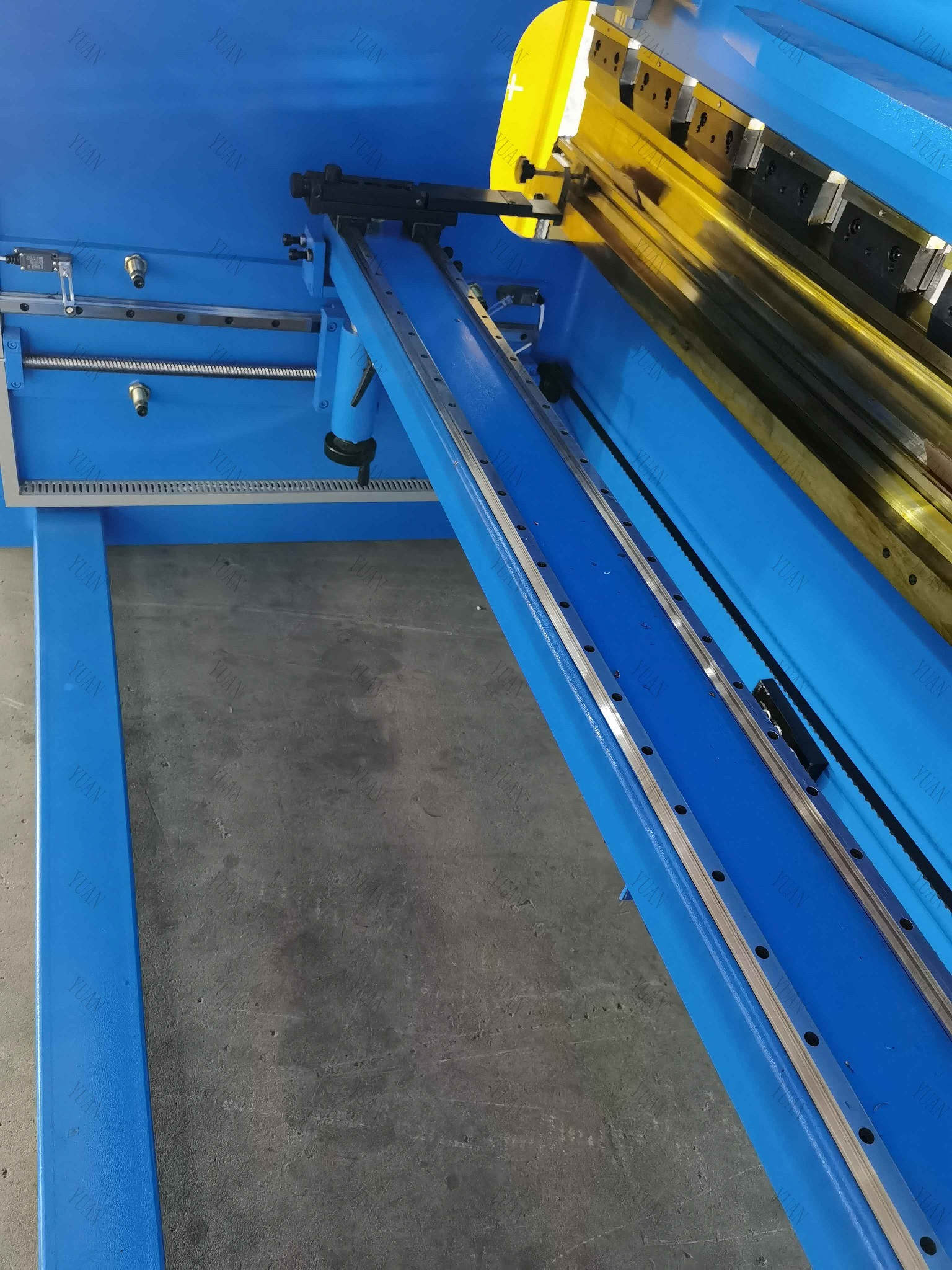

High precise backgauge,equipped with Taiwan HIWIN ball screw and polished rod structure.
Press Brake fingers are mounted on two linear guides,move smoothly.

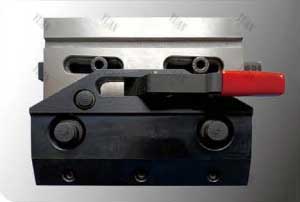

6.Press Brake Punch with Promecan European or American Fast Clamp

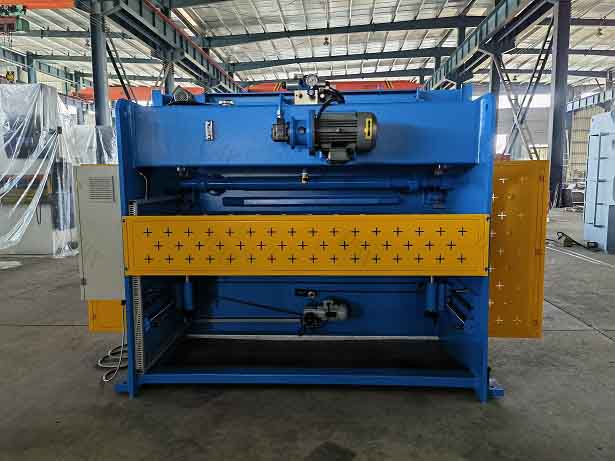

7.Machine back gauge with safey door.
8.Optional controller:

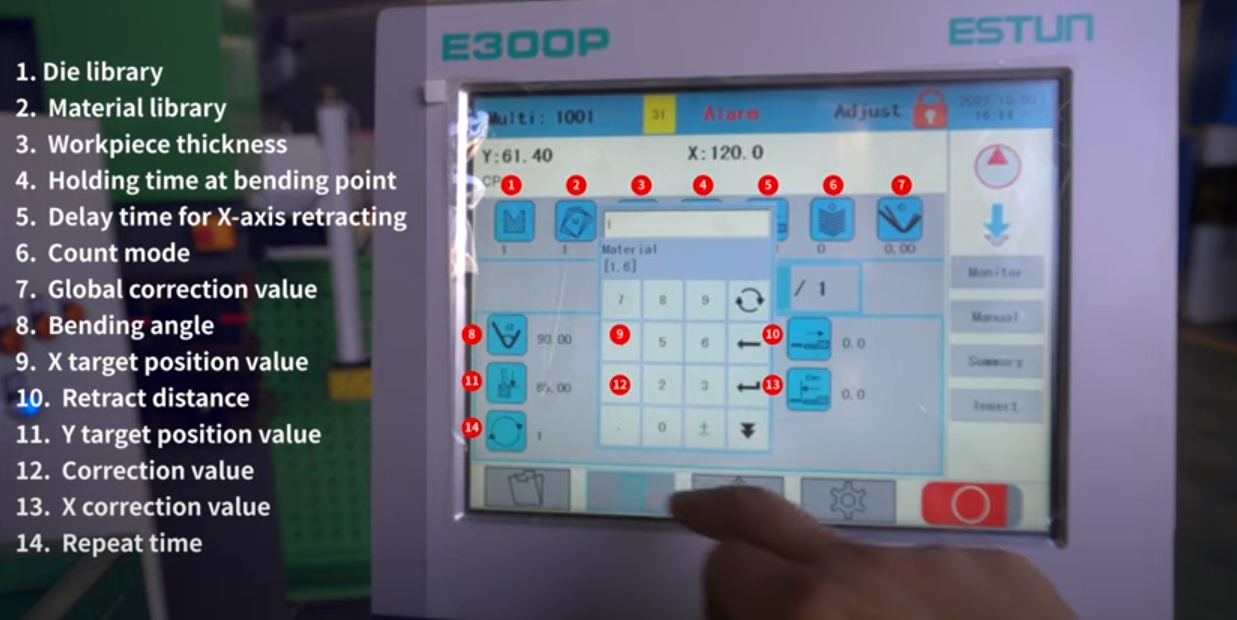

8.1.Estun E300 controller
8.1.1.Die library
8.1.2.Material library
8.1.3.Workpiece thickness
8.1.4.Holding time at bending point
8.1.5.Delay time for X-axis retracting
8.1.6.Count mode
8.1.7.Global correction value
8.1.8.Bending angle
8.1.9 X target position value
8.1.10Retract distance
8.1.11Y target position value
8.1.12Correction value
8.1.13 X correction value
8.1.14 Repeat time
8.2 Tp10S controller
8.2.1.Cylinder stroke (Yaxis) Control
8.22.Backgauge (X axis )Control
8.2.3.Angle Programming
8.2.4.Tool Programming
8.2.5.Retract function
8.2.6.Up to 220 programs
8.2.7.Servo control
8.2.8.Up to 24 bends per program
8.2.9.ARC Bending Function

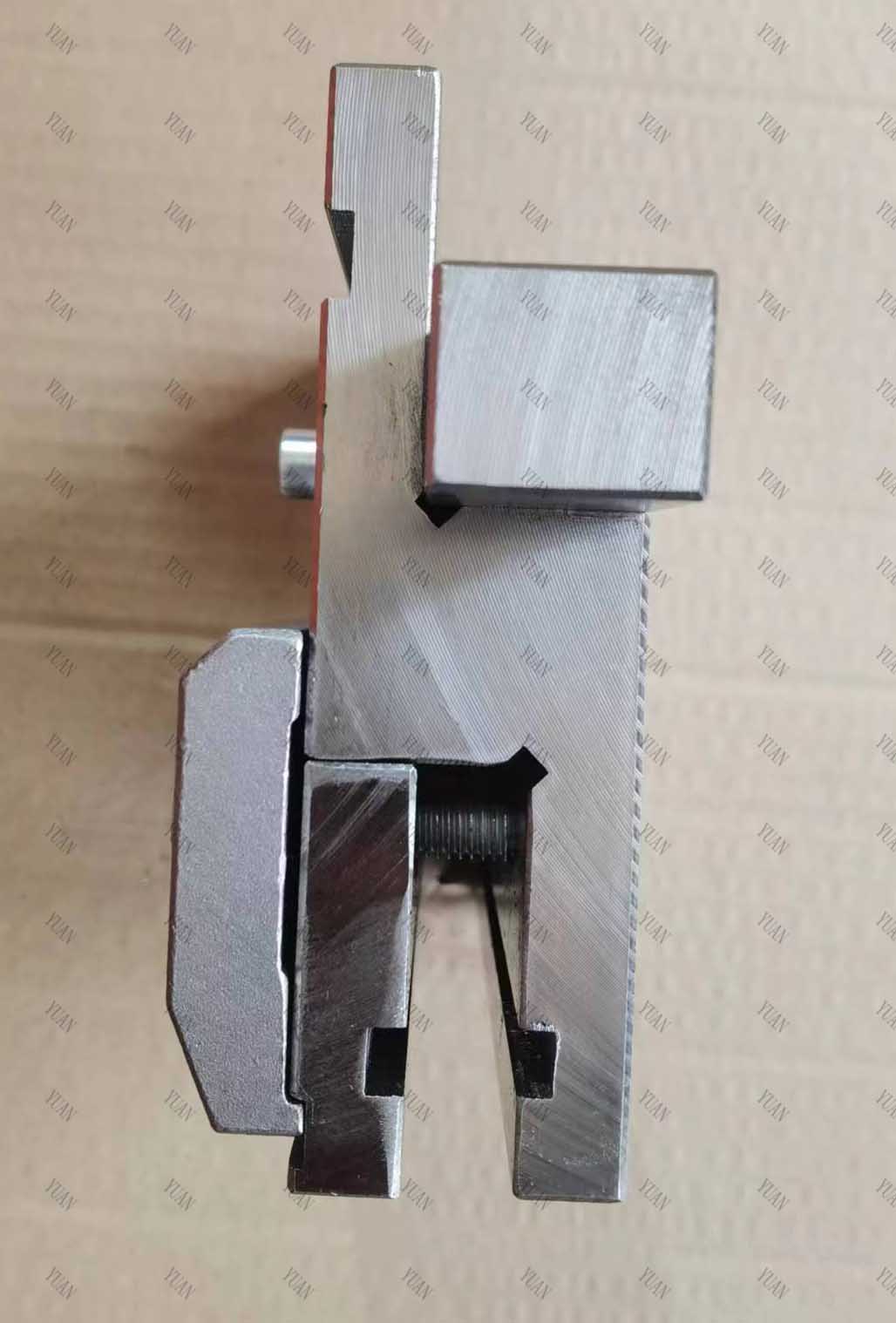

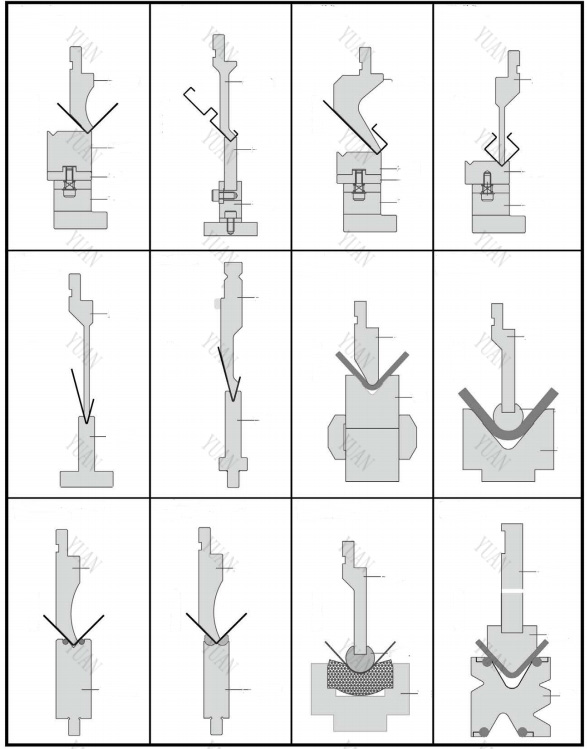

9.Press Brake Punch and Die
Parameters:
No | Name | WC67Y-40/2500 |
1 | Nominal pressure | 400 KN |
2 | Working table length | 2500 mm |
3 | Distance between uprights | 2100 mm |
4 | Ram stroke | 100 mm |
5 | Max.opening height | 330mm |
6 | Throat depth | 250mm |
7 | Approaching speed | 60 mm/s |
8 | Working speed | 8-12 mm/s |
9 | Returning speed | 70 mm/s |
10 | Main Motor power | 4kw |
11 | Overall dim. (L*W*H) | 3300*1200*1900mm |
12 | Weight | 3,500 KGS |
