Sheet Follower Press Brake

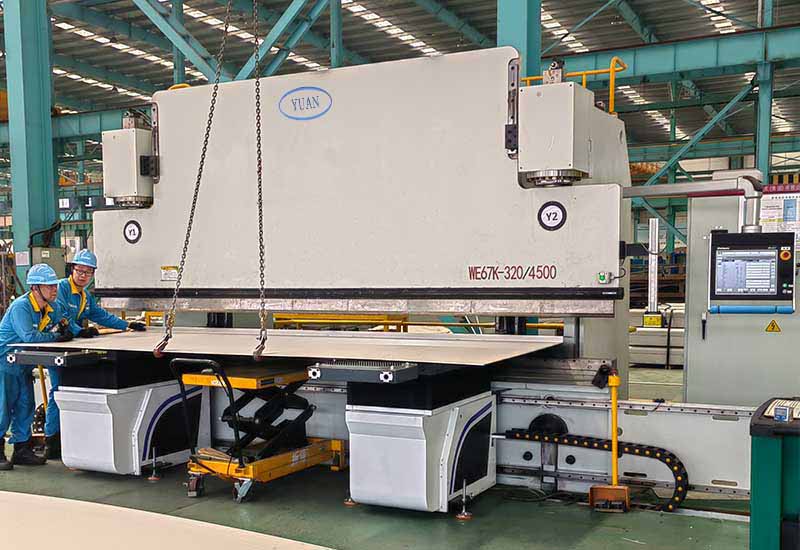

Press Brake Sheet Follower also called Press Brake Material Handling System is Suitable for large size sheet metal bending, reduce artificial .It is an important press brake accessories or aid.

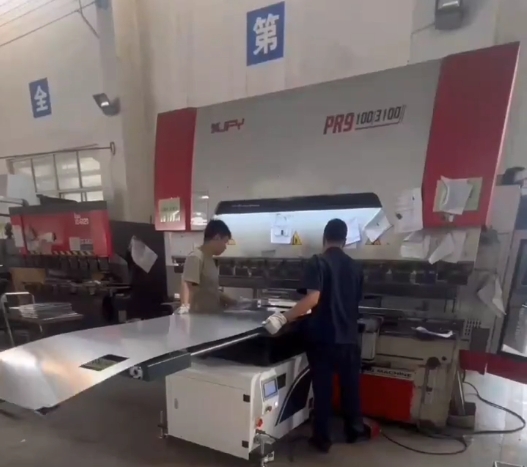

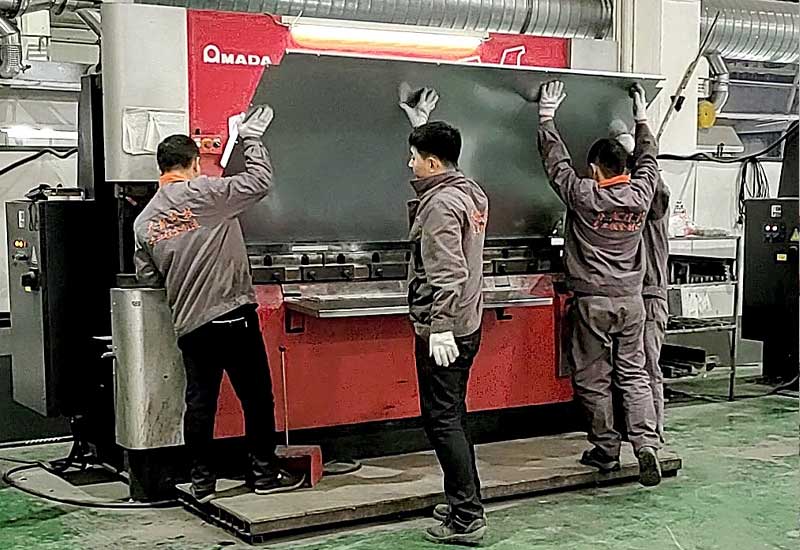

In tradition time ,it is workers support big size plate when bending it on press brake.Now sheet follower can help workers to do this job.
The sheet follower can improve press brake processing efficiency,ensure the accuracy of bending angle.
Accurately read the displacement data of Y axis and keep 100% synchronization with Y axis.
The press brake bending follower has its control system, no need to upgrade the original system of the bending machine .
Suitable for matching with various types of press brake .
Adjust the up and down movement according to the height of the die, and the size of the V slot .
Equipment with a brush table to prevent any sheet from being scratched, slipped or dropped .
Flexible and easy to use, easy to load and unload, realize a multi-platform sharing mode with moving.

There is no need to take the signal from the press brake to change the press brake electrical box, and install a magnetic scale

Touch screen PLC programmable control.

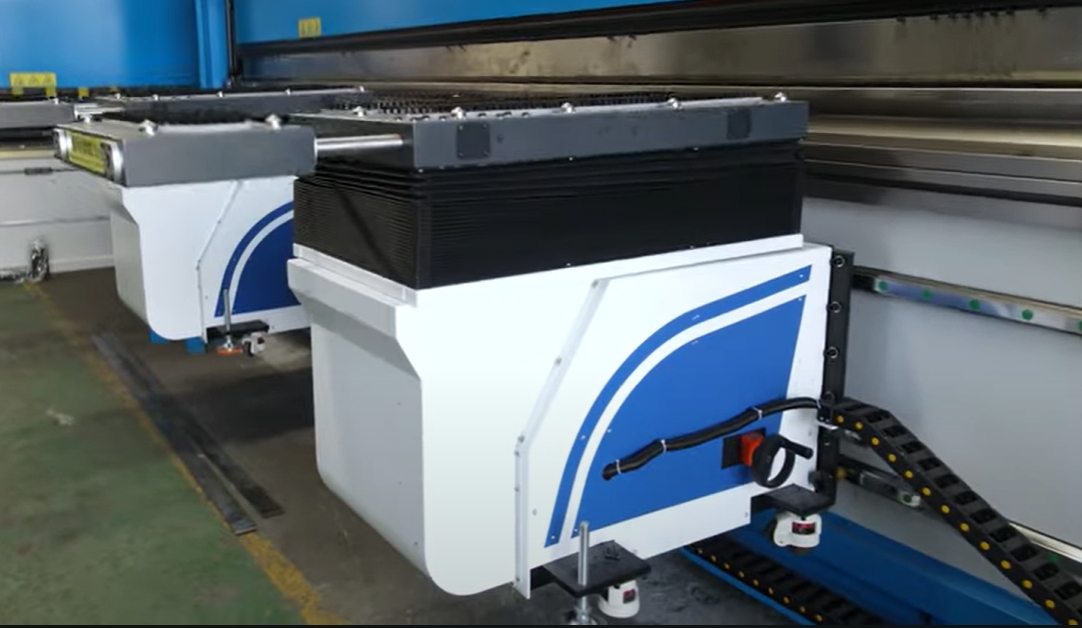

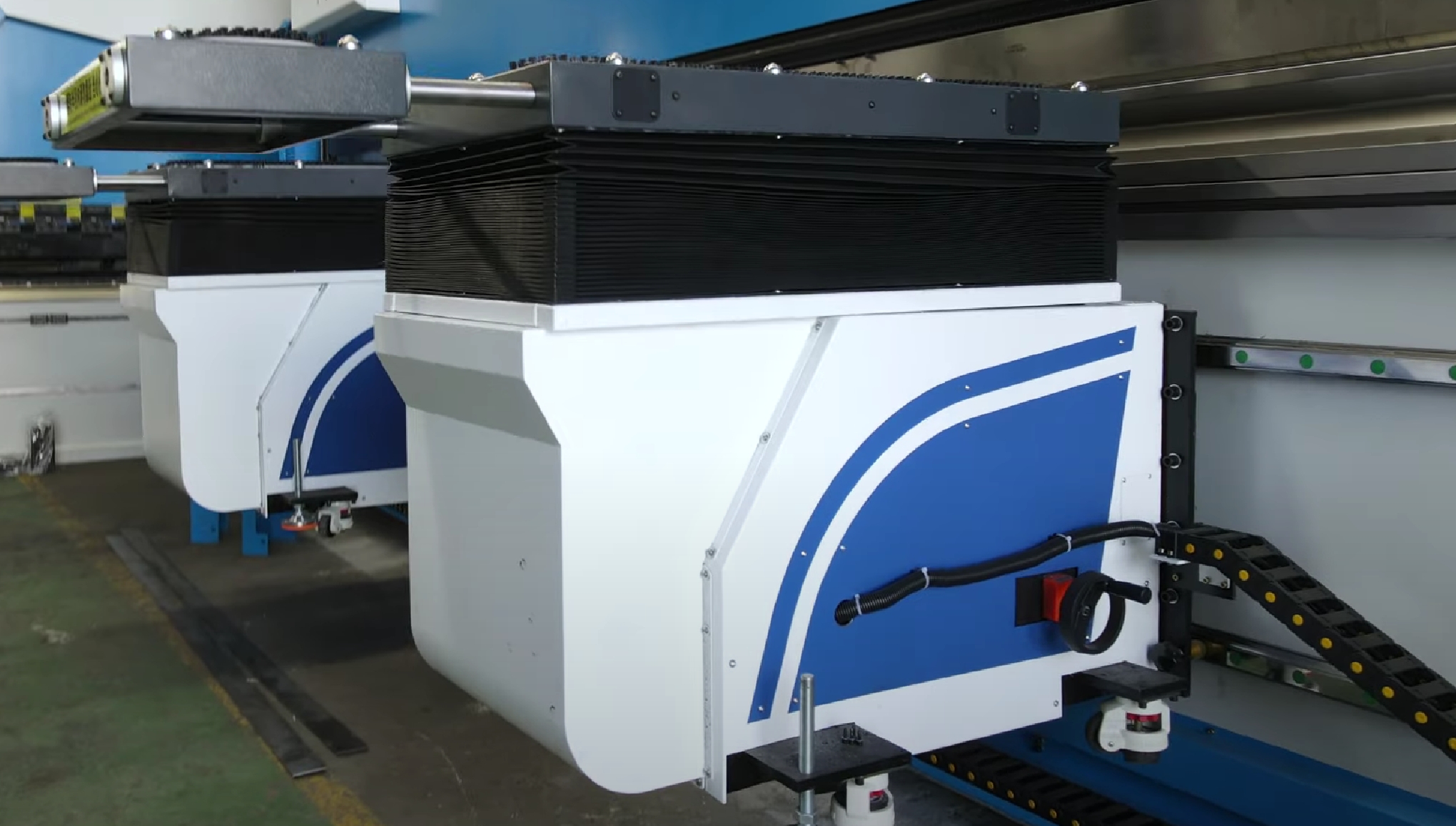

The trolley type can be equipped with ground rails, which is convenient for installation and disassembly.

Feature:

1.Independent PLC control

2.Floot type ,small foot print,easy to move in the sheet metal workshop

3.Compact structure,robust body.

4.Servo motor drive and PLC controller consists of closed cycle.

5.Magnetic railling ruler for synchronization with press brake machine

6.X axis has manual and CNC ,two types for upward press brake and downward press brake .

7.Multiple lift weight for handle different size materail

8.Floor type press brake sheet follower can assembly ground rack .

9.Working table with brush and ball for no mark handle

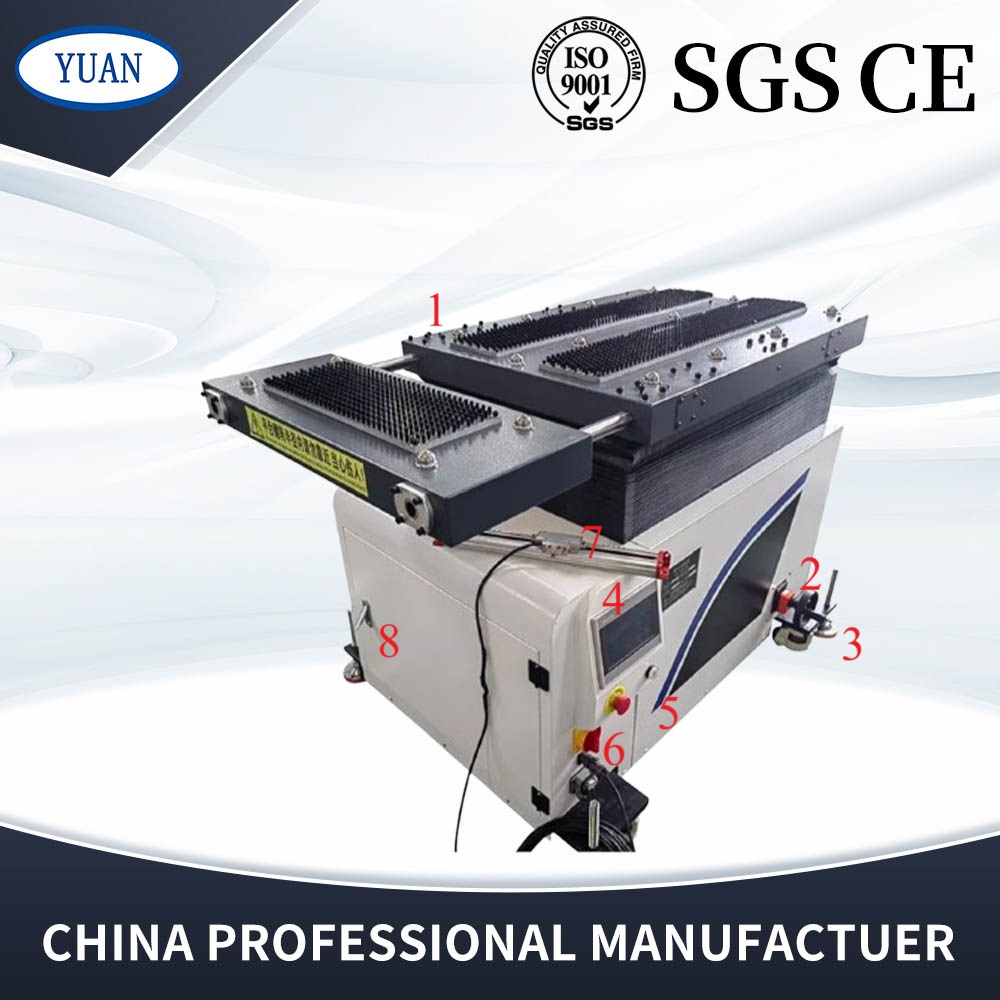

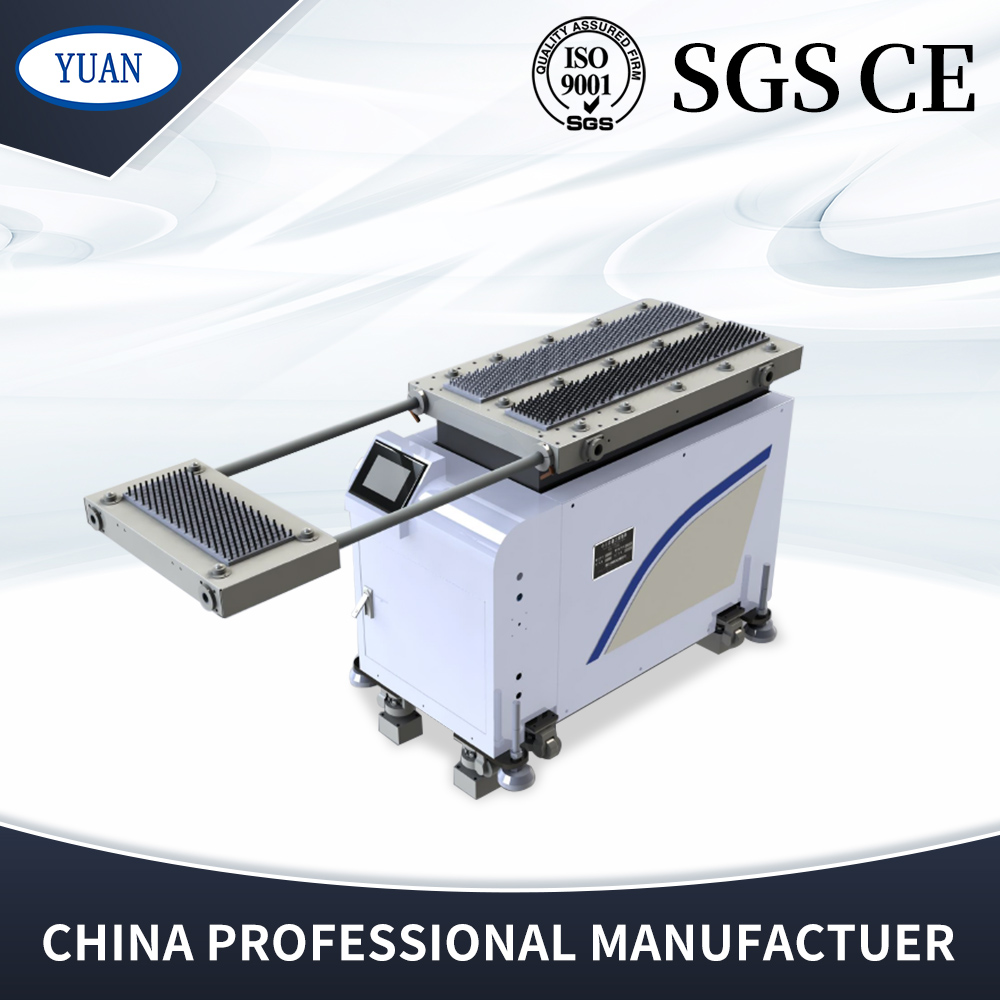

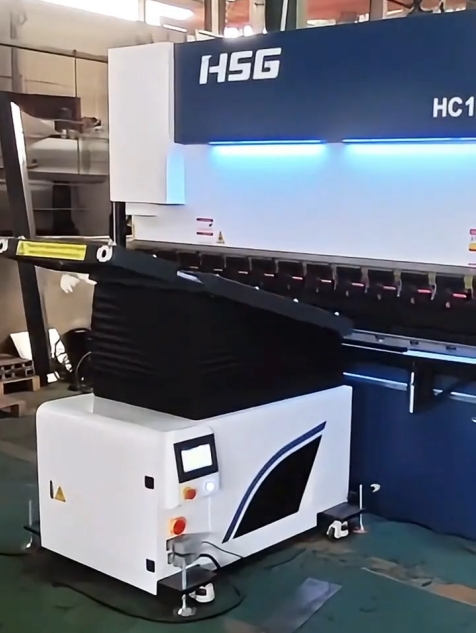

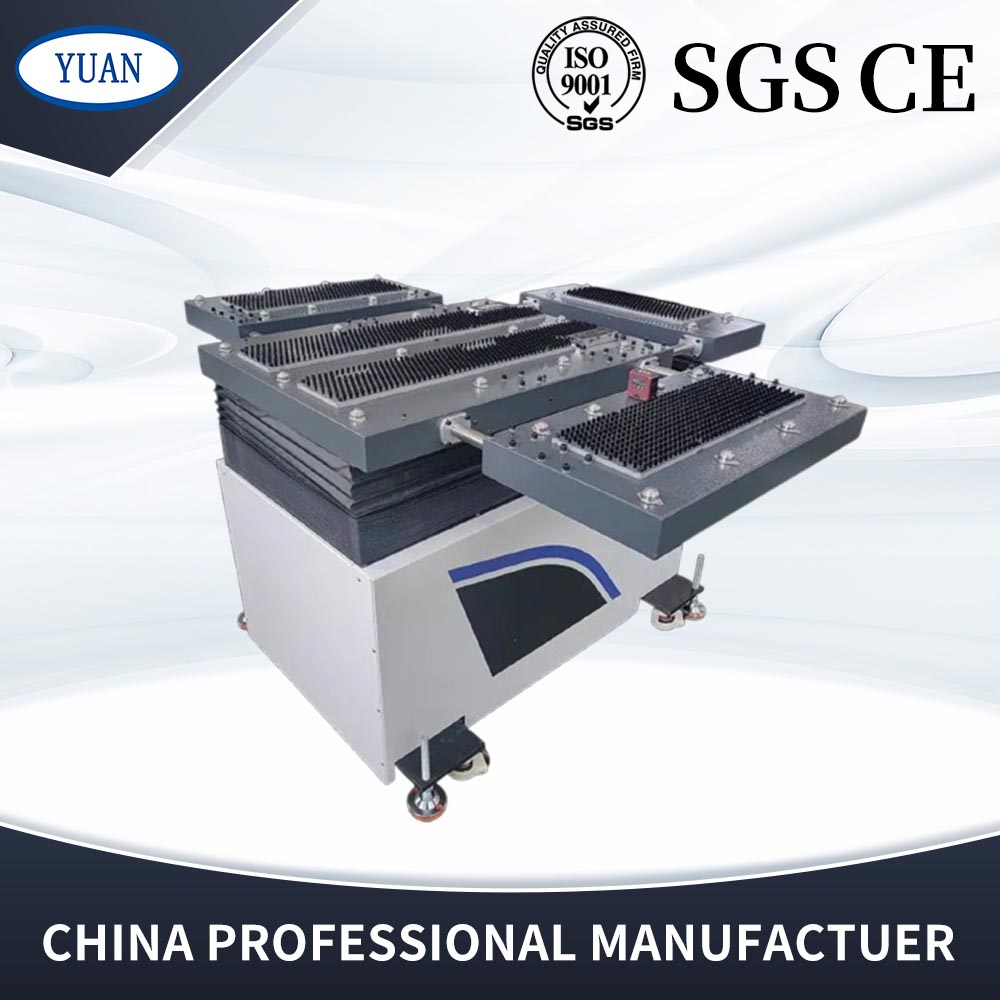

Press Brake Sheet Follower Structure:

1.benchtable with brush and ball

2.handle wheel for adjust working table height

3.Foot Support

4.Touch screen

5.Emergency stop

6.Power switch

7.Magnetic railing ruler

8.Electric box

Working Principle

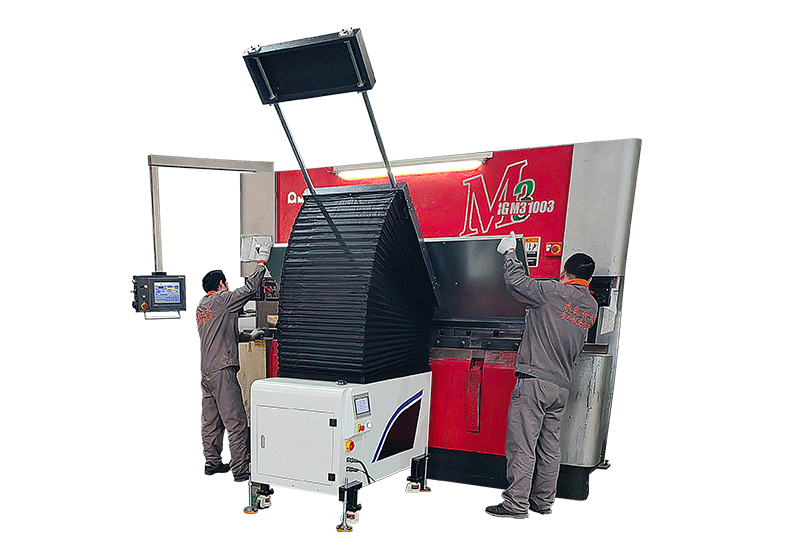

Bending aid for press brakes:sheet metal followers is a press brake auxiliary device which is used to accessorily support the materail when the sheet metal press brake processing

the large workpiece and commonly used in the latter topping-off operation.

Bending Sheet Follower Car adopts indepent control system,so there is no requirements for  press brake  machine system and types.

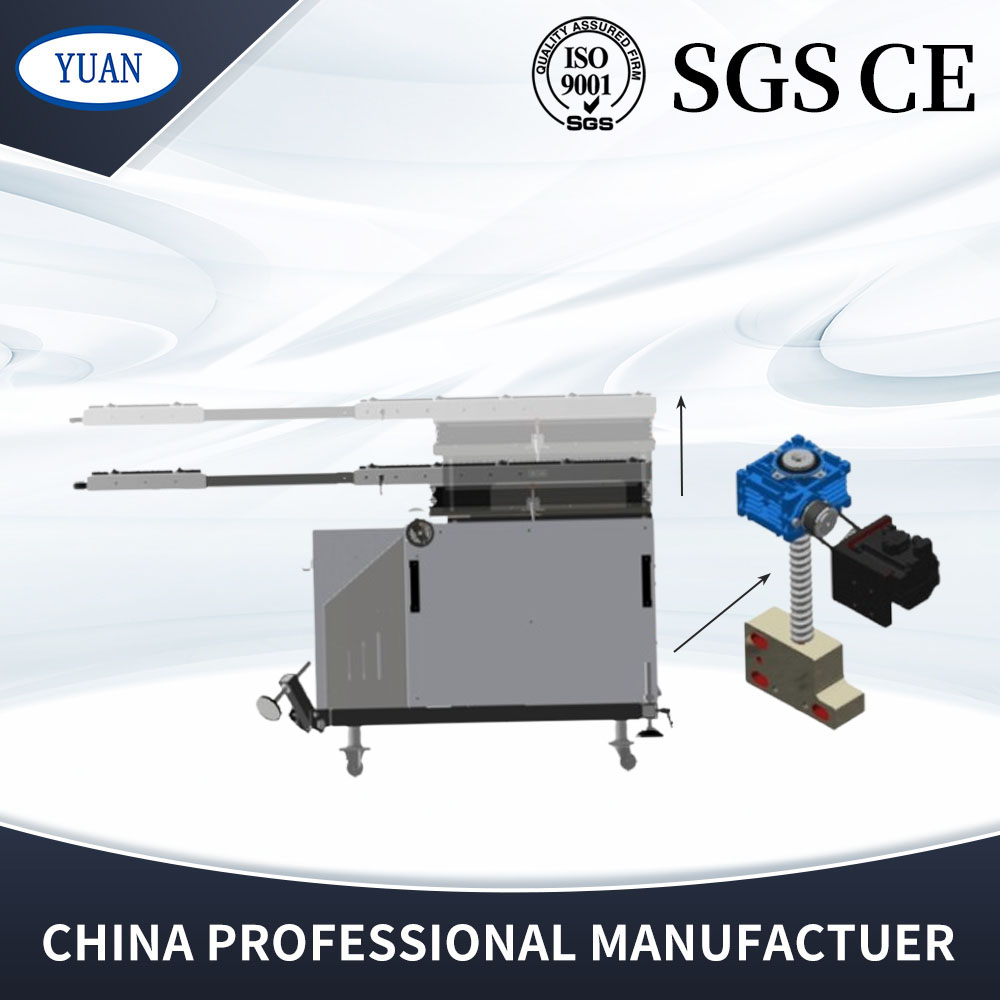

The rotataion and lifting are driven by servo motor.The rotation mechanism consists of servo motor,decelrator ,reduction gear and multi-connecting rods.

The press brake lifter has two types :NC and CNC.

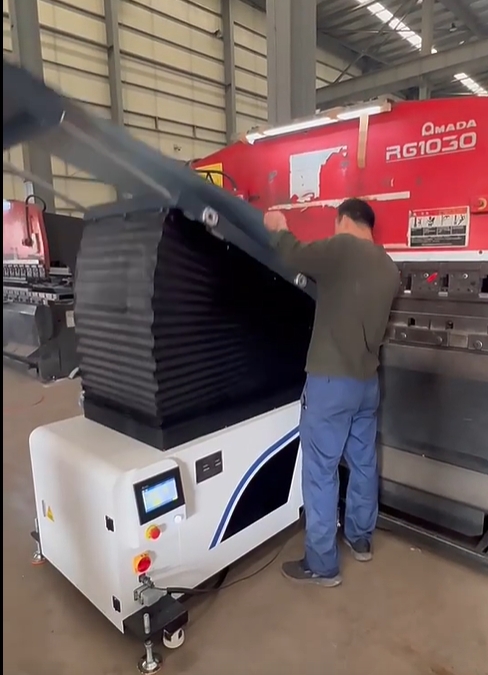

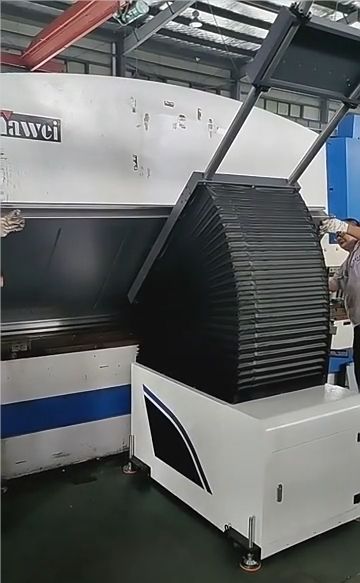

When the workpiece is bent, the supporting plate can realize the function of turning to follow. The following Angle and speed are automatically calculated and controlled by the control system of the sheet follower.

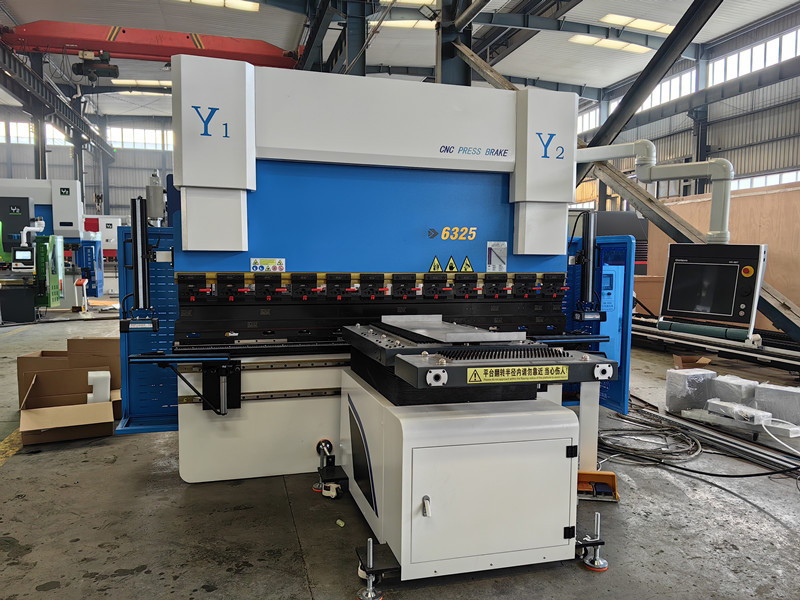

CNC Press Brake Sheet Follower &Press Brake Bending Follower Support, no need to modify press brake machine, compactable for any brand press brake.

Parameters :

Press Brake Aid Optional

1.press brake sheet follower workbench expandable

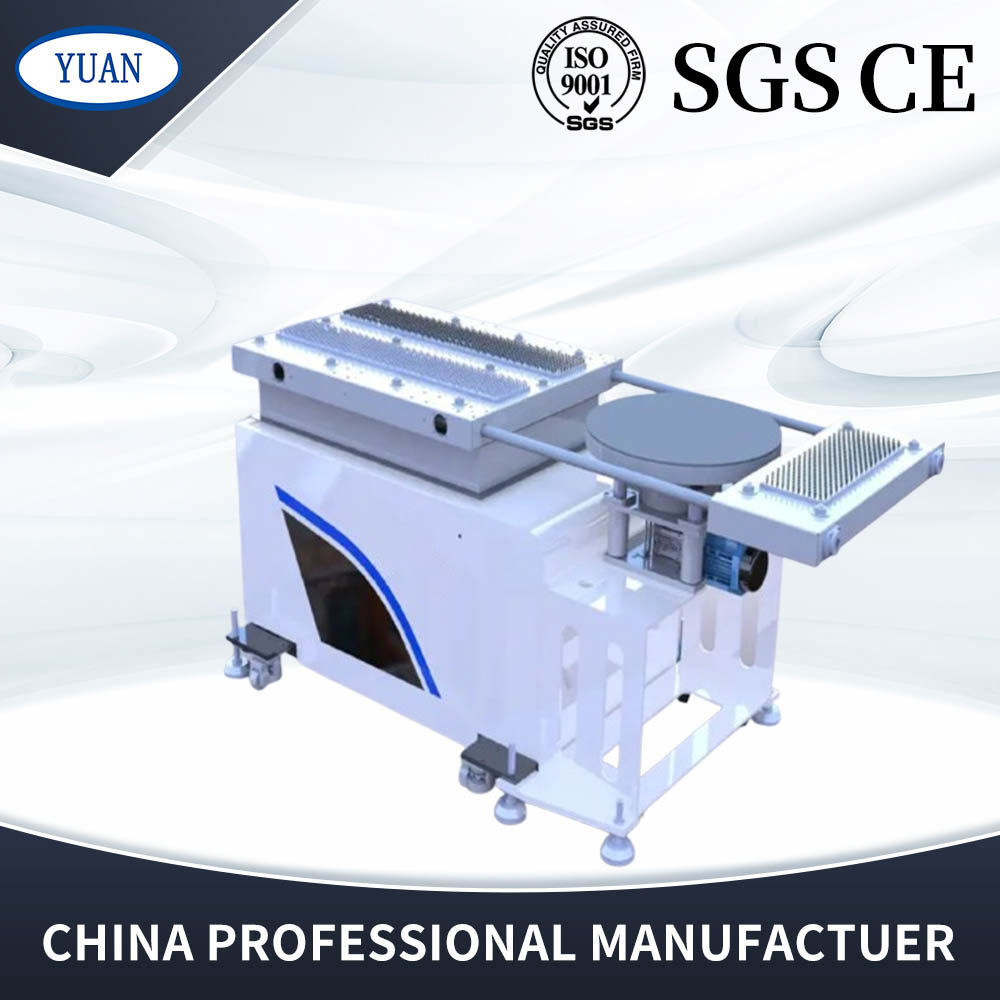

2.Press brake lifter with rotating table

3.sheet follower for Amada GR press brake

Advantage:

Automatic positioning: The follow-up material support system can automatically adjust and position the workpiece to ensure that the material is accurately placed at the required position during the bending operation.
Improve production efficiency: By automating the positioning and support process, follow-up material support can significantly improve production efficiency, reduce human errors, and shorten the production cycle.
Suitable for complex shapes: Some follow-up support systems are designed to handle complex-shaped workpieces, ensuring accurate positioning throughout the bending process.
Versatility: Driven pallet systems can often accommodate workpieces of different sizes and shapes, providing greater flexibility and versatility.

Reduce the labor intensity of operators: By automating certain tasks, the follow-up pallet system can reduce the labor intensity of operators, allowing them to focus more on other tasks that require human intervention.

Compatibility :Our Press Brake Sheet Follower is compatible with  any brand of CNC Press Brake.Trumpf, Amada, Euromac, Baykal, Ermaksan, Durma, Bystronic, Gasparini, Haco, LVD, Tailift, Yawei, Yangli, JFY, YSD, ZYMT, ACL, ADH, Imal, Mecos, Megobal, Safan, etc...

Precision Control: The system contributes to the precision and accuracy of the bending process by maintaining the correct position of the sheet throughout the operation.
Enhanced Efficiency: By automating the material handling process, sheet followers contribute to increased efficiency in the overall press brake operation.
Versatility: Some sheet follower systems are versatile and can handle various sheet metal sizes, materials, and thicknesses.

Sheet Follower Application Filed :

Elevators, aluminum curtain walls, environmental protection equipment, warehousing, etc
