Hydraulic Folding Machine,Hydraulic Sheet Metal Folding Machine,Folding Machine Price

Sheet Metal Folding Machine Function:

The sheet metal folding mahcine  is full welded-steel plate construction.After vibration aging treatment,the deformation is minor so that the accuracy can be ensured.

The metal folder machine is hydraulic powered.It is low energy consumption,easy to maitain and durable in use.

Upper acting die is sub-portfolio with open height up to 110mm and suitable for producing disk,steel box workpieces.

The bending angle and backgauge is  controlled by numerical control system,rapidly and accurately.

The metal folding machine can bend a lot of foldable sheet metal materail,like mild steel ,stainless steel ,copper,

aluminum ,galvanized sheet ,iron plate and so on.

Sheet Metal Folding Machine Features:

1.Hydraulically operated bending and clamping beam for efficient heavy duty operation.

2.High structural rigidity from heavy plate steel box construction with continuous welded seams.

bending beam powered by dual hydraulic cylinders.

3.Fully integrated and enclosed electric / hydraulic system with big oil reservoir to maintain low oil temperature.

4.High load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings.

5.Precise electric / hydraulic controls with manual inching of bending beam.

6.Utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron.

7.Comprehensive equipment protection from electric and hydraulic overload systems

8.High quality component ensures reliable performance for years of continuous operation.

9.Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation

10.Unique electric / hydraulic control ensures safe and simple operation

Sheet Metal Folding Machine Configuration:

Normal hydraulic folding machine uses the dial to control the bending angle, back gauge is the manual adjustment;

Single-axis CNC control uses CNC control system to control the bending angle, back gauge is the manual adjustment;

1.CNC control system: ENC1508 controller ,can both programming and saving  programs.

2.Back gauge uses ball screw rod and liner guide. The brand is ABBA, Taiwan.

3.Back gauge is driven by servo motor. The brand is Dongyuan, Taiwan.

4.The hydraulic valve of hydraulic system is from Taiwan.

5.The front protection is photoelectric switch. The brand is OMRON, Japan.

6.Hydraulic pipeline is ferrule joint.

7.Oil pump is vane pump from HEGH-TECH, Taiwan.

8.Electric parts are SIEMENS or SCHNEIDER.

CNC Sheet Metal Folding Machine for sale Parameters:

Sheet Metal Folder Machine CNC Controller System:

The numerical controller is on the right of folding machine.It is easy to operate .Easy operation of CNC Controller interface ,higher accuracy and more comfortable.20 different folds in a single program.

Folding Metal Machine Safety Protection:

There are two safety protection fences at two sides  of machine,it is safe for work's operation

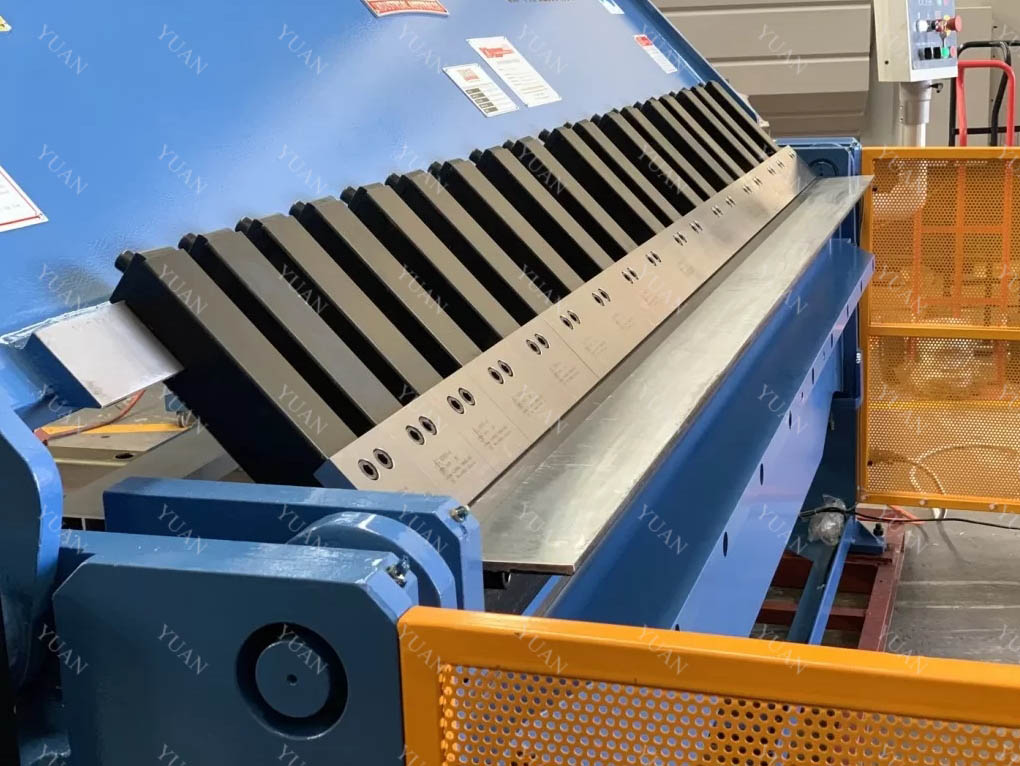

Sheet metal folder Clamping Blade

Fingers clamp blade are high carbon steel ,Apron blade high tensile steel.The upper blades can segmented to different size for fold small pieces and folding sheet metal steel box

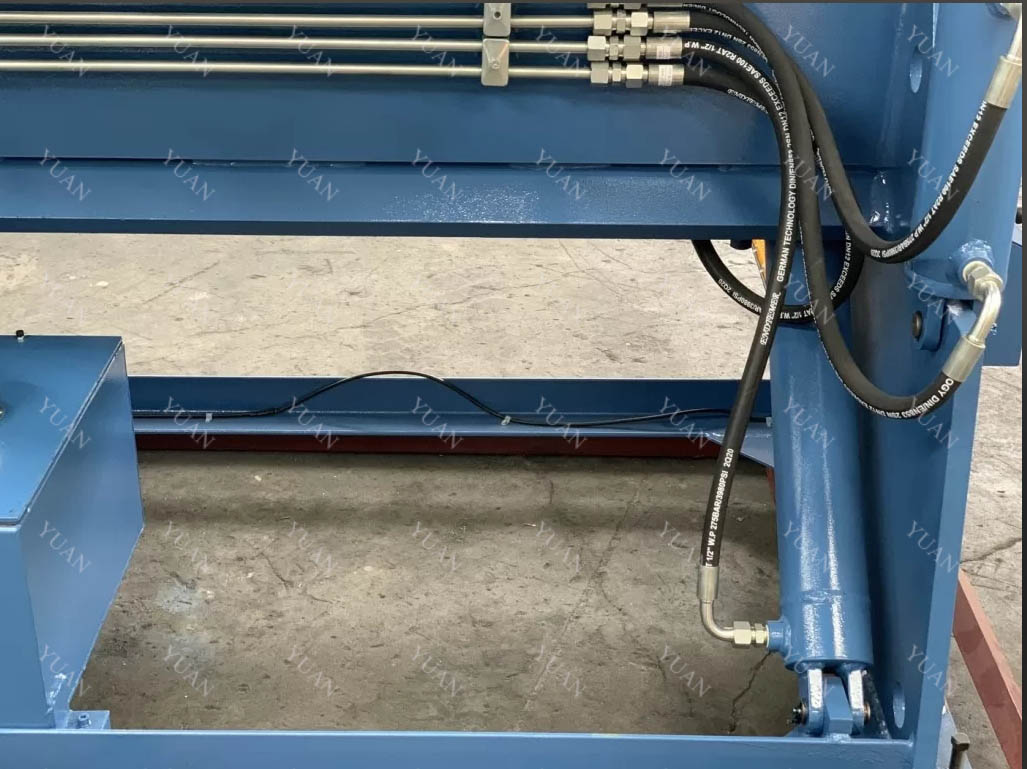

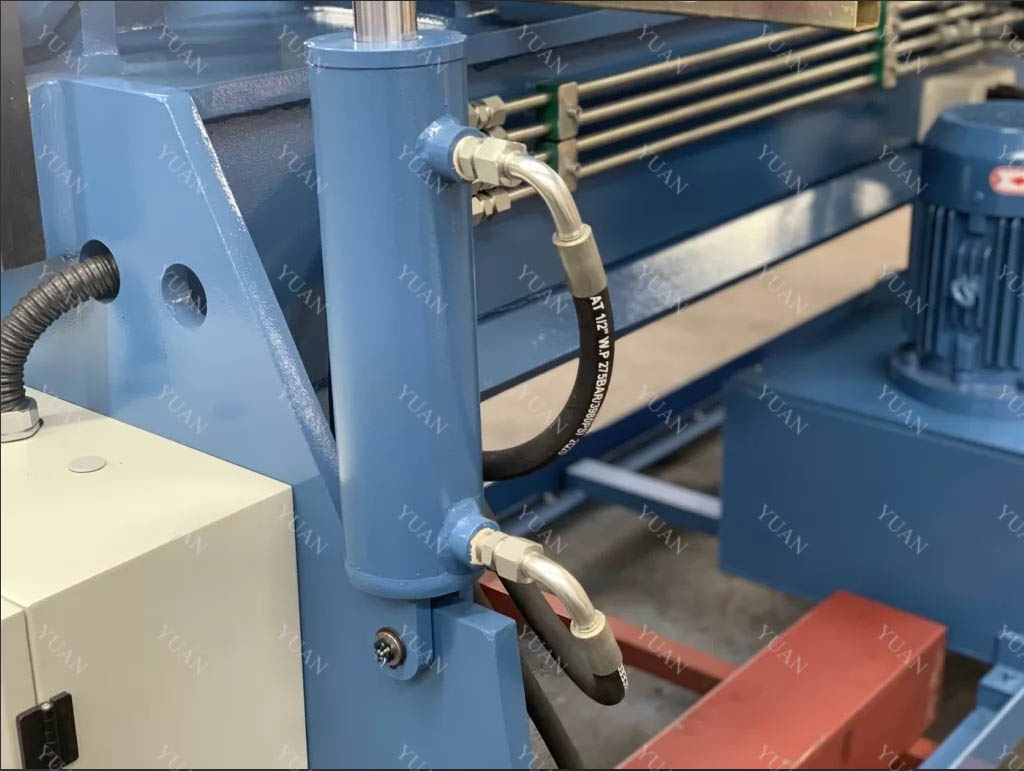

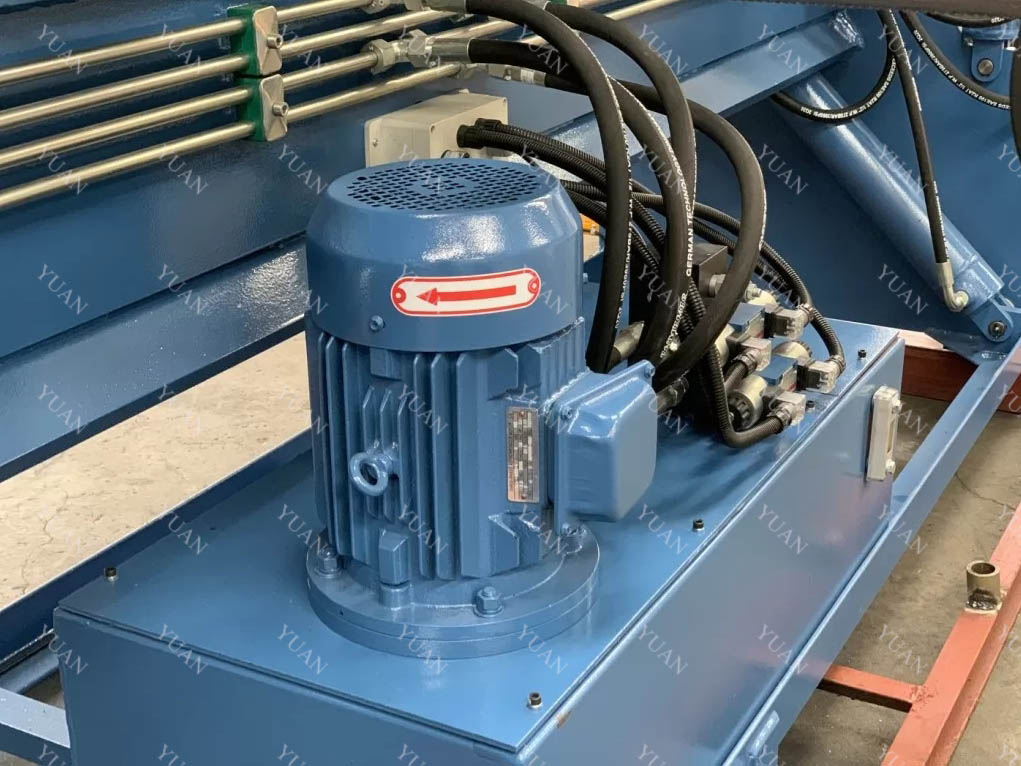

Sheet Folder Machine Hydraulic Unit:

1.High quality component ensures reliable performance for continuos operation for many years.

2.Powerful direcy coupled hydraulic pump and motor provides efficiency ,rapid operation.

3.Both clamping beam and folding beam are driven by hydraulic system for efficiency heavy operation.

4.The bending beam is powed by dual hydraulic cylinders.

5.Hydraulic system are all neatly tucked away in the hydraulic pan brake machine back  ,so it minimize your floor space,offer you a great capacity to do all folding operation.

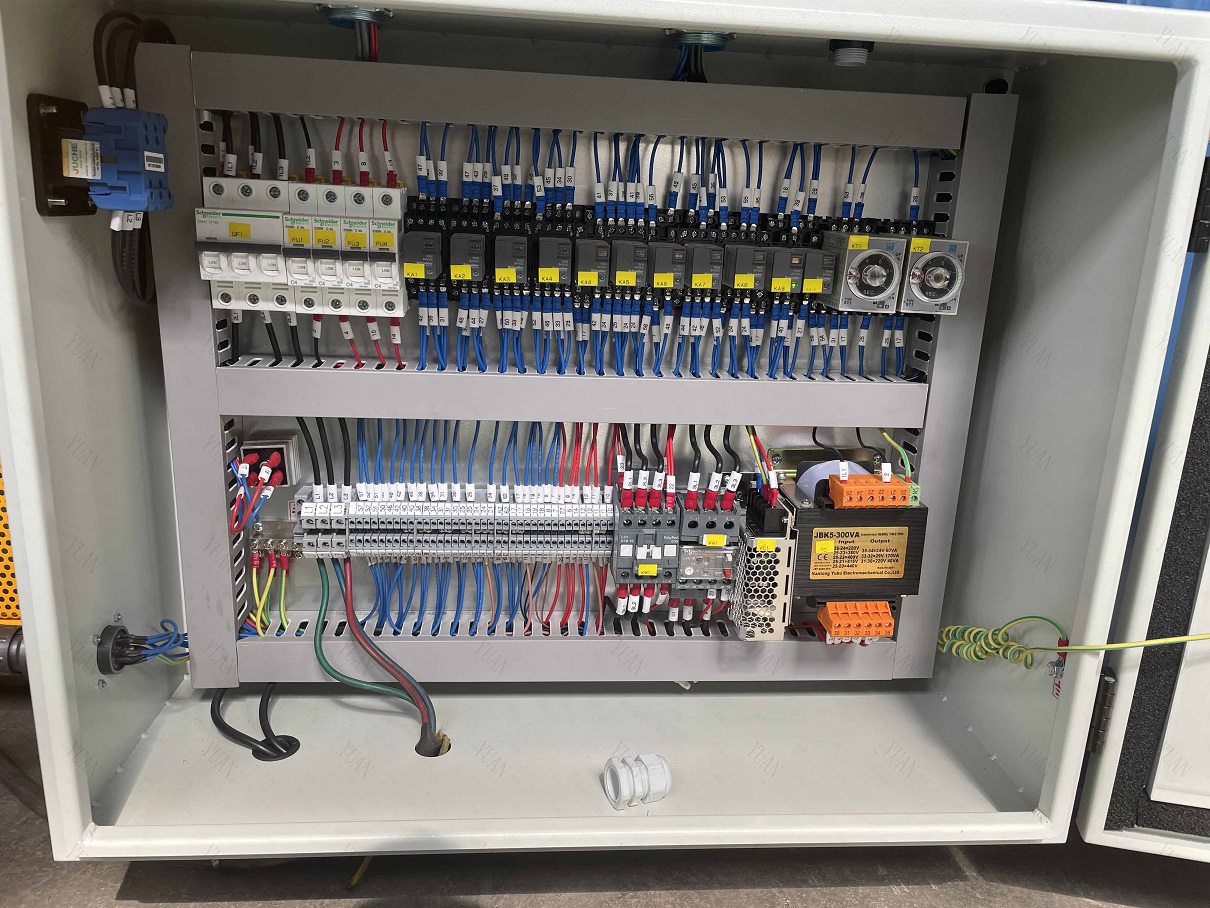

European Electric Elements

The control cabinet is on the left of machine body.Electric component Schneider ,safe and reliable long service life.All components can be sourced locally .

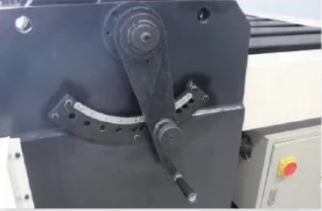

Rapid Head Adjustment

Rapid head adjustment allows easy change,different size material ,by moving the handles ,adjustable to suit special jobs.

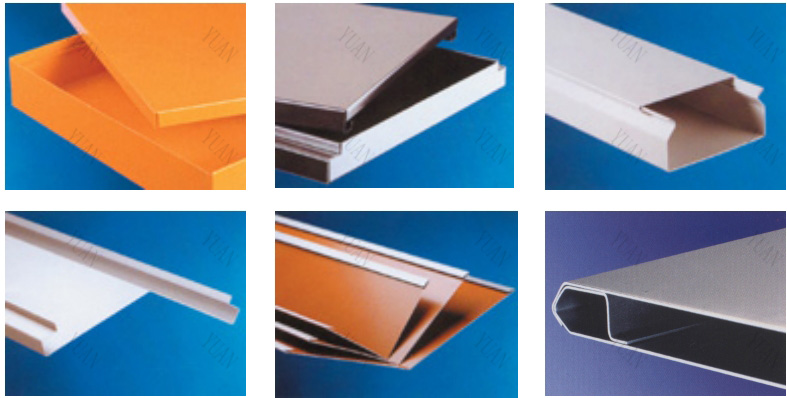

Shapes of Metal Folding:
