Model:RZ03-02
Brand:YUAN
CNC System Axis:Y,X
Bending Force:30KN
Bending Width:200mm
Max Opening:420mm
In metal sheet fabrication, there are always someone need mini press brake. For steel sheet fabrication machines, there are some different types of mini sheet metal brake.They are mini cnc press brake, mini hydraulic press brake, mini manual press brake, min electric press brake. Consider people needs bending small sheet steel always needs high bending accuracy. So we design the mini electric press brake for bending precision request.
It is composed of a frame,electric system ,cnc controller,small brake tooling,foot pedal.The V die can creat a variety of bending angles.

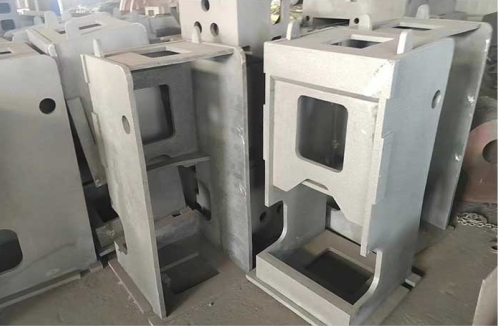

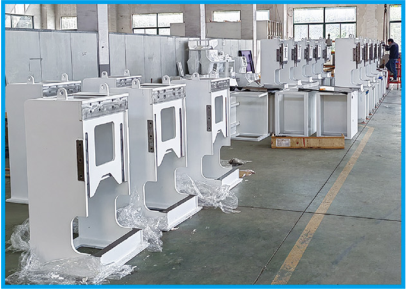

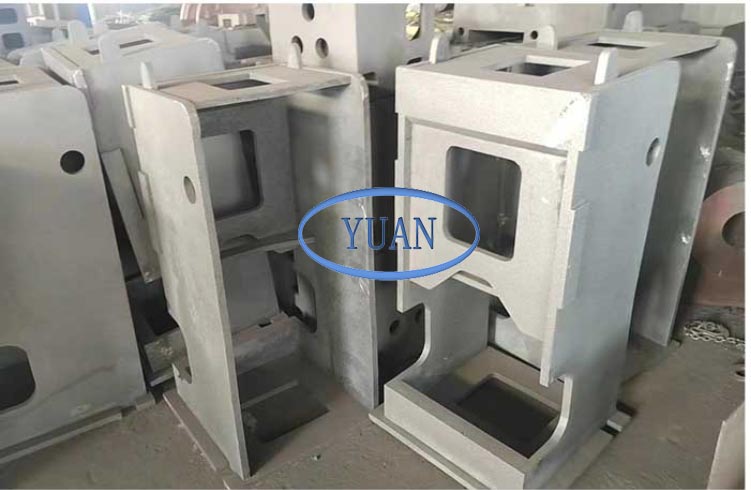

The mini press brake machine body is made of dustile iron construction,then machining on cnc gantry machine ,well welding ,strict strss relif treat and expericed workers fine assembly and test in our workshop fot 48 hours.Then
packgaged by plywood box and shipping to oversea cleint.
Main Feature:
1.Ball Screw Direct-Drive motor
2.Pure electric power
3.Heavy Type Ball screw
4. Machine body of high grade of ductile iron cast
5.Strict stress relief treatment
6.CNC control +servo motor+grating ruler consist a close loop

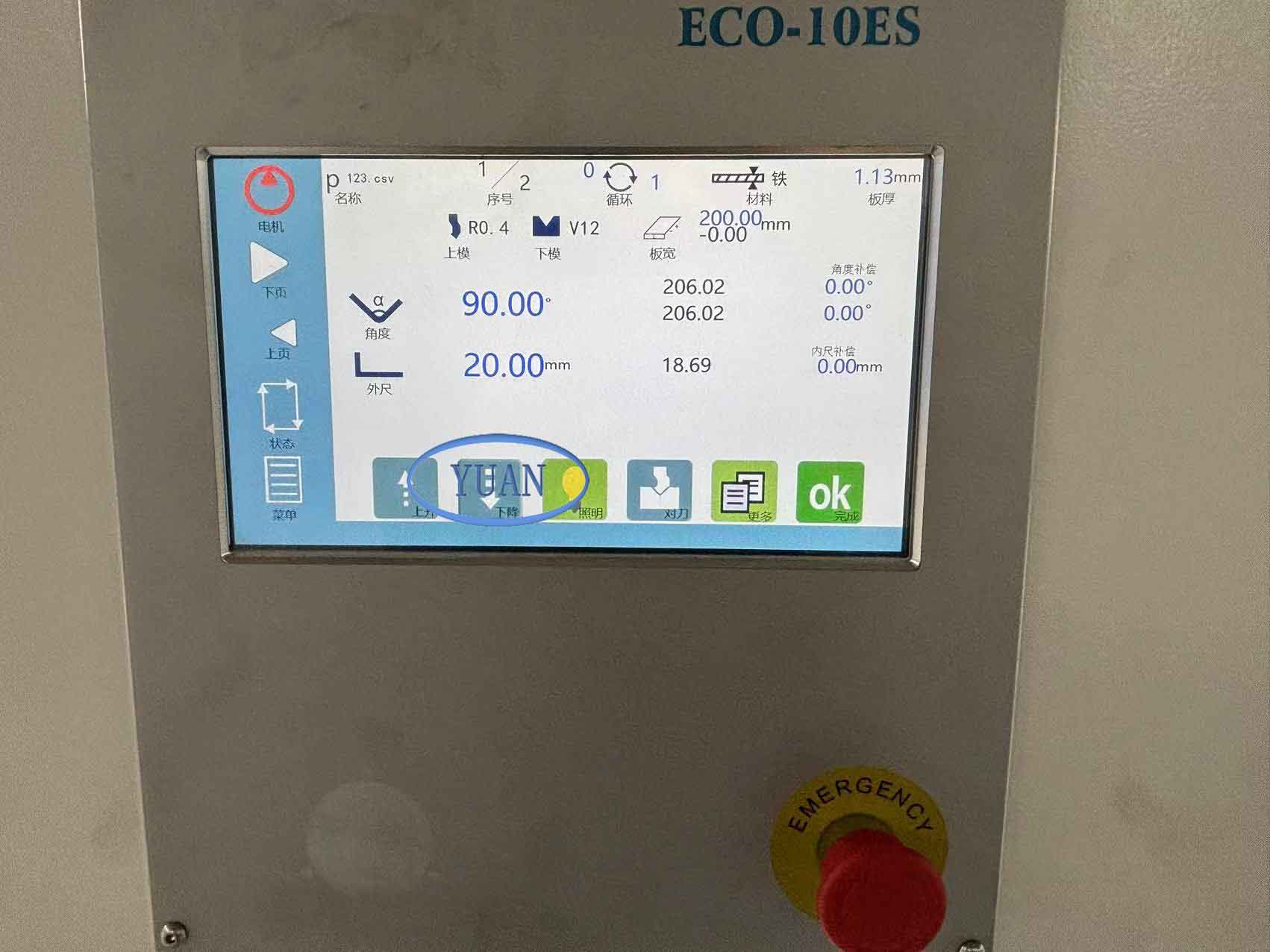

Standard Controller ECO-10ES:
1.10 inch touch screen
2.Easy to input parameter,raw materail,thickness,width
3.Retract function
4.220mm program ,24steps per program
5.ARC bending function
6.Servo control
7.Tool program
8.Bending Angle programming function
9.One key back up ,mm unit
10.English /Chinese

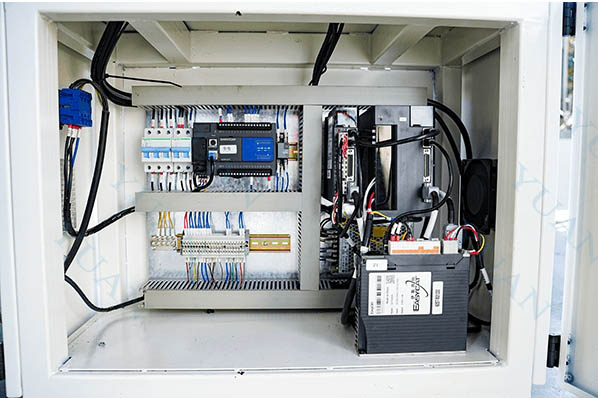

Compact electric cabinet:
Main electric appliance is Schneider
Parameter:
Bending Force | 3 | Ton | |
Bending Length | 200 | mm | |
Pole distance | 250 | mm | |
Axis | 2 | (Y and X) | |
Storke | 120 | mm | |
Max Opening | 420 | mm | |
Backgauge | 150 | mm | |
Speed | Fast Down | 200 | mm/s |
Working | 30 | mm/s | |
Power | 2 | KW | |
Repeat Precision | ±0.01 | mm | |
Controller | ECO-ES10 | Easycat |
Main configuration list:
NO | Name | Brand | Remark |
1 | Main Motor | SANYO | Japan |
2 | Linear guide | HIWIN | Japan |
3 | Ball Screw rod | TBI | Taiwan |
4 | Electrical components | SCHNEIDER | France |
5 | Bearing | NSK | Japan |
6 | Control system | ECO-ES10 | Easycat |

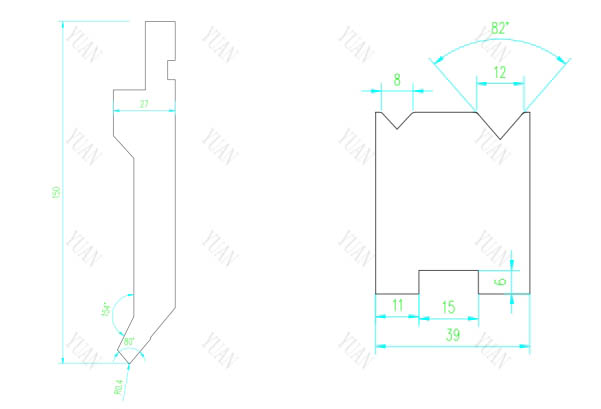

Mini Metal Brake Standard punch and die:
Mini Bending Brake Application:
It is designed for small sheet metal bending
It is suitabe for bending 3mm thickness and 200mm length
bending aluminum plate, bending aluminum diamond plate, bending 1 4 steel plate, bending aluminum sheet, bending extruded aluminum, bending steel sheet metal, bending steel, bent sheet metal, bending sheet steel
Mini Bender 3 ton use field:
The mini bender has a huge application is small sheet metal fields.Like sheet metal brackets,metal box,metal case,disconnect enclosure,electric enclosure ,PLC enclosure,sheet metal tray ,panel or
sheet metal components,electric housing
Our service for mini metal brakes
1.Two years Quality warranty,parts can be sent freely within the warranty period.
2.Cost price for parts only ,after the warranty time
3.liftetime maintenance,24 hous on line service with free technical support.
4.Free training in our workshop.
How do you ship?
For our oversea market ,all the mini sheet metal brake is shipped by sea,so the package is very important.
We all packaged machine by plywood box.When you get the machine ,it is easy to use forklitft to move it.
