American type press brake die,American style press brake tooling，American press brake tooling

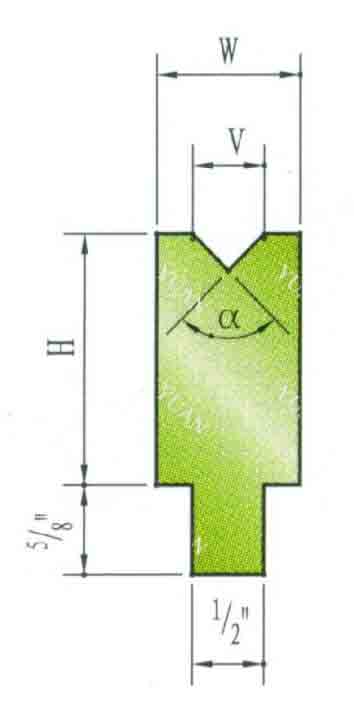

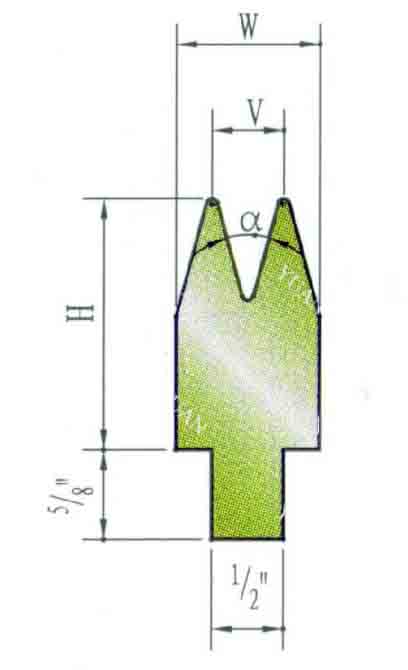

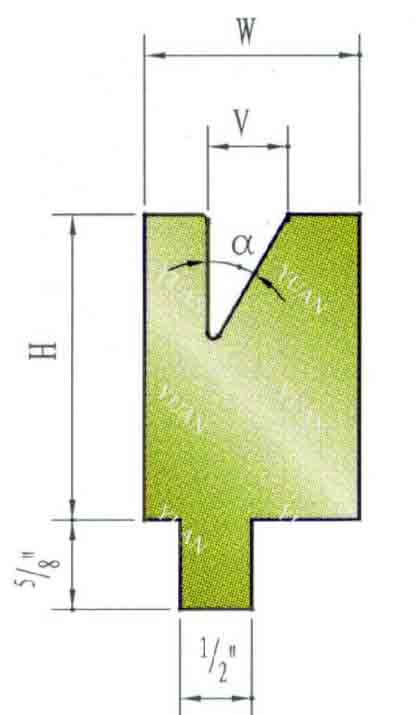

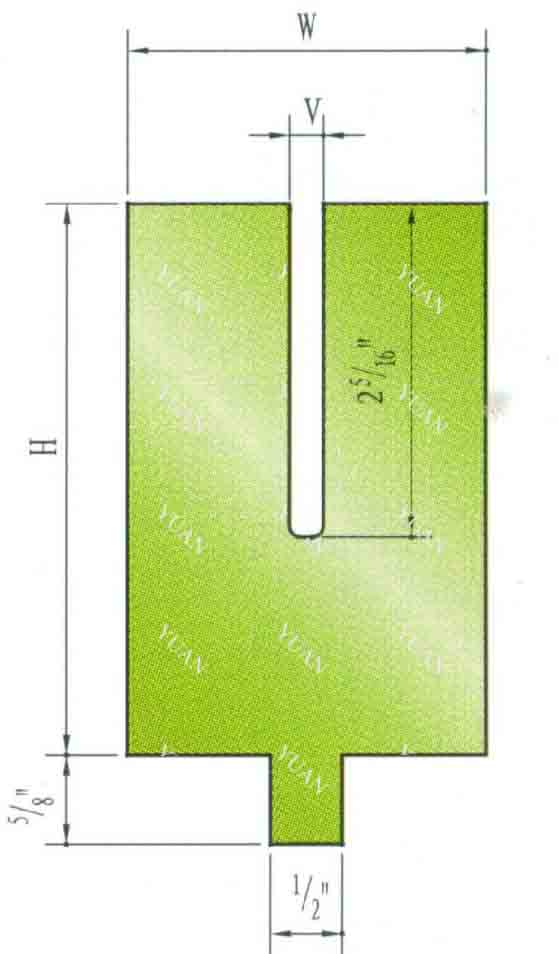

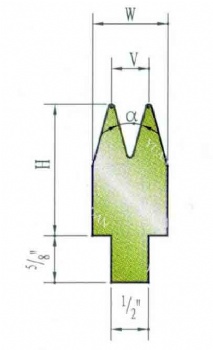

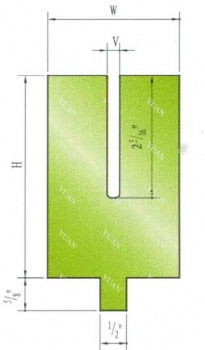

American precision low die features a 0.5 inch width tang.

We can supply Standard American press brake dies,and special American press brake low toolings.

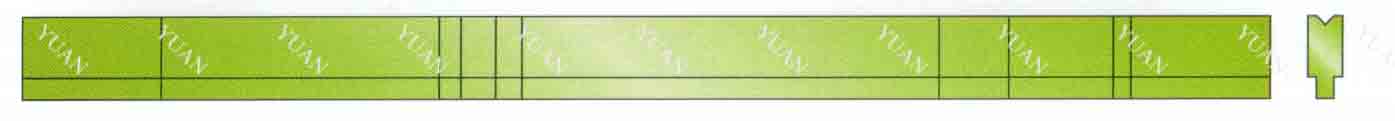

Standard American Low Die Length and Section:

Standard american  tooling L=36 inch(914.4mm)  or S=18 inch (457.2 mm)

Low die:4'',8'',5/8'',1'',3/4'',12'',3'',1/2'',4''=35 7/8''(911.3mm)

We always use raw material 42CrMo4 to produce the popular press brake tooling and all the tooling are hardened and ground to reach the hardness of 48~52 HRC (Rockwell hardness), the procedure for holistic heat treatment is as follow :

quenching + tempering + 860 °C Oil quenching + 390°C Tempering .

At last ,the tolerance of tooling we can control is +/-0.02mm.
