Panel Bender Blades

Panel bender is auto bender for thin 1.0-3.0mm thickness plate bending.

It is suitable for bending mild steel ,stainless steel ,aluminum plate.

It is very popular in sheet metal fabrication.

The panel bender tooling has four blades ,they are upper blades,lower blades,blankholder and counterblade.These are four universal tools.


Panel bending tools are customized to meet your exact specifications.

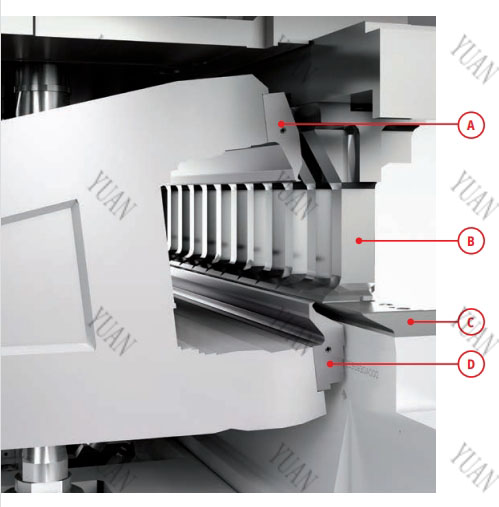

The upper and lower blades (A, D) are the two tools

that feature interpolated controlled movement and

are responsible for bending.

The automatic blankholder (B) works simultaneously

with the blades and counterblade to bend and clamp

the sheet accurately and effectively. It adapts the

tool length according to the size of the part being

produced during the cycle, without machine down

times or manual re-tooling. The tool profile allows

inward bends.

The counterblade (C) helps to clamp the sheet during.

the cycle.

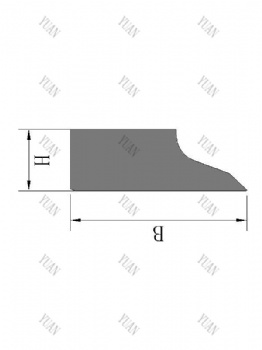

upper blades.jpglower blades.jpg


Panel bending tools are customized to meet your exact specifications.



Material

42CrMo

Hardness

HRC46-52

Products Type

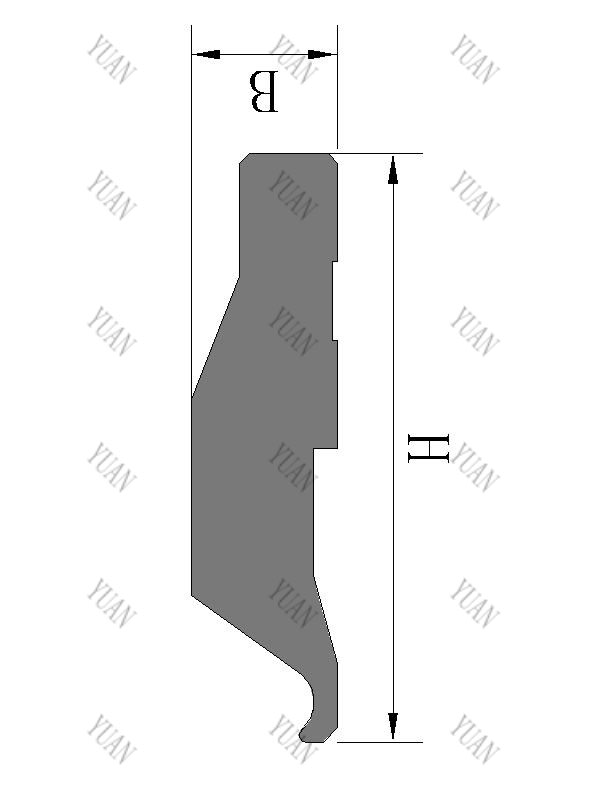

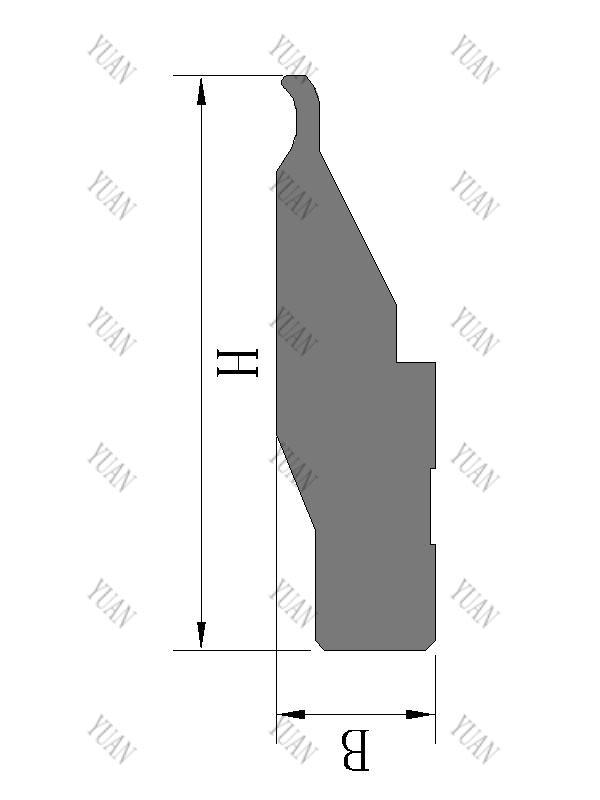

Upper Tool,lower Tool,

Upper Hold Down Tool

Lower Hold Down Tool

Optional

Surface treatment
