China wing bending tool is a new generation of press brake mould without scrath.Certain sheet material like

Stainless steel plate,Copper Plate,Galvanized sheet metal,Aluminum sheet,Mirror-finish stainless steel,

Ribbed anti-slip plate,Copper sheet,Aluminum starry sky panel,Sandblasted steel plate,Aluminum-zinc alloy coated sheet when bending,it needs high request ,no mark or scratch.

Features:

 1.The press brake low die is spring loaded.It is safe.

 2.There are two flap plate.The plate is Cr12Mov,the hardness is  HRC55-58.

3.The rolla v die body is of 42CrMo,its hardness is HRC50-52.

4.There is Pin in the side of the mould body.

5.The flap plate the key place for the wing bend tool.,it is proceeded on cnc grinding machine,then

vacuum heat treat.

Advantage of wing bending tools:

1.Small bending edge

2.Avoide deformation when folding sheet metal with hole or slots.

3.Min bending signs.

4.No need for further proceed

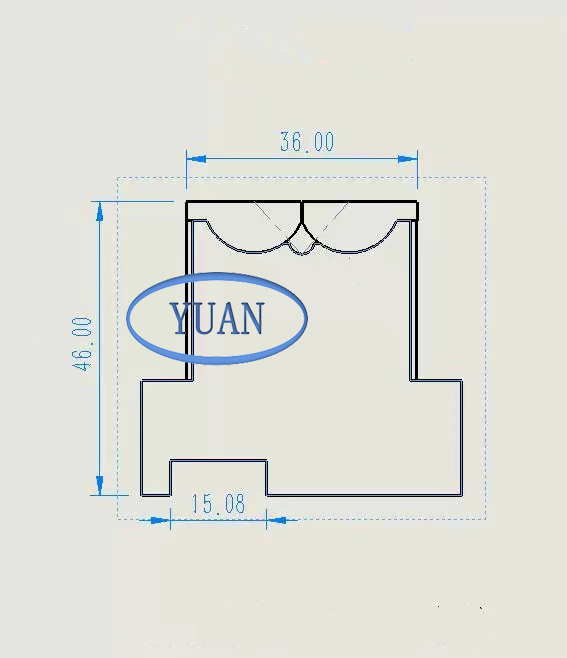

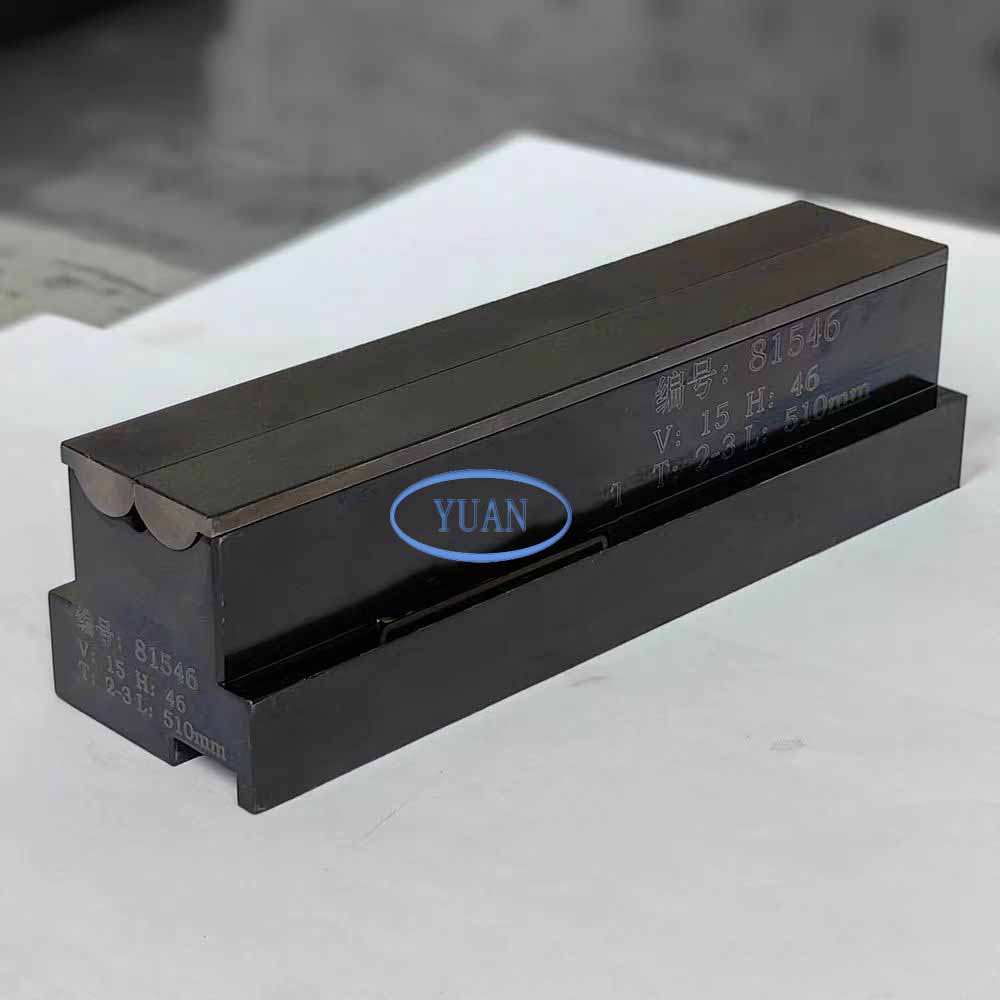

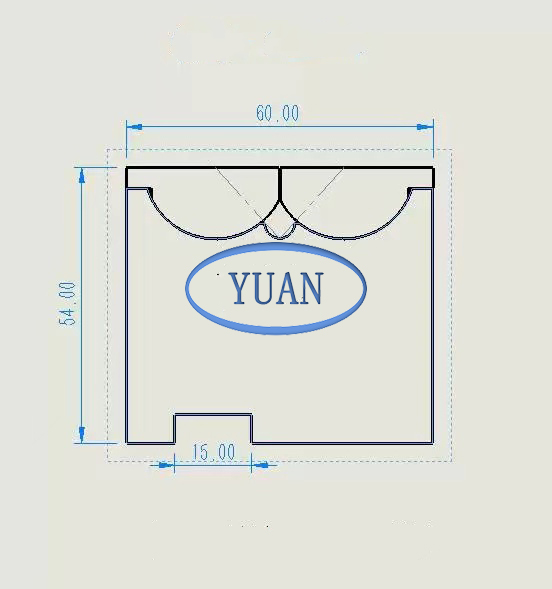

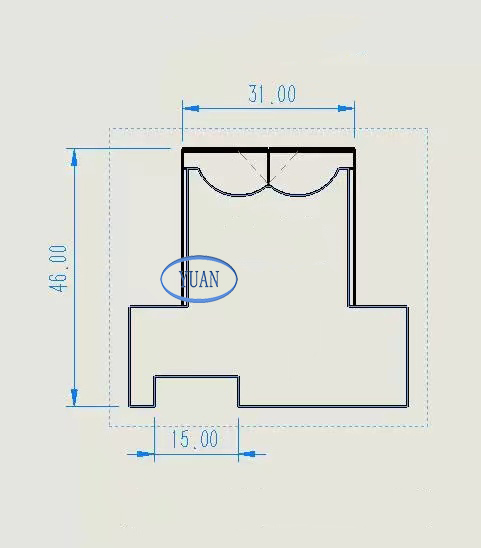

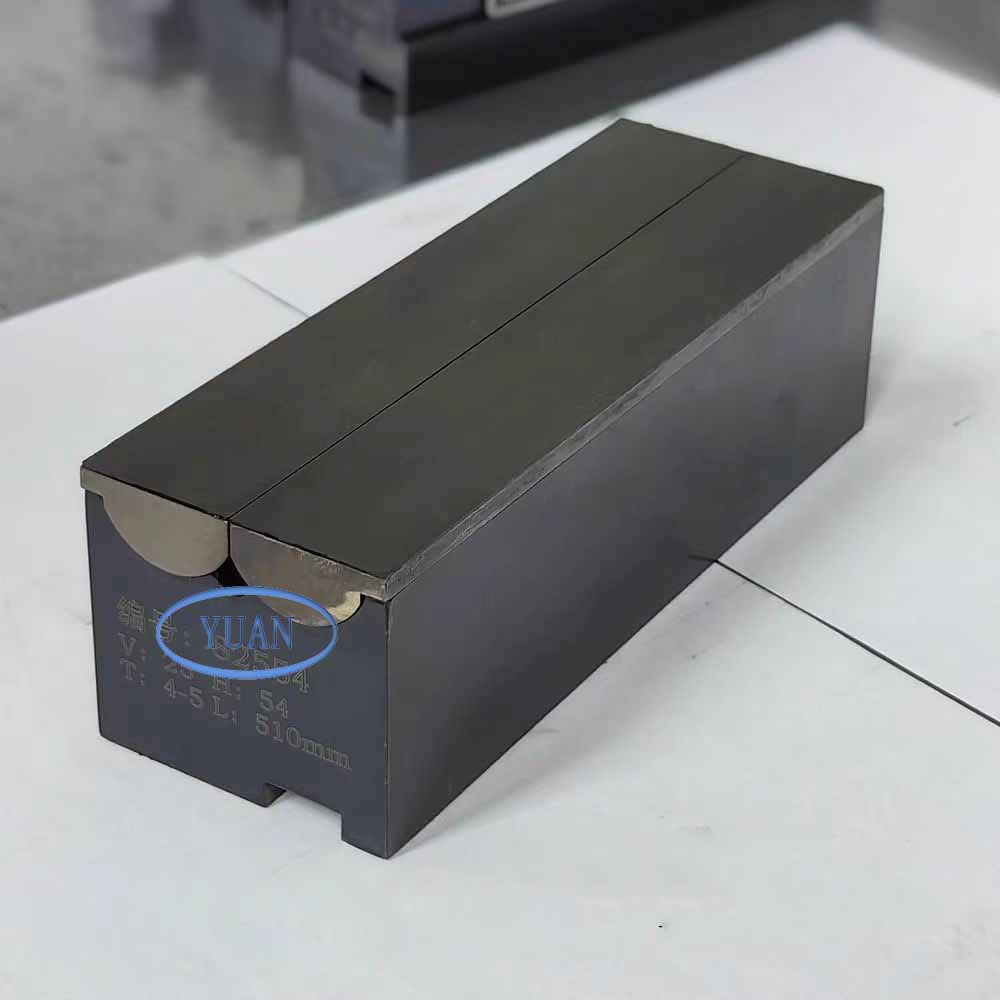

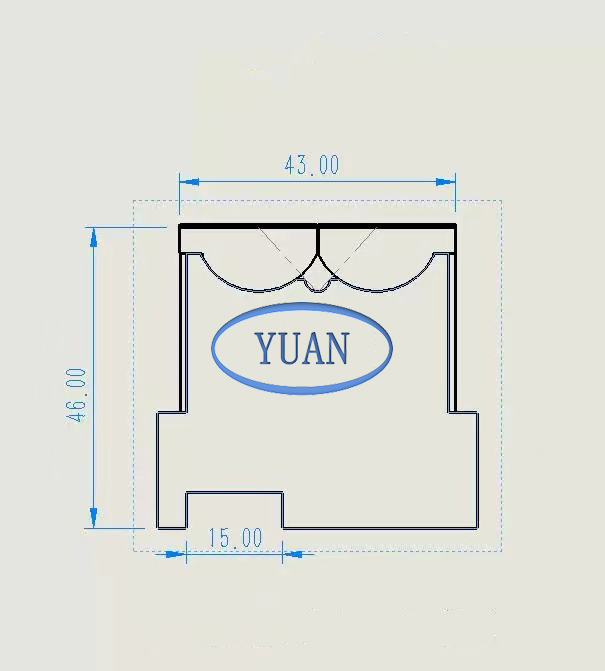

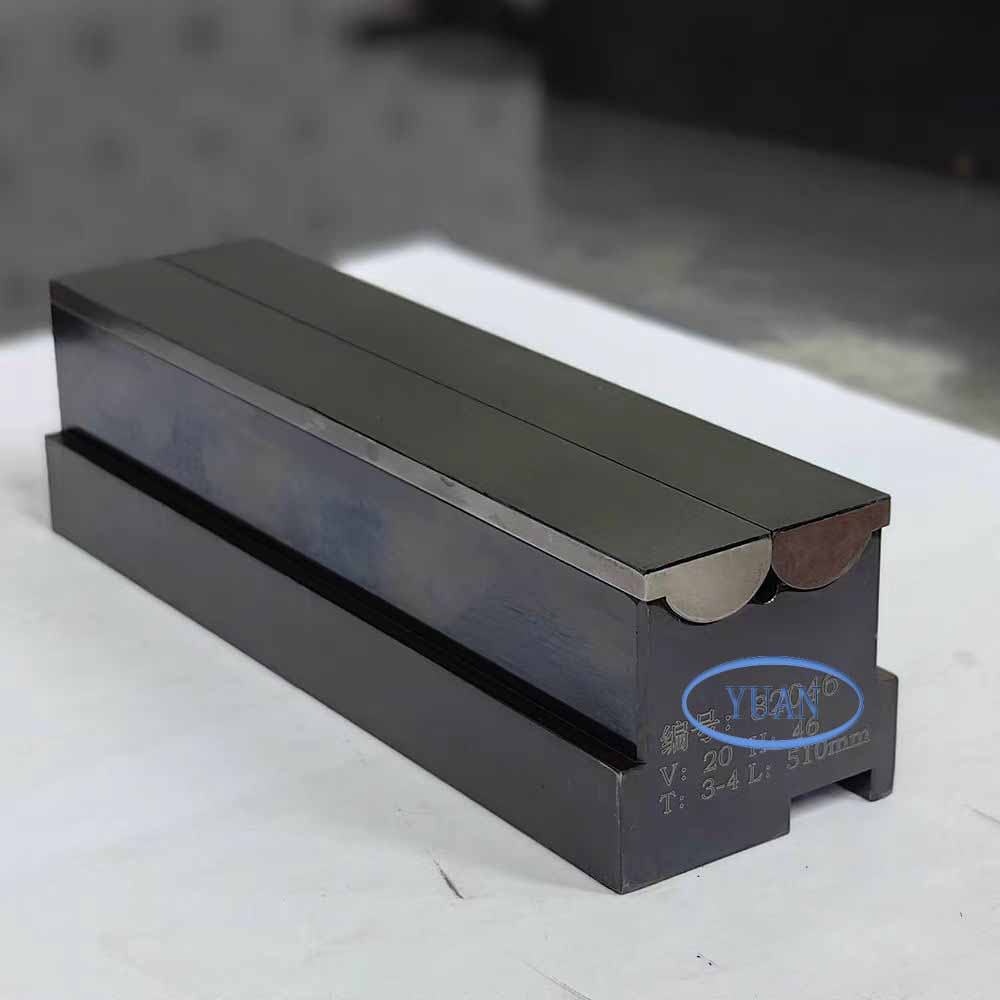

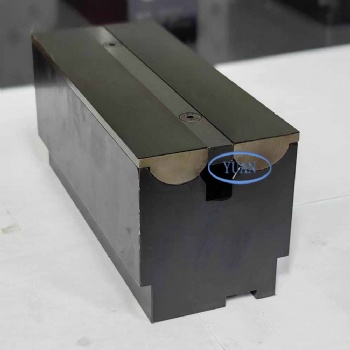

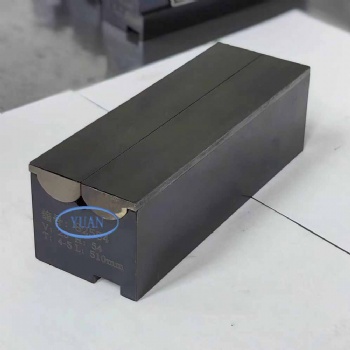

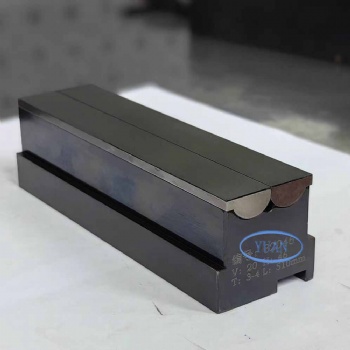

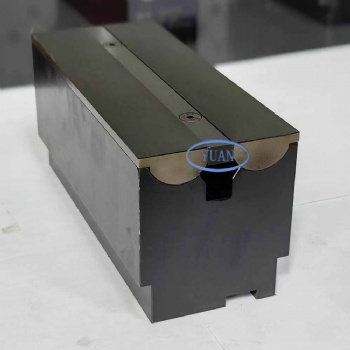

bending 2.0-3.0 mm sheet metal	Bending 3.0-4.0 mm sheet metal

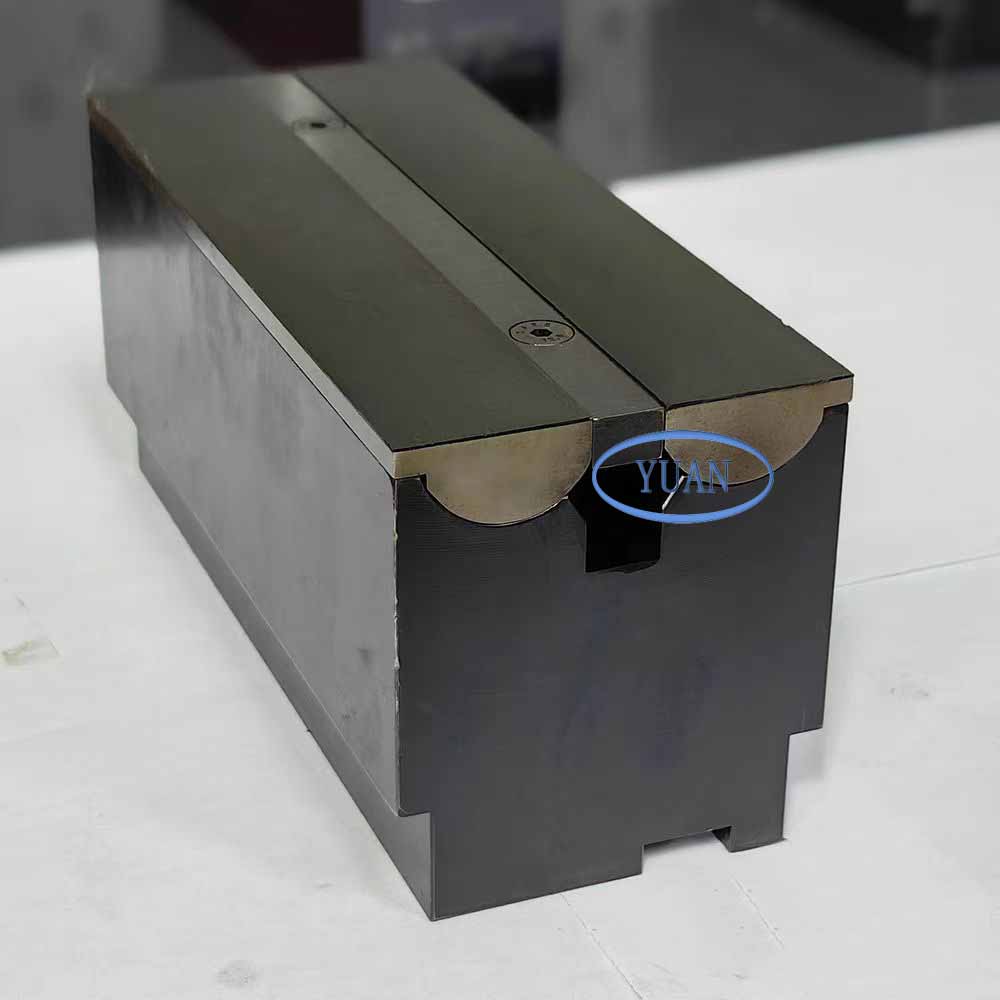

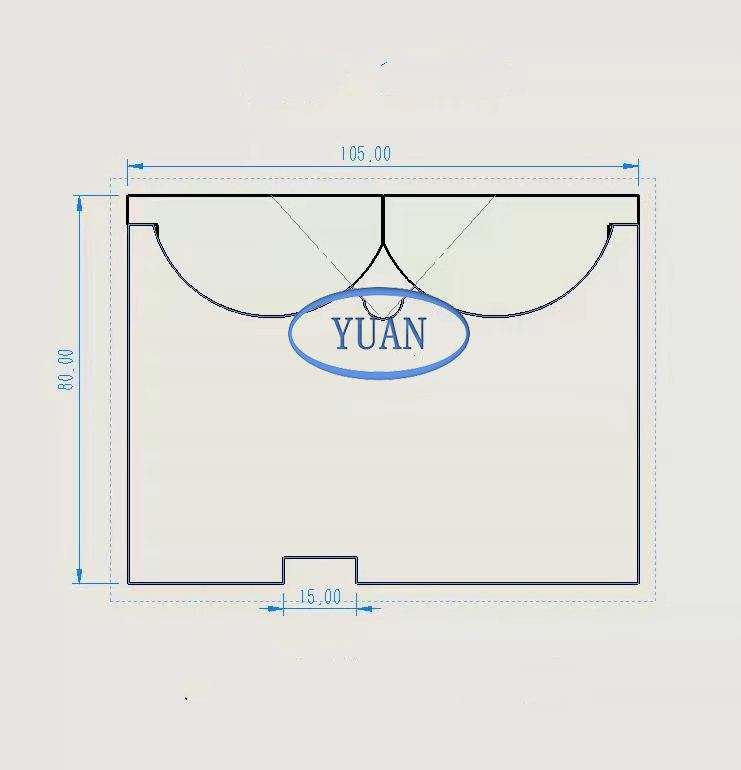

Bending 5.0-7.0 mm sheet metal	Bending 7.0-9.0mm sheet emtal

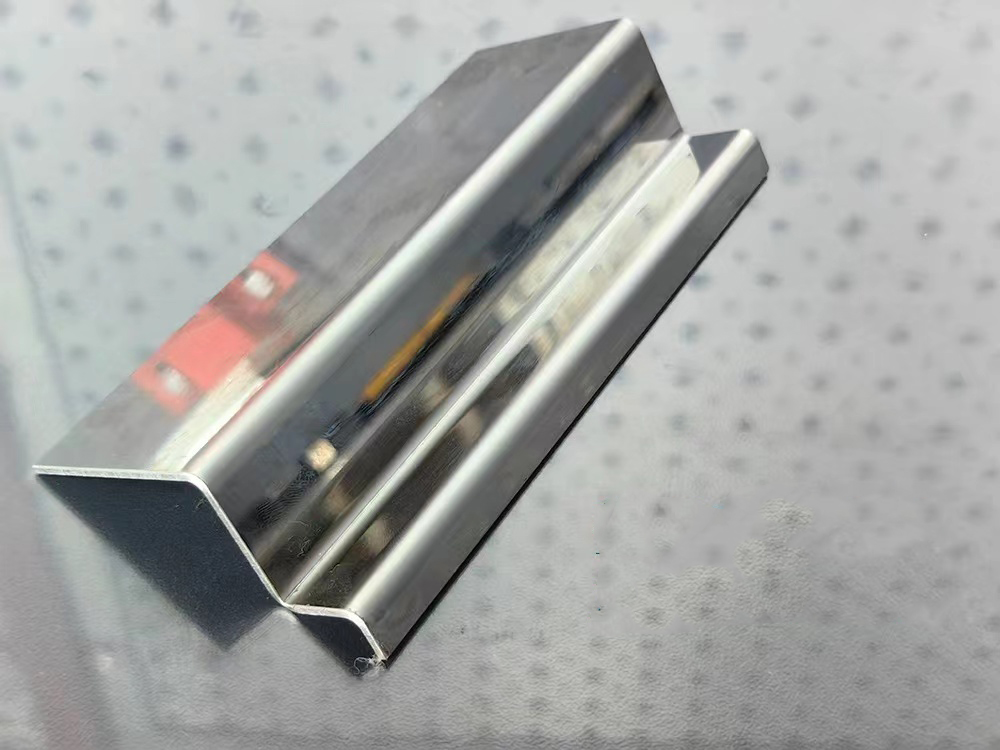

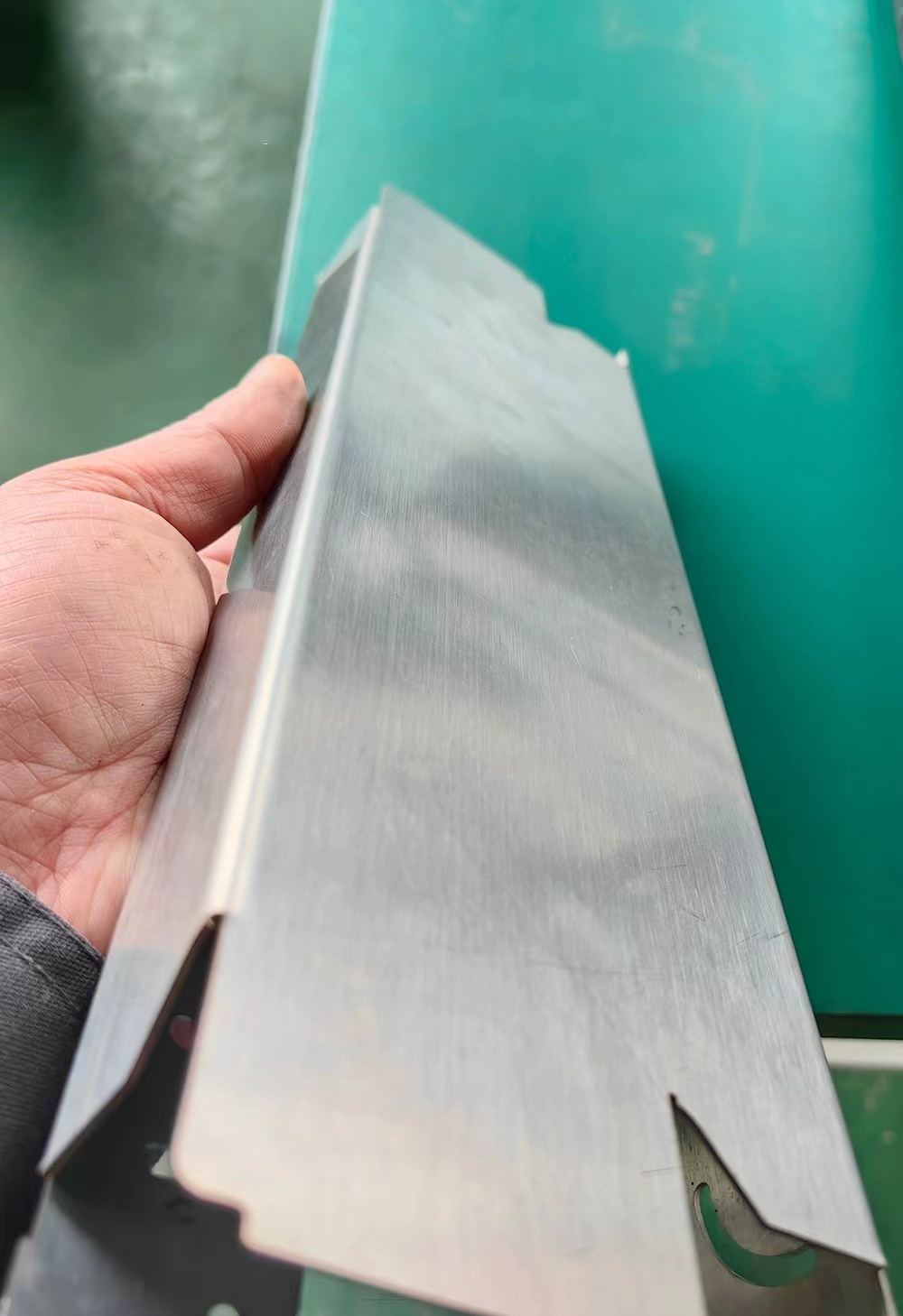

Bending Sheet Metal Effect:

RFQ:

1. What length of the wing bending tool?

   The length is 510mm.

2. If bending long sheet metal ,how to do?

   you can connect the tooling freely.

3. If connecting ,is there an mark、

   There is no mark for connect place

4. How many pcs  is min order?

   The rolla v die can be placed by 1 pcs.

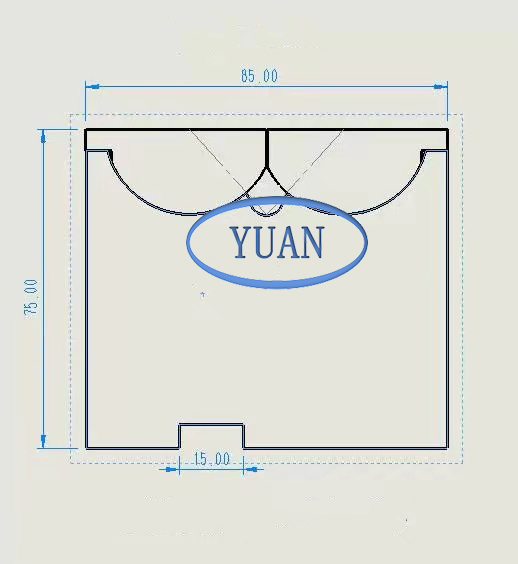

5. If your mould seat is not the same as  the draiwng ,how to do?

     The mould seat can be custom made.
