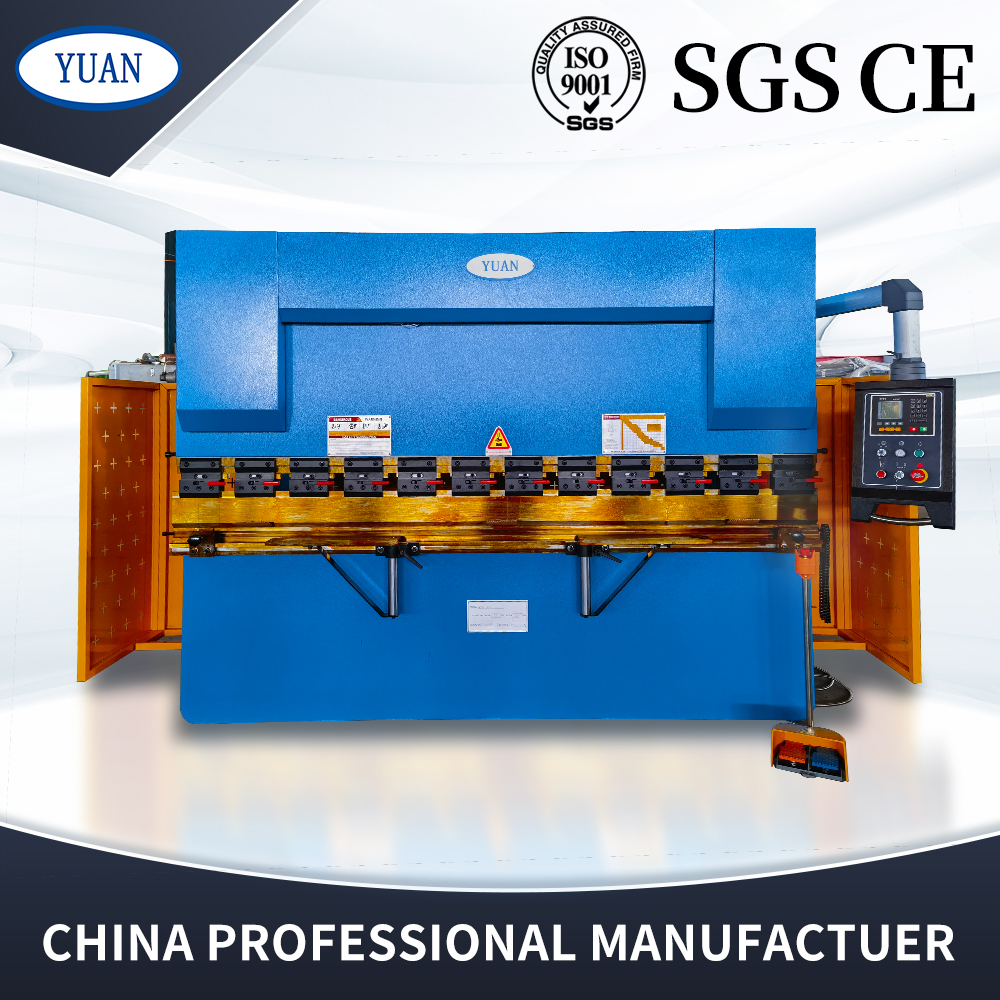

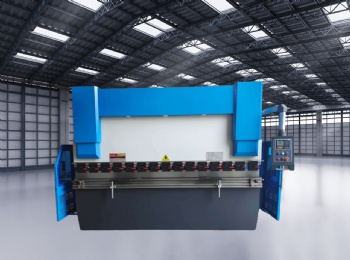

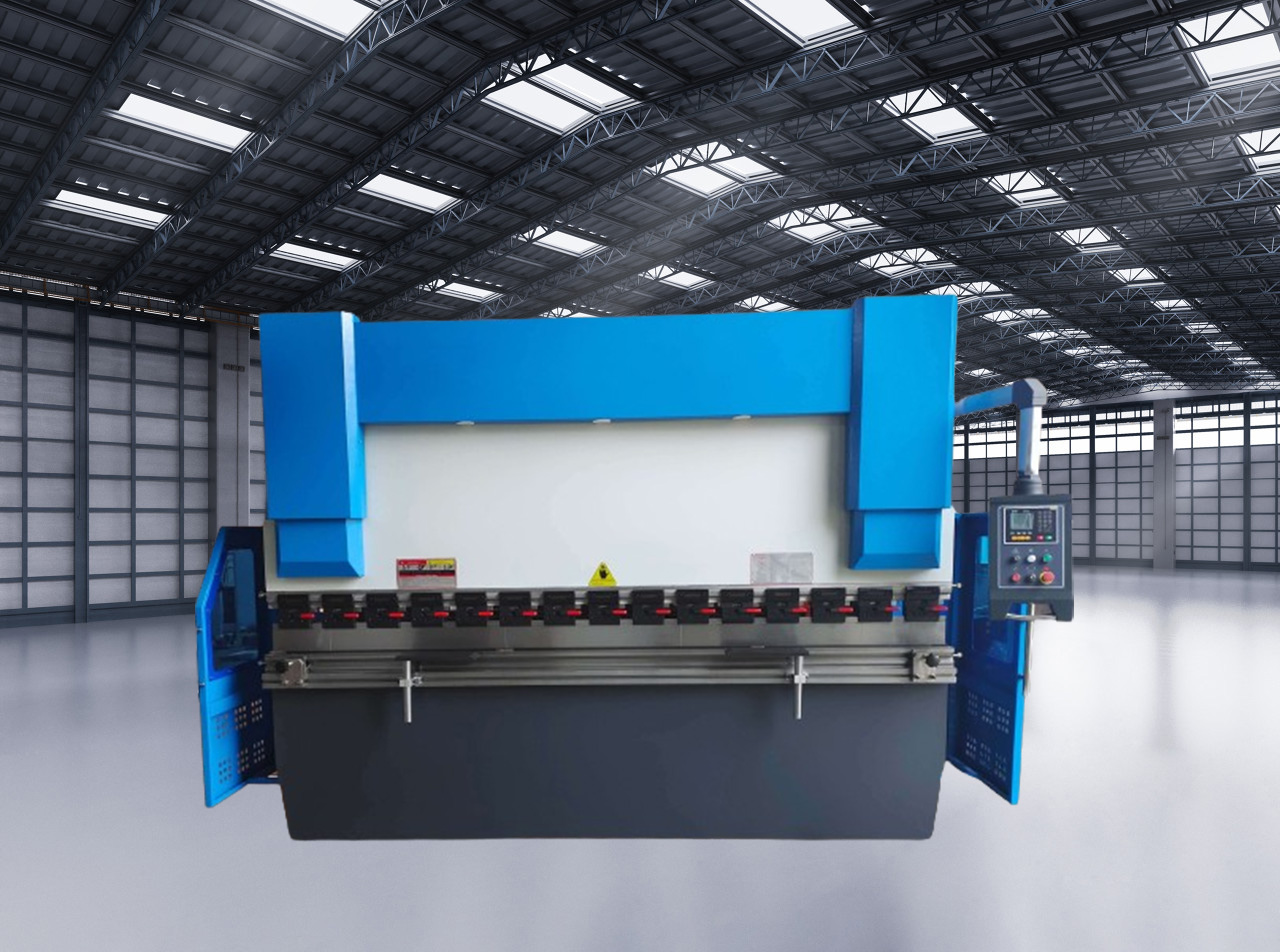

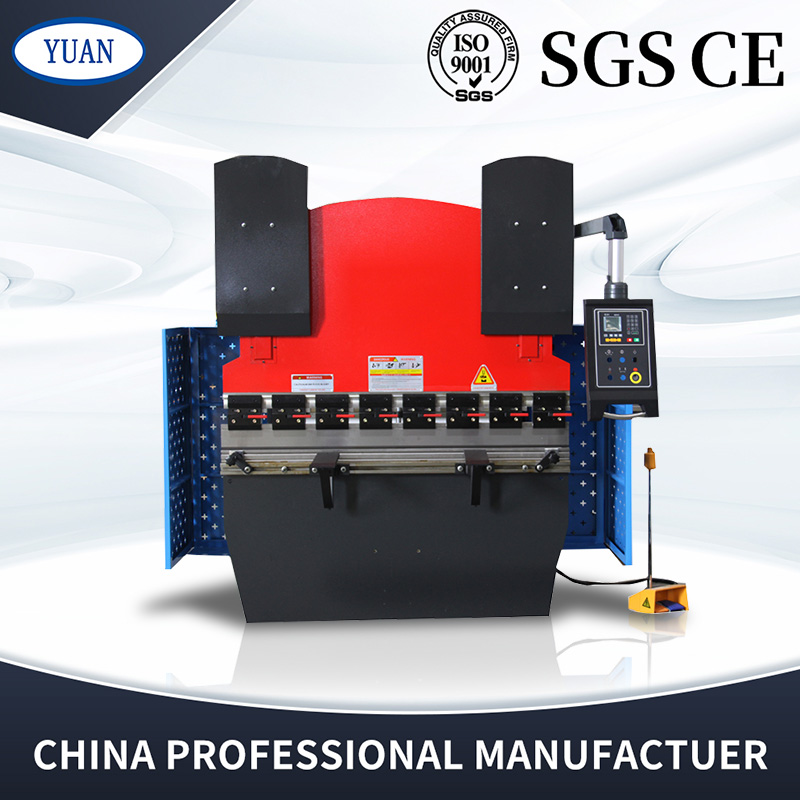

This is easy and economical NC hydraulic press brake.It is torsion bar type press brake ,the optimal machine for bending of parts with a low operation cost and lower budget.Torsion bar press brake use torsion bar synchronous NC 2 xis or 3 axis control capacity like mechanical press brake.

It is with advanced design,advanced configuration ,and fashion appearance.The press brake is of high precision and high efficiency.

 Standard components:

1.The frame is heavy-duty welding structure and it assures precise results.It is made of high quality mild steel

and it has undergones systematic mechanical processes.

2.Estun E21 NC Controller

3.Multi 4 side V die of 835mm and a fractioned punch

4.Bosch-Rexroth Hydraulic System

5.Siemens Motor

6.X,Y-Axis Motorized  Back Gauge

7.High Speed Servo Back Gauge

8.Sunny Pump from USA

9.Standard top and bottom mould with manual clamps

10.Two piece press brake fingers

11.Schneider electrical cabinet

12.Delta inverter with ball screw and polished rod with 0.05mm accuracy.

Main configuration:

1.Estun E21 Control unit

Control X axis working into position accurately.

Work precision with frequency transformer.

Program the software for future usage and has memory.

Set up different steps in one program timer.

Control the bending time .

2.Siemens Motor

German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment.

3.EMB Oil Tube Connection From Germany

Using Germany EMB Tube and connectos reduces the adds againest welding slag jaming the valves and affect oil flowing

4.USA Sunny Hydraulic Pump

5.Back Gauge Ball Screw

High precise backgauge,equipped with Taiwan HIWIN ball screw and polished rod structure.

Press Brake fingers are mounted on two linear guides,move smoothly.

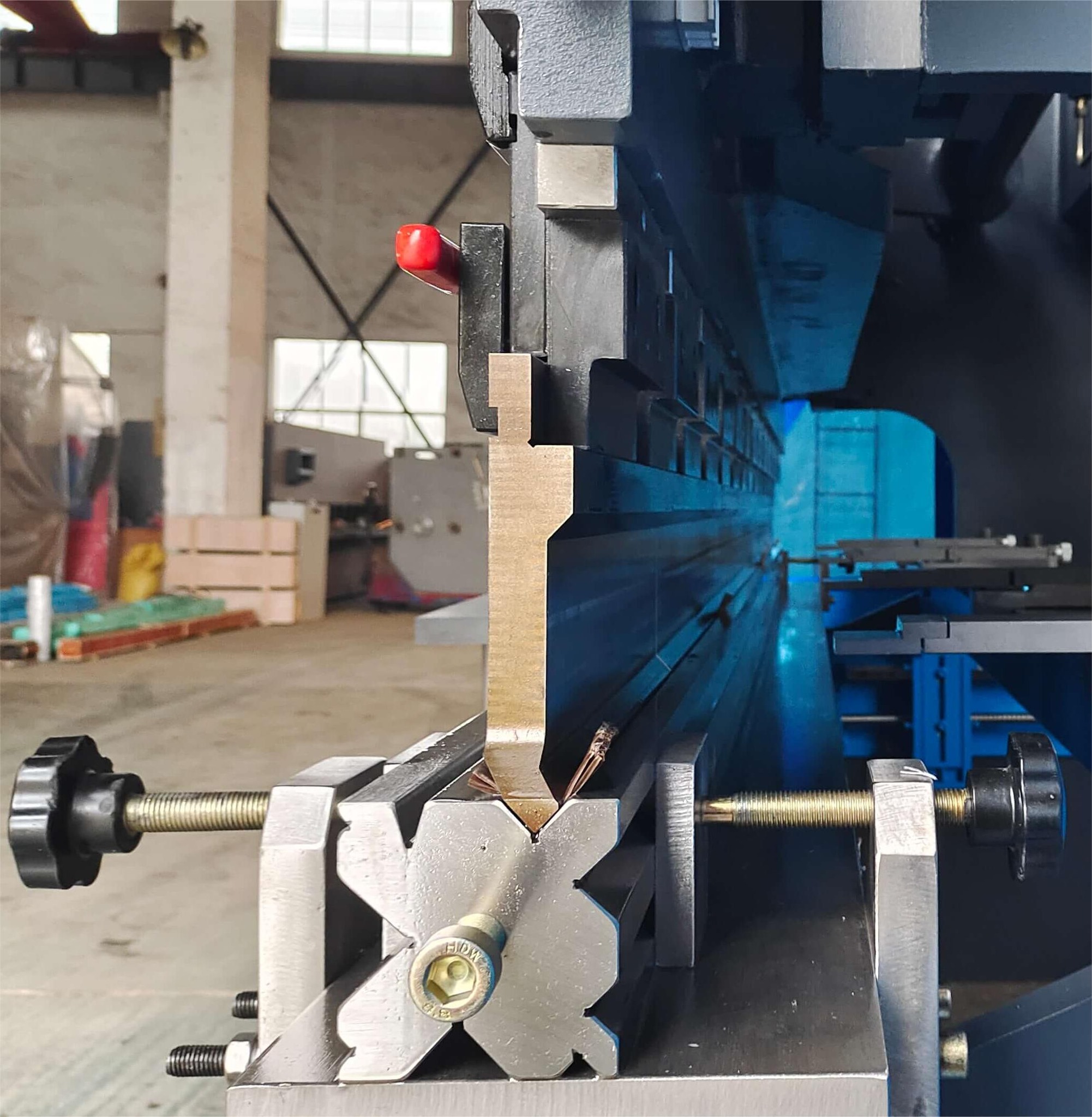

6.Standard Punch and dies

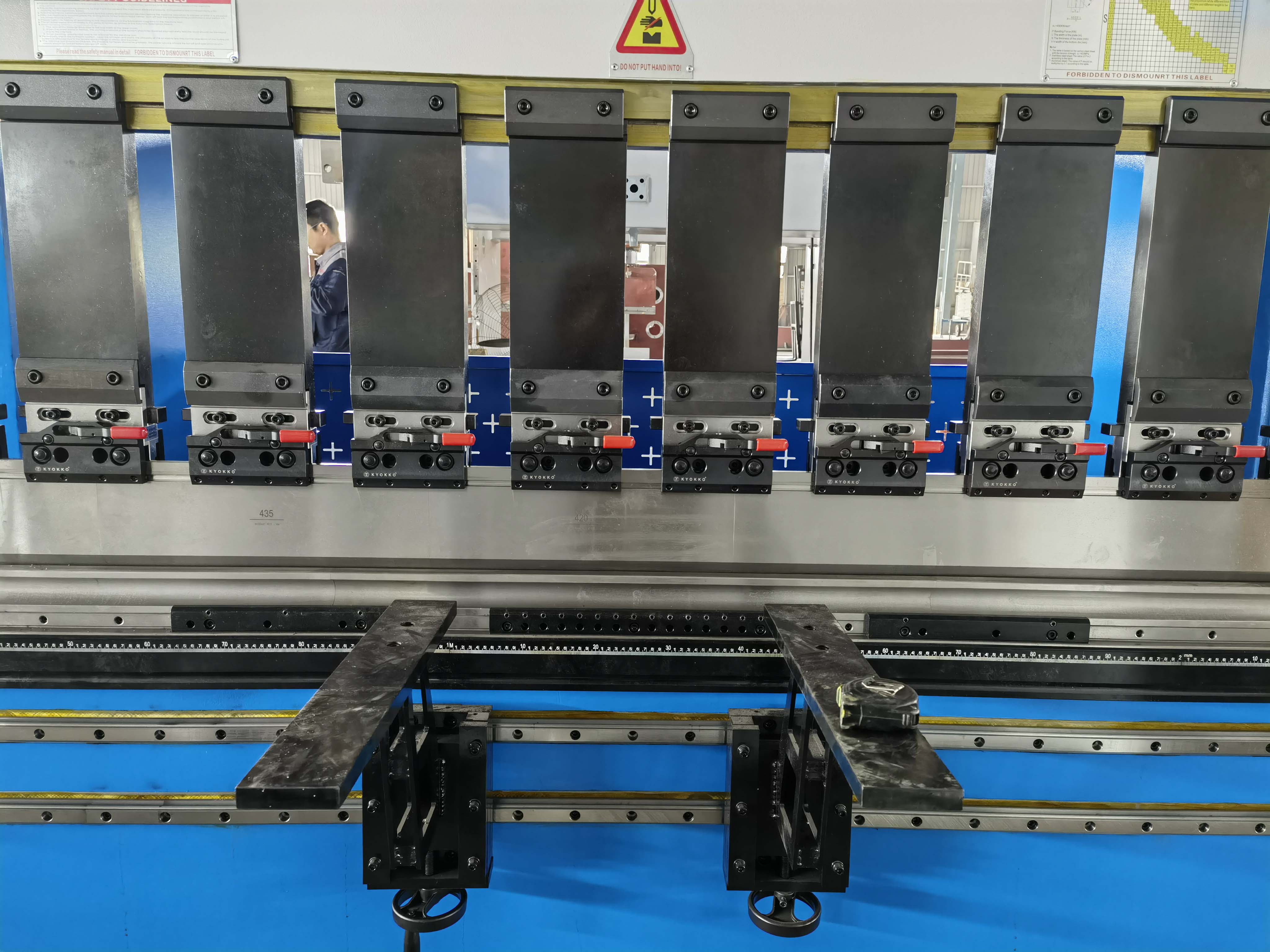

7.Press Brake Punch with Promecan European or American Fast Clamp

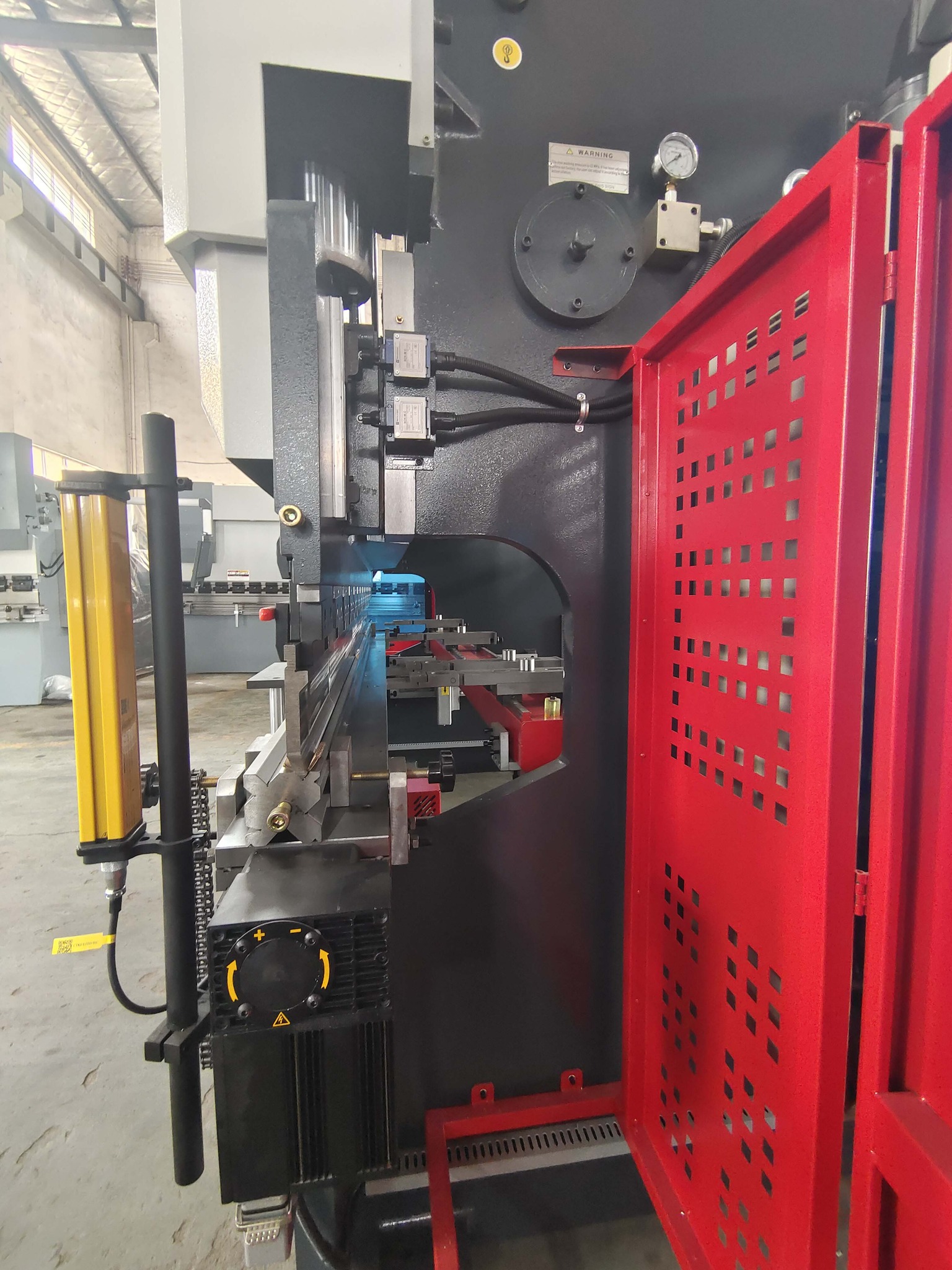

8.Machine back gauge with safey door.

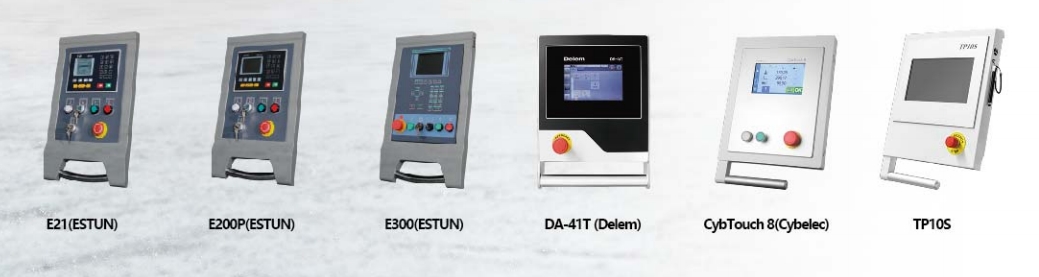

9.1Optional controller:

9.1.Estun E300 controller

9.1.1.Die library

9.1.2.Material library

9.1.3.Workpiece thickness

9.1.4.Holding time at bending point

9.1.5.Delay time for X-axis retracting

9.1.6.Count mode

9.1.7.Global correction value

9.1.8.Bending angle

9.1.9 X target position value

9.1.10Retract distance

9.1.11Y target position value

9.1.12Correction value

9.1.13 X correction value

9.1.14 Repeat time

9.2 Tp10S controller

9.2.1.Cylinder stroke (Yaxis) Control

9.22.Backgauge (X axis )Control

9.2.3.Angle Programming

9.2.4.Tool Programming

9.2.5.Retract function

9.2.6.Up to 220 programs

9.2.7.Servo control

9.2.8.Up to 24 bends per program

9.2.9.ARC Bending Function

10.Press Brake Punch and Die

11.Hydraulic Press Brake Parameters:
