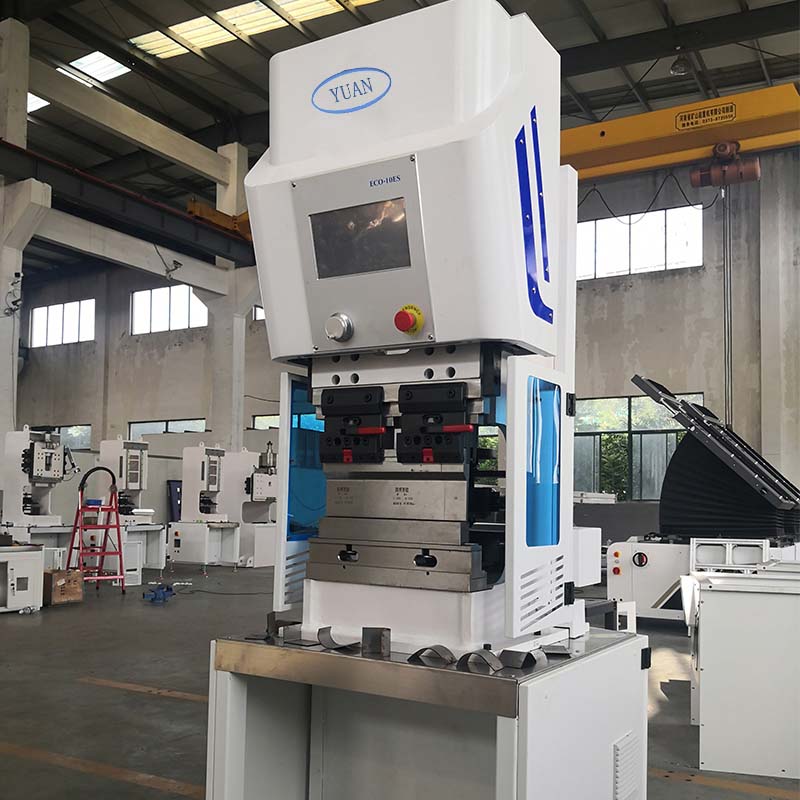

Model:RZ06-04
Brand:YUAN
CNC System Axis:Y,X
Bending Force:60KN
Bending Width:400mm
Max Opening:420mm

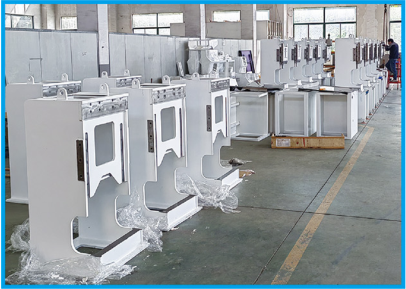

Machine body is of high grade of ductile iron cast body.The whole machine is designed and produced in accordance with the standard of high-precision machine tools.Both castings and welded parts are subjected to strict stress relief treatment and are finally strictly checked by high-precision testing instrument to ensure the long-term running.
1.Ball Screw Direct-Drive motor
2.Pure electric power
3.Heavy Type Ball screw
4. Machine body of high grade of ductile iron cast
5.Strict stress relief treatment
6.Bending capacity is 60kn.
7.Bending length is 400mm

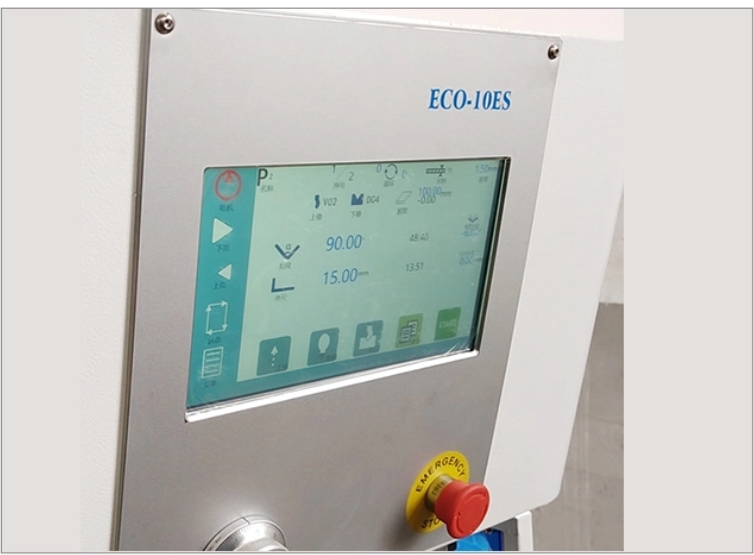

1.10 inch touch screen
2.Easy to input parameter like raw material ,thickness ,width ,bending angle
3.Tooling library.
4.Angle Programming
5.Up to 220 programs,24 bends step per program
6.Retract function
Bending Force | 6 | Ton | |
Bending Length | 400 | mm | |
Pole | |||
Axis | 2 | (Y and X) | |
Storke | 120 | mm | |
Max Opening | 420 | mm | |
Backgauge | 150 | mm | |
Speed | Fast Down | 200 | mm/s |
Working | 30 | mm/s | |
Power | 3 | KW | |
Repeat Precision | ±0.01 | mm | |
Controller | ES10 | Easycat |
NO | Name | Brand | Remark |
1 | Main Motor | SANYO | Japan |
2 | Linear guide | HIWIN | Japan |
3 | Ball Screw rod | TBI | Taiwan |
4 | Electrical components | SCHNEIDER | France |
5 | Bearing | NSK | Japan |
6 | Control system | ECO-ES10 | Easycat |

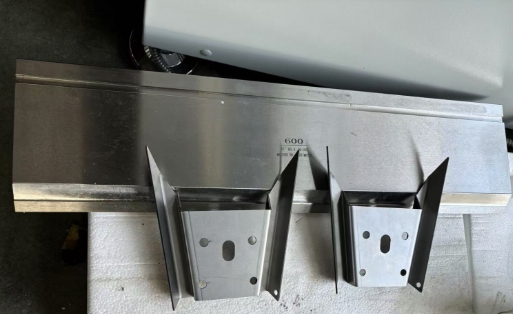

Application:
Complex sheet metal,complex sheet metal parts,complex sheet metal forming,z bend sheet metal,
offset bending sheet metal ,bending L bracket,bending U bracket,Angle brackets,small metal casem
metal case small ,bending frame wire,metal wire,small metal box, minibox small metal boxes ,tiny metal boxes.
