Deburring Machine for Sheet Metal,Automatic Deburring Machine,Deburring Tool

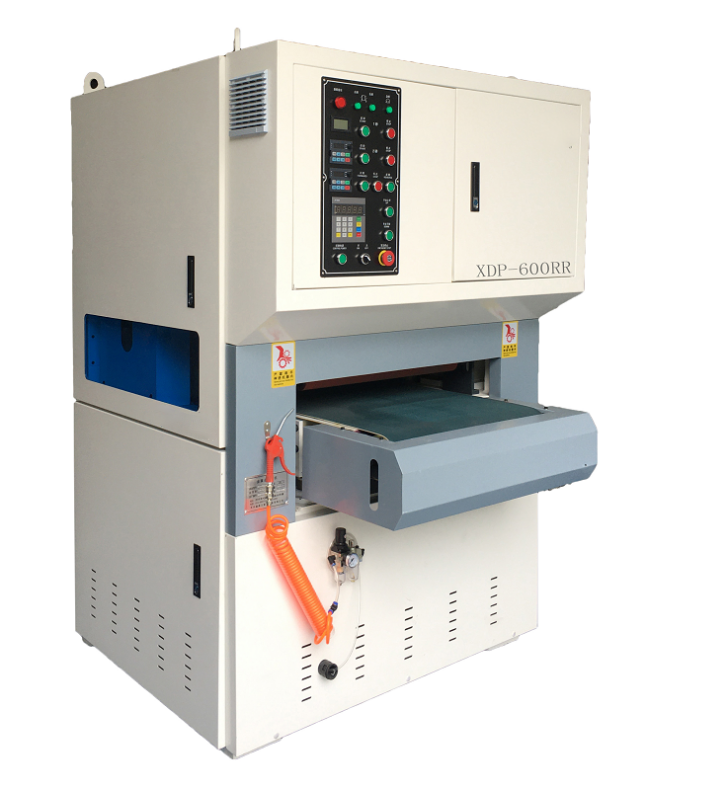

The Deburring Machine XDP-600RR also called metal sander machine.The metal sander is design for instead of hand held metal sander.It includes 2 sets of sanding belts.The best vertical belt for metal  is 1900x650mm.It is mainly used for Deburring, Grinding, Slag Removal,Dross Removal, and Straight Grain Finishing.

The Metalworking DXP-600RR Sander is a cost-effective way to finally upgrade your deburring and finishing operations, moving away from time-consuming hand grinding. With just a quick change of          the abrasive belt, this compact machine can remove slag/dross, grind vertical burrs, or straight grain finishing (including some mill scale removal).

1. The abrasive belt rotates at high speed to cut the surface of the workpiece, greatly reducing the burrs on the surface of the workpiece.

 2. The abrasive belt rotates at high speed to draw and polish the surface of the workpiece. The double abrasive belts rotate at high speed to cut the surface of the workpiece and increase the burrs on the surface of the workpiece.

 3. The abrasive belt rotates at high speed to draw and polish the surface of the workpiece. The double abrasive belts rotate at high speed to cut the surface of the workpiece and increase the burrs on the surface of the workpiece. The process is safe and reliable, allowing the workpiece to achieve perfect results.

Structure:

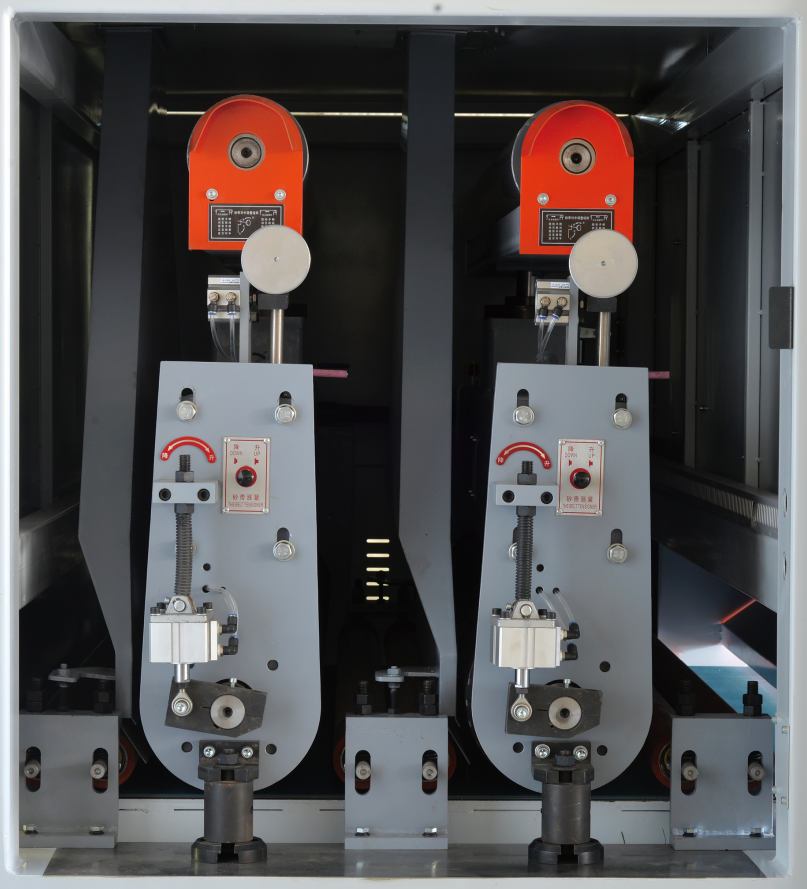

The sheet metal sander machine contains a frame, mechanism belt conveyor , lifting mechanism, revolving mechanism, magnetic system, and abrasives belt.

Function:

1. Remove hard and large burrs on the edges

2. Remove cutting slag

3. Remove surface oxide scale

4. Multiple sets of abrasive belts produce large cutting amounts

5. Strong magnetic adsorption in some areas, capable of processing extremely small carbon steel Working principle

Feature:

   1.Heavy-duty welded frame

2.bed opening with motorized lift

3.24″ wide part capacity

4.37″ x 77″ abrasive belts

5.Optional wet dust collector

6.Through processing, the deburring work is completed in one feeding.

7.The marble conveying platform has a smooth surface and is equipped with some magnetic areas.

8.Optional wet dust collector to absorb dust during work

9.Mostly used for removing larger burrs and scale from thicker steel parts.

Parameter:

Main components and functions:

Accessories

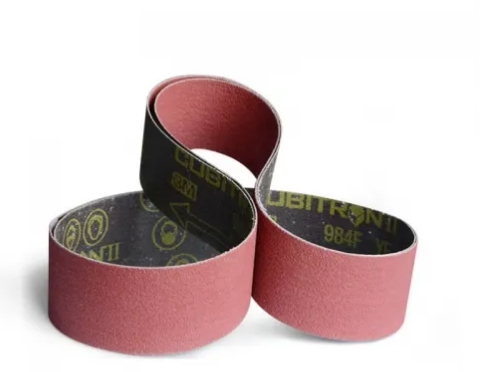

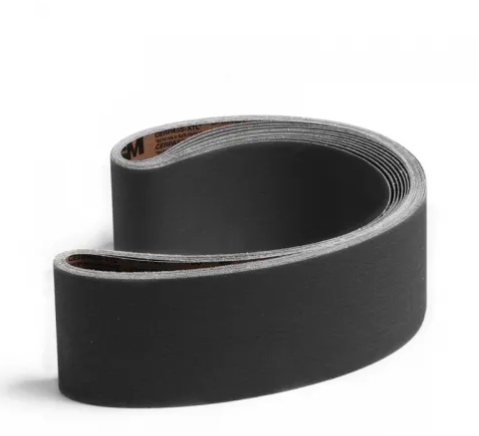

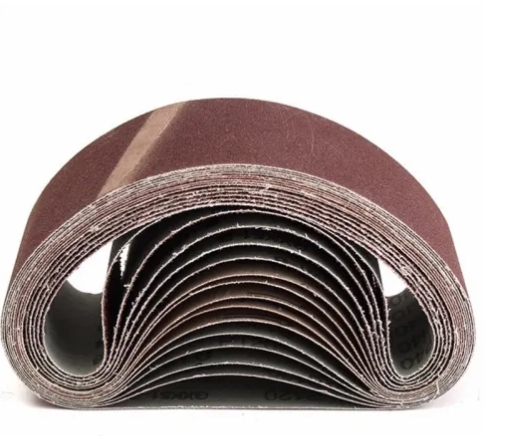

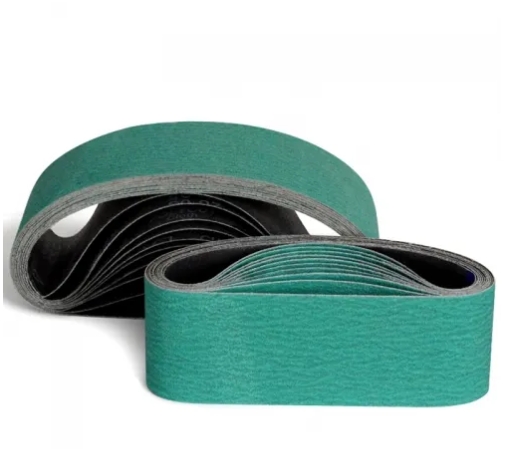

Sanding belts:

Application:

Suitable blanking processes: laser cutting, plasma cutting, flame cutting, NCT blanking

Suitable plate materials: stainless steel, cold plate, carbon steel.

Function:Deburring, Grinding, Slag Removal,Dross Removal, and Straight Grain Finishing.
