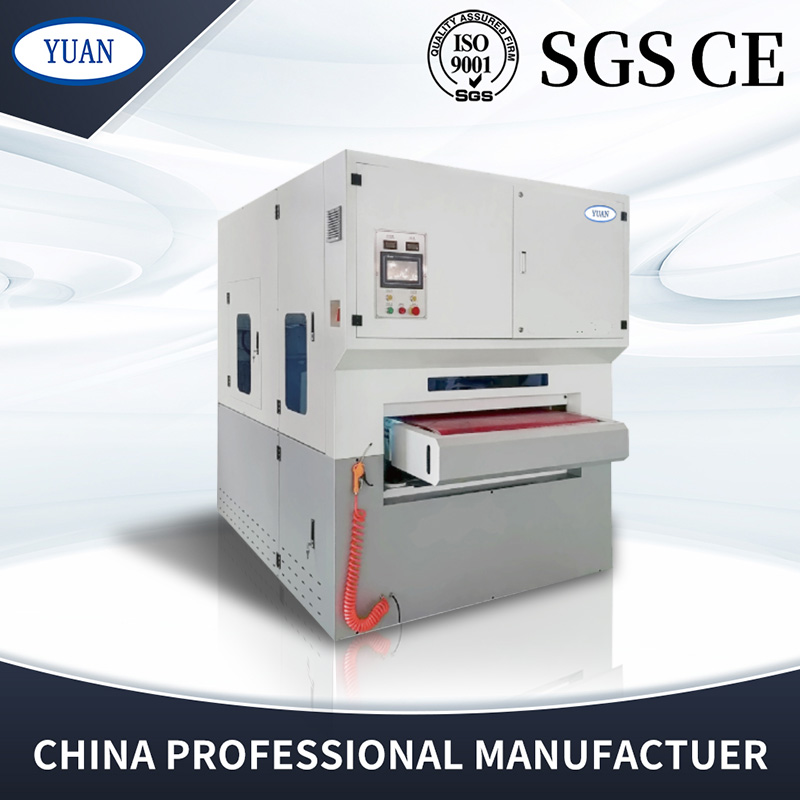

Sheet metal edge deburring machine ,metal finishing machine ,deburring machine manufacturers

A sheet metal deburring machine is a tool or equipment designed to remove burrs, sharp edges, and imperfections from the edges of sheet metal parts. Burrs are unwanted metal projections that can result from cutting, punching, or machining processes. Sheet metal deburring is essential for improving the safety, aesthetics, and functionality of the metal components.

Sheet Metal Deburring machine is a sheet metal surface treatment.The sheet metal edge deburring machine used after Plasma cutting ,air cutting for fiber laser cutting sheet metal ,then deburring,edge rounding,finishing ,oxide skin and heavy slag removal for the sheet metal.The metal deburring machine is composed of sand belt and four universal rolling brush (roller) the belts and rollers work on metal surface, edge and holes, torealiz edge burring, micro chamfer, metal surface drawing, metal surface polishing, andhasnoimpact on the precision of workparts. It is used for removing the burr producedduringlaser cutting, plasma cutting, punching, shear, etc.

Structure:

The sheet metal deburring machine contains a frame, mechanism belt conveyor , rotating heads, lifting mechanism, revolving mechanism, magnetic or vacuum system, negative pressure generator system, and abrasives.

Feature:

Sheet metal edge deburring machine is built in widths from 450mm to 1600 mmand multiple head frames
Dual infeed and outfeed pinch rolls to ensure parts feed through machine properly
One- to three-head configurations with drum, brush, disc or combination drum/brush/disc heads
Machines built in both top and bottom configurations
Individual cam adjustment down to .001″ per head for accurate finishing
Air-loaded cylinder for automated belt tensioning
Automatic abrasive belt tracking to ensure proper belt alignment during operation

Function:

1.Removing the burrs at edges or complicated holes

2.Surface polishing and edge deburring .

3.Customized curved profile polishing machine

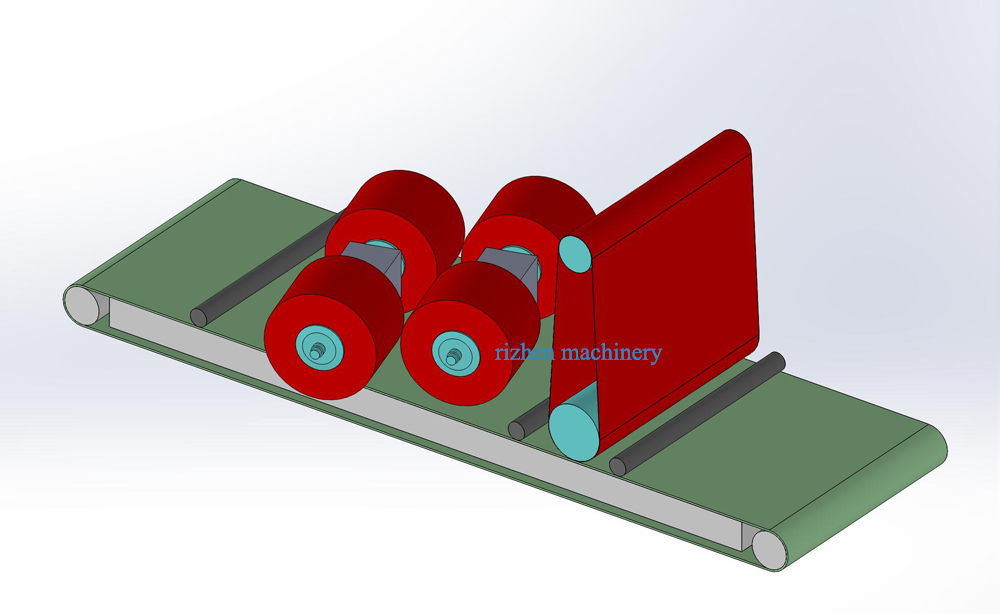

Sheet metal edge deburring machine is used after Plasma cutting ,air cutting for fiber laser cutting sheet metal ,then deburring,edge rounding,finishing ,oxide skin and heavy slag removal for the sheet metal.It is equipped with 2 work stations:a wide abrasive belt head and roller brush station.

Configuration:

1 Dry Operation,therefore low production and maintenance cost.The machine has long life which means the return on investment is high.

2.Conveyor feed through type ,high efficiency.

3.Optional magnetic or vacuum conveyor bed to accommodate and process small parts.

4.Straight forward and user-friendly operation

5.Auxiliary LED lighting inside machine.

6.Dust collection hood is installed inside the machine.

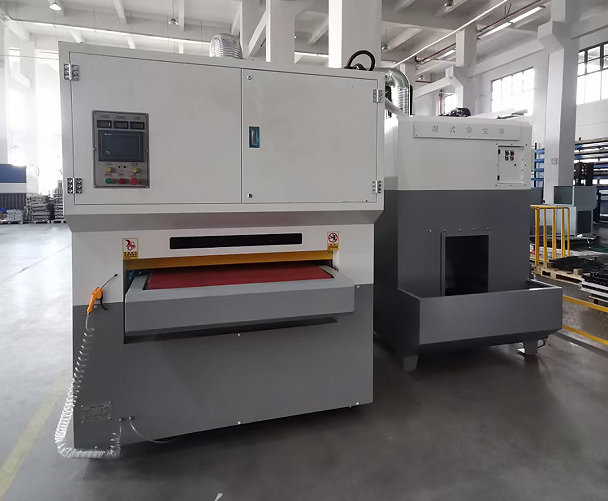

Working principle

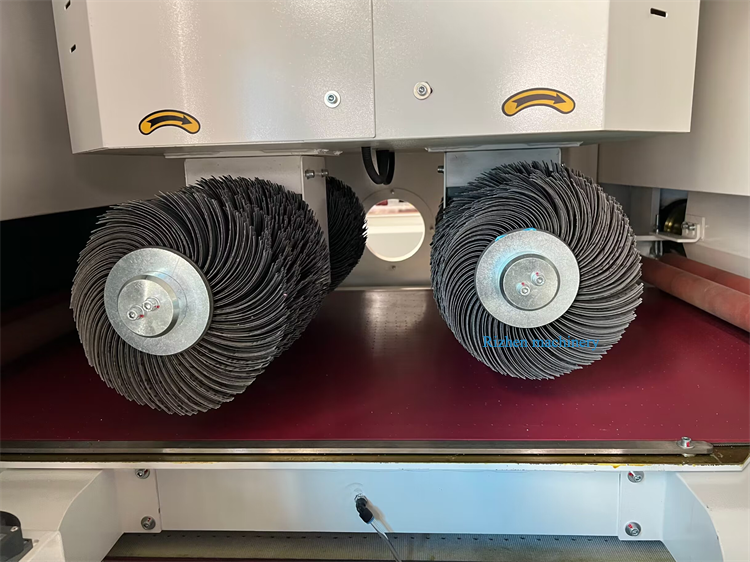

Steel deburring machine is a through type processing equipment, with a rolling brush for lifting and lowering. The product is chamfered and sharp edges removed through four sets of wire rollers.Stainless steel deburring machine adopts a high damping imported conveyor belt to transport workpieces, with variable frequency speed regulation. Equipped with a 5.5 kW wet vacuum cleaner,Absorb most of the dust during work.

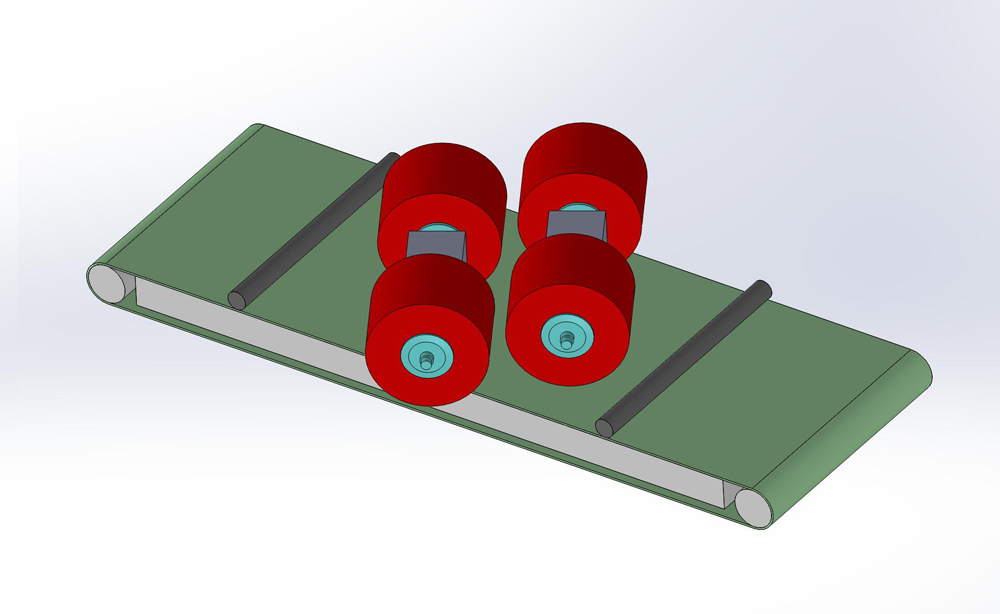

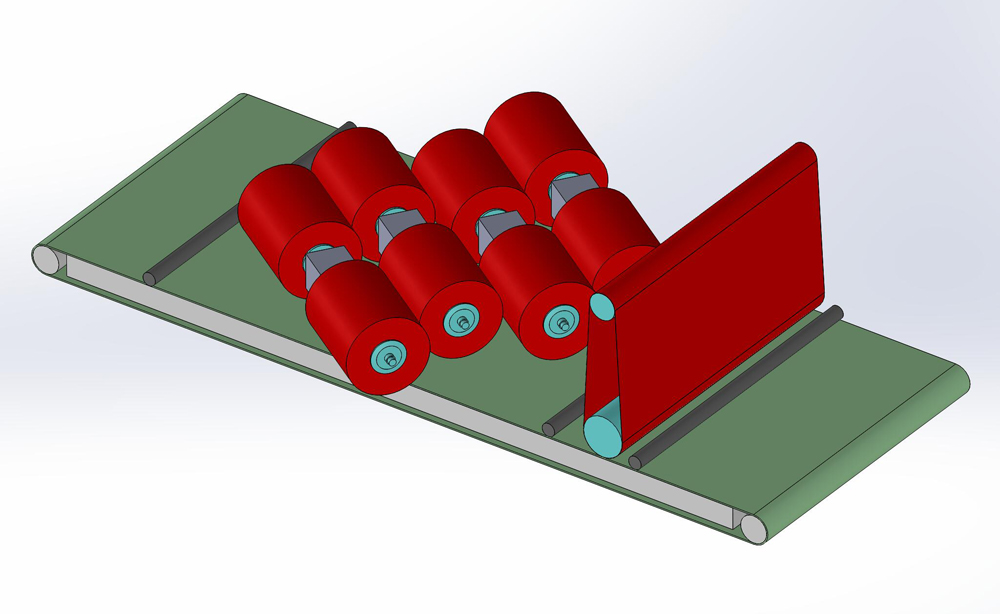

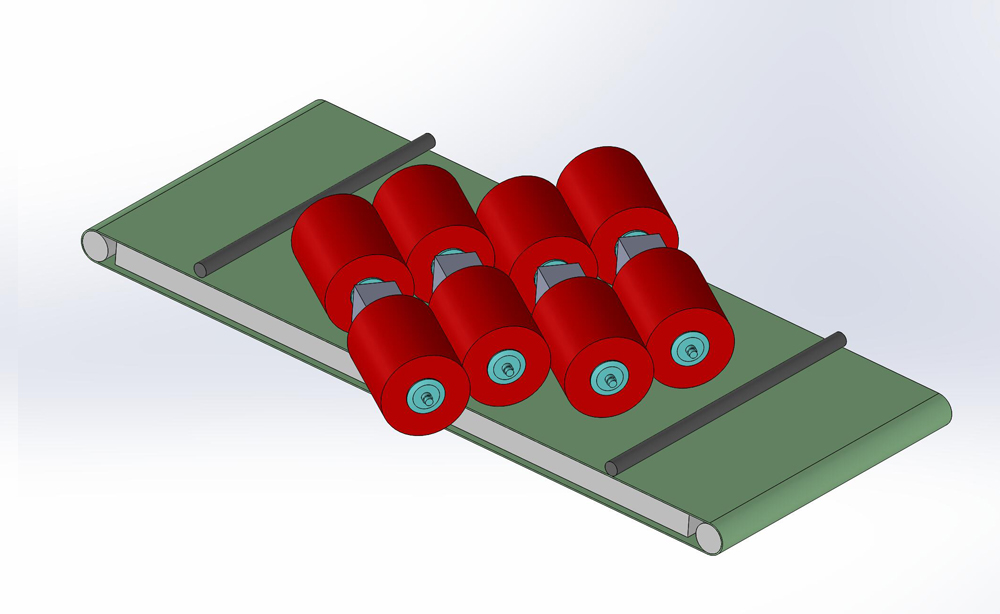

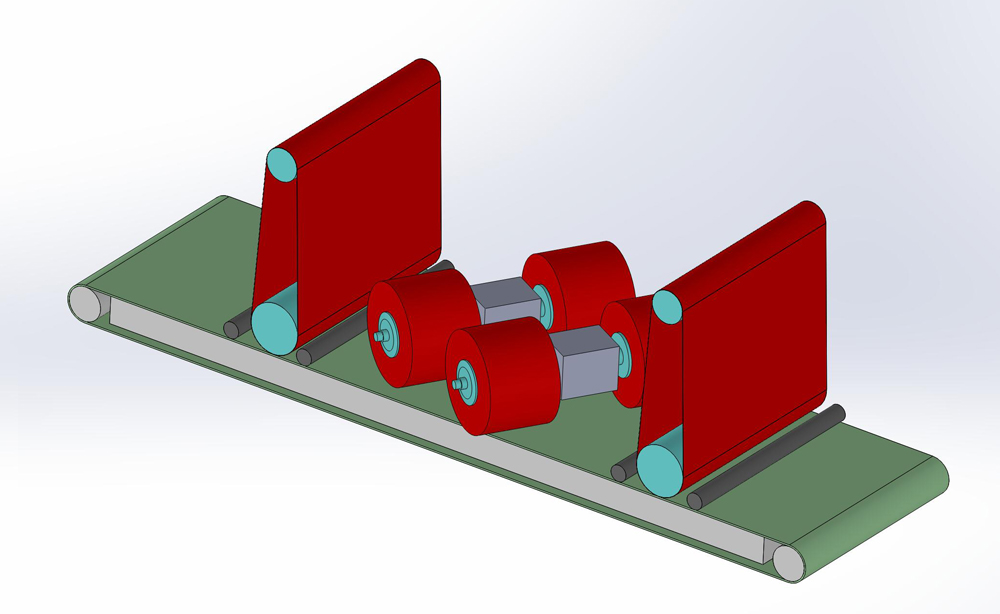

More configuration  to choose:

Conveyor belt to choose

Technical data:

Main components

 Configuration

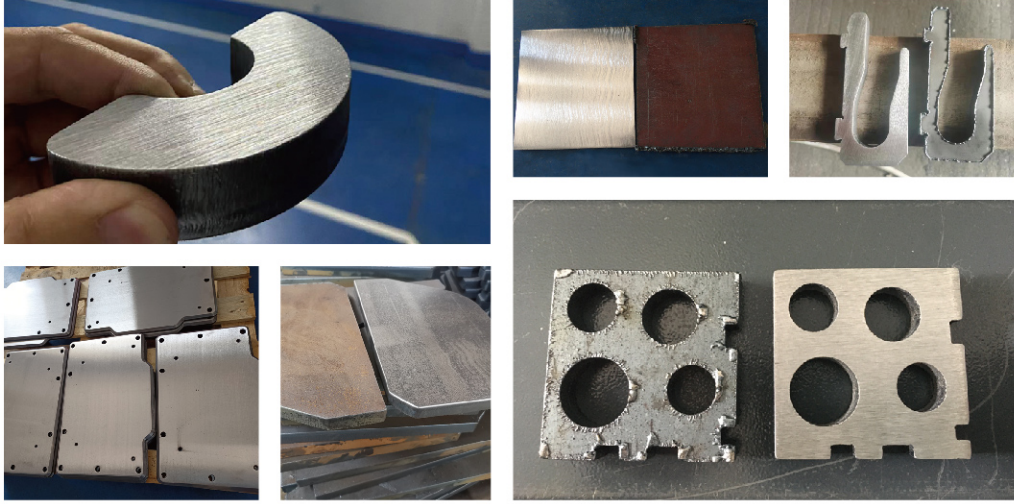

Deburring sheet metal parts

Applicable Material

Stainless steel, carbon steel, aluminium, copper, etc.

Application

Slag, hard burrs produced by laser, flame, plasma, etc
Burrs, sharp edge of NCT, stamping, cutting, etc.

Consumable material

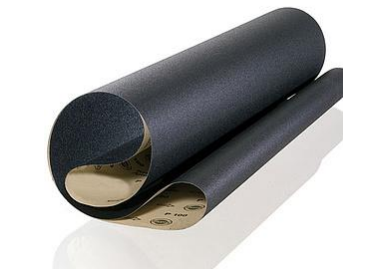

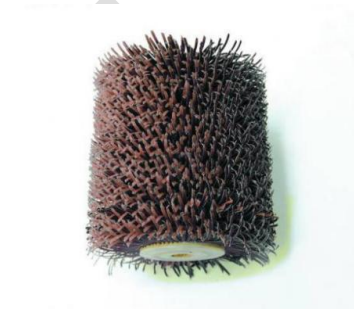

Wide Belt	Roller Brush

Optional:

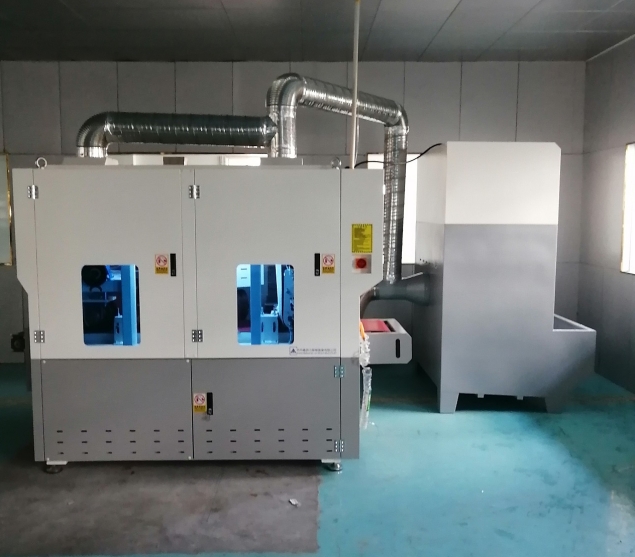

west dust remover will give you a clean workshop
