2 Roll Bending Machine，2 Roll Plate Bending Machine

The Hydraulic 2-Roll Plate Bending Machine is designed to roll and bend thin steel plates with thicknesses ranging from 0.8mm to 4mm. It’s capable of bending mild steel, stainless steel, aluminum, and copper sheets. This machine is ideal for manufacturers of tanks, cylinders, tubes, pipes, and pressure vessels.

Our company developed this two-roll hydraulic automatic rolling machine specifically for creating cylindrical shapes from sheet metal, typically up to 4mm thick. If your products are tubular, canular, or cylindrical in shape, this machine is a perfect fit. It’s widely used in industries such as automotive parts manufacturing, solar water heaters, food processing equipment, metal machinery, and more.

2 roll bending machine feature:

2.1 The main rubber roller is manufactured using advanced Japanese technology for superior performance.

2.2 The hydraulic system is compact, operates with low noise, maintains stable pressure, and comes with a one-year warranty.

2.3 The control system is PLC-based, with the main electrical components of the control cabinet backed by a one-year warranty and lifetime maintenance.

2.4 The main frame features a welded steel plate structure, followed by post-welding aging treatment for added durability.

2.5 All parts undergo shot blasting to remove slag and rust, followed by anti-rust primer application and a topcoat finish. The machine has a clean and polished appearance.

2.6 Upon delivery, the machine comes with all necessary accessories, common tools, operating instructions, and electrical diagrams.

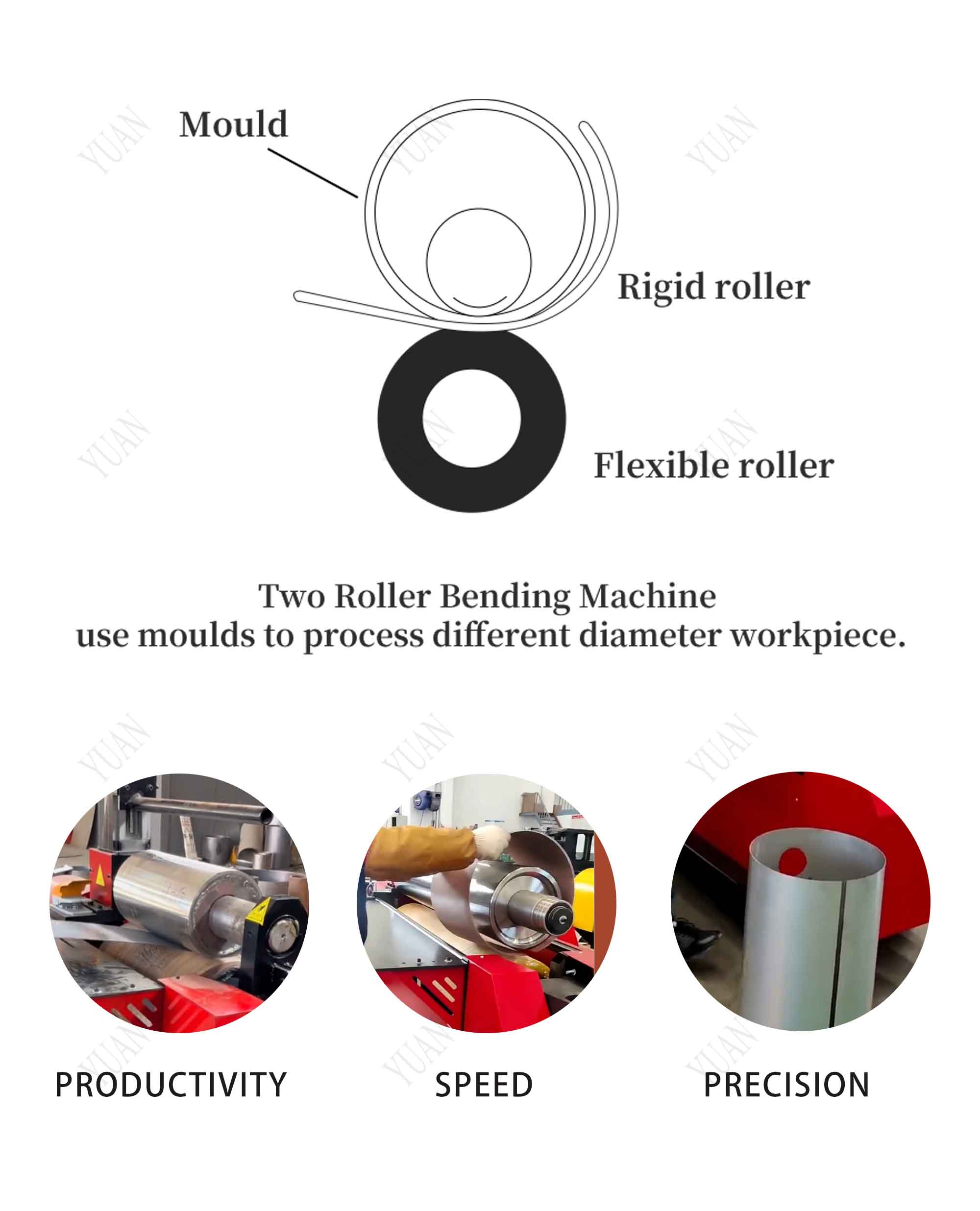

Two roll bending machine working principle:

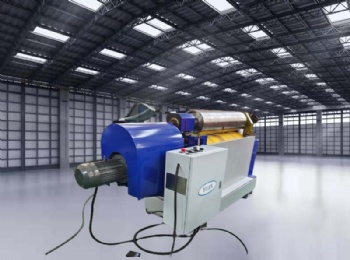

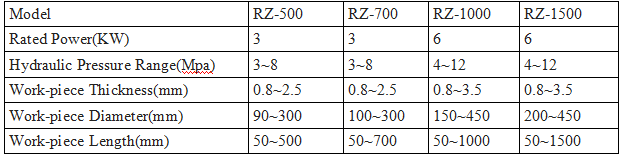

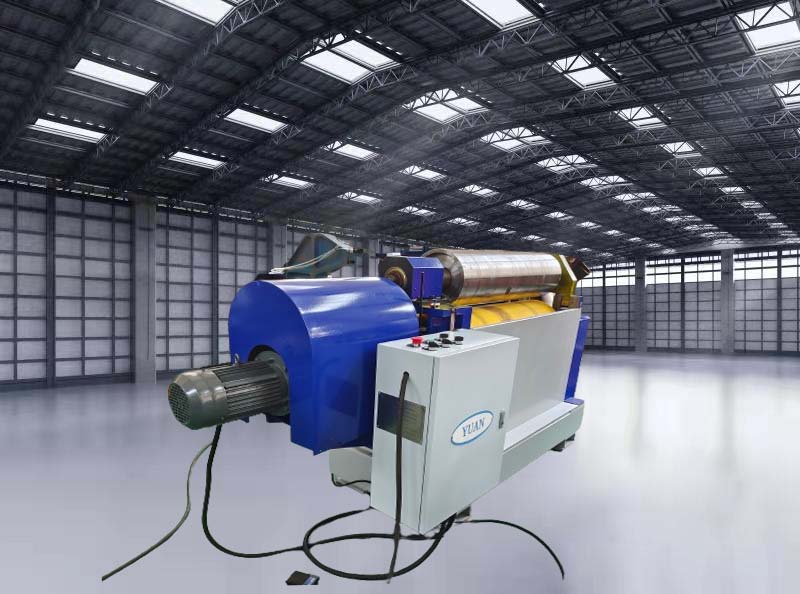

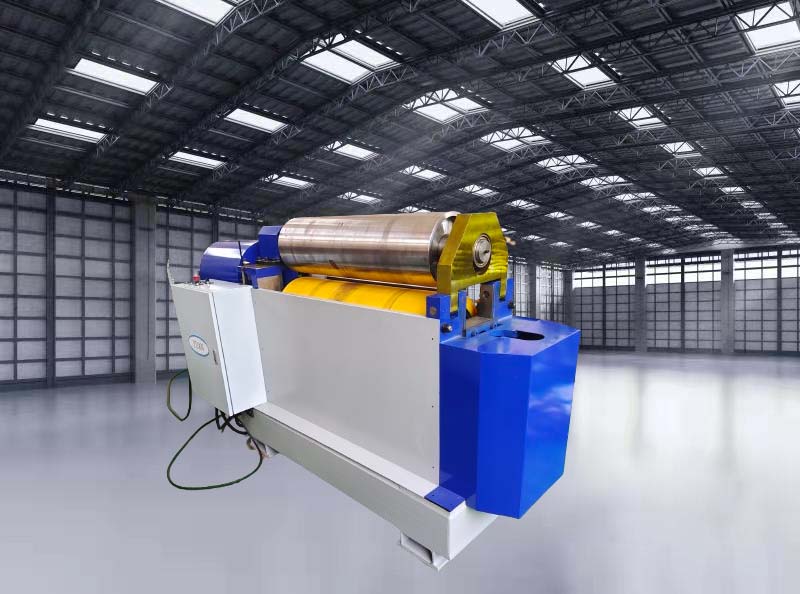

Standard Hydraulic Two Rollers Rolling Machine

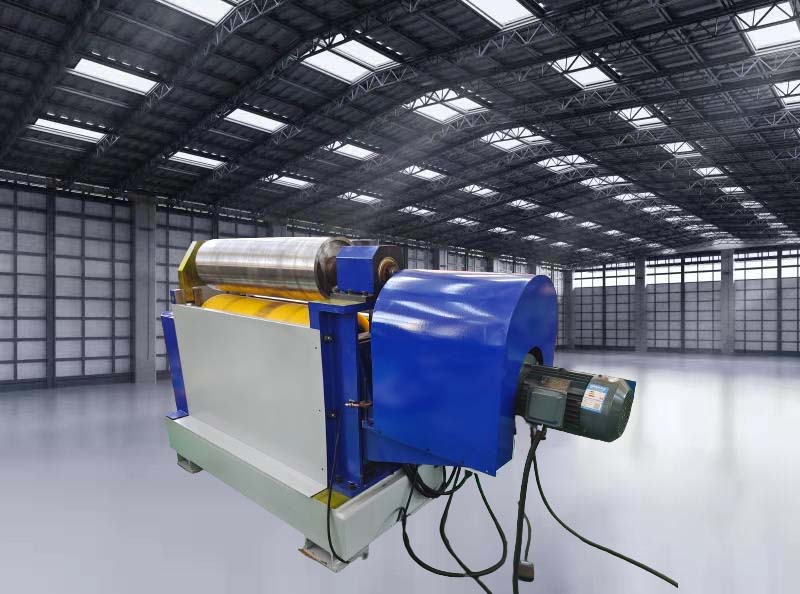

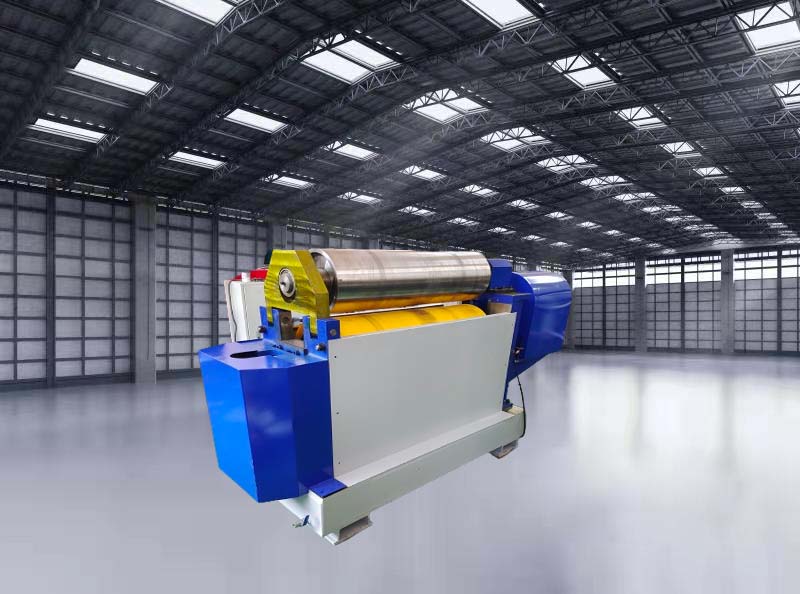

Customized Heavy Hydraulic Two Rollers Rolling Machine

 two roll bending machine working application:

2 Roll Plate Bending Machine  machine is the ideal solution for bending very small diameters and for maximum industrial productivity.  2 Roll Plate Bending Machine the upper roll made of steel and the motorized lower roll made of special urethane material: the curvature with this urethane roll allows very fast bending times.It carry out the whole bending process in one simple step.

1.low roll in urethane for perfect pre-bending

2.Automatic roll in urethane for perfect pre-bending

3.Certalised lubrication

4.Speical lower roll lifting system

5.Standard roll for minimum diameter

6.Automatic release opening

7.Lubrication circuit

8.Emergency barrier around the machine

Application filed:

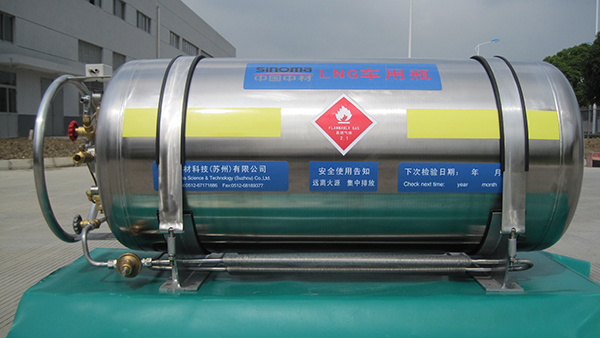

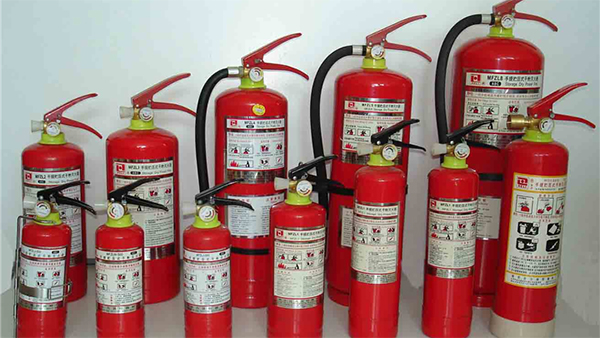

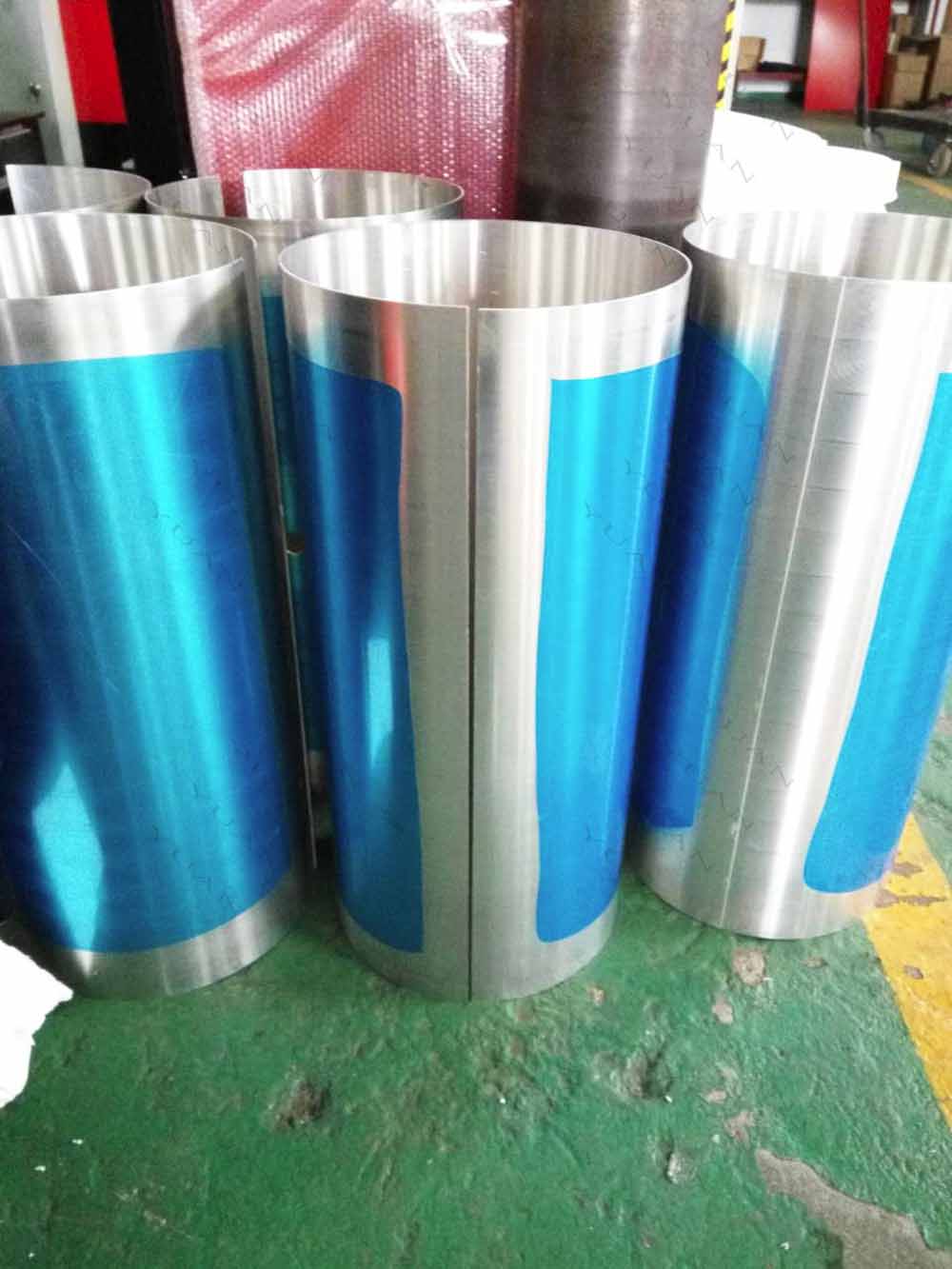

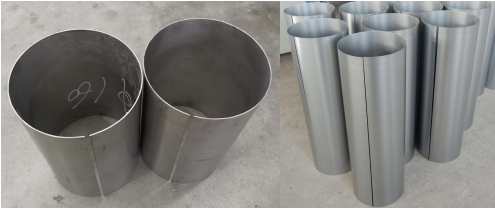

2 roll bending machine is widely used in solar water heater,pressure vessel,air compressor,car muffler,car oil tank,food machinery,motor,fire extinguisher,and other cylindrical or semicircle cylinder production.

FAQ
Q: Will we have to change the mould for different diameters?
A: Yes, one diameter needs one mould , which can guarantee the roundness precision.
Q: How long will we have to change the mould for different diameters?
A: It is about five minutes one worker with simple mechanical crane or arm.
Q: What parameters do we have to offer while sending inquiry?

A;Raw materail,Thickness ,width and cylinder diameter
