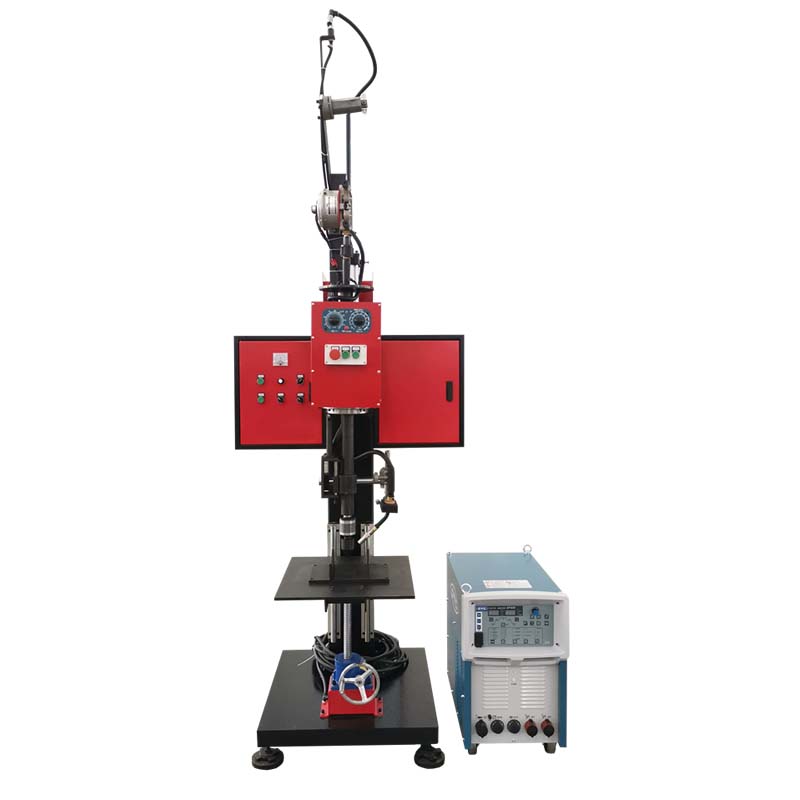

Rotary Torch Circle Welding Machine

Rotary Torch Circle Welding Machine

The rotary torch circle welding machine is for Oil cylinder oil port ,Storage cylinder nut;small nut joint ,small pipe flange automatic welding

Inquiry Now

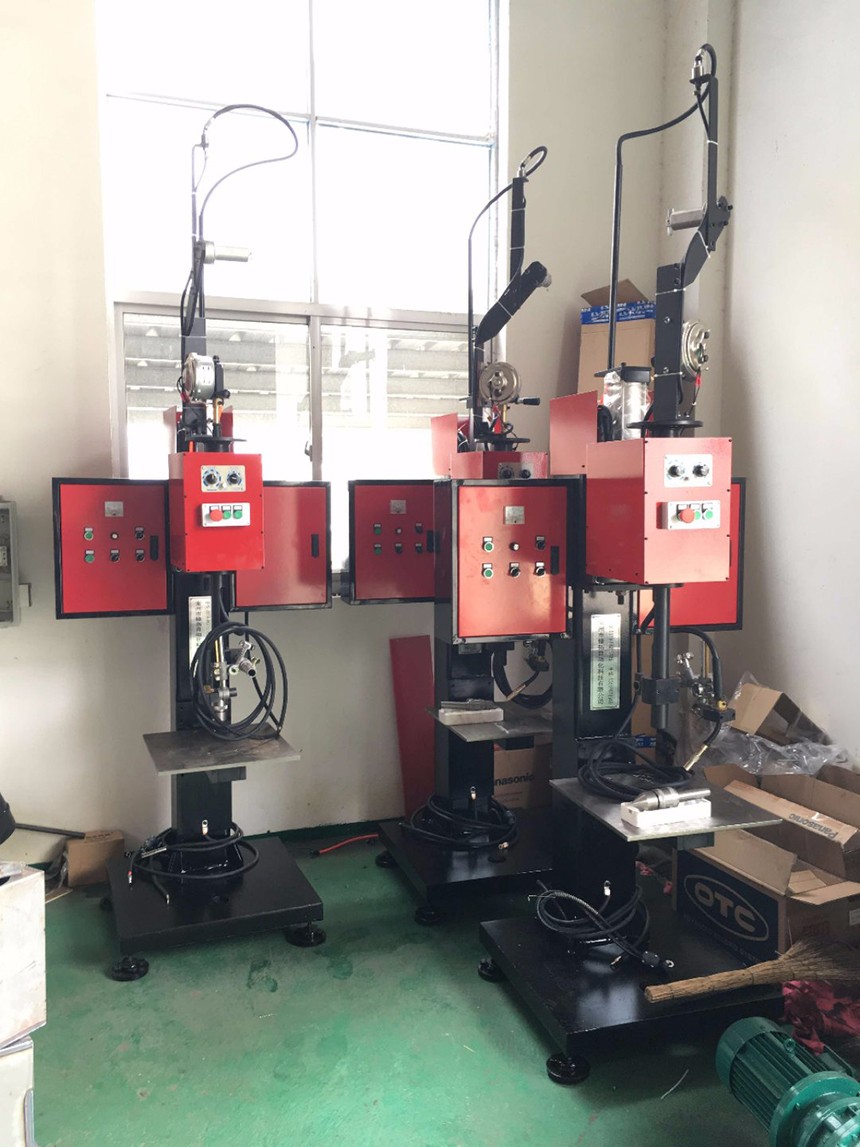

rotary welding machine

The rotary torch circle welding machine is designed for oil cylinder oil port ,storage cylinder nut ,small nut joint ,small pipe flange automatic welding.It adpots the way of gun rotating and workpiece is fixed.The adjusting device of gun torch is very flexible.Automatic rotating gun welder machine tools are mainly used for joint circumferential seam and profiling welding of carbon steel, stainless steel, aluminum and other metals. The cantilever depth is customized according to the workpiece. There is no need to return to the position after one round of welding is completed, which greatly improves production efficiency.

Rotary Torch Circle Welder Features:

 1. The automatic rotary welding equipment is the machine developed by our rizhen machinery, which is used for the welding of small-diameter nut joints and oil cylinder oil parts

2. The welder adopts the structure form that the welding torch rotates 360° while the workpiece fixed, which solves the problem of long rotating radius of the workpiece.
3. The welding torch can rotate without any limitation, without sparing the welding torch and cable, the wire feeder rotates synchronously with the welding torch, and the welding torch is shortened, which reduces the resistance of wire feeding and the welding arc is stable.
4. The welding torch is equipped with up and down imitation line mould when rotating, it can achieve saddle arc welding.
5. Welding method adopts mixed gas shielding welding and other welding methods (80% Ar, 20% CO2).
6. The equipment has the functions of automatic gun discharging, automatic lifting, automatic resetting, automatic arc starting, automatic arc closing, etc. It has high degree of automation, one-button operation, stable and reliable operation. Clamping adopts automatic positioning mechanism, which is convenient for loading and unloading of workpieces
.

Automatic rotary gun welding machine advantage:

1.Easy to operate,wide welding range

2.Realize sanddle-shaped welding by copying mould

3.Welding seam is beautiful ,uniform and full.

Specification of Rotary Torch Circle Welding Machine:

Rotary Gun Welding Machine

RZZQH-300

Input Power

220V 50HZ

Rated Power

14 KW

Air Pressure Range

0.1-0.6 Mpa

Work-piece diameter

10-200 mm

Work-piece Length

100-2000 mm

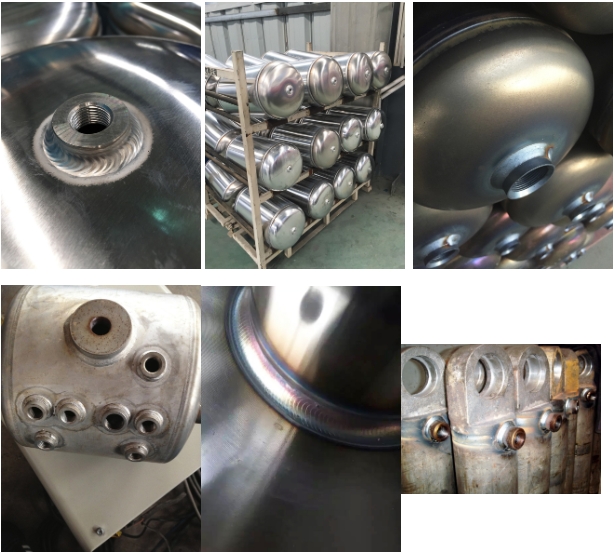

Samples of Rotary Torch Welding Machine:

aumatic rotary welding machine
