Mini Electric Press Brake,Small Electric Press Brake,Mini Press Brake Machine

 In Sheet metal bending filed, also referred to as press braking, flanging, folding or forming,There are many type of machines.Like Hydraulic Brake Press,Electric-Hydraulic Proportion Press Brake,Servo Pump CNC Brake Press ,Small Press Brake and So on.

we design mini press brake for manufacturers who required precision but did not have the space or demand for a full-sized press brake.Small sheet metal workshops, prototype producer, hobbyists, and educational institutions are now able to benefit from the high precision and efficiency of small electric servo press brake technology without the large footprint and cost of larger machines.

Small Press Brake Machine also have some types to choose.One is small hydraulic press brake machine ,one is small electric press brake machine .

A small metal bending brake is a compact and smaller version of a traditional press brake used in metalworking and sheet metal fabrication. Press brakes are machines designed to bend and shape sheet metal by applying force to a workpiece using a punch and die. The mini press brake is typically more portable and suitable for smaller-scale or precision projects.

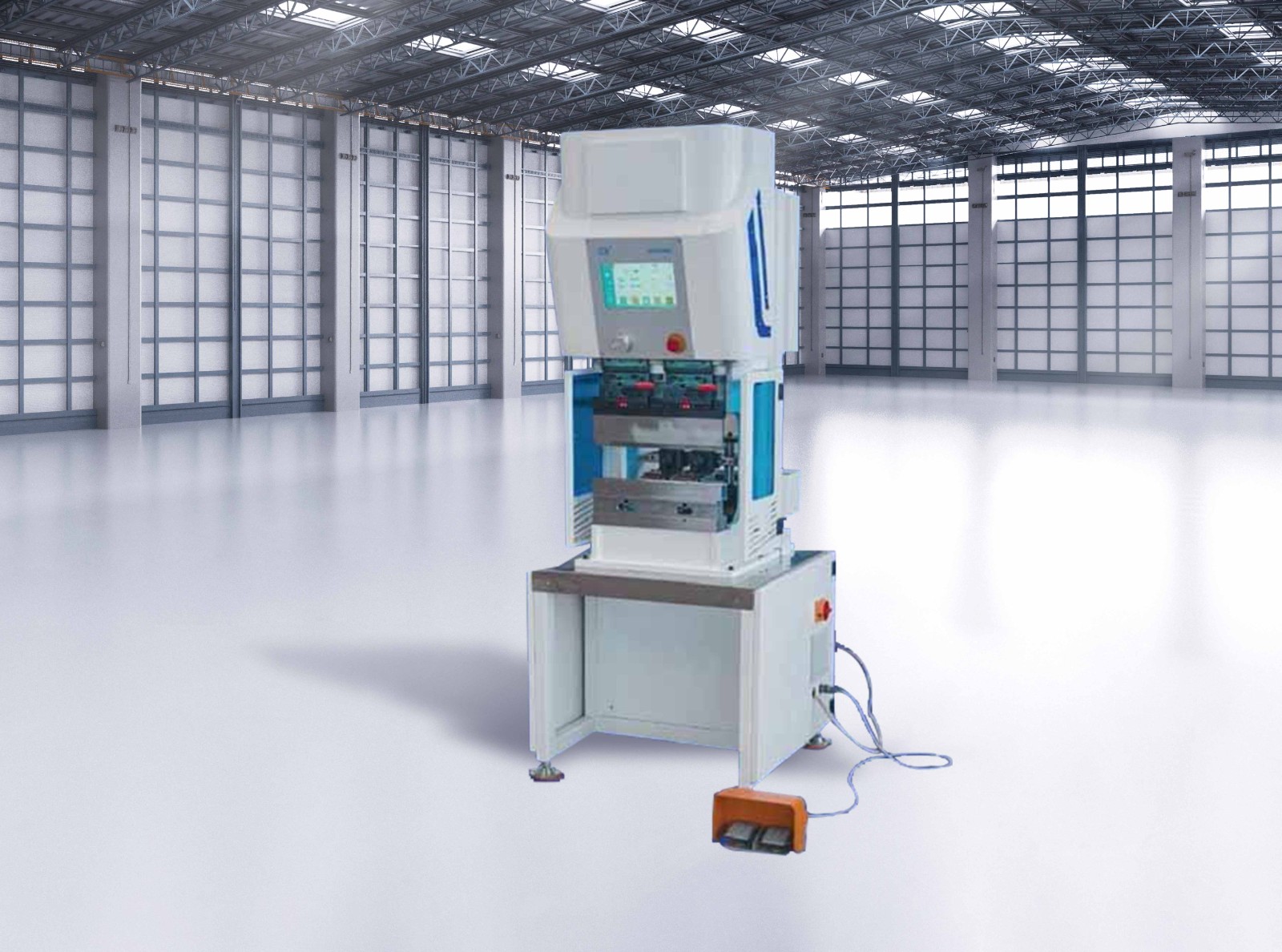

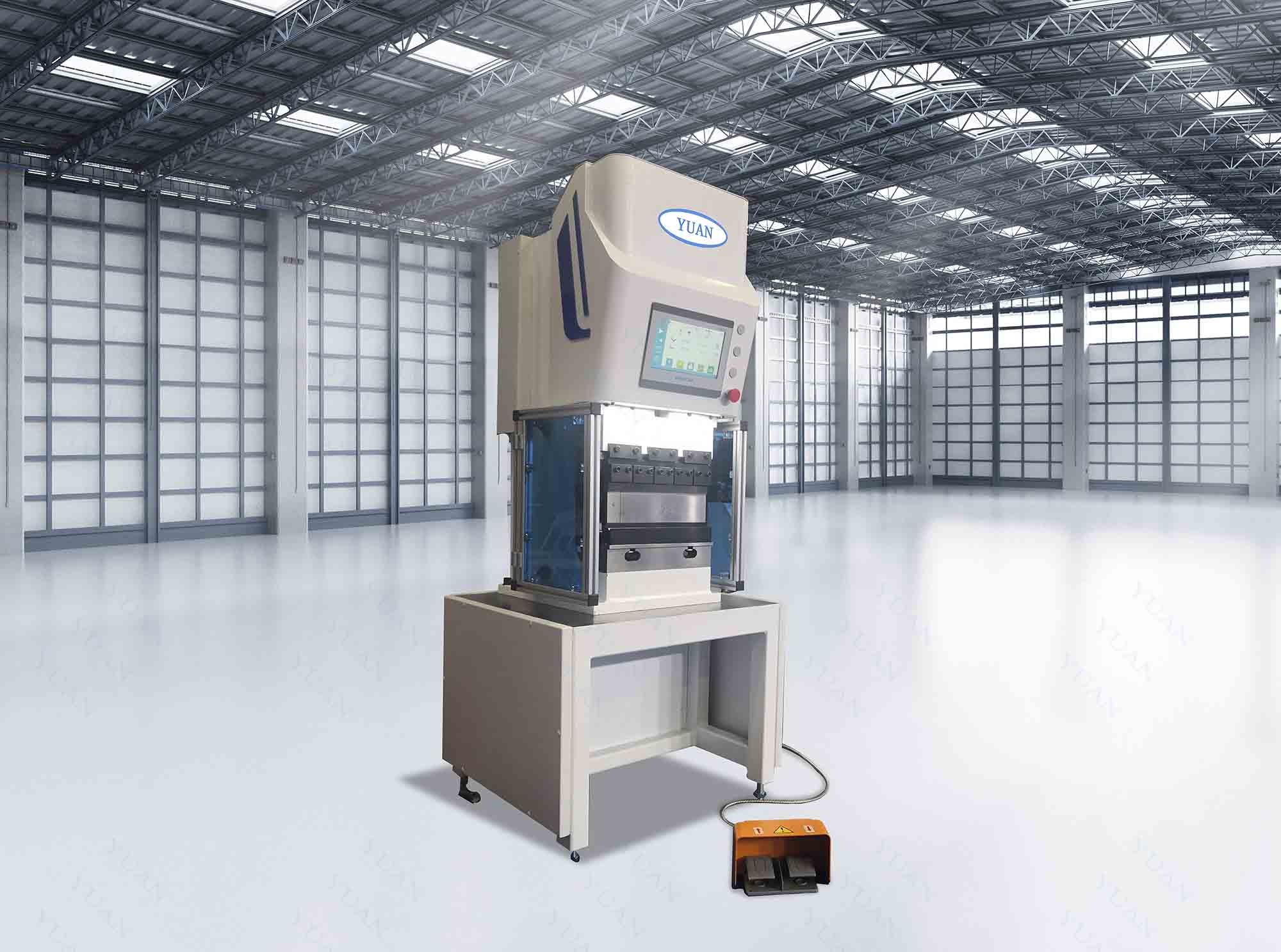

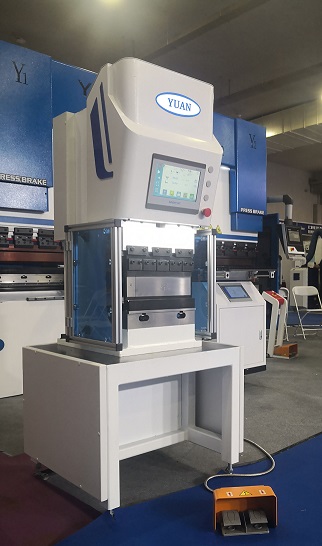

Mini  Press Brake is fully electric press brake machine that the servo motor advances the heavy-duty ball screw to drive the slider to do reciprocating motion, and then drive the upper mould on the slider to apply force to the lower mould on the workbench, so as to bend the mental plate according to the required shape and size.Electric servo press brakes are highly suitable for a variety of applications precision sheet metal bending.small household appliances,and computer and equipment enclosures.They are designed for bending metal materials and are well-suited for precision sheet metal components and mechanical manufacturing parts.

1.Mini Press Brake Host Machine:

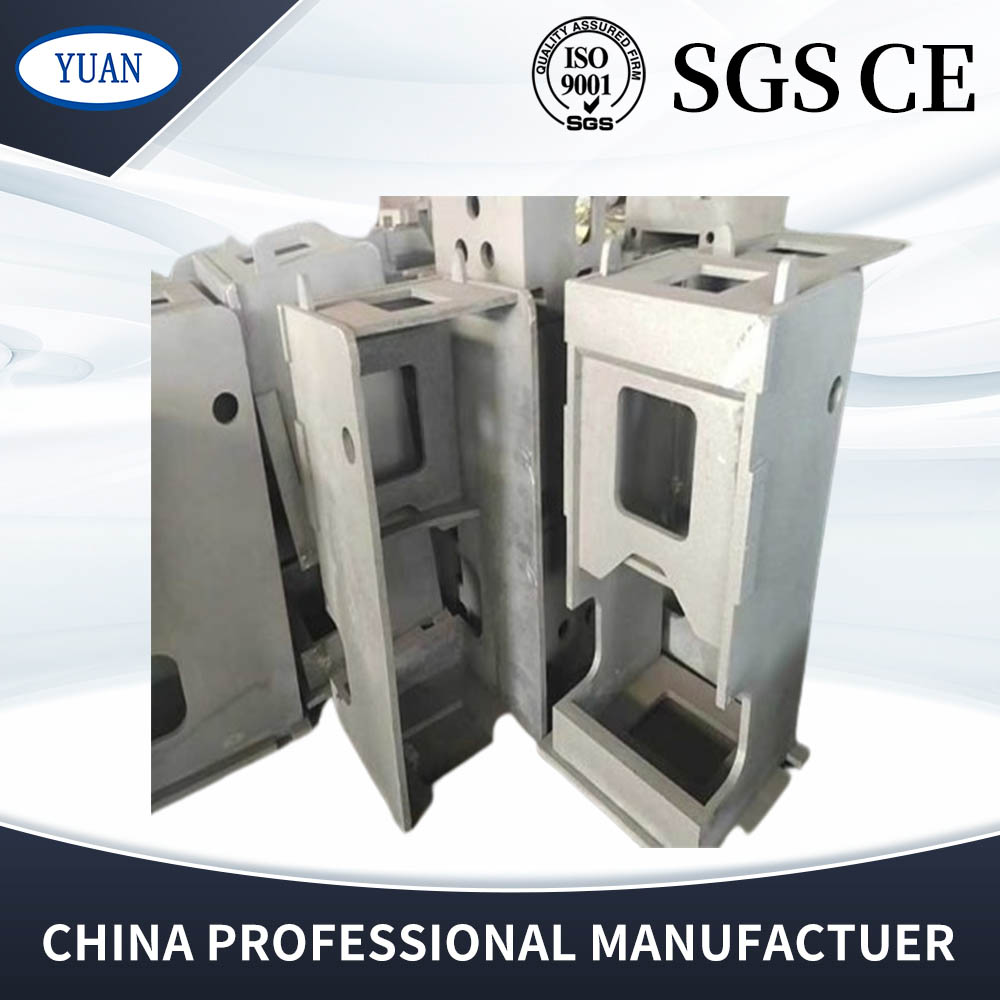

Our electric brake press core frame   adopts high -grade QT500-7 and gray iron 250 castings.The whole machine is designed and produced in accordance with the standard of high-precision machine toos.Both castings and welded parts are subjected to strict stress relief treatment and are finally strictly checked by high-precision testing instrument to ensure the long-term running.

2.Mini Brake Press Features:

◆The full electric cnc press brake machine bending speed id fast. Even if the Y-axis down speed is the same, due to its large acceleration, the overall processing time is less than electro-hydraulic press brake machine.
◆The full electrical press brake machine uses servo motor, which saves electricity compared with the electro-hydraulic servo bending machine, and saves about 10,000 degrees of electricity a year.
◆The servo cnc press brake machines does not need to use hydraulic oil, it is easy for maintain.
◆The 100% electrical press brake machine adopts servo motor, which is stable in control and will not affect the bending accuracy due to oil temperature changes.
◆Limited by the cost of high-power servo motors, it is still impossible to realize the all-electric design of large-tonnage bending machines. 100%fully electric press brake machines are mainly models below 63 tons.

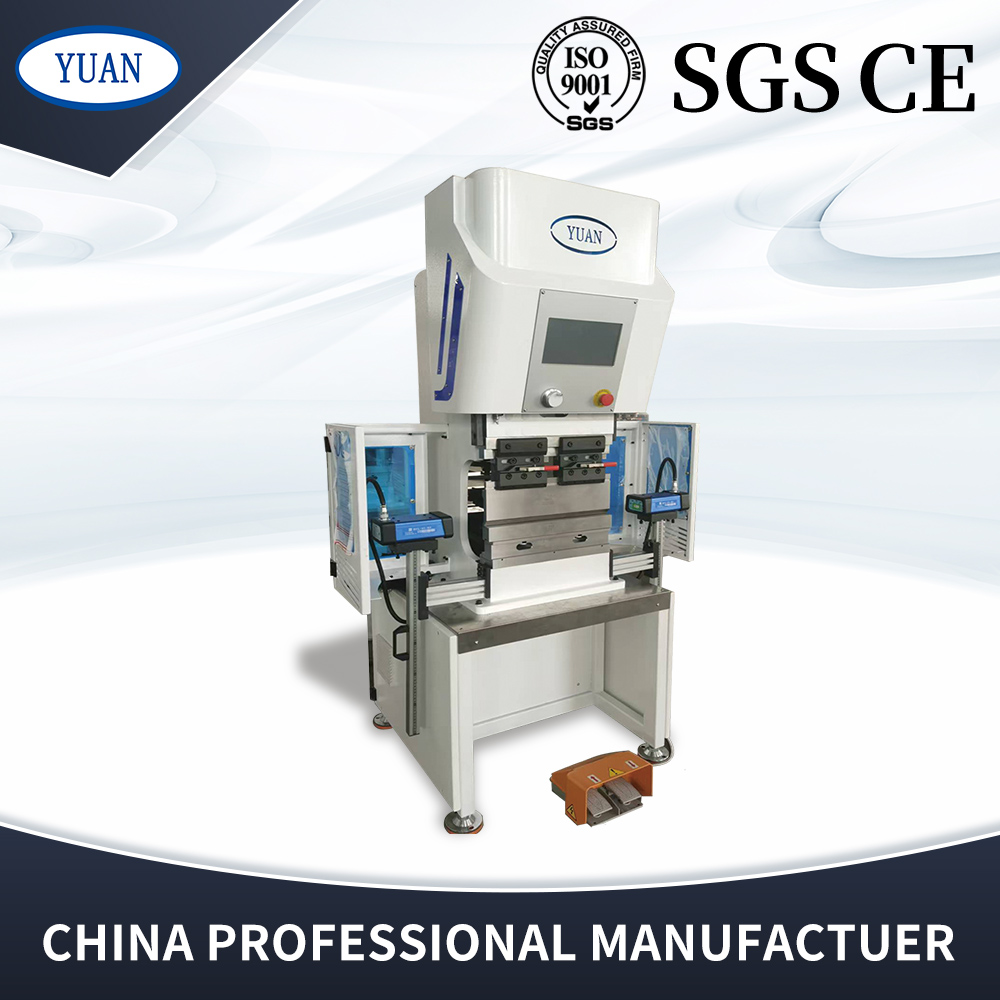

Mini Press Brake 3T 200mm

Mini sheet metal bender 3Ton 200mm

Mini Electric Press Brake for sale Specification:

Mini Press Brake 6 Ton 400mm

Pure electric press brake 6 Ton 400mm

Mini electric pressfor sale specification:

12Ton Press Brake 600mm

Mini cnc press brake for sale specification:

The mini cnc press brake machine is reliable and easy-to -use metal bending suoltion.It is quite suitable

for metalworking shops which bend small batch and complex parts.

3.Mini Press Brake Machine Standard Controller:According to different CNC axis number and configuration, the self-developed system ES10 and ET15, or DelemDA52S, DA53T, DA58T, DA66T, DA69T are available.

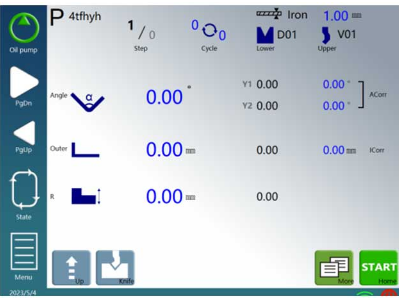

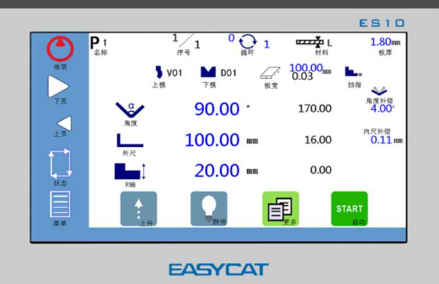

3.1ECO-ES10 Controller Function:

1.Stroke (Yaxis) Control

2.Backgauge (X axis )Control

3.Angle Programming

4.Tool Programming

5.Retract function

6.Up to 220 programs

7.Servo control

8.Up to 24 bends per program

9.ARC Bending Function

3.2 Mini CNC Press Brake Optional Controllers:

Some mini sheet metal bender machines are equipped with manual controls,while our mini press brake features computerized

numerical control(CNC)systems,which allows for highly accurate bending operations with digital precision.This can offer high level of precision and automation.The user input the bending parameters into the computer and the machine

automatically adjust the ram and back gauge to achieve desired bending shapes.

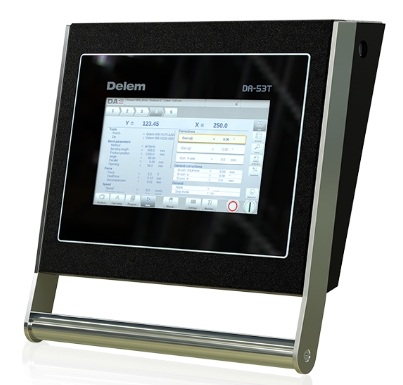

3.2.1 Holland Delem DA53T

"Hot-key” touch navigation 10.1" high resolution colour TFT Up to 4 axes (Y1,Y2 + 2 aux. axes) Tool / material / product library Servo and frequency inverter control Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. USB memory stick interfacing Profile-T offline software

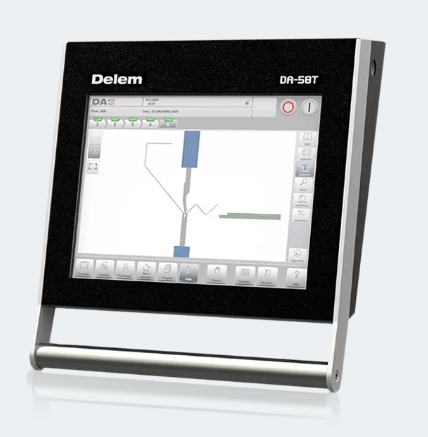

3.3.2 Holland Delem DA58T

2D graphical touch screen programming  15" high resolution color TFT  Bend sequence calculation Servo and frequency inverter control  Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.  USB, peripheral interfacing Profile-T offline software

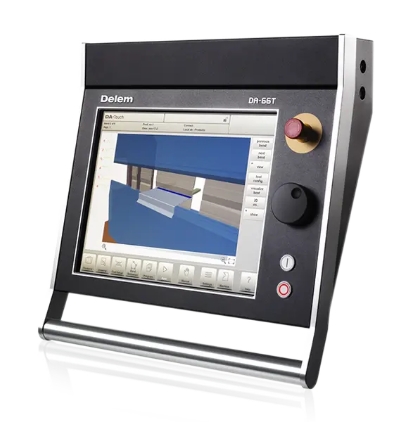

3.3.3 Holland Delem DA66T

2D graphical touch screen programming mode  17" high resolution colour TFT Full Windows application suite  Delem Modusys compatibility (module scalability and adaptivity)  USB, peripheral interfacing  User specific application support within the control's multitasking environment  Sensor bending & correction interface Profile-TL offline software

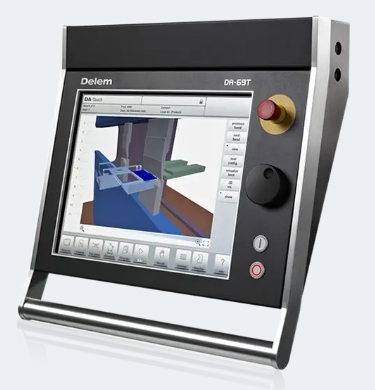

3.3.4 Holland Delem DA69T

3D and 2D graphical touch screen programming mode  3D visualisation in simulation and production 17" high resolution colour TFT  Full Windows application suite  Delem Modusys compatibility (module scalability and adaptivity)  USB, peripheral interfacing  User specific application support within the control's multitasking environment Sensor bending & correction interface Profile-T3D offline software

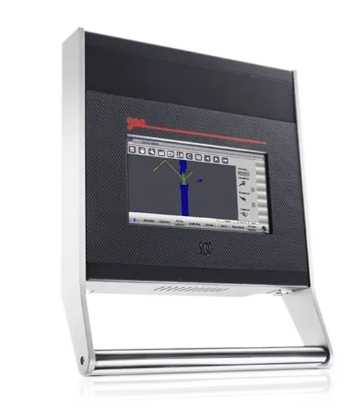

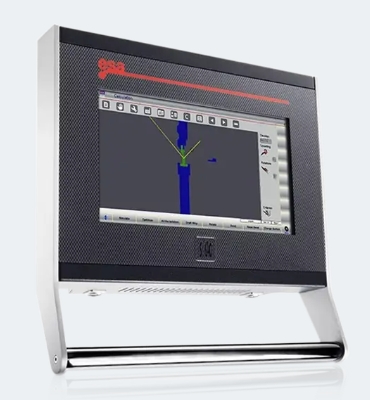

3.3.5 ESA S630

10”screen  4 axes 32 input + 32 output

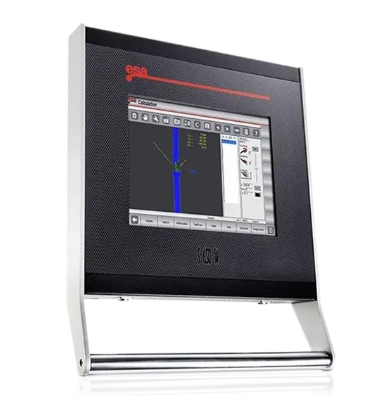

3.3.6 ESA S640

15”screen  4 axes up to (6 ax as an option) 32 input + 32 output

3.3.7 ESA  S650

15”screen  4 axes (up to 8 axes as an option)  32 input  32 output

3.3.8 ESA S675

21”screen  4 axes (up to 128 axes as an option) 32 input 32 output

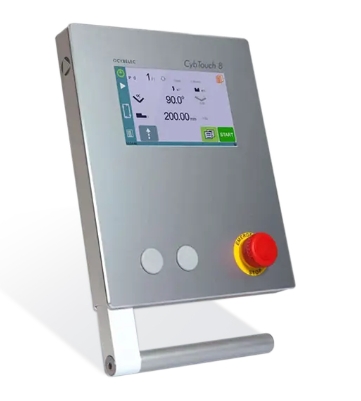

3.3.9 Cybelec CT8

Electric Press Brake Touch Screen  Y1,Y2,X axes

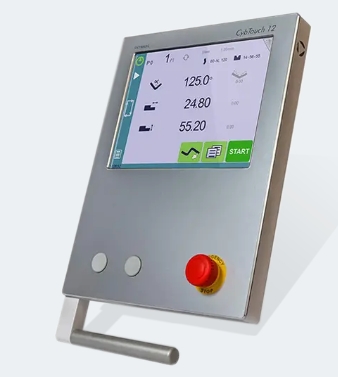

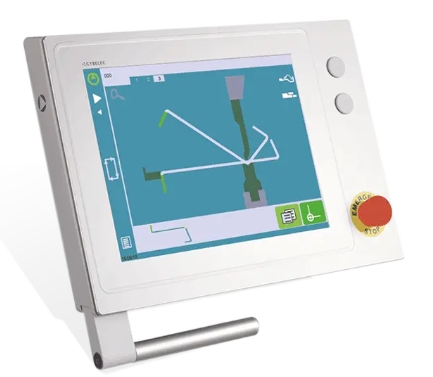

3.3.10 Cybelec CT12

As a member of the CybTouch family, CybTouch 12 features an intuitive and clear touch screen along with highly integrated functionalities. The interactive touch screen software interface includes large icon keys, 2D graphical displays, online help, and various automatic features to provide continuous guidance for operators, ensuring ease of use. Additionally, the robust and stylish design of CybTouch 12 is streamlined for mounting on the boom.

3.3.11 Cybelec CT15

The CybTouch15 CNC system, as a new addition to the CybTouch family, features a compact case and inherits the renowned CybTouch series. It is equipped with a 15-inch touch screen and incorporates a more advanced design concept. This system boasts an intuitive human-machine interface and high integration, along with user-friendly virtual keys and numerous automatic functions such as navigation, making it a powerful and user-friendly option for users. Additionally, the CybTouch15 CNC system is available for purchase with or without a case.

4.Configuration of mini press brake machine

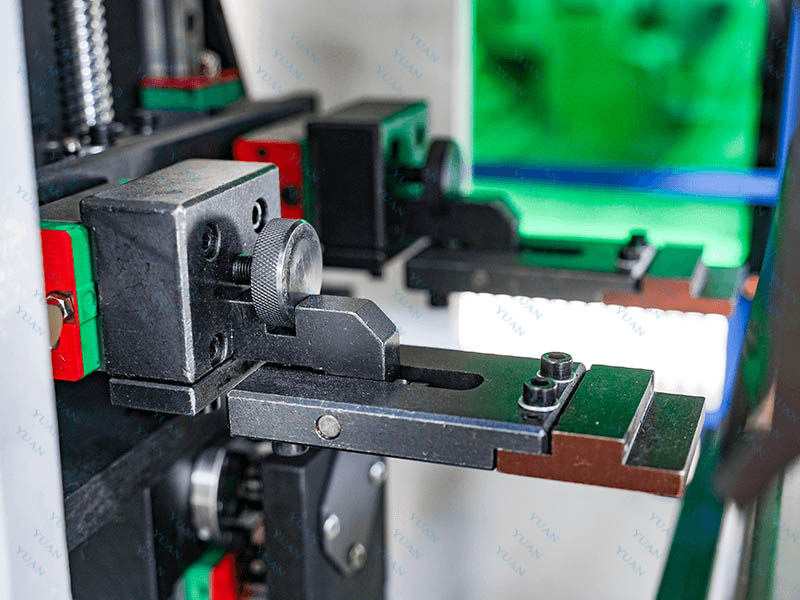

The most important of device is back gauge.The back gauge is a devie that helps position the metal steel  bending accurately under the tooling.It ensures consistent bending and repeatability across multiple pieces.

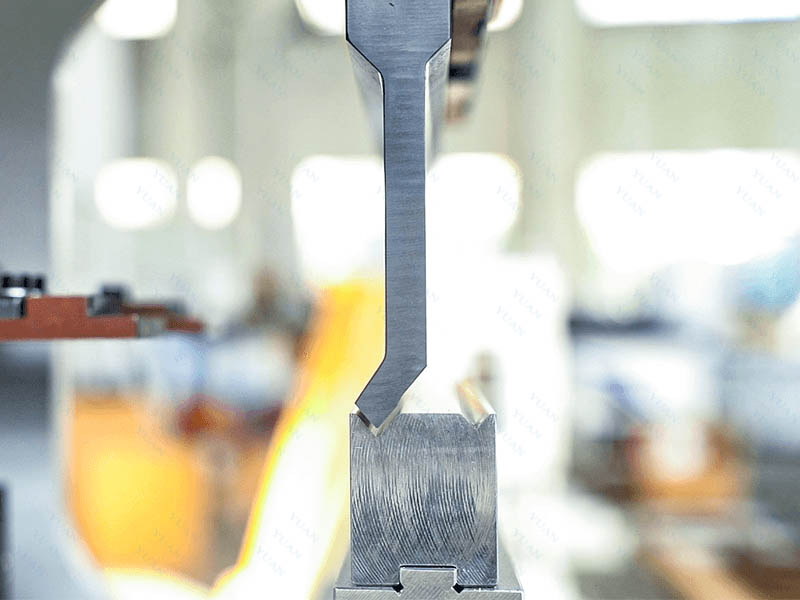

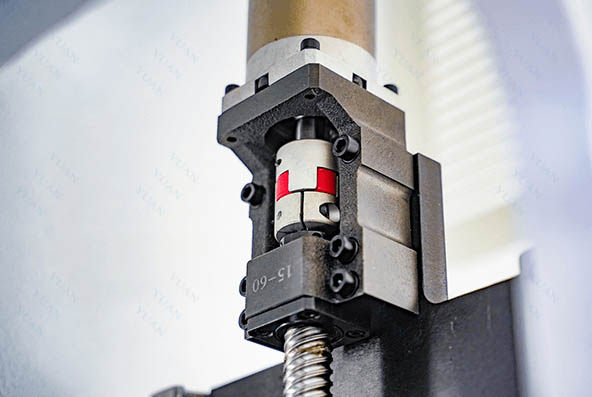

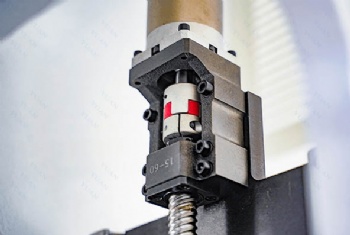

Standard Punch and self center 2V die	Ball screw direct drive

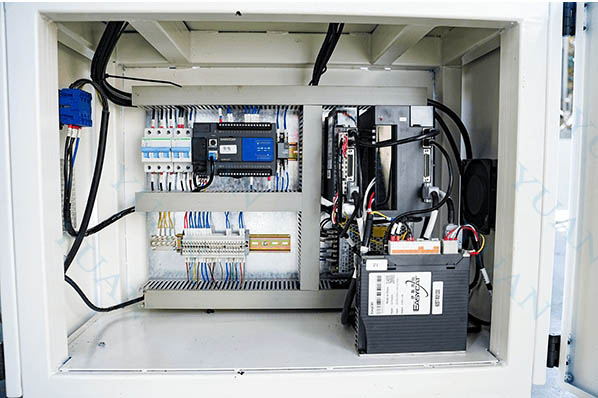

Back gage for small brake press	Electric box,Schneider Electrics

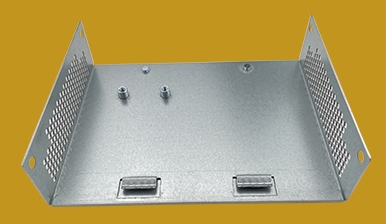

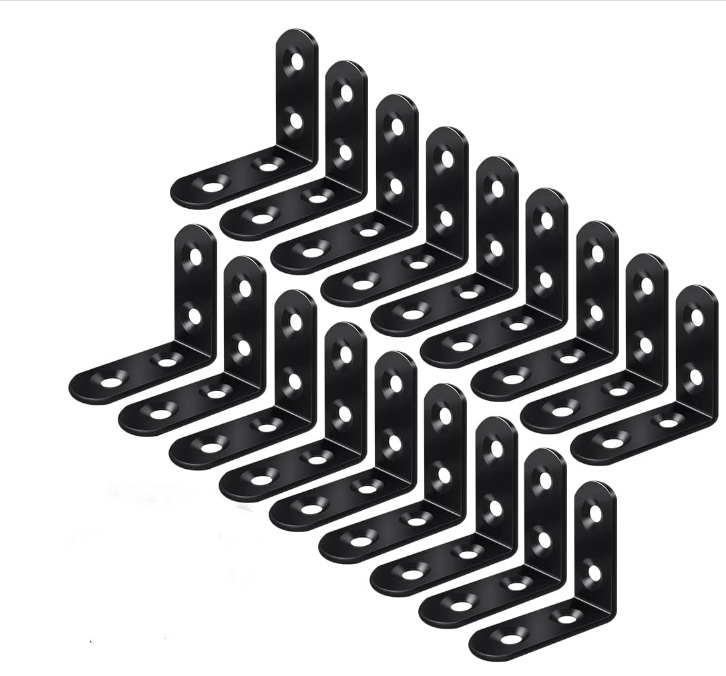

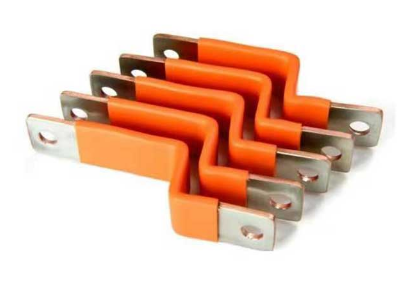

5.Mini metal brake applicable industries: Copper bar, precision metal plate,busbar bending,Electric appliance cabinet,kitchen ware,New energy source,Hardware metal,Brackets, Pans, Boxes, stair pans, offroad and automotive applications.

6.How to choose small press brake bottom die V opening

Press brake low die V open width has a relation-ship with the raw materail thickness.The thick of the  steel ,the bigger

of the v open.

7.Advantage of small electric press brake

1.Hydraulic press brake use hydraulic oil ,the smallest model is from 40ton

2.Mini press brake no need hydraulic oil ,it begins from 3ton to 30ton.

3.Servo motor drive provides high precision.

4.Patented servo press brake technology ,using heavy-duty ball screw keeps high precision and long life.

5.Up to 50% energy consumption compared to a hydraulic press brake.

6.Up to 35% working faster than a tradional cnc press brake

7.Small footprint,workers can sit when bending sheet metal

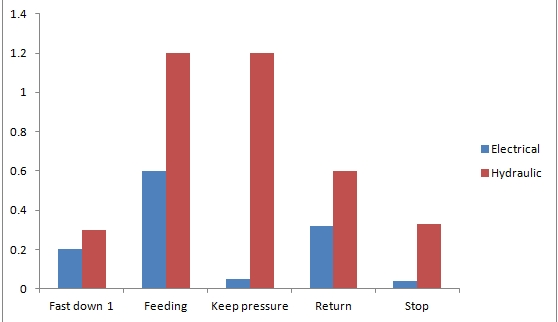

8.Comparision of electric press brake and hydraulic press brake power consumption

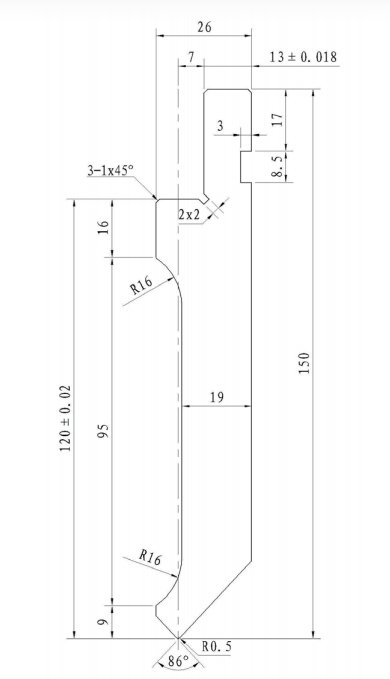

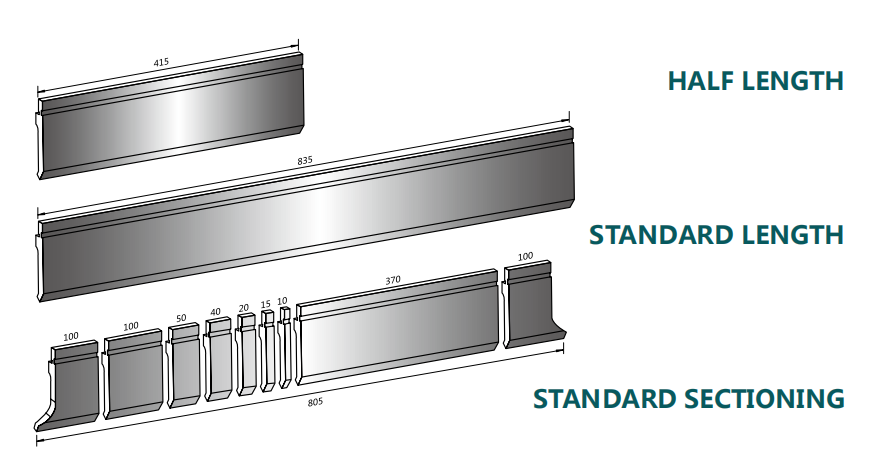

9.How to choose your mini press brake tooling?

The mini press brake punch and dies are used for shaping the steel metal.The upper tooling is attached  to

the ram and presses steel into the low die,which is mounted on the press brake bed.The shapes of die decide the final bending angle and form of the steel metal.

RFQ:

1.Are you Manufactuer?

Yes,we are chinese professional mini press machine manufacturers.

2.Can we OEM ?

Yes ,the machine can be custom made.

3.What tooling does the electric press brake install?

Normally Two V Die ,It can also installed Rolla V Die  and other tooling.

4.What is the technical support?

Our engineer can speak english ,24x7 on line for you.

5.Why to choose a Electrical Press Brake

Ease of use:

Our small press brake is designed with simplicity in mind.Our cnc mini brake features user-freindly interfaces that allow operator to input bending parameters easily.

Versatility:

The small sheet metal folding machine can be used on a wide variety of materails,including Aluminum ,Stainless steel and mild steel.It can handle thin sheets of metal and produce a wide range of bending angles and shapes.

Precision:

Despite their small size,Small servo press brake are capable of producing high accurate bends.CNC-controlled models ,in particular offer exceptional precision,making them suitable for high-precision

industries such as aerospace and electronics.

Energy Saving:

• Less energy consumption and less material waste = Less CO2

• 70 % less energy consumption in average compare to the traditional

Hydraulic Press Brakes

• High energy-saving

Efficiency:

• High efficiency = Less machine usage for the same production volume

• 30 % less processing time in average and short installation time

• Easy programming and high precision = less material waste

Low Maintenance Cost:

• No hydraulic oil = no damaging waste

• Compare to the Hydraulic machines, there are less precious and critical

parts

• Easiness of cooling

• Operational Safety
