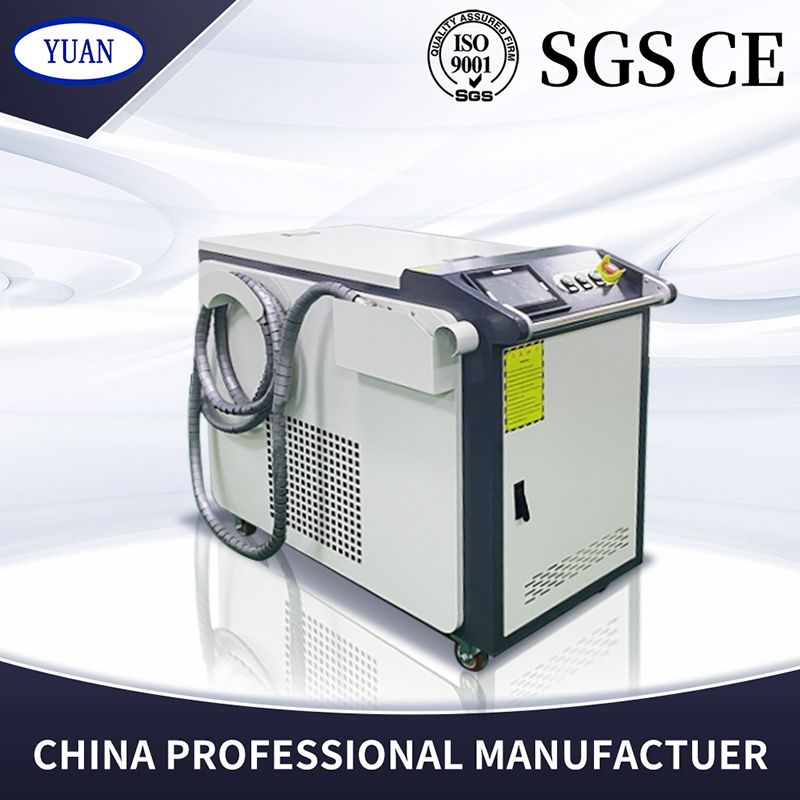

4 in 1 Laser Welder Features:

*Compact integrated design with easy operation

*Wobble welding to improve welding capacity to seam

*Wire feeder included to expand application range

*Multiple safety protection with auto beam off fuction once the nozzle goes away from workpiece.

4 in 1 Fiber Laser Welding Machine Configuration:

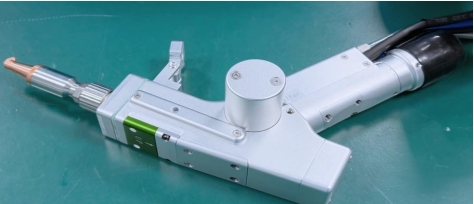

4-in-1 Laser Head for Welding, Cutting, and Cleaning

1. The upgraded laser head features enhanced three-in-one functionality, combining welding, cutting, and cleaning for greater efficiency.

2. Beyond the core functions, it also supports weld cleaning and energy storage battery welding.

3. Designed with different connectors to adapt to various application scenarios.

4. Independently developed with a portable, ergonomic design for ease of use.

5. Available in multiple swing types to suit diverse needs.

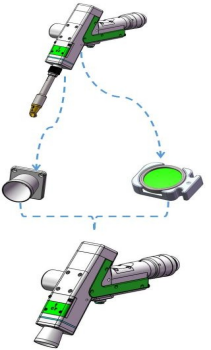

Cleaning module replacement

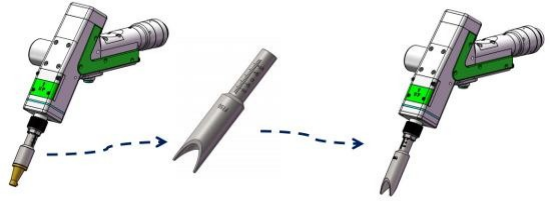

Weld cleaning and replacement:

Remove the welding nozzle and replace it with a special weld cleaning nozzle.

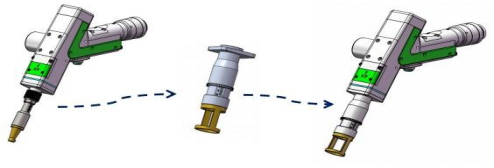

Energy storage welding replacement:

Use a 2mm hex wrench to remove the three M2.5 hex socket head screws securing the welding gas ring. Replace it with the dedicated energy storage welding nozzle assembly, then secure it using the same three M2.5 hex socket head screws with the 2mm hex wrench.

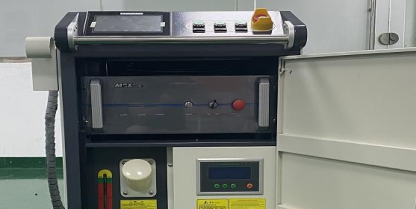

MAX Fiber Laser Source

The MAX laser source is the leading brand in China, chosen by 90% of our customers. It offers superior photoelectric conversion efficiency (>30%), exceptional beam quality, and enhanced resistance to high reflection. With an optimized second-generation fiber transmission system, it ensures stable cutting of thick plates with high precision.

This laser source is ideal for various applications, including cutting, welding, perforation, and medical device processing. It delivers narrow cuts with bright, clean edges, providing a clear advantage over other lasers in its class.

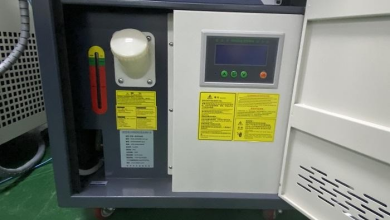

Built-in water cooler

The integrated water chiller enhances cooling efficiency for both the welding head and laser source, ensuring faster welding speeds and superior results. This all-in-one design improves overall performance while saving space and reducing shipping costs for customers.

For optimal machine longevity, always use pure or distilled water to maintain the system and prevent damage.

Control System Features

The control system allows users to configure key welding parameters, including frequency, power, wobble frequency, wobble diameter, welding modes, and wire feeding settings.

Welding Modes:

• CW (Continuous Welding): Supports welding with or without wire.

• PWM (Pulse Width Modulation): Ideal for aluminum welding. Adjustable modulation frequency from 100Hz to 15,000Hz with a duty cycle range of 10% to 100%.

• Argon Arc Mode: The laser beam activates, pauses for 100ms, and then repeats the cycle.

• QCW (Quasi-Continuous Wave): Pulse mode with adjustable pulse duration from 1ms to 50ms.

Language Support: English, Spanish, Korean, Russian, Japanese, Hebrew, and Chinese.
