Laser welding explained:

Laser welding is an efficient and precise welding method that uses high-energy-density laser beams as heat sources for welding.Laser is a monochromatic, highly directional, bright beam produced by the amplification principle of stimulated radiation. After focusing through a lens or mirror, the diameter can be less than 0.1mm,energy beams with power densities up to 10¹²W/m² can be used as heat sources for welding.Laser welding can be achieved not only because the laser itself has high energy, but more importantly because the laser energy is highly focused on one point, making its energy density very high.

Laser Welding Types:

①Heat Conduction Welding:

When the material is irradiated with a lower laser power density and a longer time, the surface layer of the material begins to gradually melt. With the input energy and heat conduction, the liquid-solid interface migrates toward the interior of the material, and finally the welding process is realized.

②Keyhold Deep Penentration Welding

Similar to electron beam welding, the high-power-density laser beam causes local melting of the material and forms small holes. The laser beam penetrates deep into the molten pool through the small holes, forming a continuous weld as the laser beam moves. During continuous laser welding, the small hole advances along the welding direction as the beam faces the work piece. The metal melts in front of the small hole, and the deposited metal flows around the small hole to the rear and solidifies again to form a weld.

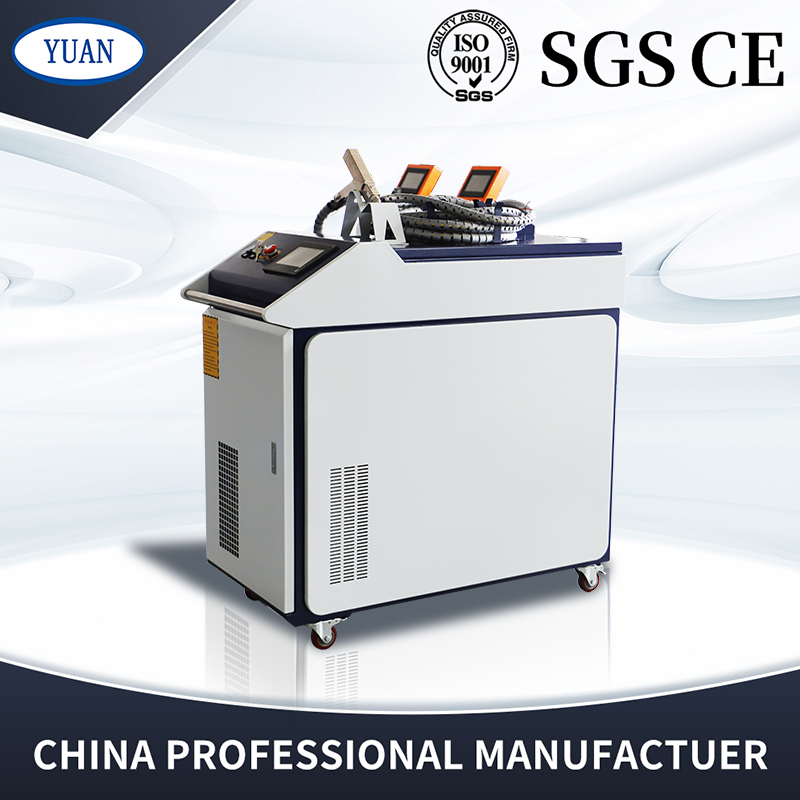

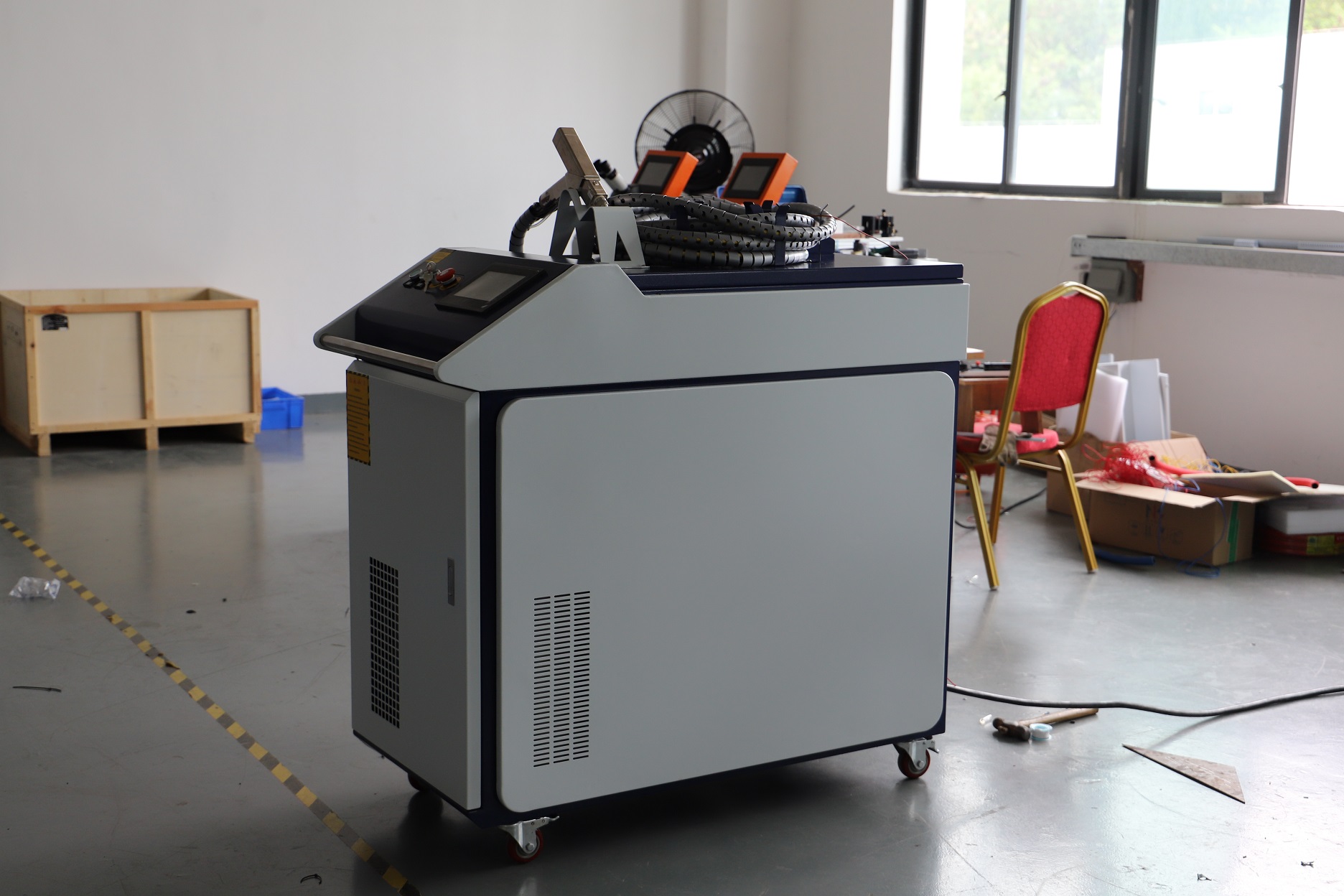

Handheld laser welder review：

The handheld laser welder is consist of laser source ,water chiller,welding head,control system and so on.

1.The laser welder machine integrate laser power, water chiller, software control etc,with small floor print easy to move, strong functionality, meeting ergonomic design, applicable to various working environment scenarios;

2.It can weld all kinds of metal materials such as carbon steel, stainless steel, aluminum plate, copper plate etc.

3.It is suitable for tailor welding, overlap welding, internal and external fillet welding, circular arc welding, irregular shape welding, etc;

4.The welding seam is beautiful, uniform, free of welding scar and discoloration, and does not need to be polished in the later stage. Save labor hours.

5.The welding is firm, and the weld strength reaches or even exceeds the base metal itself;

6.One time welding forming, basically no deformation, meeting the requirements of high quality products

7.Welding speed is fast, 2-10 times faster than traditional welding, a machine can save at least 2 welders a year.

8.The operation is simple, easy to learn and fast to start, the operator's technical threshold is not high, and the labor cost is saved.

9.Low cost, power consumption is only 1 / 10 of that of general argon arc welding or gas shielded welding.

10.Laser welding consumables less, long life.

11.Red light positioning, more accurate welding position.

12.Equipped with 10 meter optical fiber cable, more flexible and convenient operation.

13.Safer and more environmentally friendly.

14.No wire feeding or automatic wire feeding, two functions are optional.

Industrial Laser Welder Advantages:

 1. Three modes of self-fusion welding, wire feeding and cutting can be selected at will;
2. Tailor welding, fillet welding, stitch welding, straight and arc omnipotence;
3. Adopt international famous brand laser power.
4. The welding head designed with ergonomics is only 0.8KG in weight, which fully considers the applicability of the welding process and the comfort of long-term use.
5. Support process library storage, saving debugging time.
6.6 kinds of light emission modes, suitable for different scenes.
7. Adjustable light spot (0-5) mm.
8. The control screen directly digitally sets the parameters of the wire feeder, and the wire feeding is smooth.
9. Support delivery (0.8\1.0\1.2\1.6mm) stainless steel, carbon steel, aluminum welding wire.
10. Perfectly replace some traditional argon arc welding, electric welding on thin stainless steel plate, iron plate, aluminum plate etc.

Weld penetration table:

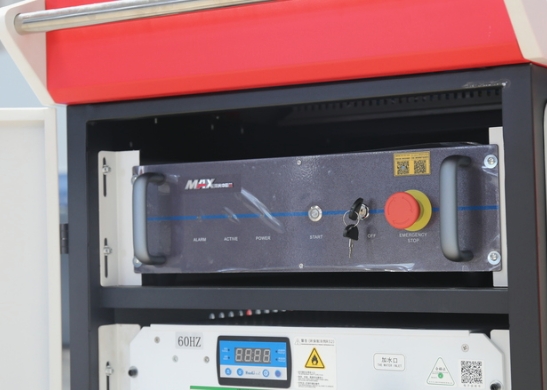

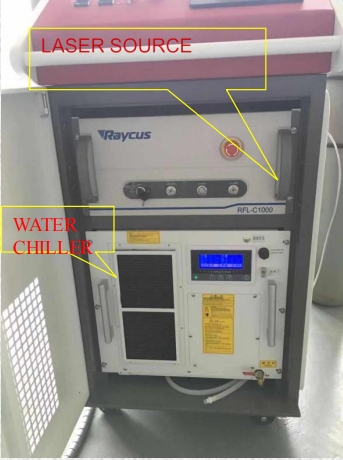

Laser Source:

1.Chinese top brand Laser cus,Max,JPT can be choosened

2.High beam quality

3.Alternative lamp pump lasers

4.High photoelectric conversion efficiency

5.Pulse and continuous working modes

6.High puls power ,stable power and high peak power

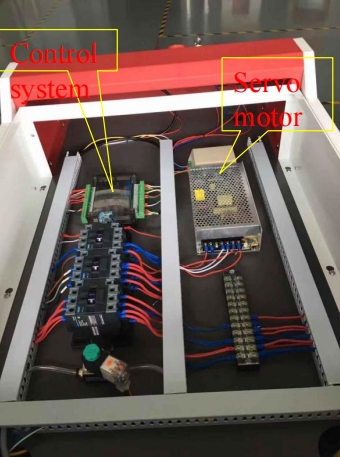

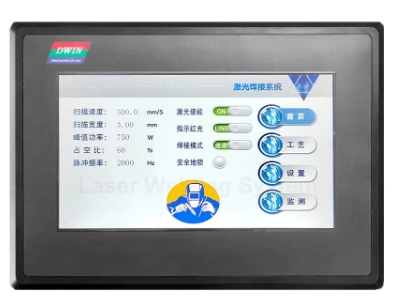

Laser Welding System :

The Sup-lus can be in English and Chinese.It Support continuous welding, cleaning, spot welding, cutting, automatic welding control, password authorization and other functions.

7 inch touch screen welding control system.Applicable for hand-held welding system ,cleaning system,

4-in-1 system,air cooling  system ,water cooling system ,support ninteen languages.

Hanli Water Chiller:

The hanli water chiller is an excellnt equipment for laser welding projects.It helps to cool and stablize the temperature of your fiber laser,ensuring optiomal performace and prolong the lifespan of welder.

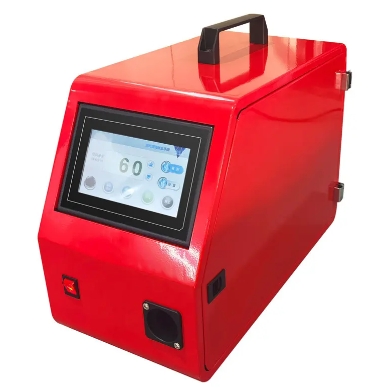

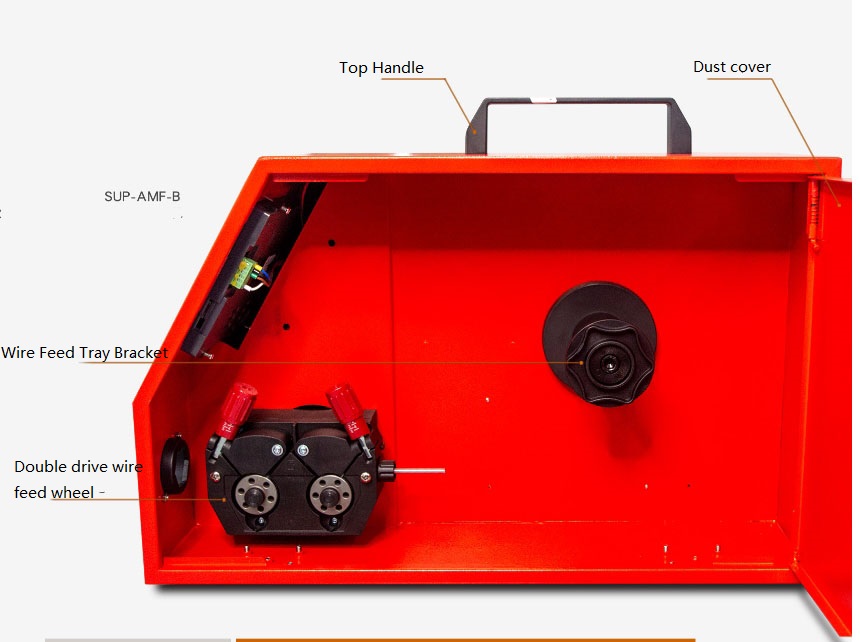

Four-wheel double drive wire feeder:

Touch screen display ,four-wheel dual drive wire feeding structure,feeding speed 15-600cm/min.continuously adjustable,support continous wire feeding mode and pulse wire feeding mode.

The applicable wire diameter:0.8mm,1.0mm,1.2mm,1.6mm,custom made 2.0mm,2.5mm.

It supports six types of wire feeding ways: pulse wire feeding, asynchronous wire feeding, delay wire feeding, continuous wire feeding, synchronous wire feeding, wire feeding in advance. Meet the welding of different material thickness.

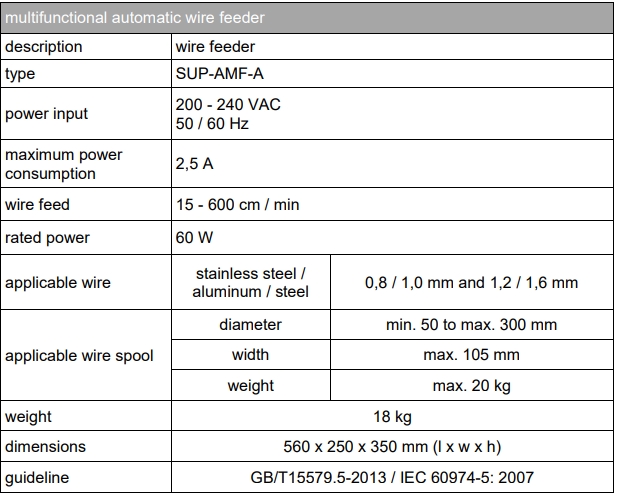

Wire Feeder Parameters:

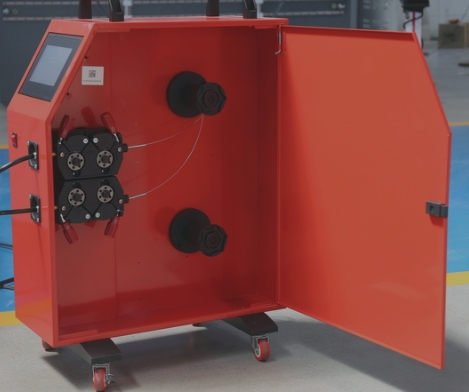

Optional Dual Wire Feeder:

Touch screen display,feeding speed 15-600cm/min,continuously adjustable,support continuous wire feeding mode and pulse wire feeding mode.Single Wire or double wire is optional.

Support Wire Diameter:

0.8mm,1.0mm,1.2mm,1.6mm

Double Wires:1.6/2.0mm

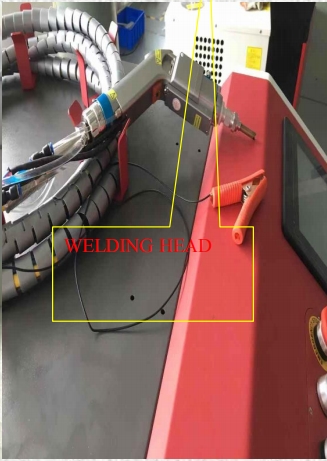

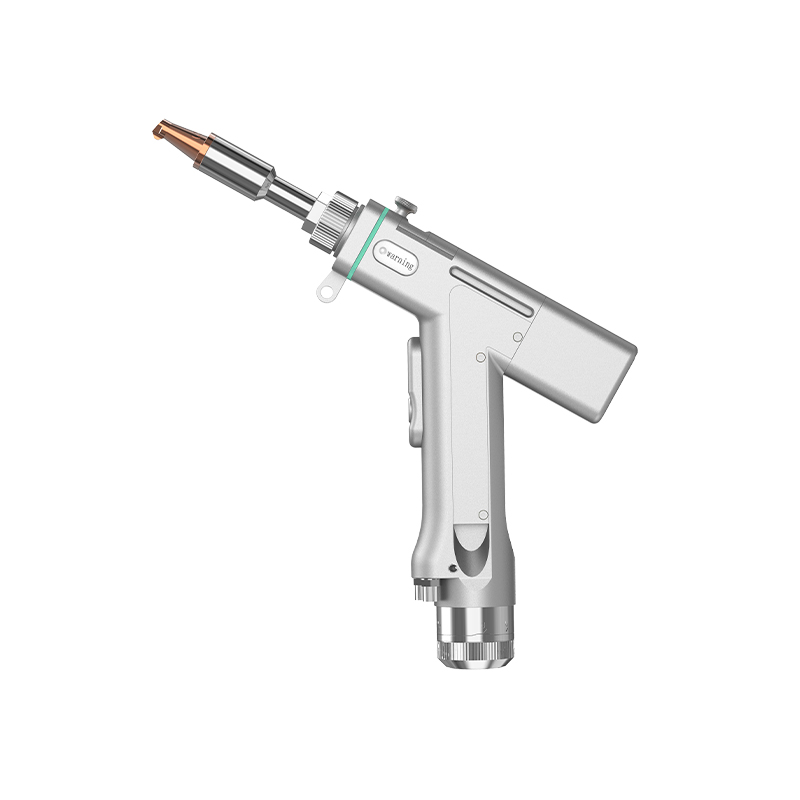

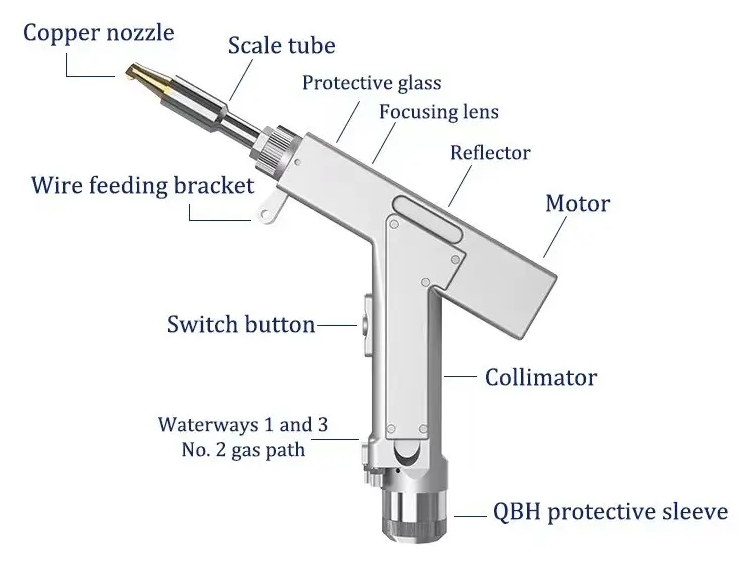

Handheld Laser Welding Head:

Laser welding gun is the key parts for a laser welder.It should be light and somatology.

The laser welding head includes:copper nozzle,scale tube,protective glass ,focus lens,reflector,motor,

wire feeding braket,switch button ,collimator and QBH protective sleeve.

1. The gun body independent statue light,self-developed safety detection system,built-in real time temperature monitoring.

2. Independent process switch button ,easy to switch 3 preset processes.Focusing lense,protection lens drawer

   collimating lens and QBH lock integrated,pluggable,easy to replace on site.

3. Customized mini QBH lock,optimize the weight of the entire gun,comfortable grip,flexible operation ,easy to use.

4. Built-in digital driver,strong anti-interference performance,stable and reliable,The optical structure is further optimized,the welding strength is high,the deformation is small,the melting depth is high.

5. Suppoort hanheld continuous welding ,spot wleding ,cleaning,"hand"self0integration,password authorization,real-time monitoring of all interfaces.

Handheld laser welder head (4 in one)

General purpose below 3000W

Supports 19 languages

Handheld Laser welding head parameters:

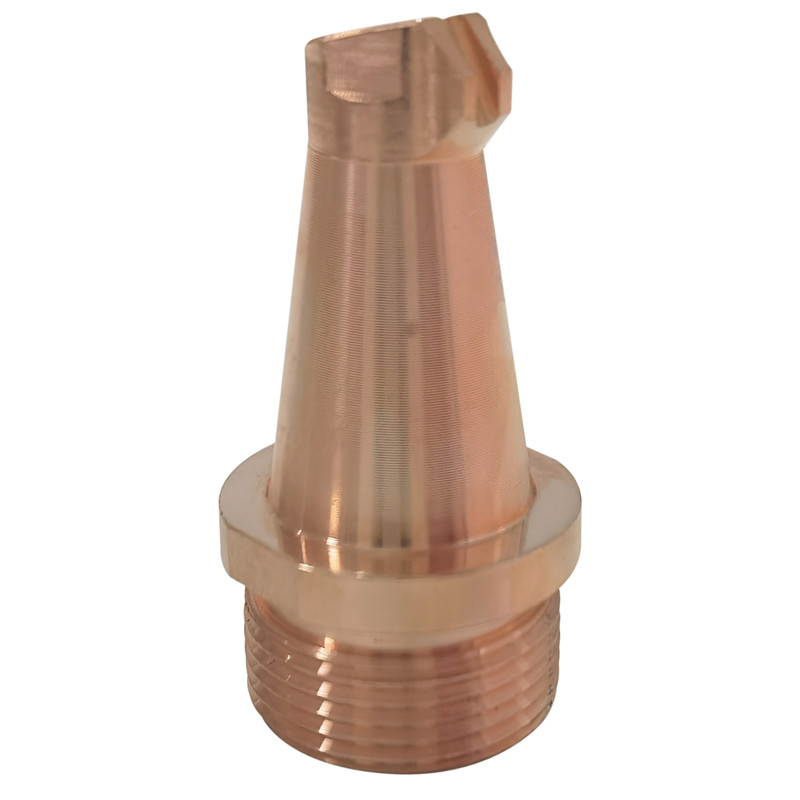

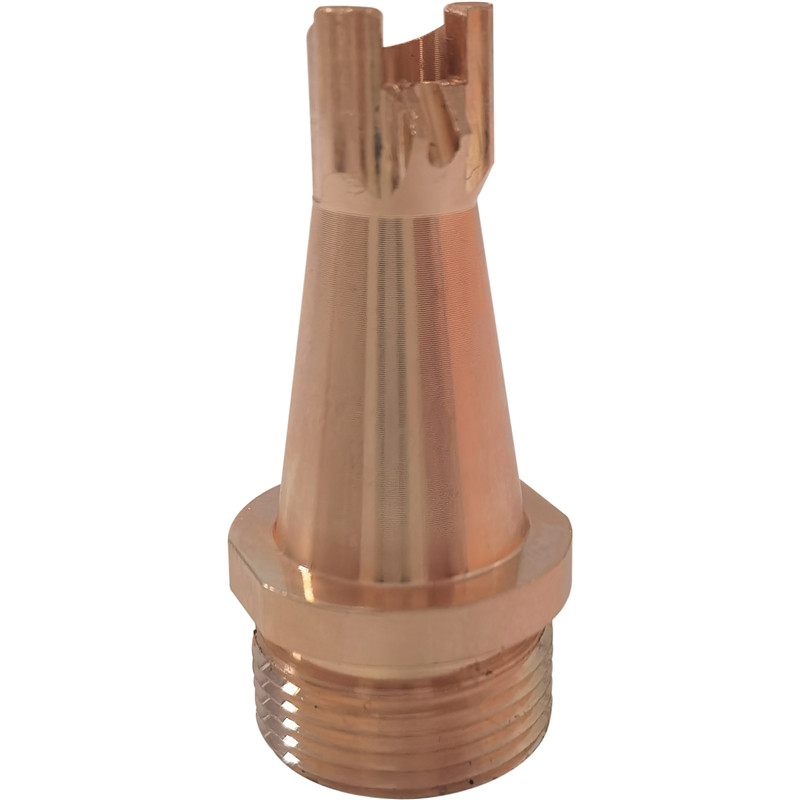

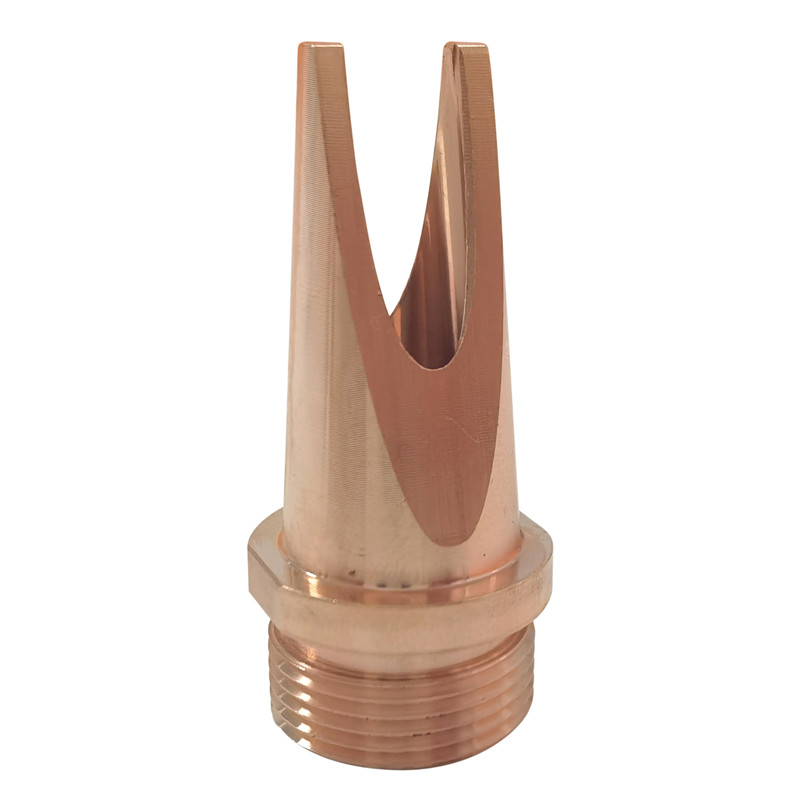

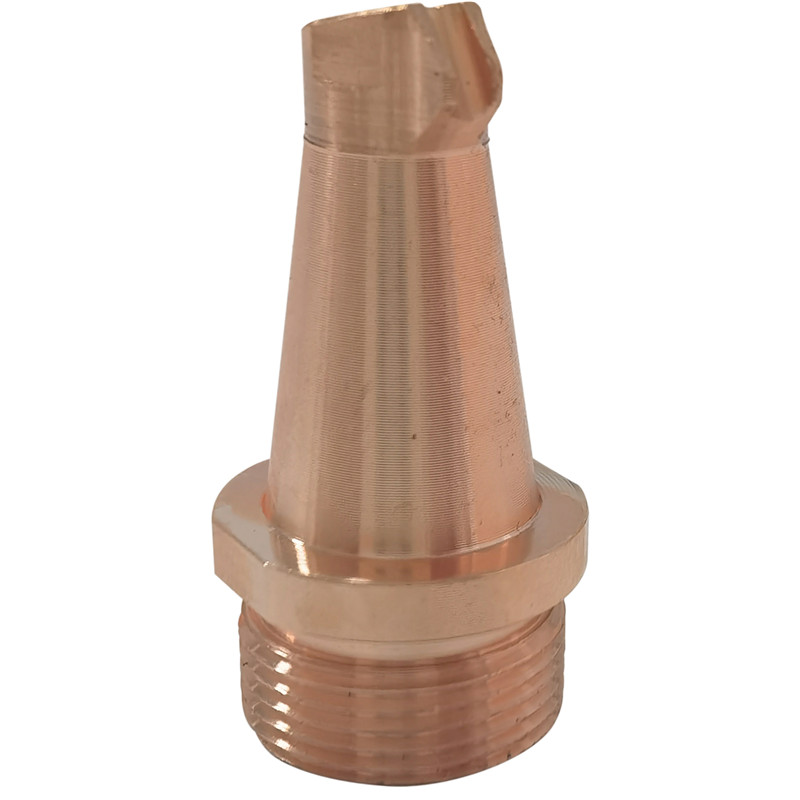

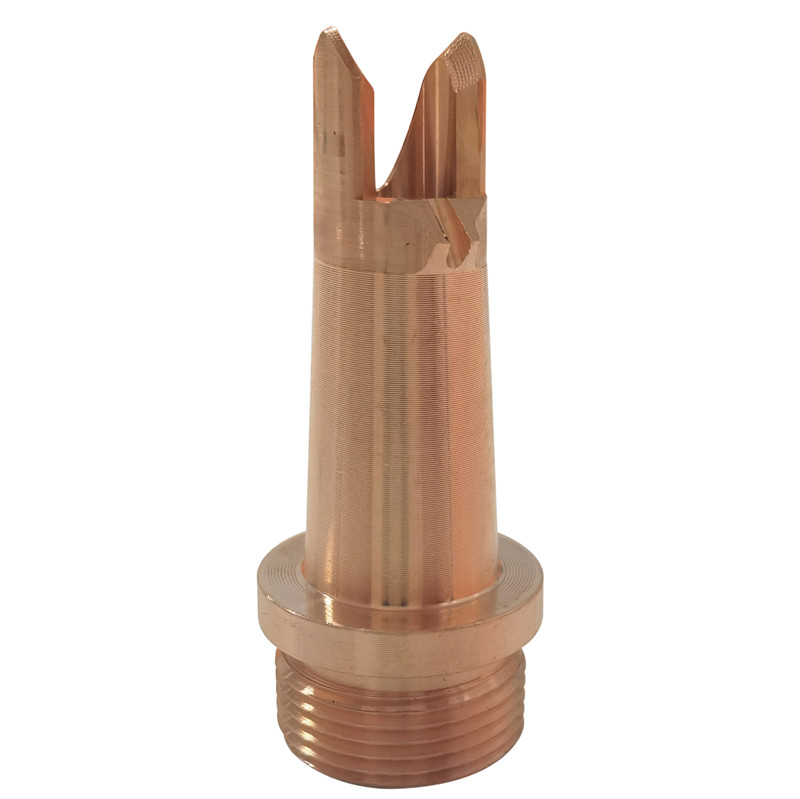

Laser welding nozzle types:

There are two big types of laser welding nozzle:one welding without wire ,one welding with wire.

Part Number:AS-12

Remark: Weld Wire 0.8mm/ 1.0mm/1.2mm

Part Number:BS-16

Remark: Weld Wire,1.6mm

Part Number:BS-16

Remark: Weld Wire,1.6mm

Part Number:ES- 12

Remark Weld Wire 0.8mm/1.0mm/1.2 mm

Part Number:C

Remark: Wire -Free Welding

Laser Welding Method and Laser Welding Examples:

Fillet welding ,Vertical Welding

Tailor welding,flat welding

Overlap welding
