The straight wire bender can bend rod wire in 3D shape from 3mm to 16mm.

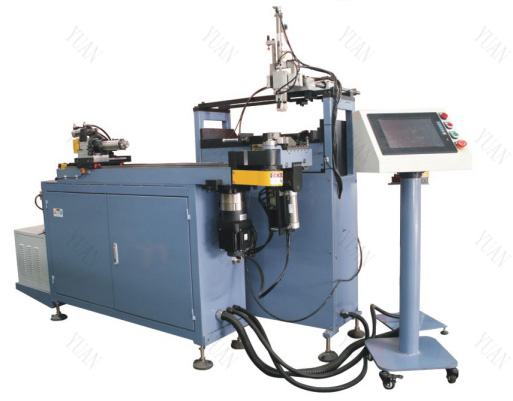

The STD straight wire bender is a 3 dimensional rod wire and small pipe bending machine.The machine has three axis, they are feeding (Y) axis,rotation (B) axis and bending(C) axis function.All the three axis are use Japan Yaskawa servo motor.The servo motor and drives guarantee the bending of high precision.All parameters information can be automatically selected in Chinese and English display.The operation is easy,convenient,rapid and accurate.
The wire forming equipment has a evolution from manual to automatic.Manual wire bending machine now is also an important machine for the wire forming field.Most manual wire bender is desktop wire bender.The manual wire bending machine has a machine frame ,operation table and mould.By using different wire bending tool,it can realize for bending many different wire products.This machine is suitable for small wire diameter,small amount of products.If you have many small wire bending projects,own a small wire bending machine with different tooling will give you a lot of freedom to creat
wire arts or products.

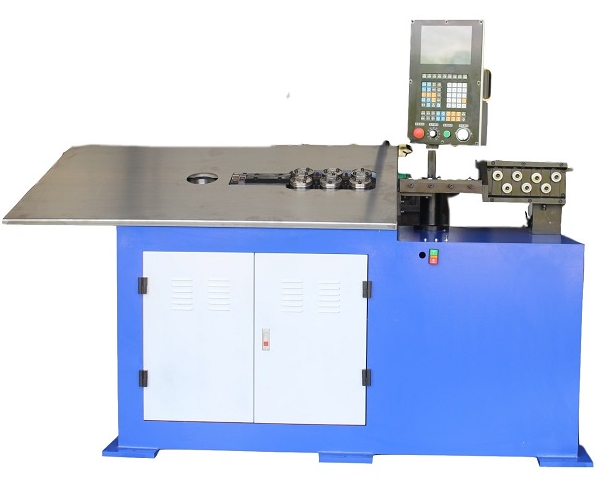

This type wire bending machine normally is cnc controlled or plc controlled.It has some axes drived by servo motors.It is programmable.This require the operators know English Or Chinese.According to different shape of metal wire ,cnc wire bender machine has two model:2D wire bending machine and 3D wire bending machine.2D wire bending machine is designed for flat rod wire products.3D wire bending machine is designed for three-dimensional metal wire products.These machine noramlly are fully automtaic,they has feeding rack ,straight wheel for straogntening the wire ,then feeding the wire to bending tool ,then bend into the shape you want.It normally require big floor space ,like 6000x2000mm space.The biggest advantage is these machines are programmable wire bend machine,you can input parameter ,then you can program it and bend your request products.
Easy to operate: friendly operation interface, flexible and convenient programming, you only need to operate a switch to complete the entire complex bending process during work.
High efficiency: Using CNC three-axis numerical control system and AC servo motor drive, the processed products have good consistency and fast speed. Stable and reliable: The whole machine has complete protection functions, has computer fault diagnosis function, and all uses high-quality components.
Strong adaptability: high and low molds can be used, and it has a core pulling device. It has great advantages in bending complex pipes. It can store 9999 programs, which can be called and processed at any time, and has a computer interface.
Straight Wire Bender Specification:
Main technical data | Data | Unit |
Wire range (flexible wire)soft wire | Φ3-18 | mm |
Max bending wire diameter(hard wire) | Φ3-16 | mm |
Feeding Stroke | 1000 | mm |
Feeding Length wire range | No limit | mm |
Data input method | Input data(Y,B,C) | |
Feeding (Y )axis speed Max feeding speed | 1000(speed can adjust) | mm/min |
Spinning(B) axis speed | 360 degree(can adjust) | degree |
Turning accuracy | ±0.05 | degree |
Bending (C)axis speed | 120°(speed can adjust) | degree |
Total power | 5.0 | HP |
Machine shape | 2200*600*1400 | mm |
Machine weight | 1800 | Kgs |

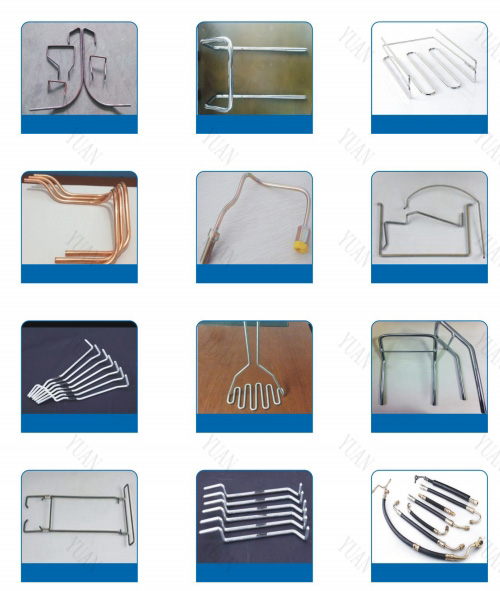

1.Car air conditioning pipeline
2. Refrigerator freezer air conditioning pipeline
3.Car headrest rod,connector and oil pipe
4.Shopping basket frame
Automatic feeding equipment
