Press Brake Hinge Forming Tool

The press brake hinge mold is a specialized tool used in press brakes for bending metal into precise hinge shapes. It features a unique design that allows for the accurate bending of hinge parts, such as leaves or brackets, ensuring clean and consistent results. The mold is typically made from hardened steel for durability and can be customized to accommodate various hinge sizes and configurations. This tool is essential for fabricating components used in doors, windows, and other mechanical systems that require functional hinges, offering efficiency and precision in metalworking processes.

Features:

1.Production in one station with two or three strokes.

2.Spring-loaded hold-down device reduces marks.

3.Key components are hardened for durability.

4.High repeatability with integrated back gauge.

5.Function testing and adjustments performed using sample steel plates for accuracy.

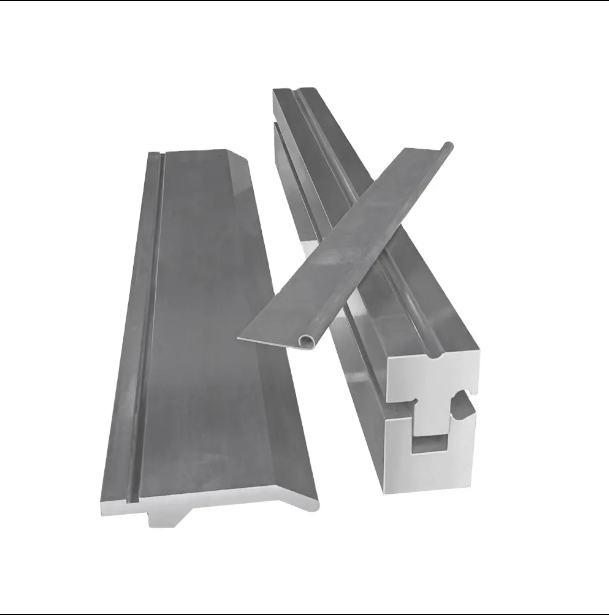

press brake hinge tool

Hinge tools

 What raw materail is it suitable for ?

1.Materail thickness up to 4mm

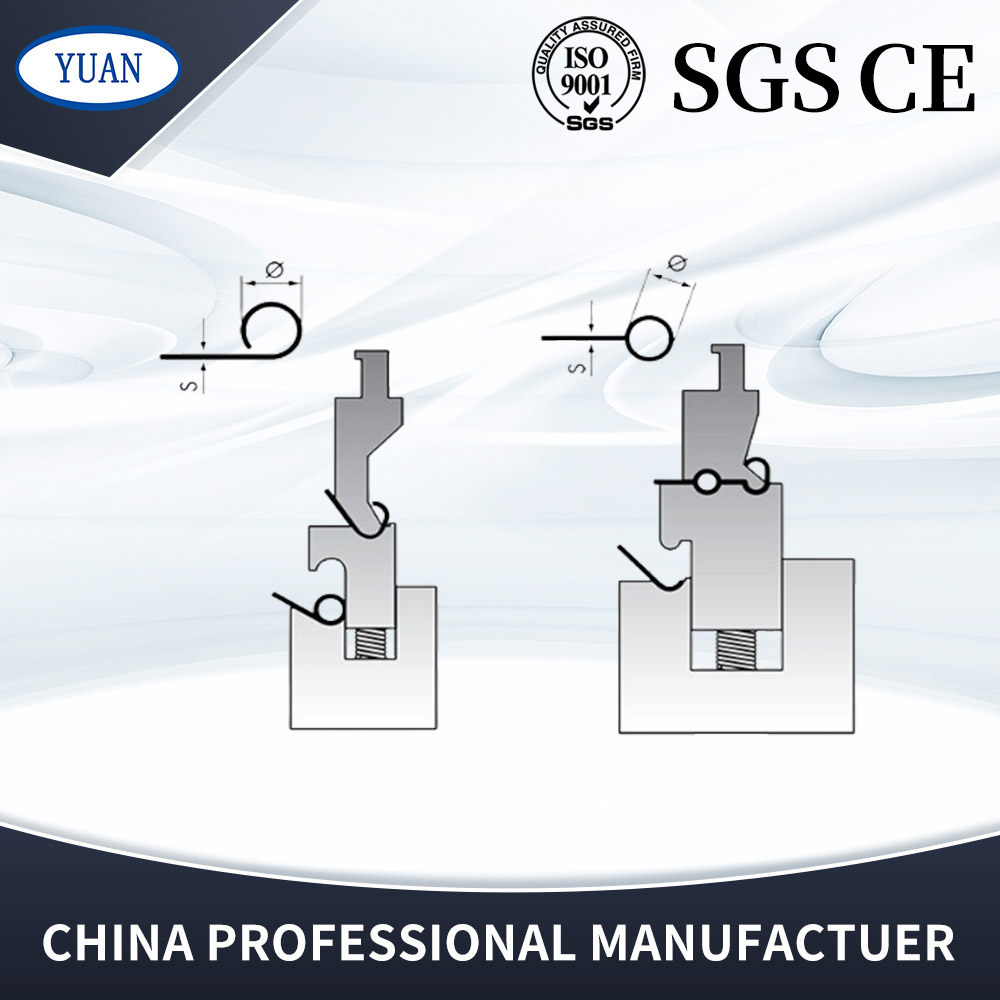

2.Mininum φ=2.5*thickness(mild steel and aluminium)

3.Mininumφ=3.0*thickness(stainless steel)


Hinge Tools

Raw materail:42CrMo

Hardness:HCR 47±3

Quench:Full body heat treatment

Package:Multi plywood
