Flexible Corner Former Machine

Corner Forming Machine

Flexible corner former machine for forming perfect corners.No loner needed welding ,No set up .No welding .No grinding.
No finishing.No polishing.

Inquiry Now

Description

We are Chinese manufactuer of Corner Forming Machine provide customers variety of solution of automatic corner forming service.

It is high efficient corner forming equipment for corner forming such as panel,electric cabinet

door aluminum roof or buckle plate corner forming and so on.

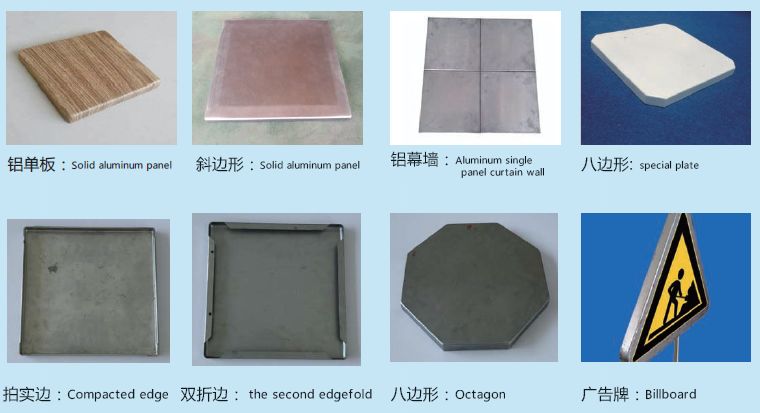

For your flexible Corner Forming Machine ,you can choose different corner shape(Rectangle ,Triangle,Octagon)

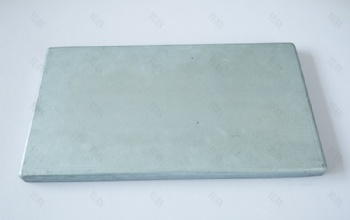

For the Rectangle Corner shape ,the R Corner Radius Range from R1.0-R52.

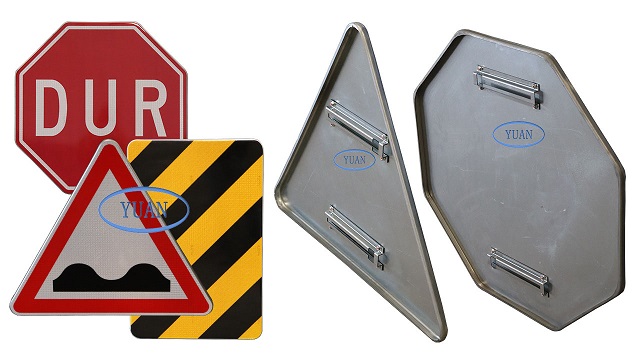

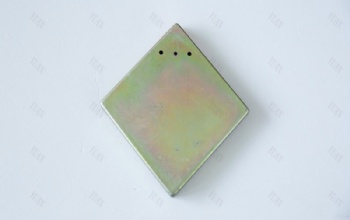

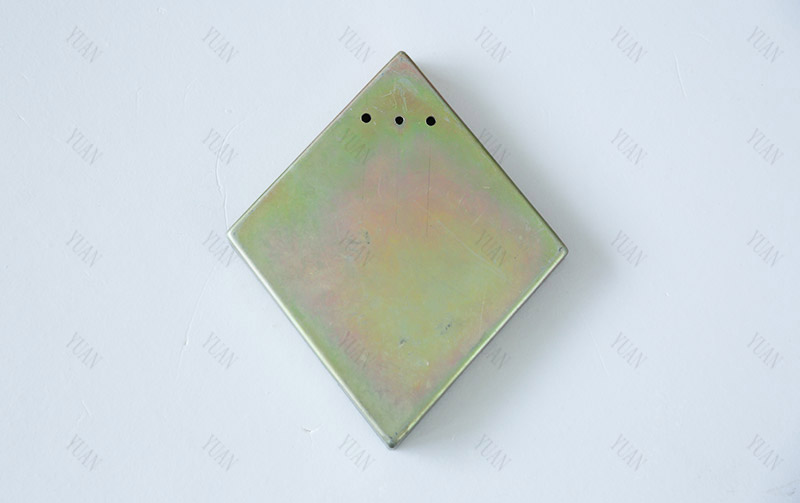

For the Triangle Corner Shape,It is suitable for road/traffic signs industry.

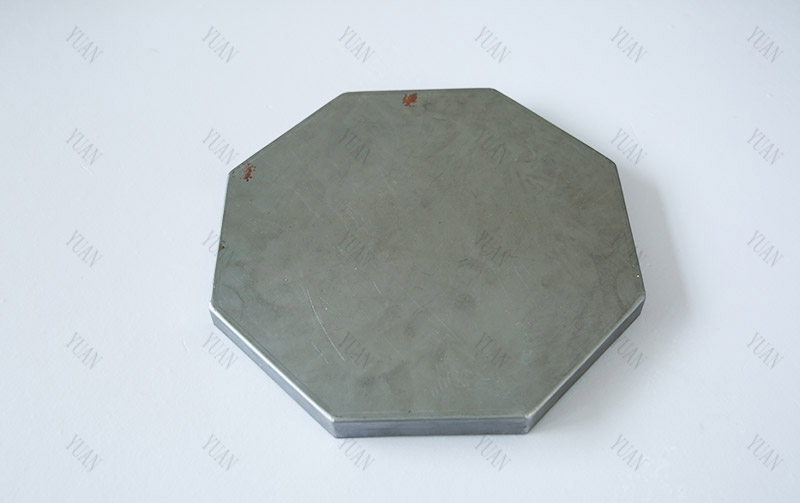

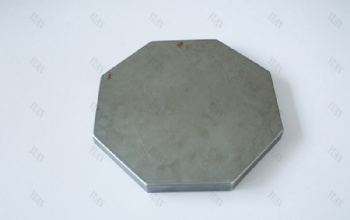

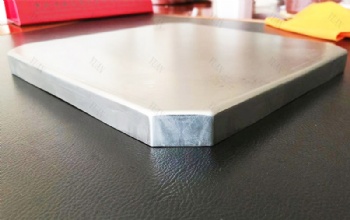

For the Octagon Corner Shape,the maximum bending flange height 30mm.

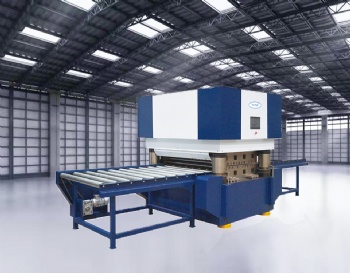

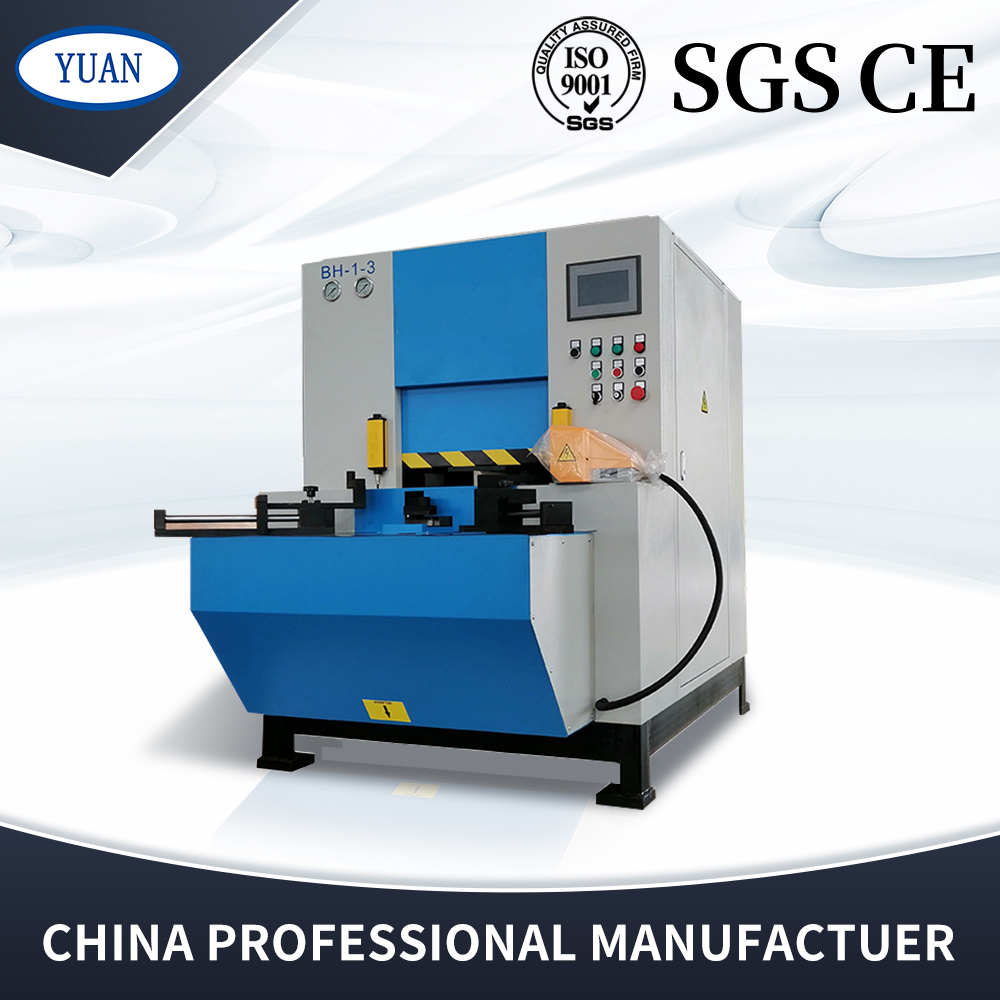

Cabinet Door Croner Forming Machine

Sheet Metal Corner forming machine is used in the processing of sheet mental corner forming such as cold-rolled plate, aluminum plate, stainless steel plate, copper plate etc.

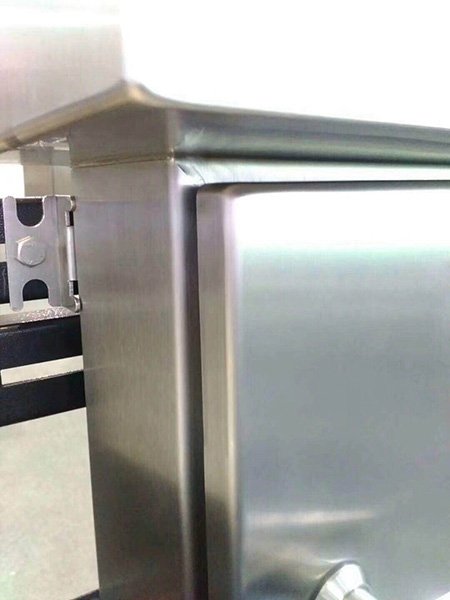

Widely used in the switching door, cover plate, aluminum single panel curtain wall, switchboard, container cover, household appliances, instruments and other fields.Free spare parts, Online support, Video technical support.
The forming and shearing of the work-piece are processed separately at two stations; the installation of safety light curtain protection makes the production process safer and more user-friendly. Equipment mold gap adjustment is Fuji servo motor control accuracy, adjustment parameters through touch screen settings, Mitsubishi PLC control equipment other actions. The equipment comes with a set of molds, which include forming rollers, forming squares, and cutting tools.

A corner forming machine is a type of equipment used in metalworking and fabrication to create bends, corners, or folds in sheet metal. These machines are designed to handle various materials, including steel, aluminum, and other alloys.

acf corner former

Advantages:

1.Suitable for material thicknesses up to 3.0 mm

2.Fast forming one coner

3.Corner Roller Die Tool material is Cr12,Under heat treatment.Hardness can be 65HRC

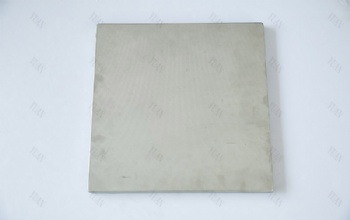

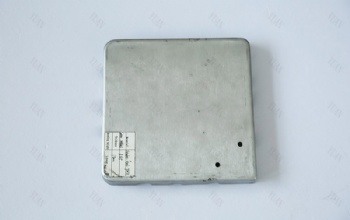

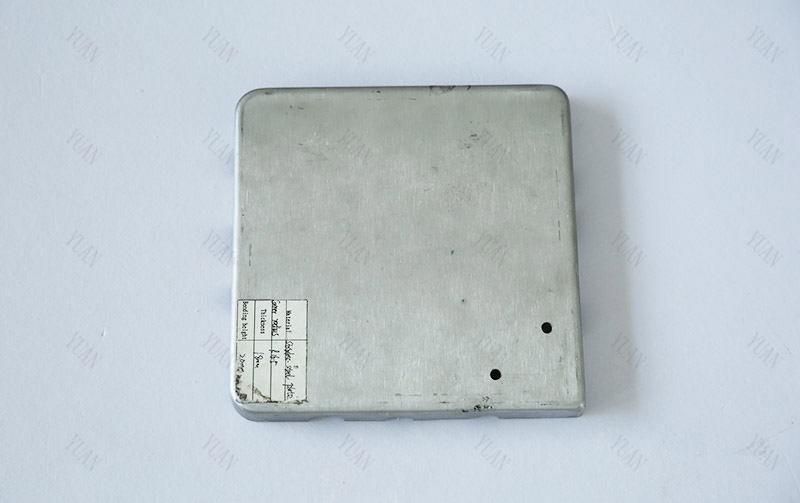

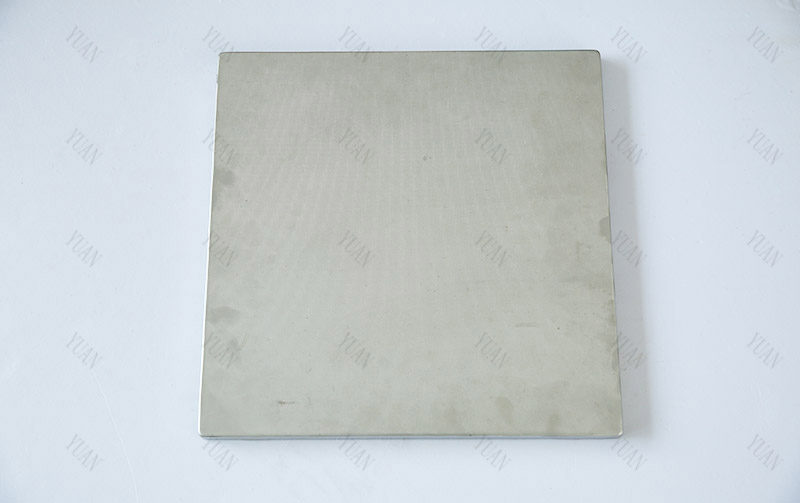

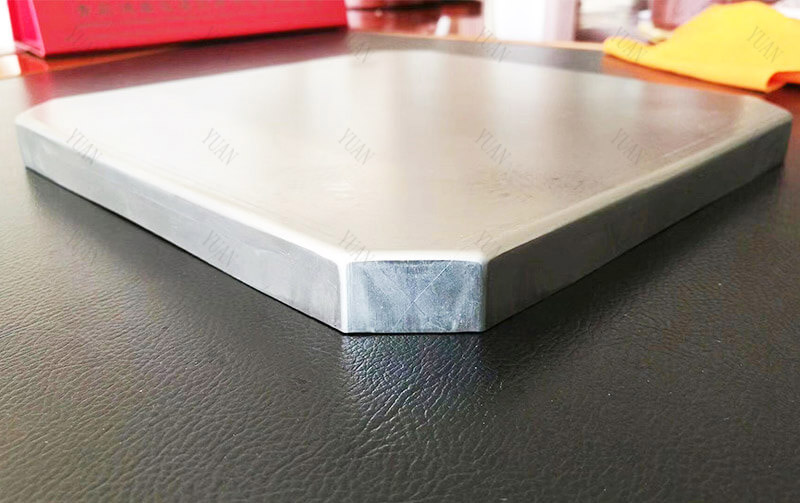

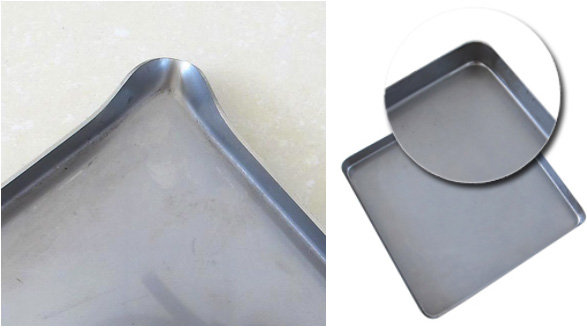

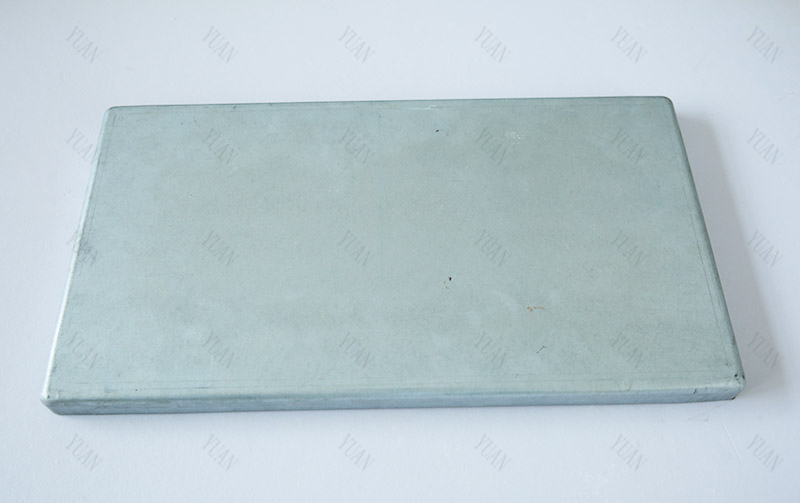

4.Forming corner surface smoothly.No extra polishing.

5.High productivity.

6.Suitable for automation corner forming.

7.Suitable for large sheet parts corner former

Corner Former

Features:

The flexible corner former for panel and door fabrication allows you to create high quality corners up to 10x faster

than welding, which reduces cost.

A new flexible state of the art technology known as :Flexible corner forming machine gives new opportunities in

metal sheet production of panels or doors.Cold forming of corners on doors or panels in any material formable

(Mild Steel ,Stainless Steel ,Aluminium,Alloy and others) allow to use any material thickness and individual

Flange heights.

Corner Forming Machine Cost & Time savings.

Cost Saving:no welding ,no hand finishing work;only 1 operator required ,elimination of abrasives and welding consumables.

Parameters:

Machine model		BH-1-3
Overall size（LWH）（mm）		1560mm1330mm1600mm
Machine gross weight		1260kg
Main configurations	Machine name	Corner Roll Forming Machine
	AC servo motor	Fuji		Japan
	Pneumatic	AirTac		Taiwan
	PLC	Mitsubishi		Japan
	Low voltage electronics	Schneider		French
	Touch screen HMI	Kunlun TONGTAI/Peking
	Gear pump	KCL/Taiwan
	Hydraulic press valve	HUNDE/Peking
	Motors	HUALI/Shandong, China
Process range（mm）	Materials	Thickness	Forming Height	Radius R
	cold-roll steel sheets	0.6	<=10	1.5-50
		0.8-1.2	<=20	1.5-50
		1.5	<=25	1.5-50
		2.0-3.0	<=30	1.5-50
	Stainless steel (>=304)	0.8	<=20	1.5-50
		1	<=22	1.5-50
		1.5	<=25	1.5-50
		2	<=28	1.5-50
	Aluminum plate	0.8	<=12	1.5-50
		1	<=20	1.5-50
		1.5-2.0	<=25	1.5-50
		2.5-3.0	<=30	1.5-50
	Forming radius R Angle (outside)	According to the requirements of technology
	Processing plate thickness(mm)	Based on the actual thickness with mold
	The size of the sheet metal	140X140—Length without limit
Time of molding, shear for one corner	Around 9 seconds
Time for four corners	Around 60seconds
Sample testing parameters	Material
	Cold plate, stainless steel, aluminum

Production of forming a corner:

1.Cutting the sheet on a fiber laser cutting machine for hydraulic shearing machine.

2.Make the press brake low die the same as below picture.

3.Bending the panel on a cnc press brake.

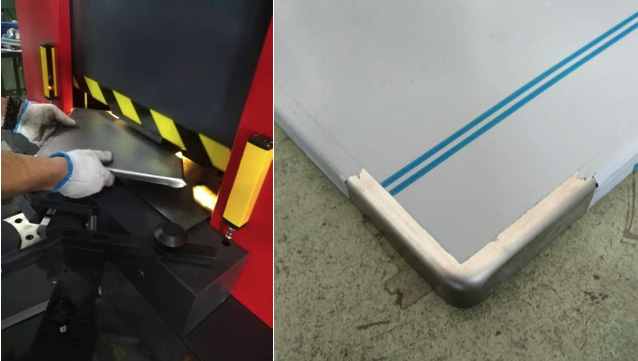

4.Forming the coner on our corner forming machine.

5 .Shearing the trimming

Press Brake Machine upper mould and lower mould used for bending process. Before sheet panel CNC corner forming ,it needs to bend the four edge on a hydraulic bending machine.
