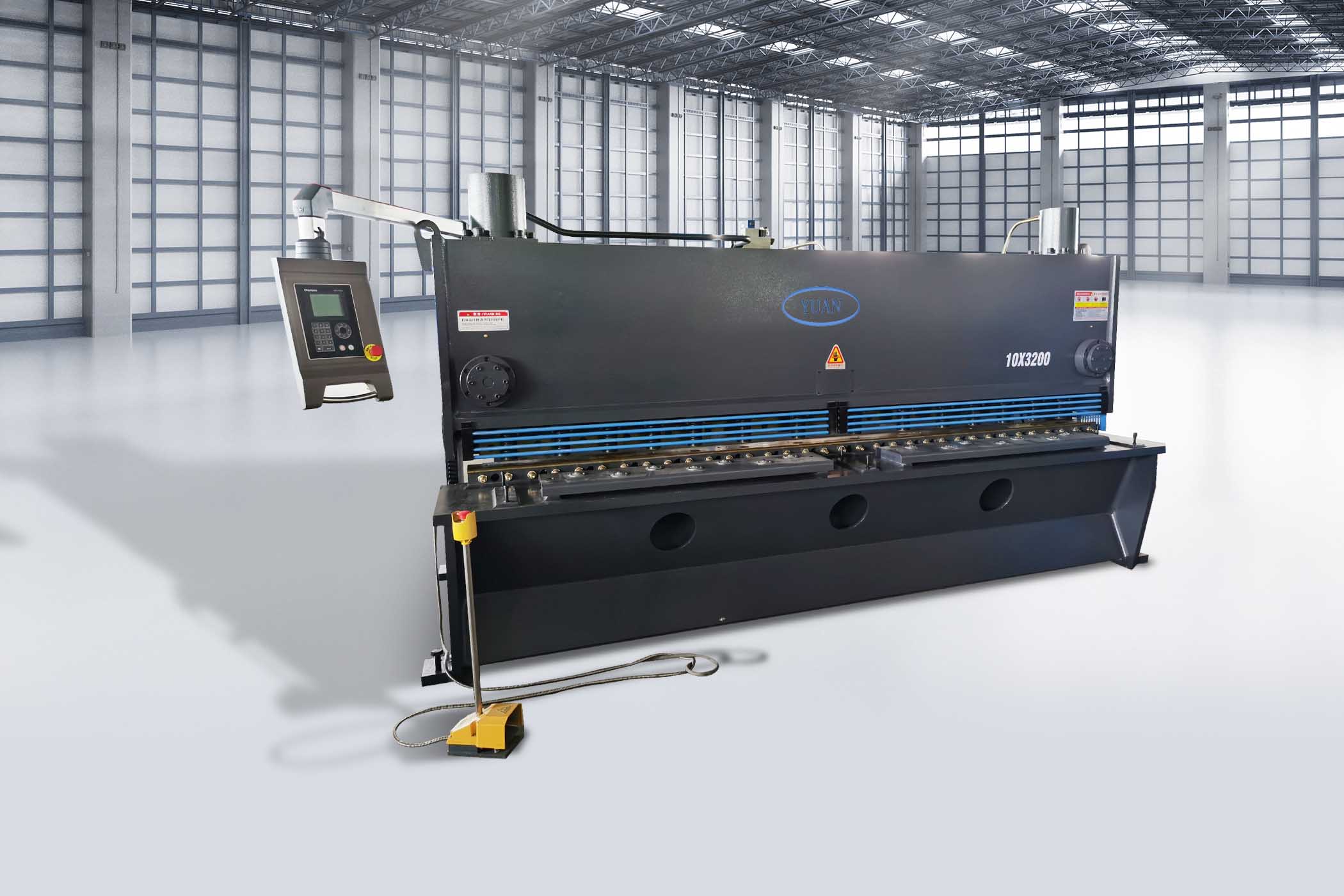

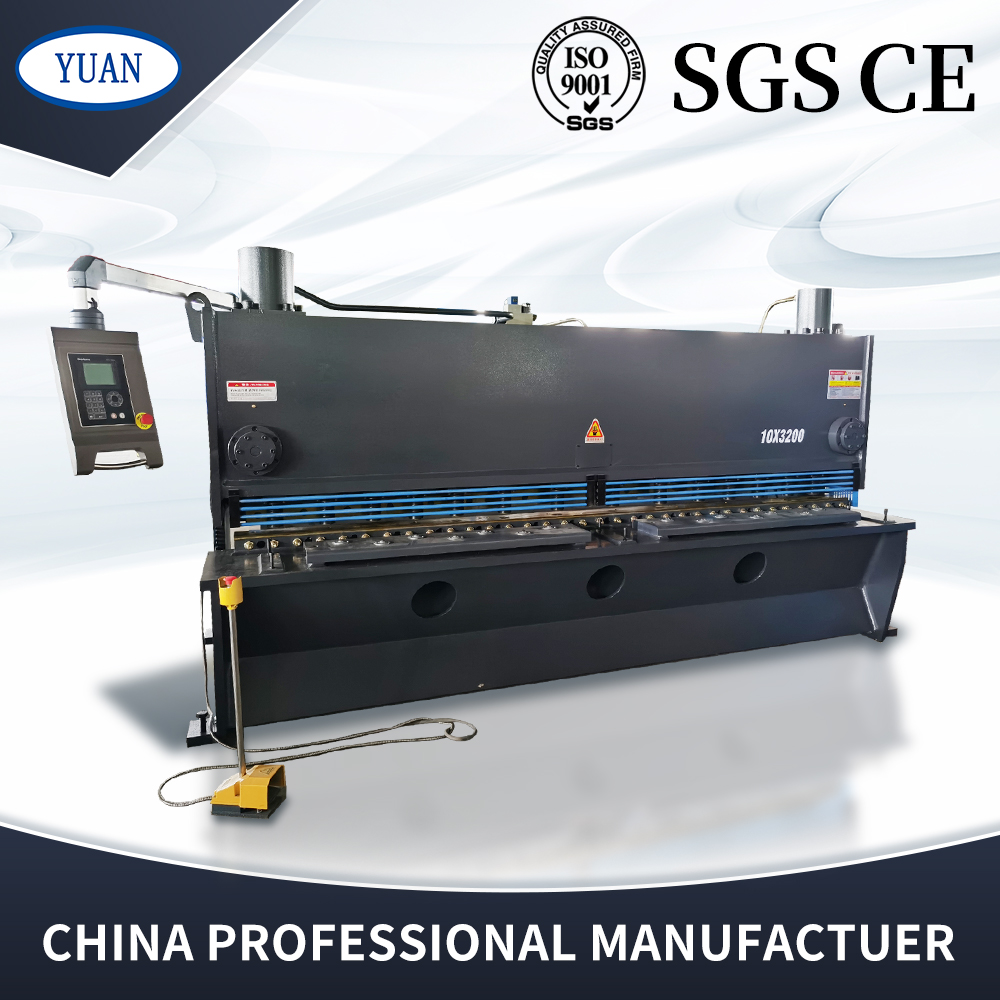

CNC Hydraulic Guillotine Shearing Machine DELEM DAC360T

The frame and shear holder are made of steel components. The upper shear holder undergoes tempering to relieve internal stress, ensuring strong rigidity and excellent stability.

With the help of the hydraulic cylinder, the blade holder moves up and down along the guide rails to perform the cutting action.

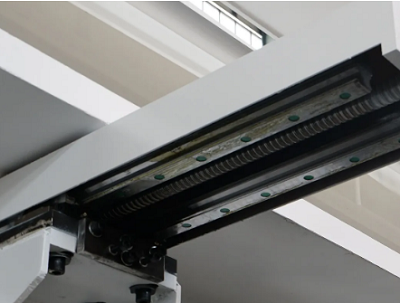

The rear stop is driven by a ball screw, with the distance adjustment controlled by a motor. This provides precise positioning and smooth, fast operation.

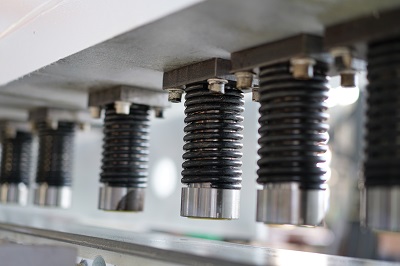

The pressing mechanism consists of a set of hydraulic cylinders. The cylinders press the material by overcoming the spring tension, with the pressure oil driving the action.

After cutting, the spring tension returns the mechanism to its original position.

For easier cutting of wider materials, a front support frame is mounted on the machine’s front. Three or four  of these supports includes a ruler and side positioning blocks.

The hydraulic system features overload protection and a clear, visible oil level indicator. The shearing guillotine machine can run continuously for up to 16 hours under rated load. The hydraulic system ensures leak-free operation and stable performance, maintaining high precision throughout.

1.Guillotine shear standard configuration:

1.Hydraulic guillotine structures.

2.Clip-and- sleeve system.

3. Automatic clearance gap adjustment

4.Automatic Cutting angle adjustment by motor,back-gauge controlled by motor and display in CNC system.

5.Blades material 6CrW2Si

6.Safe pedal

7.Hydraulic system:Rexroth,Germany .

8.Motor: Siemens.

9.Pump: Chinese famous brand.

10.NOK Japan layer seals for main cylinders.

11.Schneider main electrics.

12.With Holland DAC 360

13.Light alignment device

14.Back doors with safety light curtain.

15.Electrical cabinet with ABB switch power outage.

16.Sectional blades

17.Servo Motor and Driver:YASKAWA,Japan.

18.The back-gauge is balls screw and liner guide.

2.Features:

1.DAC 360 Go-To Programmable digital control provides up to 750mm travel on hardened ballscrew back-gauge allowing operator to program the cut length required. Also fitted is a stroke counter & stroke adjustment dial allowing shorter materials to be cut using a shorter stroke length, this feature will increase production.

2.Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.

3.Adjustable hydraulic variable blade rake system via control panel 0.5˚-1°30'

4.Control box mounted higher than standard on side of machine to protect it from material damaging the control unit due to heavy material loading on sheet supports prior shearing.

5.Simplified blade gap adjustments to allow for a wide range of material types and thicknesses of 0.7 - 8mm enabling minimised distortion of the cut length.

6.Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.

7.Top shearing blade made from 6CrW2Si quality composite and has two (2) cutting edges allowing minimised down time in blade rotation.

8.Bottom shearing blade made from 6CrW2Si quality composite and has four (4) cutting edges allowing minimised down time in blade rotation.

9.The core structure of the steel main frame has been electronically welded ensuring maximum penetration during the manufacturing process. In addition to this feature the cutting beam has been stress relieved eliminating any distortion after manufacturing.

10.Shadow line lighting has been incorporated into the machine frame providing a clear cutting line on the work piece and enabling scribed or marked material to be cut with simplicity as required.

11.Heavy duty squaring arm is fitted with a graduated rule and adjustable flip up front stops allowing operator to cut to measure from the front of machine. Flip over stops can be set to repeat cutting length required with accuracy. The arm also aligns the material to be located square to the cutting edge.

12.Safety reset button for guarding system located at rear of machine, this feature requires operator to walk to rear of machine to visually check for any obstruction prior to resetting & starting machine

13.Mild steel capacity is rated on hot rolled material with 250MPA

3.Includes:

1.DELEM DAC 360 Tgo-to programmable hardened ballscrew back-gauge 750mm travel with fine adjustment

2.Adjustable hydraulic variable blade rake system via control panel

3.Heavy duty over driven machine construction

4.Rapid blade gap adjustment

5.Emergency stops fitted on both ends of machine for additional safety

6.Individual hydraulic hold downs with nylon pads

7.Shadow line lighting allows operator to quickly see the cut line

8.Swing away back-gauge function for cutting long sheets

9.4 edge quality 6CrW2Si blades suitable for stainless steel

10.Taiwan hydraulic valves

11.Telemecanique electrical components(Schneider)

12.Transfer balls on table & support arms

13.Heavy duty support arms and squaring arms

14.Stroke counter and short stroke adjustment

15.Sliding chute with ball transfers inserts for cut pieces

16.Three safety photo electric light beams on rear guarding

17.Optional Pneumatic sheet supports MODEL available

4.Standard Configuration:

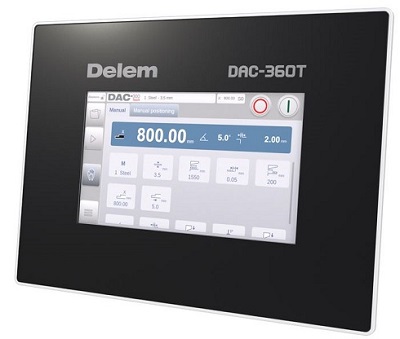

4.1 Delem DAC-360T

4.1.1 Panel-Based Housing

4.1.2 High-visibility LCD screen

4.1.3 Front and rear gauge control

4.1.4 Retract functionality

4.1.5 Adjustable cutting angle and gap

4.1.6 Stroke length limitation

4.1.7 Manual axis movement

4.1.8 Force control

4.1.9 Sheet thickness measurement

4.1.10 RTS (Return to Sender) feature

4.1.11Second servo axis (DAC-362T)

4.1.12heet support system

4.2 Safety Fence

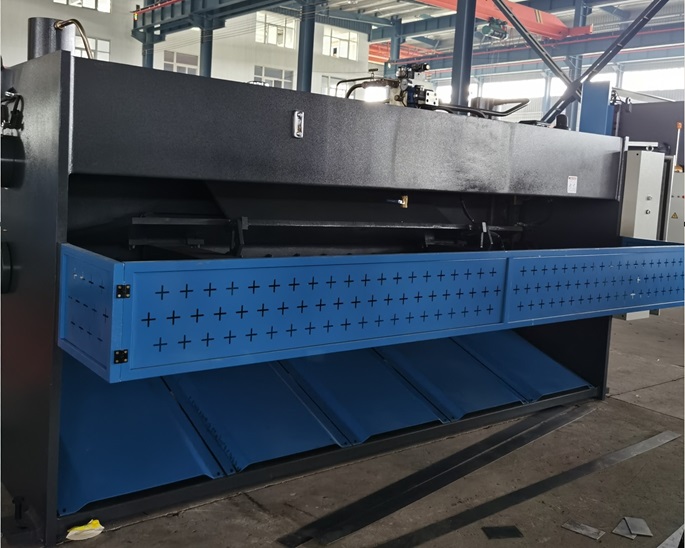

Protective guards on both sides ensure operator safety while providing clear visibility of the shearing process, making it both safe and convenient.

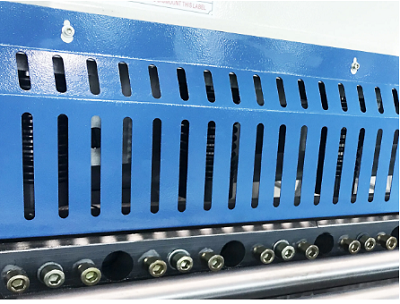

4.3 Hold on

The pressing system features an integrated circuit and independent parallel pressing cylinders. It automatically adjusts to the sheet metal’s surface, allowing for expansion and compression to accommodate uneven material. The pressing force can also be adjusted based on the material type and thickness, ensuring no damage to the surface of the plate.

4.4 Schneider Electrics

The shearing machine uses high-quality electrical components to ensure stable performance, even in areas with unstable power supply. Plus, users can easily find replacement parts anywhere in the world.

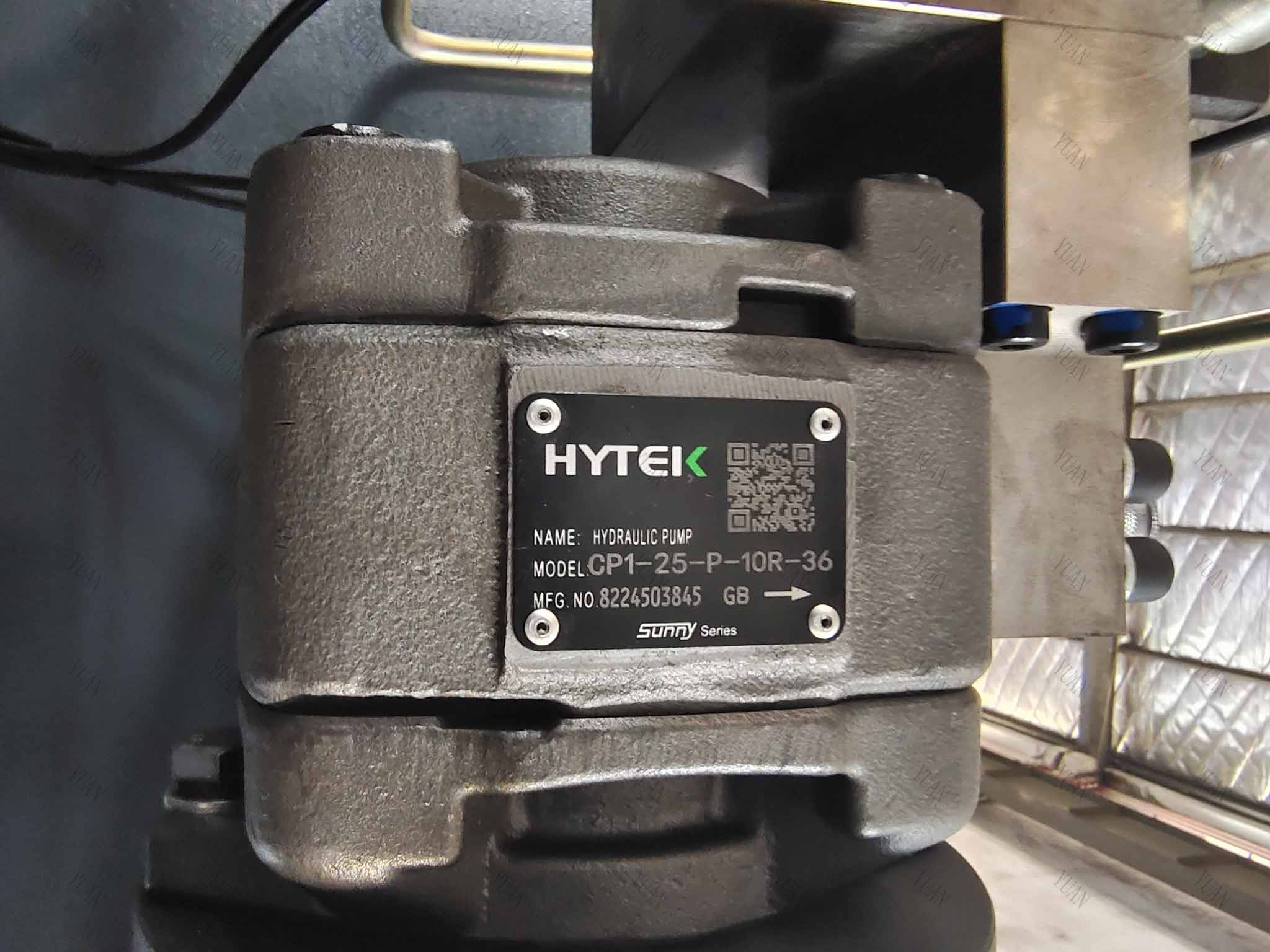

4.5 SUNNY Pump

The hydraulic pump, from a world-renowned American brand, delivers reliable performance and provides strong power for the entire hydraulic system.

HIWIN Ball Screw & Linear Guide

The CNC rear stop device uses a high-performance decelerating motor, precision HIWIN ball screw, and dual linear guide rails, ensuring positioning accuracy within ±0.1mm.

Discharge materail slider equipment:

Freindly design for discharge the cutting plate,you can also choose pneumatic support as optional.
