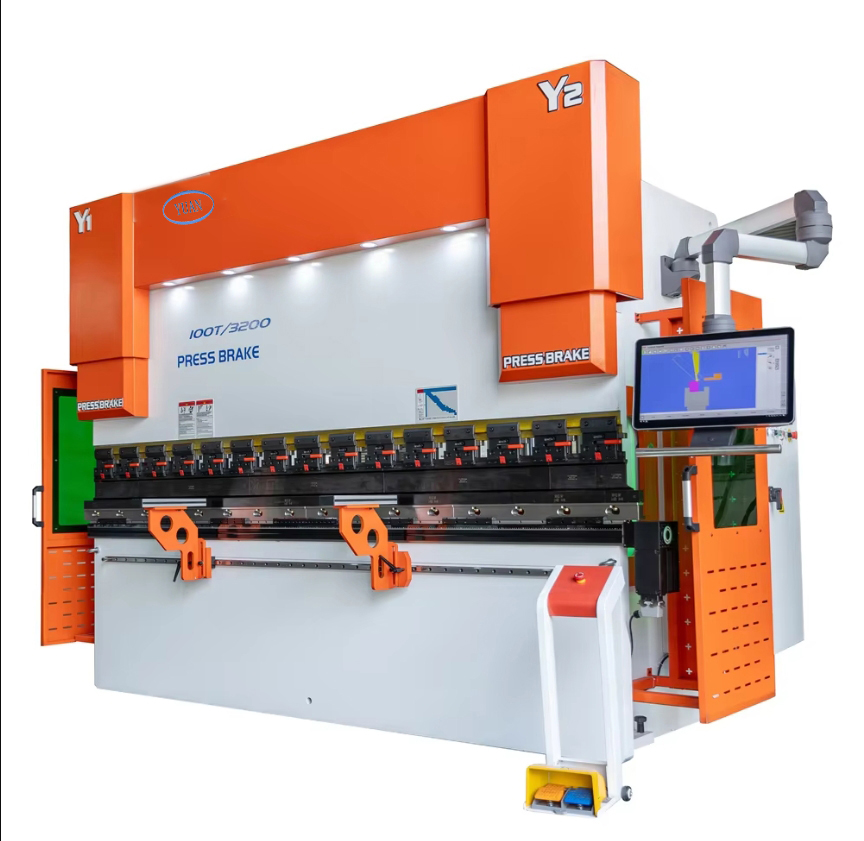

​Grating Rulers and Magnetic Grating Rulers: Precision Measurement in CNC Press Brakes

In the realm of CNC (Computer Numerical Control) press brakes, precision measurement is critical to ensuring accurate bending and forming of materials. Two commonly used sensors for displacement measurement are grating rulers and magnetic grating rulers. Both technologies play a vital role in closed-loop servo systems, enabling real-time feedback and control. This article explores the principles, applications, and comparative advantages of these two types of rulers.

1. Grating Ruler

Principle and Design:
A grating ruler is a high-precision sensor that operates based on the principles of light interference and diffraction. It consists of a main scale and a scanning head. The main scale is typically made of glass or metal, engraved with fine, evenly spaced lines that act as a diffraction grating. When light passes through or reflects off these lines, it creates interference patterns that are detected by the scanning head.

Key Features:

High Precision: Grating rulers offer exceptional accuracy, typically within ±0.005 mm, making them ideal for applications requiring ultra-fine measurements.

Digital Output: The output signal is a series of digital pulses, which are easy to process and integrate into CNC systems.

Wide Detection Range: Grating rulers can measure both linear and angular displacements over a broad range.

Fast Response Speed: The system responds quickly to changes in position, ensuring real-time feedback for dynamic adjustments.

Applications:
Grating rulers are widely used in CNC machine tools, including press brakes, where precise positioning and repeatability are essential. They are particularly suited for environments where high accuracy is prioritized over environmental robustness.

Limitations:

Temperature Sensitivity: Grating rulers are highly sensitive to temperature fluctuations and are typically limited to environments below 40°C.

Environmental Requirements: They require clean, stable conditions, as dust, oil, and vibrations can affect performance.

Service Life: Due to their delicate construction, grating rulers may have a shorter operational lifespan compared to more robust alternatives.

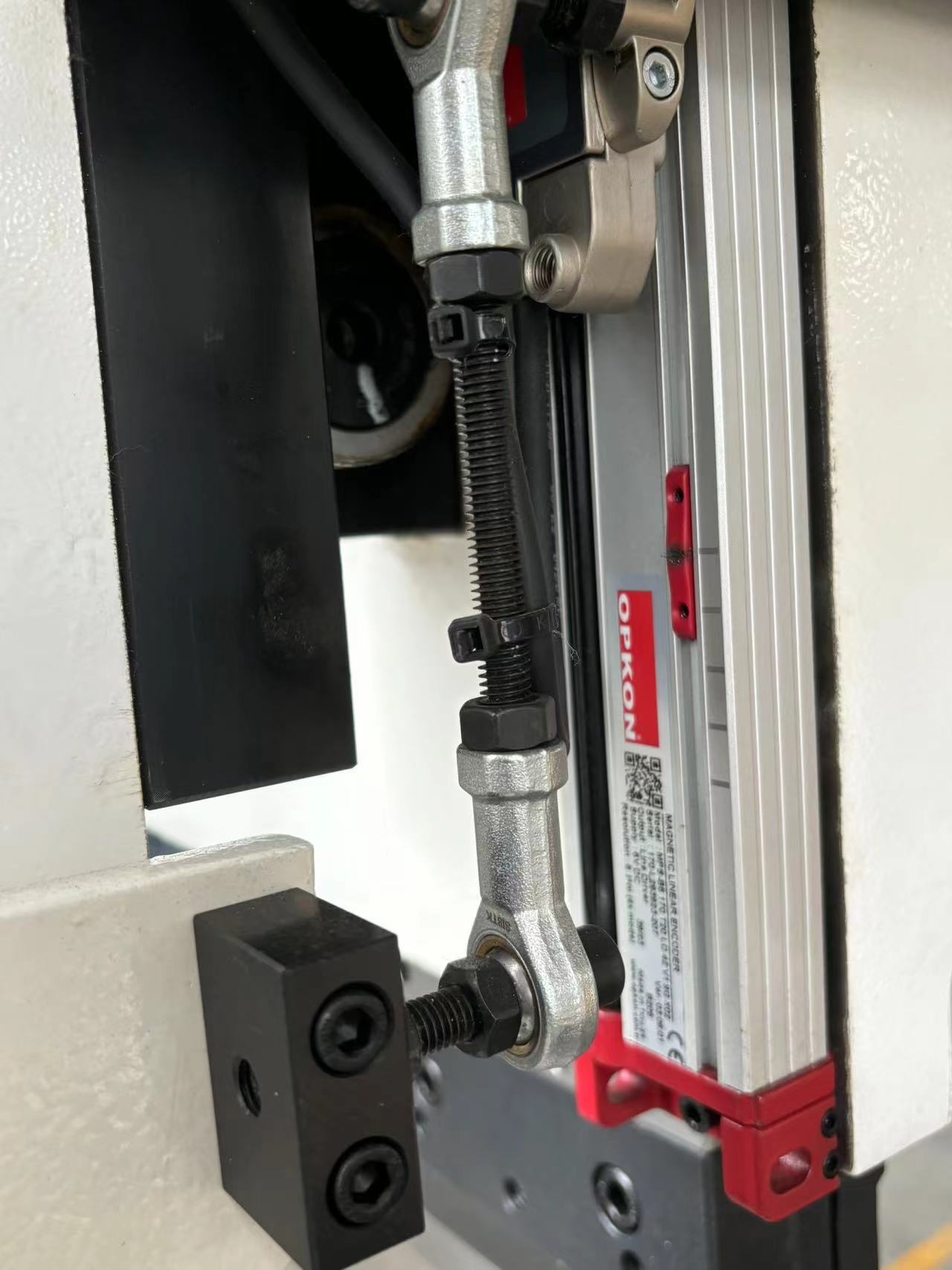

2. Magnetic Grating Ruler

Principle and Design:
A magnetic grating ruler operates on the principle of magnetic pole detection. It consists of a base ruler made of a steel strip that is uniformly magnetized with alternating S (south) and N (north) poles. A reading head detects changes in the magnetic field as it moves along the ruler, converting these changes into displacement measurements.

Key Features:

Robust Construction: Magnetic grating rulers are durable and resistant to harsh conditions, including exposure to water, oil, and dust.

Moderate Precision: While slightly less accurate than grating rulers (±0.01 mm), magnetic grating rulers still provide sufficient precision for many industrial applications.

Environmental Adaptability: They perform well in environments with vibrations, temperature variations, and contaminants.

Long Service Life: The robust design ensures a longer operational lifespan compared to grating rulers.

Applications:
Magnetic grating rulers are commonly used in industrial settings where environmental conditions are less controlled. They are ideal for applications in heavy machinery, automotive manufacturing, and other industries where durability and reliability are critical.

Limitations:

Lower Accuracy: The precision of magnetic grating rulers is generally lower than that of grating rulers, making them less suitable for ultra-high-precision tasks.

Magnetic Interference: Strong external magnetic fields can potentially affect the performance of magnetic grating rulers.

3. Advantages and Disadvantages of Grating Rulers and Magnetic Grating Rulers

Grating Ruler:

Advantages:

Extremely high accuracy (±0.005 mm).

Fast response time and wide detection range.

Ideal for high-precision applications in controlled environments.

Disadvantages:

Sensitive to temperature changes and environmental contaminants.

Requires clean and stable operating conditions.

Shorter service life due to delicate construction.

Magnetic Grating Ruler:

Advantages:

Resistant to water, oil, dust, and vibrations.

Better adaptability to harsh industrial environments.

Longer service life due to robust design.

Disadvantages:

Lower accuracy (±0.01 mm) compared to grating rulers.

Potential susceptibility to magnetic interference.

Choosing the Right Ruler for Your Application

The choice between a grating ruler and a magnetic grating ruler depends on the specific requirements of the application:

For High-Precision Tasks: If the primary concern is achieving the highest possible accuracy in a controlled environment, a grating ruler is the preferred choice. This is particularly relevant in industries such as aerospace, electronics, and precision engineering.

For Harsh Environments: In applications where the equipment is exposed to challenging conditions, such as heavy machinery or outdoor use, a magnetic grating ruler offers greater durability and reliability.

Both grating rulers and magnetic grating rulers are indispensable tools in modern CNC press brakes and other precision machinery. While grating rulers excel in high-accuracy applications, magnetic grating rulers provide robustness and adaptability for demanding environments. By understanding the strengths and limitations of each technology, manufacturers can make informed decisions to optimize their operations and achieve the desired level of precision and reliability.
