Mechanical Compensation Workbenches: Enhancing Precision in Bending Machines

Mechanical compensation workbenches are critical components in modern bending machines, ensuring high precision and consistency in metal forming processes. These systems are designed to counteract the deflection and deformation that occur during bending operations, thereby improving the accuracy of the final product. This article explores four types of mechanical compensation workbenches: multi-point mechanical compensation, manual mechanical compensation, electric mechanical compensation, and precision mechanical compensation. Each system offers unique features and advantages tailored to specific industrial needs.

1. Multi-Point Mechanical Compensation Workbench

The multi-point mechanical compensation workbench is a sophisticated system designed to address deflection issues in bending machines. Its structure consists of multiple independent inclined block groups, each with a specific slope. These inclined blocks can be manually adjusted independently, allowing for precise and targeted compensation.

Key Features:

Independent Adjustment: Each inclined block group can be adjusted separately, providing flexibility in addressing localized deflection.

Classic Deflection Compensation Structure: The design is based on a well-established deflection compensation mechanism, ensuring reliability and effectiveness.

Manual Precision Adjustment: While the system offers high precision, achieving optimal results requires skilled operators with extensive practical experience.

Applications:
This system is ideal for industries where bending machines are subjected to varying loads and deflections. Its ability to provide targeted compensation makes it suitable for complex bending tasks that demand high accuracy.

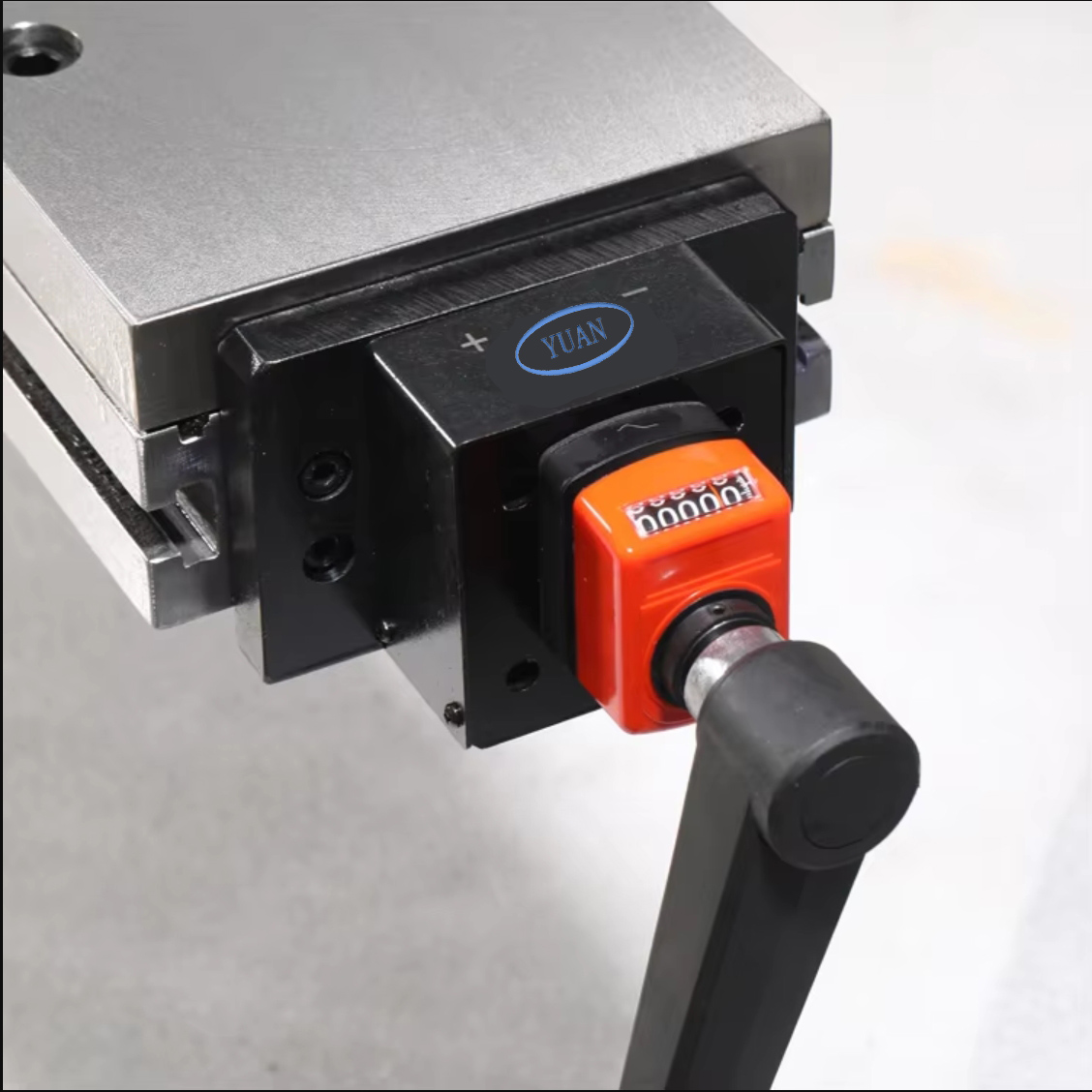

2. Manual Mechanical Compensation Workbench

The manual mechanical compensation workbench is a compact and user-friendly system that incorporates a built-in deflection compensation display. This feature allows operators to monitor and adjust compensation values with precision.

Key Features:

Inclined Block Group Structure: The system uses a combination of inclined blocks with different slopes, achieving a pairing accuracy of up to 0.03 mm.

Deflection Compensation Curve: By moving the upper and lower inclined block groups relative to each other along the length direction, the system generates a compensation curve tailored to the bending machine's deformation.

T-Slot and Mold Installation Slot: The workbench features T-slots on the front and rear sides, as well as mold installation slots on the cover plate, enhancing its versatility.

Optional Micro-Adjustment Mechanism: Users can opt for a micro-adjustment structure to further refine the compensation process.

Advantages:
The manual mechanical compensation workbench is praised for its simplicity, compact design, and high precision. It is particularly suitable for small to medium-sized workshops where operators prefer hands-on control over automated systems.

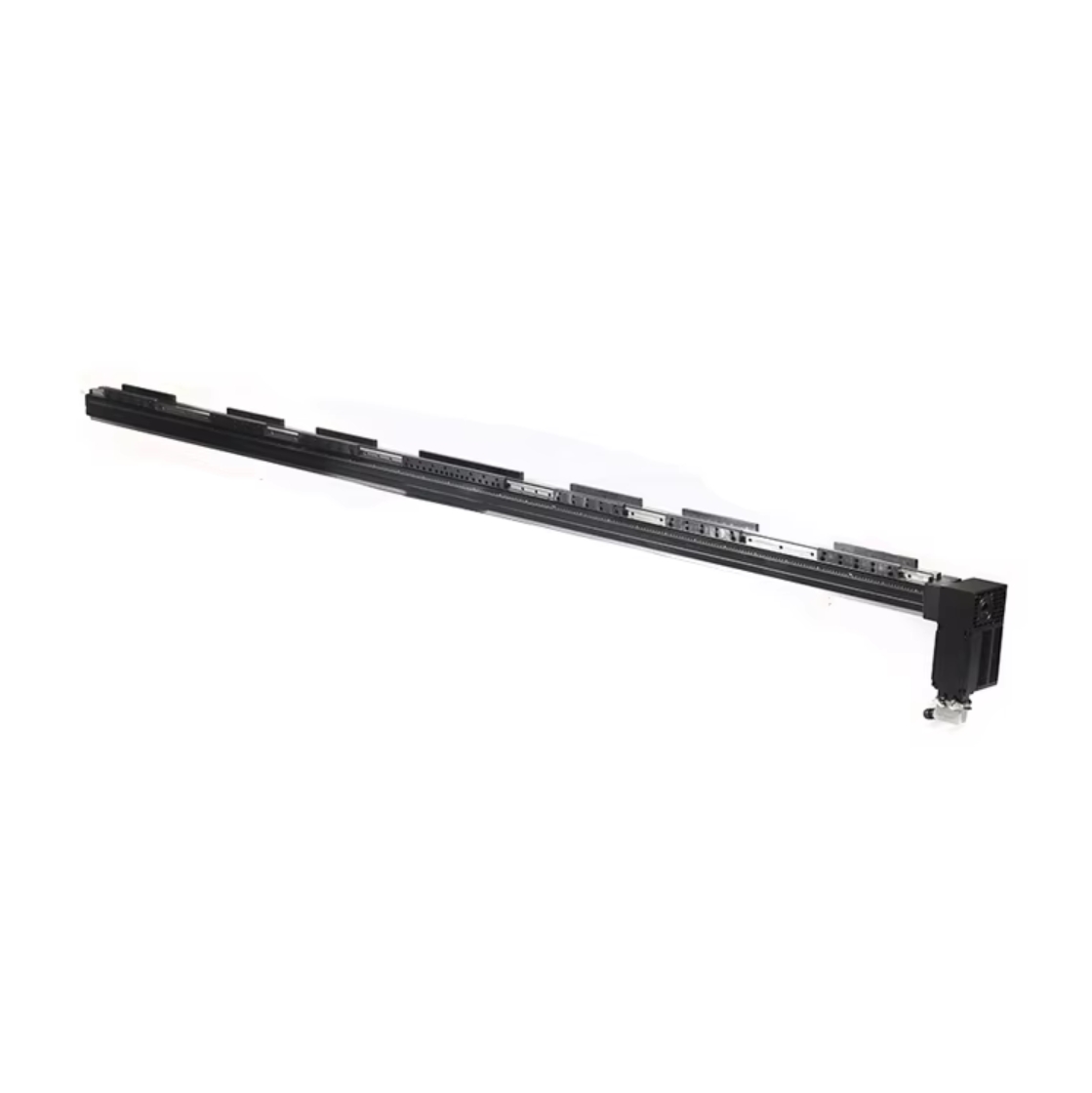

3. Electric Mechanical Compensation Workbench

The electric mechanical compensation workbench represents a significant advancement in bending machine technology. It integrates a custom CNC motor, which seamlessly connects with the bending machine's CNC system, enabling automated and precise compensation adjustments.

Key Features:

CNC Integration: The custom CNC motor ensures smooth communication with the bending machine's control system, allowing for real-time adjustments.

Inclined Block Group Structure: Similar to the manual system, the electric version uses inclined blocks with varying slopes, achieving a pairing accuracy of 0.03 mm.

Deflection Compensation Curve: The relative movement of the upper and lower inclined block groups generates a precise compensation curve.

T-Slot and Mold Installation Slot: The workbench includes T-slots and mold installation slots for added functionality.

Optional Micro-Adjustment Mechanism: Users can enhance precision by incorporating a micro-adjustment structure.

Applications:
The electric mechanical compensation workbench is ideal for high-volume production environments where automation and precision are paramount. Its ability to integrate with CNC systems makes it a valuable asset in modern manufacturing facilities.

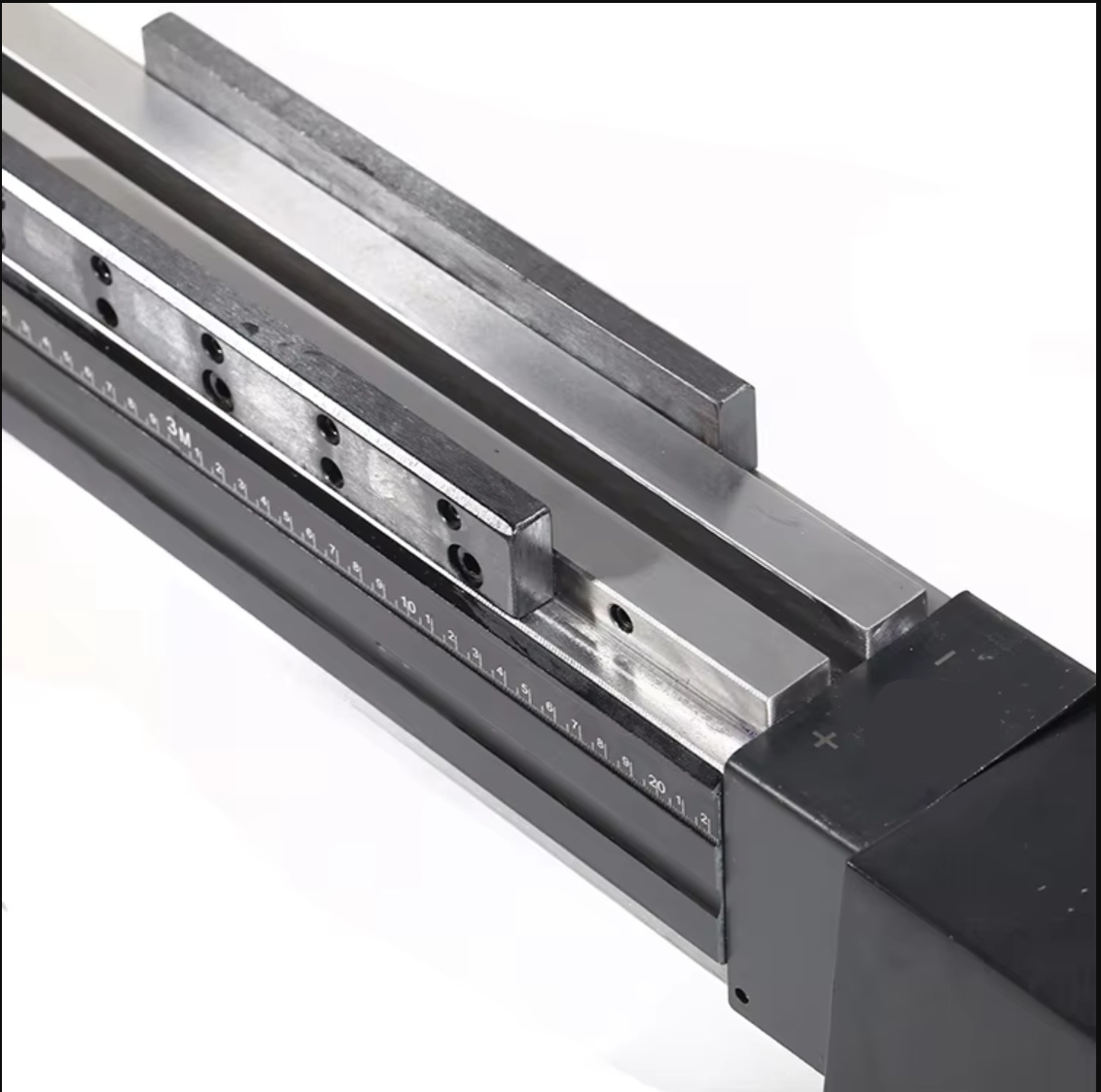

4. Precision Mechanical Compensation Workbench

The precision mechanical compensation workbench is the pinnacle of deflection compensation technology. It is designed for applications that demand the highest levels of accuracy and stability.

Key Features:

Dual-Layer Inclined Block Structure: The compensation blocks consist of upper and lower layers with multiple wave-shaped inclined surfaces. These surfaces are paired with exceptional precision, achieving an accuracy of 0.015 mm.

Deflection Compensation Curve: The relative movement of the upper and lower wave-shaped inclined blocks generates a highly accurate compensation curve.

Stable Compensation: The lower inclined block features an integrated wave-shaped inclined surface, ensuring stability and eliminating repetitive positioning errors.

Compact and Elegant Design: The workbench boasts a sleek appearance, with a front cover equipped with a scale for precise mold positioning.

CNC Integration: The system uses a custom CNC motor for seamless integration with the bending machine's control system.

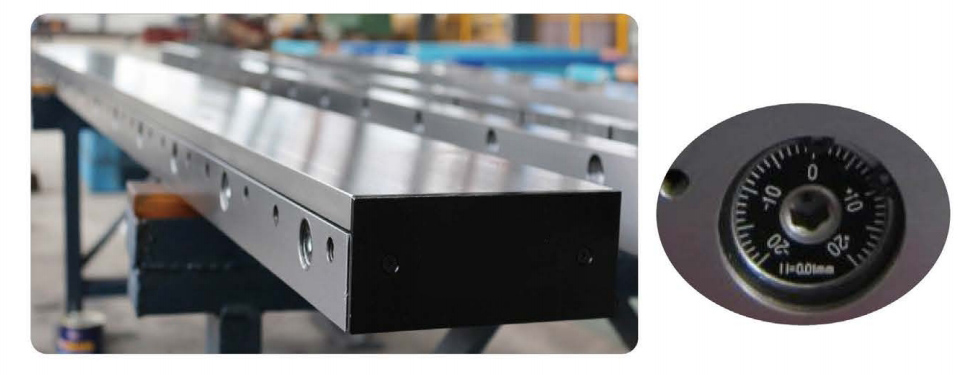

Lateral Micro-Adjustment: A lateral micro-adjustment feature compensates for cumulative errors that may occur during the machining and assembly of the workbench, ensuring perfect parallelism between the upper and lower molds.

Advantages:
The precision mechanical compensation workbench is unmatched in its ability to deliver consistent and accurate results. Its advanced features make it suitable for industries such as aerospace, automotive, and electronics, where even the slightest deviation can have significant consequences.

Comparative Analysis

While all four types of mechanical compensation workbenches share the common goal of minimizing deflection and improving bending accuracy, they differ in terms of complexity, precision, and application suitability.

Multi-Point Mechanical Compensation: Offers flexibility and targeted compensation but requires skilled operators for manual adjustments.

Manual Mechanical Compensation: Combines simplicity with precision, making it ideal for small to medium-sized operations.

Electric Mechanical Compensation: Integrates automation and CNC technology, catering to high-volume production environments.

Precision Mechanical Compensation: Delivers the highest levels of accuracy and stability, suitable for industries with stringent quality requirements.

Mechanical compensation workbenches are indispensable tools in the metalworking industry, ensuring that bending machines operate with precision and consistency. From manual systems to advanced CNC-integrated solutions, these workbenches cater to a wide range of industrial needs. By understanding the unique features and advantages of each type, manufacturers can select the system that best aligns with their production requirements, ultimately enhancing product quality and operational efficiency.
