Model

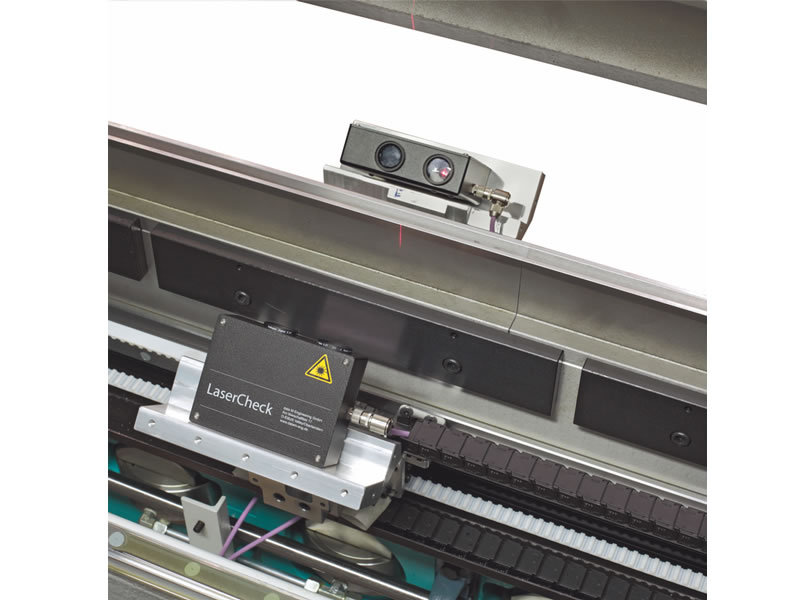

Lasercheck   10

Lasercheck   11

Lasercheck   12

Optional

Optional

Low   die width

F〡T

V6〡V60

V6〡V100

V6〡V100

V6〡V140

V6〡V300

Low   die height

 F〡T

55〡85

55〡85

55〡85

55〡120

55〡120

Standard-off

90-220

90-220

150-320

Intall   angle

45°±10°

45°±10°

45°±10°

Wire   length

5m+repeater

Max.50   m

Max.50m

Vertical   adjustment options

Servo   motor or step motor

(connect   wire,parameter adjust,including limit switch,reducer box)

Measure   filed

30°-180°

Scan   speed

20-50HZ

50-100HZ

50-100HZ

Sensor   accuracy

<±0.1°

Camera   connect

1USB   2.0

1 Gbit/sec

1   Gbit/sec

Optical   grade

1/2”-CMOS

Resolution   ratio(HxV)

1280x1024(red   can be seen)

Input

triggering   signal

triggering   signal

Voltage〡Power

5   VDC〡500mA   USB

24VDC〡90mA

24VDC〡90mA

24VDC〡2A+sensor

Laser   wave length

670 nm(red   light can be seen)

Laser   grade

2M

image   processing

Win   10 loT Enterprise LTSB 64 computer(senser connect computer)
