1.DELEM CNC Control System For Press Brakes
Holland Delem is a leading company specializing in the sheet metal processing industry, dedicated to developing and manufacturing advanced CNC systems and software solutions. Renowned for its innovative technology and high-quality products, the company's solutions are widely used in equipment such as press brakes and laser cutting machines. Holland Delem's products are known for their user-friendliness, high precision, and reliability, helping customers improve production efficiency and processing quality. As part of the Delem Group, Holland Delem provides exceptional technical support and services to the sheet metal processing industry worldwide.

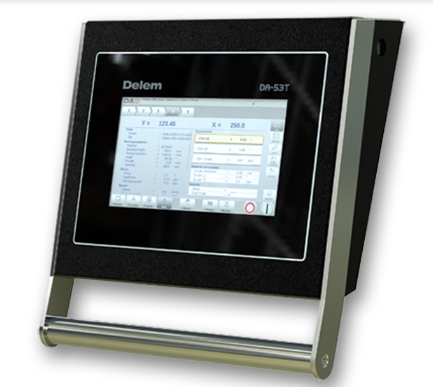

1.1DELEM DA53T Touch Color CNC System
The DA-53T is ideal for a wide range of press brake applications, offering a blend of advanced technology, ease of use, and robust functionality to meet the demands of modern manufacturing environments.The DA-53T is ideal for a wide range of press brake applications, offering a blend of advanced technology, ease of use, and robust functionality to meet the demands of modern manufacturing environments.
1.1.110.1" High-Resolution Colour TFT Display:
Provides a clear and user-friendly interface for operators to manage press brake operations efficiently.
1.1.2“Hot-Key” Touch Navigation:
Simplifies operation with intuitive touch controls, allowing quick access to frequently used functions.
1.1.3 Up to 4 Axes Control (Y1, Y2 + 2 Auxiliary Axes):
Supports multi-axis control for precise bending operations, including two main axes (Y1, Y2) and two additional auxiliary axes for enhanced flexibility.
1.1.4 Tool / Material / Product Library:
Includes pre-programmed libraries for tools, materials, and products, streamlining setup and reducing programming time.
1.1.5Advanced Y-Axis Control Algorithms:
Optimizes performance for both closed-loop and open-loop valve systems, ensuring accurate and consistent bending results.
1.1.6 CNC Crowning Control:
Compensates for deflection during bending, ensuring uniform bending across the entire length of the workpiece.
1.1.7 USB Memory Stick Interfacing:
Allows easy transfer of programs and data between the CNC control and external devices, enhancing workflow efficiency.
1.1.8 Profile-53TL Offline Software:
Enables operators to program and simulate bending operations offline, reducing machine downtime and improving productivity.

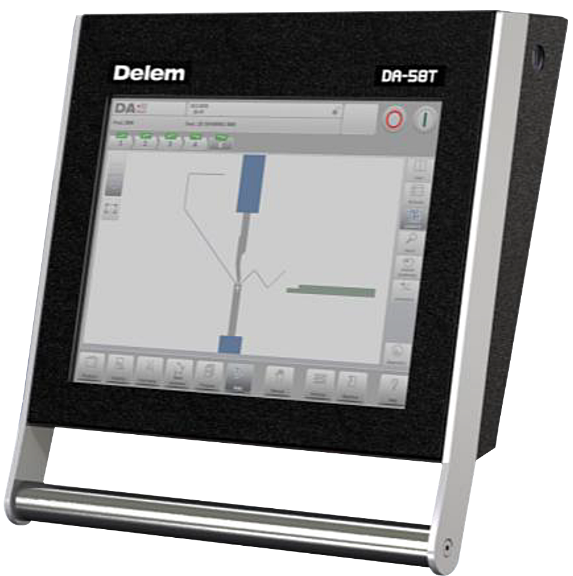

1.2DELEM DA58T Color 2D graphical System
The DA-58T is an ideal solution for press brake applications, combining advanced technology, ease of use, and cost-effectiveness to meet the demands of modern manufacturing environments.The DA-58T touch CNC control is a modern, compact, and versatile solution designed for powerful and cost-effective press brake applications. Here’s an overview of its key features:
1.2.1 15" High-Resolution Colour TFT Display:
Offers a large, clear interface for easy operation and monitoring of press brake functions.
1.2.2 2D Graphical Touch Screen Programming:
Simplifies programming with intuitive 2D graphical input, allowing operators to create and edit bending sequences directly on the touch screen.
1.2.3 Up to 4 Axes Control (Y1, Y2 + 2 Auxiliary Axes):
Provides precise control over multiple axes, enabling complex bending operations with high accuracy.
1.2.4 Bend Sequence Calculation:
Automatically calculates optimal bending sequences, reducing setup time and improving efficiency.
Advanced Y-Axis Control Algorithms:
Ensures superior performance for both closed-loop and open-loop valve systems, delivering consistent and precise bending results.
1.2.5 CNC Crowning Control:
Compensates for machine deflection during bending, ensuring uniform bending across the entire workpiece.
1.2.6 USB and Peripheral Interfacing:
Facilitates easy data transfer and connectivity with external devices, enhancing workflow flexibility.
1.2.7 Profile-58TL Offline Software:
Allows operators to program and simulate bending operations offline, minimizing machine downtime and boosting productivity.

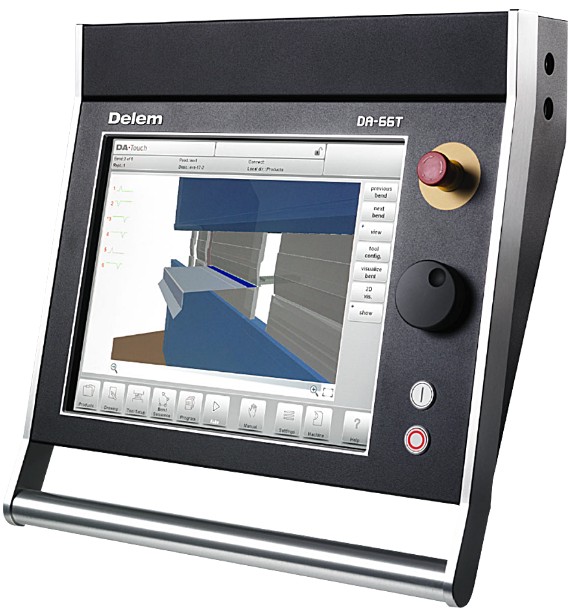

1.3 DELEM DA66T Touch 2D Graphical Control
The DA-66T is engineered for complex, high-precision press brake applications, offering unmatched reliability, advanced visualization, and adaptive scalability to meet the challenges of modern manufacturing.The DA-66T Touch CNC Control combines advanced technology with industrial robustness, tailored for high-performance press brake operations. Here’s a concise overview of its standout features:
1.3.1Embedded Real-Time Windows OS:
Ensures maximum reliability and smooth startups, even after abrupt shutdowns, for uninterrupted productivity.
1.3.2 17" High-Resolution Colour TFT Display:
Delivers a spacious, crystal-clear interface for intuitive operation and monitoring.
1.3.3 2D Graphical Touch Screen Programming:
Streamlines setup with user-friendly 2D graphical input for quick bend sequence creation.
1.3.4 3D Visualization (Simulation & Production):
Enhances precision with 3D visual simulations, reducing errors and optimizing real-world production workflows.
1.3.5 Full Windows Application Suite:
Leverages familiar Windows tools for seamless integration and advanced customization.
1.3.6 Delem Modusys Compatibility:
Supports modular scalability and adaptability, allowing tailored upgrades to meet evolving production needs.
1.3.7 USB & Peripheral Interfacing:
Simplifies data transfer and connectivity with external devices for flexible workflow integration.
1.3.8 Profile-T2D Offline Software:
Enables offline programming and simulation, minimizing downtime and maximizing machine utilization.
1.3.9 Sensor Bending & Correction Interface:
Automatically adjusts bending parameters using real-time sensor feedback, ensuring consistent accuracy and reducing material waste.

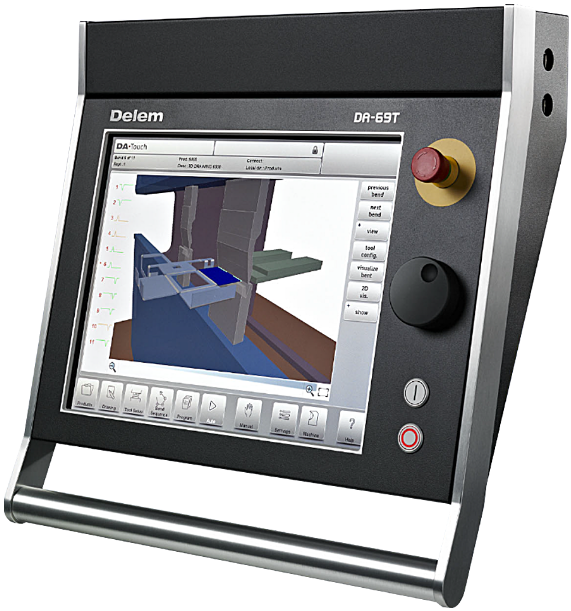

1.4 DELEM DA69T Touch 3D Graphical Control
The DA-69T is engineered for high-complexity manufacturing environments, offering unparalleled 3D visualization, intelligent automation, and adaptive scalability. Its focus on collision prevention, feasibility analysis, and real-time corrections makes it ideal for industries demanding rigorous accuracy and efficiency in sheet metal fabrication.
The DELEM DA-69T CNC Control is a cutting-edge solution for precision press brake operations, combining advanced 2D/3D programming with intelligent automation to streamline complex manufacturing workflows. Here’s a breakdown of its core features:
1.4.1 17" High-Resolution Colour TFT Display:
Delivers a crisp, expansive interface for seamless interaction and real-time monitoring of bending processes.
1.4.2 2D & 3D Graphical Touch Screen Programming:
Supports intuitive 2D and 3D programming modes, enabling operators to design and adjust bend sequences with ease.
1.4.3 Automatic Bend Sequence Calculation & Collision Detection:
Optimizes bending sequences and preemptively identifies potential tool or material collisions, reducing errors and downtime.
1.4.4 Full 3D Machine Setup with Multiple Tool Stations:
Simulates realistic 3D machine environments, providing true feedback on product feasibility, tool placement, and material handling.
1.4.5 3D Visualization (Simulation & Production):
Enhances accuracy with dynamic 3D visualizations, allowing operators to validate processes before execution and refine production workflows.
1.4.6 Full Windows Application Suite:
Integrates familiar Windows-based tools for advanced customization, data management, and seamless software compatibility.
1.4.7 Delem Modusys Compatibility:
Ensures modular scalability and adaptability, enabling tailored system expansions to meet evolving production demands.
1.4.8 USB & Peripheral Interfacing:
Simplifies data exchange and connectivity with external devices for efficient workflow integration.
1.4.9 Profile-T2D Offline Software:
Facilitates offline programming and simulation, minimizing machine downtime and optimizing productivity.
1.4.10 Sensor Bending & Correction Interface:
Utilizes real-time sensor feedback to automatically adjust bending parameters, ensuring consistent precision and reducing material waste.
2.Cybelec Controller For Press Brake

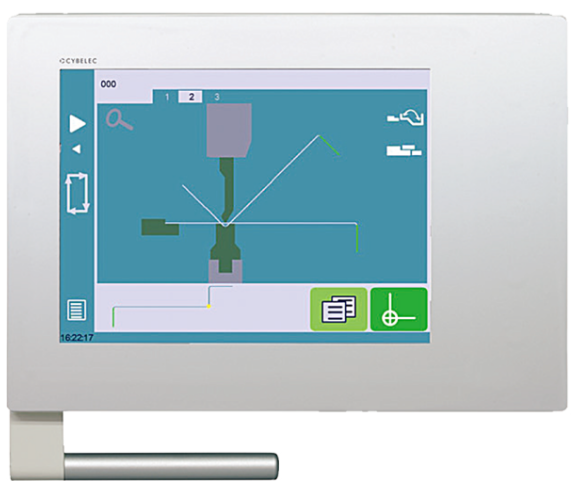

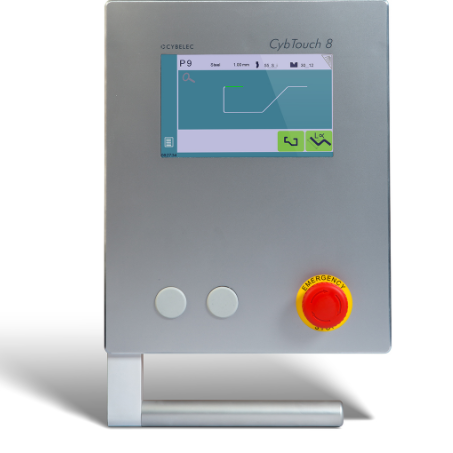

2.1 CybTouch 8 PS
CybTouch 8 PS is an intuitive and advanced touch-screen control system designed to streamline press brake operations, combining user-friendly design with smart automation for precision metal bending. Here’s a breakdown of its key features:
2.1.1 7" Color LCD Touch Screen:
A compact yet vibrant interface ensures easy navigation and real-time monitoring of bending processes, ideal for operators seeking clarity and responsiveness.
2.1.2 Iconic Recognition Function:
Simplifies operation with visual icon-based controls, reducing training time and minimizing errors through intuitive menu interactions.
2.1.3 Automated Bend Angle Calculation:
Eliminates manual input by automatically determining optimal bend angles, accelerating setup and enhancing accuracy.
2.1.4 Main Pressure & Disturbance Compensation:
Maintains consistent bending quality by automatically adjusting for pressure fluctuations or external disruptions during operation.
2.1.5 Automatic Bending Data Calculation:
Computes critical parameters such as force, tonnage, and material requirements, reducing guesswork and optimizing workflow efficiency.
2.1.6Automatic Upper Mold Depth Calculation:
Precisely determines the depth of the upper mold, ensuring uniform bends and minimizing trial-and-error adjustments.
2.1.7 Angle & Back Stop Correction:
Corrects deviations in bend angles and back gauge positioning in real time, ensuring dimensional accuracy across production runs.
2.1.8 One-Click Return to Reference Point:
Resets the machine to its default position instantly, saving time during repetitive tasks or after interruptions.

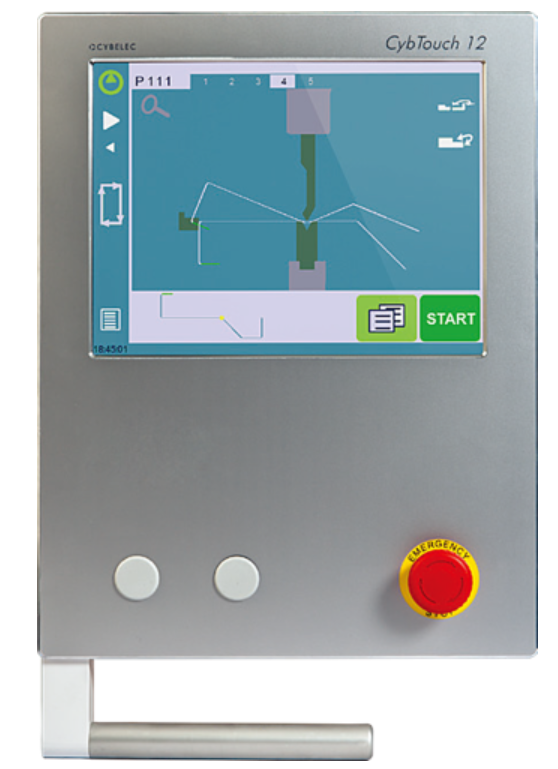

2.2 Cyb Touch 12PS
Cyb Touch 12PS is a next-generation CNC control system designed to elevate press brake performance with enhanced automation, intuitive programming, and precision engineering. Here’s a detailed overview of its key features:
2.2.1 12" Color LCD Touch Screen:
A large, high-resolution display provides an expansive and user-friendly interface for seamless operation and real-time monitoring.
2.2.2 Iconic Recognition Function:
Simplifies navigation with visual icon-based controls, reducing training time and minimizing input errors.
2.2.3 Automatic Bend Angle Calculation:
Intelligently computes optimal bending angles, eliminating manual adjustments and accelerating setup.
2.2.4 Main Pressure & Disturbance Compensation:
Automatically adjusts for pressure variations and external disruptions, ensuring consistent bending accuracy.
2.2.5 Automatic Bending Data Calculation:
Generates precise parameters such as force, tonnage, and material requirements, streamlining workflow efficiency.
2.2.6 Automatic Upper Mold Depth Calculation:
Determines the ideal depth of the upper mold for uniform bends, reducing trial-and-error adjustments.
2.2.7 Angle & Back Stop Correction:
Real-time adjustments correct deviations in bend angles and back gauge positioning, ensuring dimensional consistency.
2.2.8 2D Graphic Programming:
Enables intuitive visual programming of bending sequences, allowing operators to design and edit workflows directly on the screen.
2.2.9 Automatic Bending Step Simulation:
Simulates bending processes in advance to detect potential errors, optimize sequences, and reduce material waste.
2.3 CYBELEC CybTouch 15 PS 2D graphic CNC System
The CybTouch 15 PS is a 2D CNC control system tailored for entry to mid-range CNC press brakes, blending user-friendly design with enhanced capabilities for precision sheet metal bending. Building on the trusted CybTouch platform, it introduces a larger touchscreen and ergonomic horizontal layout while retaining the compact, intuitive interface the series is known for. Here’s a detailed overview of its features:
2.3.1.15” Color Graphic Touch Screen:
A spacious, high-resolution display ensures clear visibility and seamless interaction, ideal for operators managing complex bending sequences.
2.3.2. Touch 2D Graphical Programming:
Intuitive 2D profile drawing and program creation tools allow operators to design bends directly on the screen, reducing manual input and setup time.
2.3.3 6-Axis Control (Y1, Y2, X, R, Z1, Z2):
Supports multi-axis configurations for advanced bending operations, including back gauge adjustments (X, R, Z1, Z2) and ram control (Y1, Y2).
2.3.4 Automatic Bending Sequence Calculation:
Generates optimal bend sequences automatically, minimizing programming effort and accelerating production readiness.
2.3.5 Tandem Management:
Enables synchronized control of multiple press brakes or tools for large or complex parts, enhancing flexibility in production workflows.
2.3.6 Modulable Tools for Each Part/Bend:
Customizable tooling setups allow operators to tailor tool configurations to specific bends or part geometries, improving versatility.
2.3.7 Angle & Back Gauge Correction:
Real-time adjustments compensate for deviations in bend angles and back gauge positioning, ensuring consistent accuracy.
2.3.8 VisiTouch 2D or VisiTouch MX Offline Software:
Offline programming and simulation tools let users design, test, and optimize bending programs without interrupting machine operations.
2.4 CYBELEC VisiTouch 19 2D and 3D graphical CNC System
The VisiTouch 19 and VisiTouch 19 MX are cutting-edge CNC press brake controls designed to streamline complex programming and setup tasks, empowering operators to achieve unparalleled precision in sheet metal bending. With intuitive interfaces and advanced automation, these systems cater to both 2D (VisiTouch 19) and 3D (VisiTouch 19 MX) workflows, ensuring flexibility for diverse manufacturing demands.
2.4.1 19” Touch Screen: Sleek, streamlined glass surface enhances durability and responsiveness, enabling effortless navigation even in high-use environments.
User-Friendly HMI: Intuitive menus and visual guides reduce training time and minimize errors, ideal for both novice and experienced operators.
Precision Programming Tools
2.4.2 2D Graphical Profile Drawing (VisiTouch 19): Create and edit bend programs with drag-and-drop simplicity, ensuring accuracy in 2D part designs.
2.4.3 3D Capabilities (VisiTouch 19 MX): Advanced 3D visualization for complex geometries, perfect for intricate projects requiring depth and spatial analysis.
Automated Efficiency
2.4.4 Automatic Bending Sequence Calculation: Optimizes toolpaths and bend order to reduce cycle times and material waste.
2.4.5 Angle & Back Gauge Correction: Real-time adjustments compensate for material springback, guaranteeing consistent results across batches.
Customization & Flexibility
2.4.6 Modulable Tools: Tailor tool setups for individual bends or parts, supporting rapid changeovers and diverse production needs.
Reliability & Convenience
2.4.6 Internal Backup/Restore: Safeguard programs and settings, ensuring quick recovery from interruptions or machine changes.
Offline Software: Pre-program jobs remotely with VisiTouch 2D or MX software, maximizing uptime by preparing tasks offline.
3.ESA CNC Control System

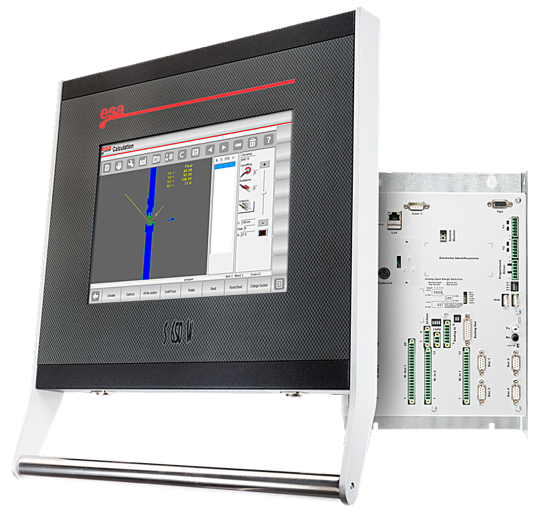

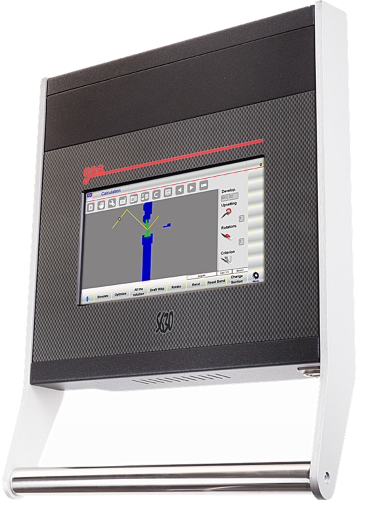

3.1 ESA S630 2D Graphical CNC System
3.1.1Intuitive Touchscreen Interface:
10” Resistive LCD Touch Screen: Compact yet powerful, the responsive touchscreen enables quick part creation and program adjustments.
2D Graphic Part Creation: Easily design and edit parts with manual sequence input, reducing programming time and errors.
3.1.2. Advanced Automation:
Automatic Bending Force & Crowning Calculation: Ensures optimal tool pressure and material deformation control for consistent, high-quality bends.
Direct Angle Correction: Real-time adjustments for angles and crowning, compensating for material springback and tool wear.
3.1.3 Flexible Tool Management
Modulable Tools: Customize tool setups for individual bends or parts, enabling rapid changeovers and adaptability to diverse production needs.
3.1.4 Integrated Control & Connectivity
Proportional & Pressure Valve Amplifier Integrated: Enhances precision in hydraulic systems for smoother, more accurate bending.
Tandem Machine Management (Optional): Control multiple machines simultaneously, ideal for large-scale production environments.
Modbus TCP Interface (Optional): Seamless integration with SCADA or MES systems for advanced monitoring and data management.
3.1.5 Offline Simulation & Programming
3.1.6Free Offline PC Simulation Software: Plan and optimize bending sequences offline, reducing machine downtime and improving workflow efficiency.
Scalable Axis Control.Standard 4-Axis Control (Y1, Y2, X, R): Supports a wide range of press brake configurations, from basic to advanced setups.

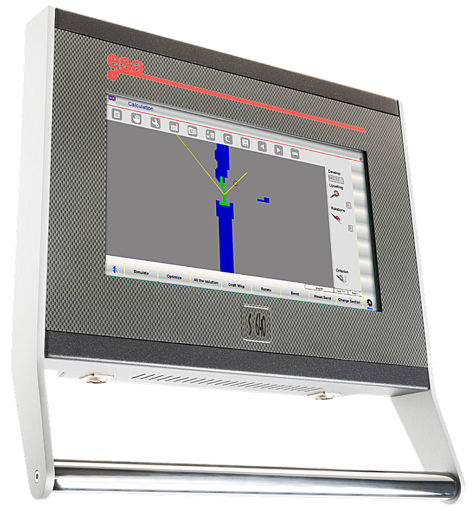

3.2 ESA S640 2D Graphical CNC System
3.2.1High-Capacity Control & Scalability
Up to 6-Axis Control: Standard 4-axis (Y1, Y2, X, R) configuration expandable to 6 axes, ideal for complex bending tasks requiring multi-axis synchronization.
Tandem Machine Management (Optional): Control up to 4 machines simultaneously, streamlining large-scale production workflows.
3.2.2 Intelligent Automation
Automatic Bending Sequence Calculation: Optimizes toolpaths and bend order to reduce cycle times and material waste.
Material Data Base (Optional): Predictive compensation for material properties (e.g., thickness, elasticity) ensures accuracy and consistency across batches.
Automatic Bending Force & Crowning Calculation: Delivers precise pressure control and real-time crowning adjustments to counteract deflection.
3.2.3 User-Centric Interface
15” Resistive LCD Touch Screen: Large, responsive display for intuitive 2D graphic part creation and automatic sequence programming.
Direct Angle & Crowning Correction: On-the-fly adjustments compensate for springback and tool wear, maintaining part integrity.
3.2.4Advanced Tooling & Integration
Modulable Tools: Customize tool setups for individual bends or parts, enabling rapid changeovers and versatility.
Integrated Proportional & Pressure Valve Amplifiers: Enhances hydraulic control for smoother, more accurate bends.
3.2.5 Connectivity & Simulation
Modbus TCP Interface (Optional): Integrate with SCADA or MES systems for real-time monitoring and data-driven production management.
Free Offline PC Simulation Software: Plan, simulate, and optimize programs offline to reduce machine downtime.

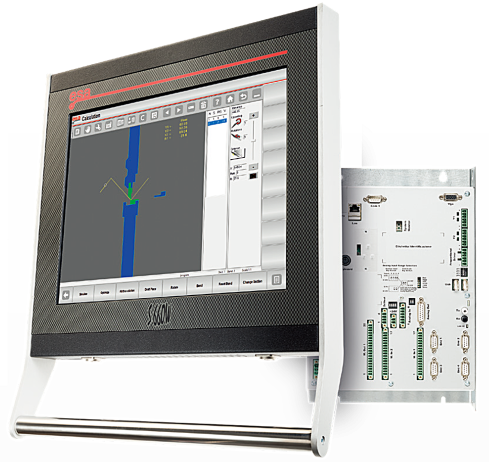

3.3 ESA S650W 2D Graphical CNC System
The ESA S650W redefines the boundaries of CNC press brake control, merging industrial-grade computing power with unmatched adaptability. Designed for shops demanding limitless performance, this system integrates 3D CAD/CAM capabilities directly into the machine interface, enabling complex part design, precision tooling, and seamless automation—all from a single platform.
3.3.1 Industrial-Grade Computing & 3D Integration
Built-In PC with 3D CAD/CAM Support: Run Metallix, Radan, EsaBend-3D, and AutoPol 3D software directly on the machine, eliminating the need for external design systems.
Finger-Tip Workpiece Design: Intuitive touchscreen interface allows for effortless 2D/3D part creation and editing, accelerating prototyping and production.
3.3.2 Advanced Tooling & Customization
DXF Tool Shape Import: Import custom tool geometries (via .dxf files) and build a comprehensive tool library for rapid setup and consistency.
Tool & Die Holder Management: Organize and optimize tooling configurations for complex bends, reducing downtime between jobs.
3.3.3 Precision Automation
Automatic Bending Force & Crowning Calculation: Dynamically adjusts parameters to counteract material springback and machine deflection.
Angle Measurement & Correction: Compatible with DataM and Iris-Plus systems for real-time feedback and adjustments, ensuring ±0.1° accuracy.
3.3.4 Unmatched Scalability
Up to 32-Axis Control: Standard 4-axis (Y1, Y2, X, R) setup expands to 32 axes for ultra-complex multi-tool operations.
Tandem Machine Management (Optional): Synchronize up to 4 machines, ideal for high-volume production lines.
3.3.5 Seamless Integration & Simulation
Modbus TCP Interface (Optional): Connect to SCADA, MES, or IoT platforms for smart factory integration and data-driven workflows.
Free Offline PC Simulation Software: Pre-plan, simulate, and optimize bending sequences offline to minimize machine idle time.
3.5 ESA S660W CNC System
The ESA S660W represents the pinnacle of CNC press brake technology, combining a state-of-the-art multi-touch interface with unparalleled scalability and precision. Designed for the most demanding fabrication environments, this system supports up to 156 axes, integrates seamlessly with 3D CAD/CAM software, and offers advanced automation features to maximize efficiency and accuracy.
3.5.1Revolutionary User Interface
19” Capacitive Multi-Touch Screen: A sleek, modern interface designed for intuitive navigation and faster programming.
Finger-Tip Workpiece Design: Effortlessly create and edit 2D/3D parts directly on the machine, reducing reliance on external systems.
3.5.2 Unmatched Scalability
Up to 156-Axis Control: Standard 4-axis (Y1, Y2, X, R) configuration expandable to 156 axes, ideal for ultra-complex, multi-tool setups.
Tandem Machine Management (Optional): Control up to 4 machines simultaneously, perfect for high-volume production environments.
3.5.3 Advanced Tooling & Customization
DXF Tool Shape Import: Import custom tool geometries (via .dxf files) and manage a comprehensive tool library for rapid setup and consistency.
Tool & Die Holder Management: Organize and optimize tooling configurations for complex bends, reducing downtime between jobs.
3.5.4 Precision Automation
Automatic Bending Force & Crowning Calculation: Dynamically adjusts parameters to counteract material springback and machine deflection.
Direct Angle & Crowning Correction: Real-time adjustments ensure ±0.1° accuracy, even for complex geometries.
3.5.5 Seamless Integration & Simulation
Modbus TCP Interface (Optional): Connect to SCADA, MES, or IoT platforms for smart factory integration and data-driven workflows.
Free Offline PC Simulation Software: Pre-plan, simulate, and optimize bending sequences offline to minimize machine idle time.
3.5.6 3D CAD/CAM Compatibility
EsaBend-3D Software (Optional): Advanced 3D bending simulation and collision detection.
3D Viewer Compatibility: Directly preview designs from Metalix, Radan, or AutoPol within the CNC interface.
DataM/Iris-Plus Angle Measurement (Optional): Achieve closed-loop precision with automated angle validation.
FRIENDLY LINKS
LiveChatX
Send Email
售前客服
WhatsApp
