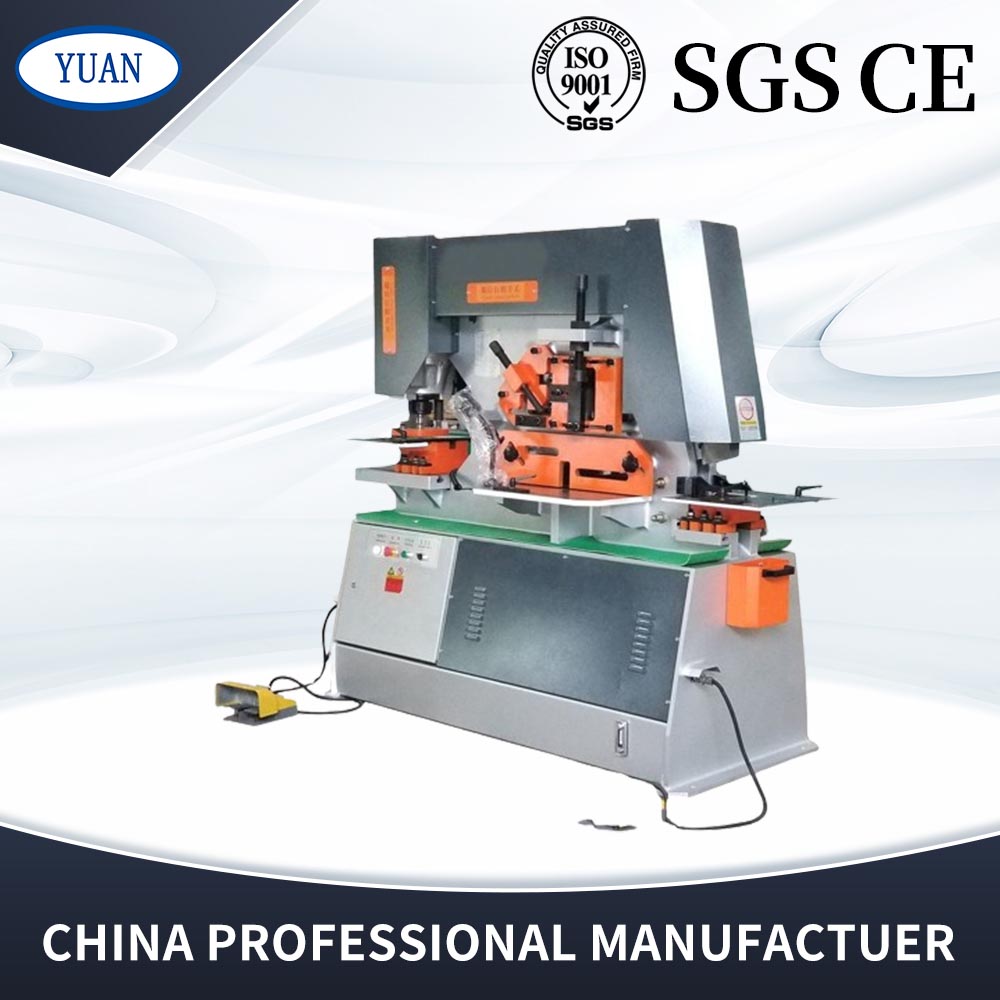

Rizhen Q35Y-25 ironworker is a muti functional machine that can cut,bend,punch ,shear ,notch.This is widely used in the filed of metal working industry.
Main Feature:
1.Double cylinder hydraulic cut and punch ,notch machie.
2.Five stations for punching ,shearing ,notching ,cutting and bending.
3.Large punching table with multi purpose bolster.
4.Rear notching station ,low power inching and adjustable stroke at punching station.
5.Centralised pressure lubrication
6.Electric panel with overload protection elements and integrated controls.
7.Safety moveable foot pedal.
Parameters:
| No | Function | Item | Unit | Q35Y-25 |
| 1 | Cutting Plate | Angle of cutting | ° | 8 |
| Max cutting thickness | mm | 25 | ||
| Flat Bar | mm (W*T) | 25x330 16x600 | ||
| 2 | Cutting Bar45 | Round Steel | mm | 60 |
| Square Steel | mm | 50*50 | ||
| 90° shearing of equal angle steel | mm | 160*160*14 | ||
| 45° shearing of equal angle steel | mm | 60*60*6 | ||
| 90° shearing of T bar | mm | 160*160*14 | ||
| I beam steel | mm | 200*102*9 | ||
| Channel Steel | mm | 210*75*9 | ||
| 3 | Notch | Thickness | mm | 16 |
| Width | mm | 60 | ||
| Depth | mm | 100 | ||
| 4 | Punching | Punching Thickness | mm | 25 |
| Max diameter of punching | mm | 25 | ||
| Punching Pressure | KN | 1200 | ||
| Depth of throat | mm | 600 | ||
| Max. length of cylinder stroke | mm | 80 | ||
| Stroke times | Times/min | 12~28 | ||
| 5 | Material strength | N/mm ² | ≤450 | |
| 6 | Motor power | KW | 11~15 | |
| 7 | Overall dimensions | mm | 2400*960*2090 | |
| 8 | Weight | KGS | 4500 |
Machine Details:

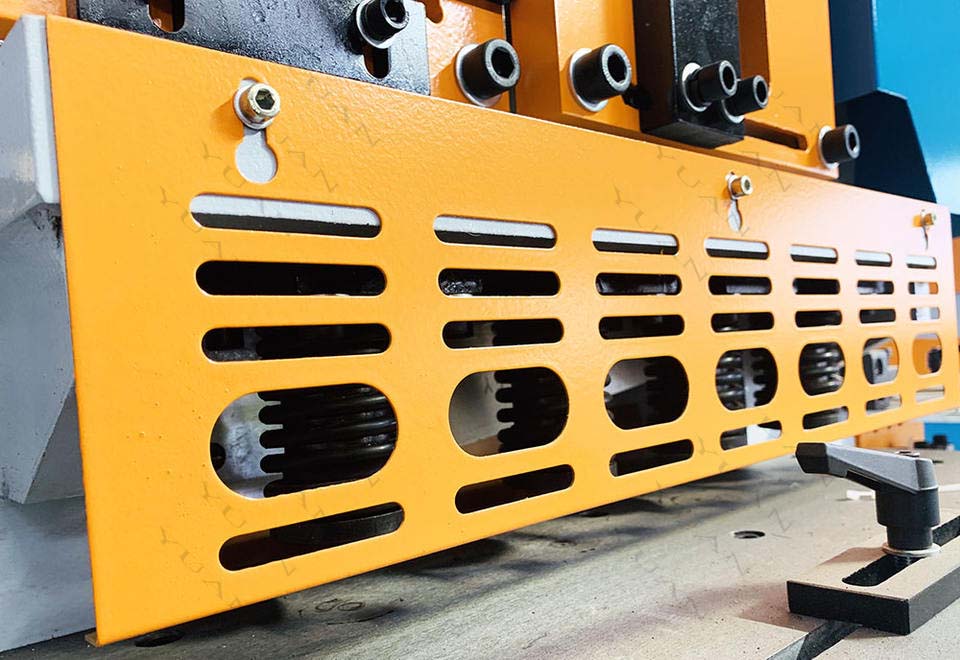

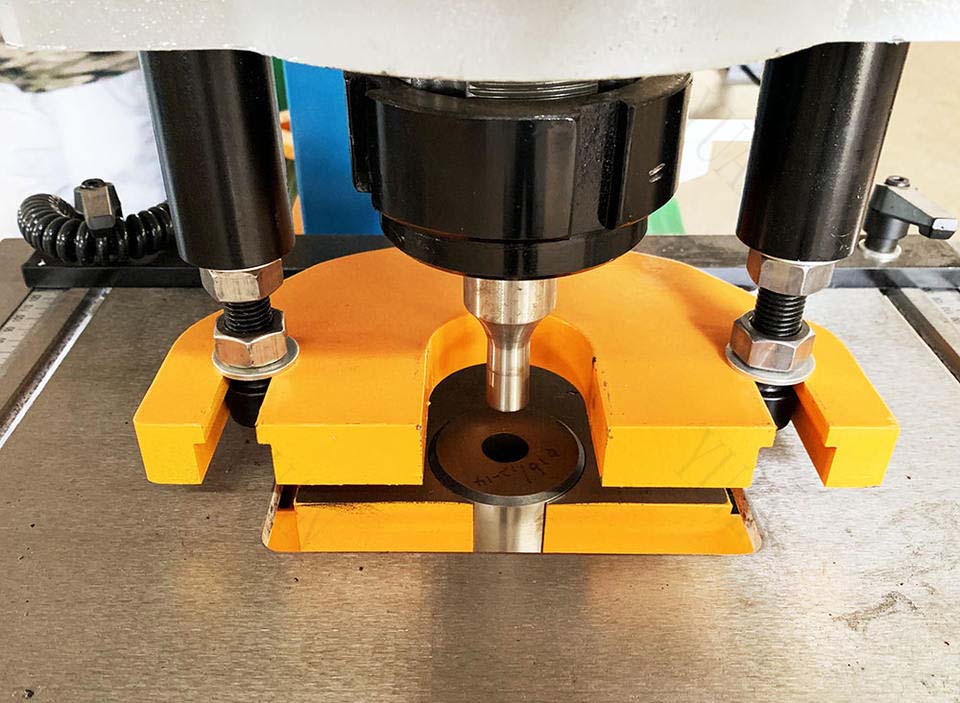

Different size hole moulds are avaible |

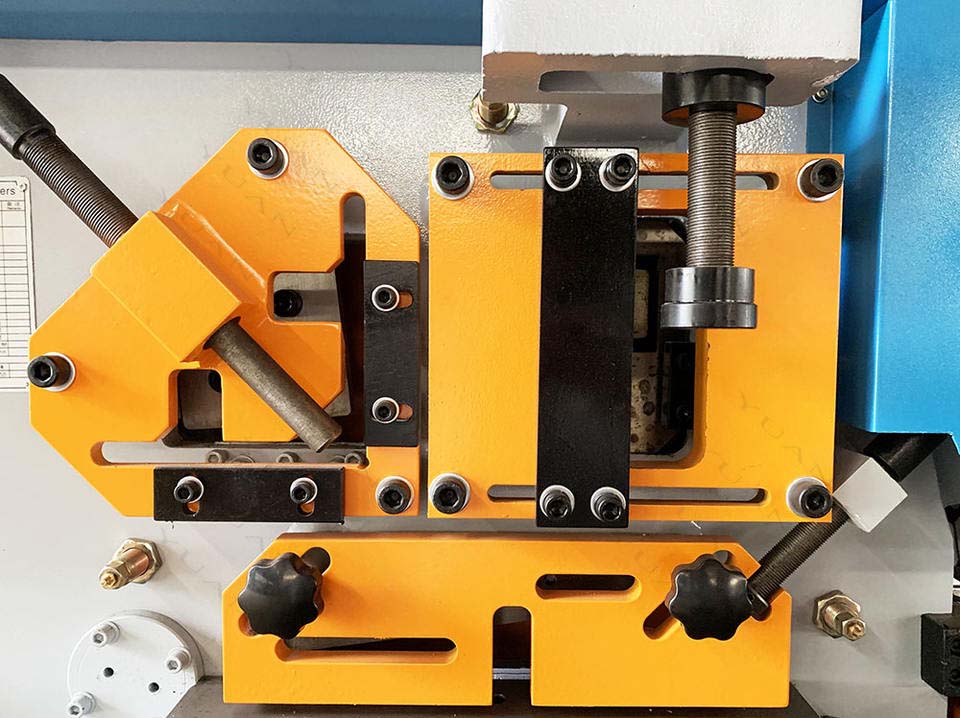

Notching Station |

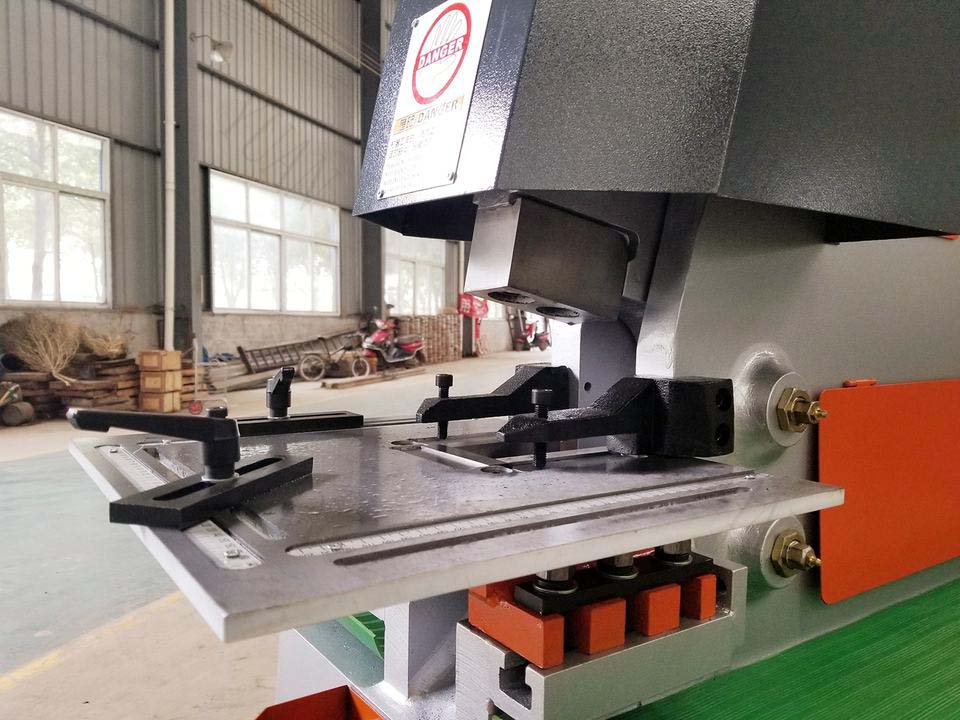

Shearing Steel Plate |
Round and square cutting |

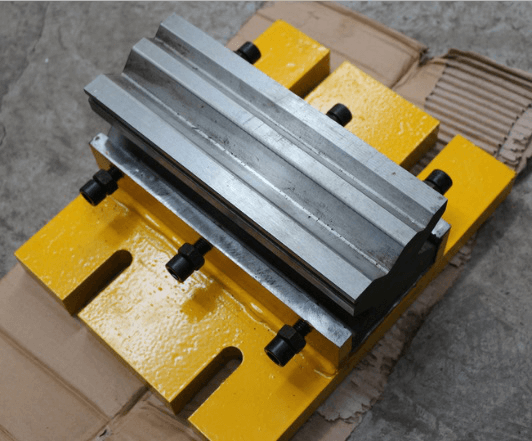

bending function is optional |

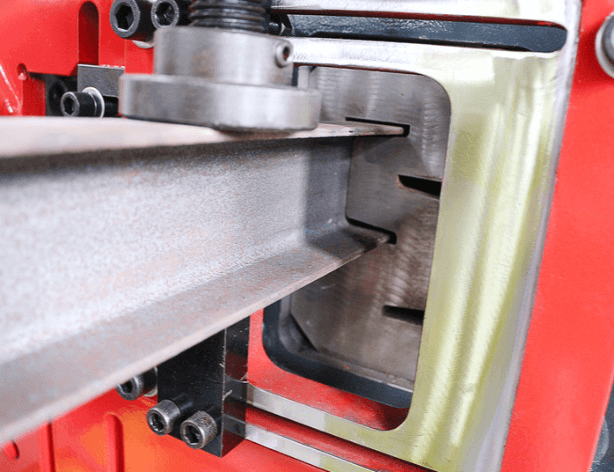

Channel Steel Cutting |
