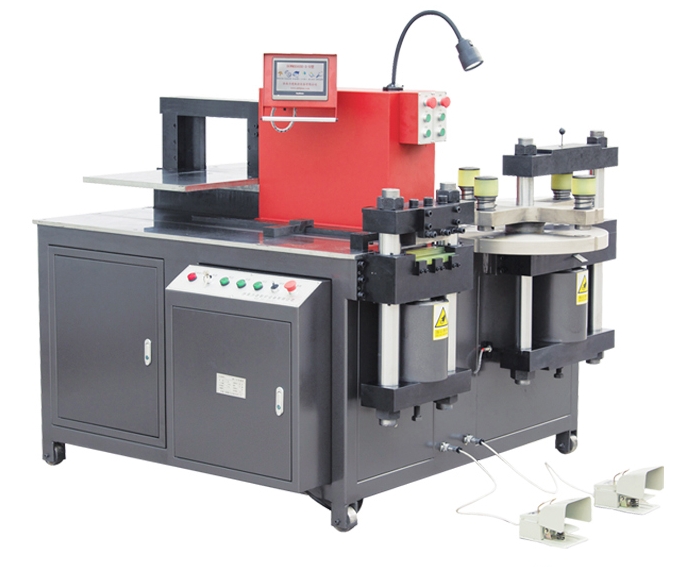

Busbar Processing Machine

Busbar can be punched ,cutted &bended in one machine with high  accuracy.CNC Busbar Processing Machine has 3 stations in one machine.They are cutting section,punching section and bending section.

The busbar machine has strong function.

Bending Section Controlled by CNC Control System

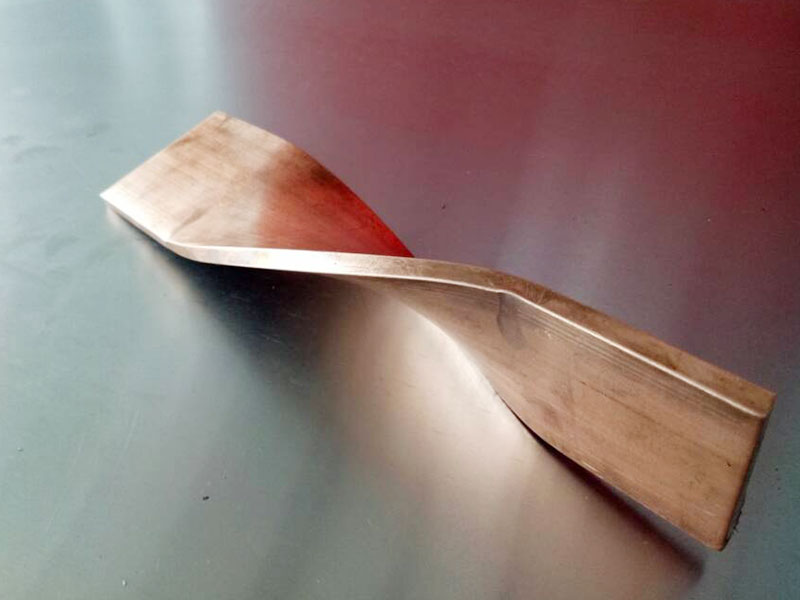

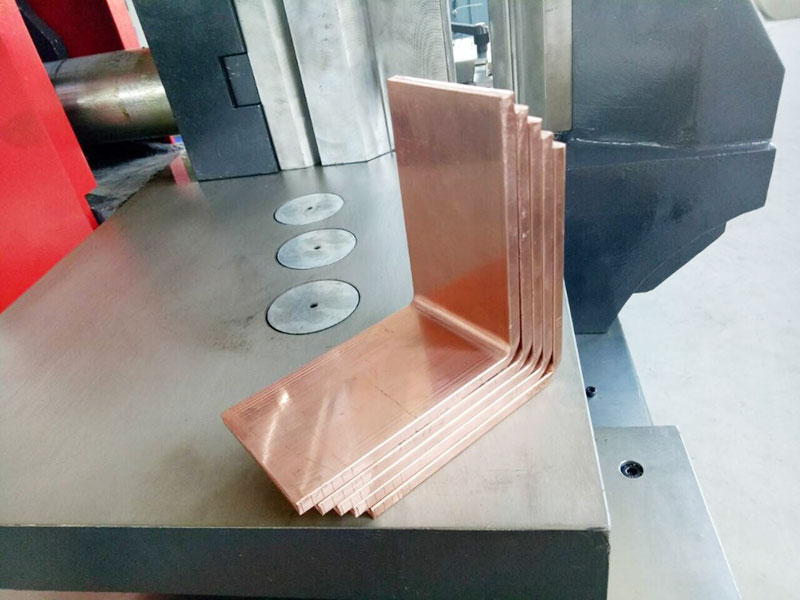

It can realize 6 bending functions:1.Vertical bending2.Horizontal bending3.U shaped bending4.Z shaped bending 5.Twisting Bending6.Embossing

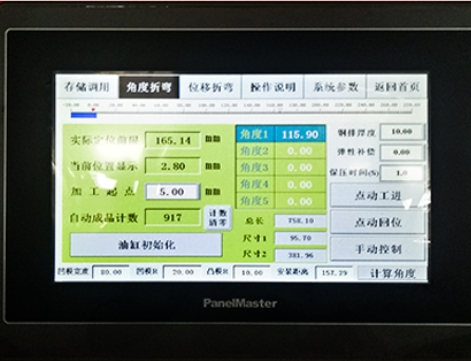

CNC  Touch Screen Siemens  control system ,save data ,high machining accuracy.

Cutting Section is no waste ,no burrs and cutting interface is flat.

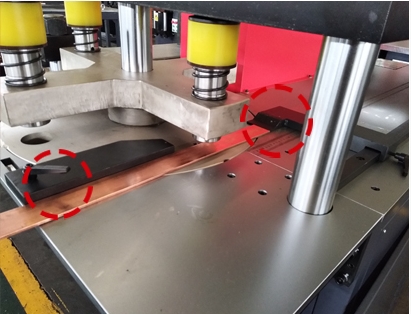

Holes of punching dies,we can manufacture round ,oval ,square or irregularly -shaped holes,etc.Punching Section:

Turret plate ,coordinate positioning ,install 6 sets of punching dies.

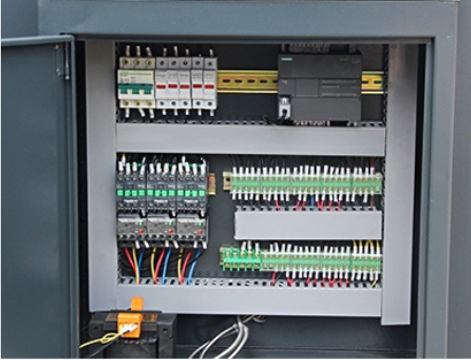

This machine consists of machine rack, punching, shearing, bending unit, hydraulic station, electrical systems and components, such as mold. Rack consists of square steel tubes welded together, which is with enough strength and rigidity. Punching, shearing, bending and electrical appliances are installed on the rack, hydraulic station in the rack.

This machine is mainly used for processing copper busbar and aluminum busbar, which can be processed(punching, cutting and bending) so long as placed on the relevant working unit. This machine is usedforefficient busbar manufacturing in the industries of high and low voltage electric appliances, providethecompetitive edge for our global customers.

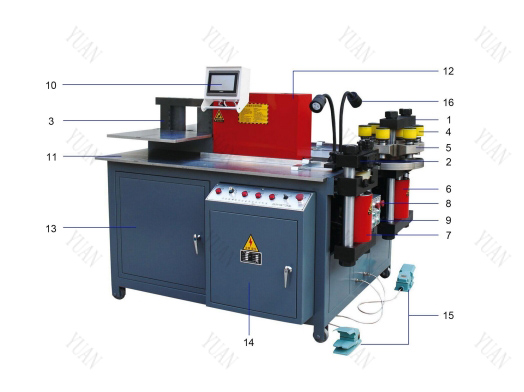

1.Punching unit  2.Cutting unit  3.Bending Unit 4.Punching dies 5.Turret turn plate

6.Cylinder for punching 7.Cylinder for cutting 8.Emergency stop 9.Inching button 10.Touch Screen

11.Work table 12.Cylinder for bending 13.Tool box 14.Electrical box 15.Foot switch 16.LED light

Features:

1. The busbar machine is equipped with punching, cutting/shearing, bending three processing units and can do busbar punching, shearing, bending processing, respectively. This machine can significantly improveproduction efficiency than conventional busbar processing equipment, and also significantly improves theease of use.

2. The working unit can be easily adjusted (stroke within certain limits), so you can reduce processingtime,enhances the production efficiency.

3. Multi-purpose processing can be achieved by changing the mold, such as fold-bending, folding vertical

bending, embossing, twisting twist, voltage cable joints and back pressure etc.

4. The machine is equipped with a manual buttons and foot switch two modes of operation, It is simply to operate , easy to use. General skilled workers can operate it .

Standard Configuration:

	Two -way positioning The perfect combination of the two-way positioning design of the punching station and the table scale makes product punching more accurate, improves work efficiency and reduces the generation of defective products.

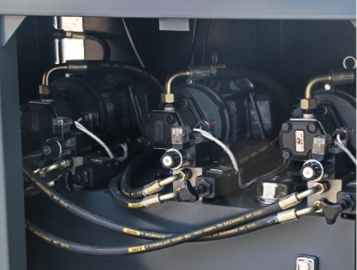

Strong Powerful Motor Three power motors are used to ensure stable power at three workstations.
	Siemens PLC Imported Siemens PLC and Schneider Electric are used to ensure the safety and stability of the circuit.
Touch screen Touch screen ,easy to input and set parameters.

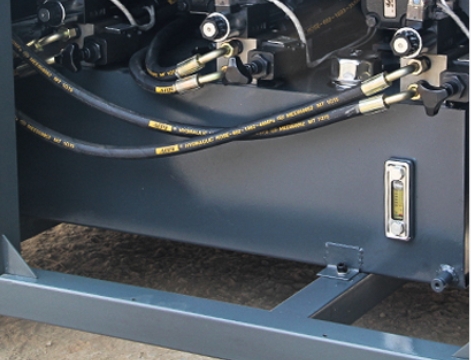

	Special treatment for oil tanks Welded with 3mm thick steel plate and phosphated to prevent hydraulic oil from contamination and corrosion

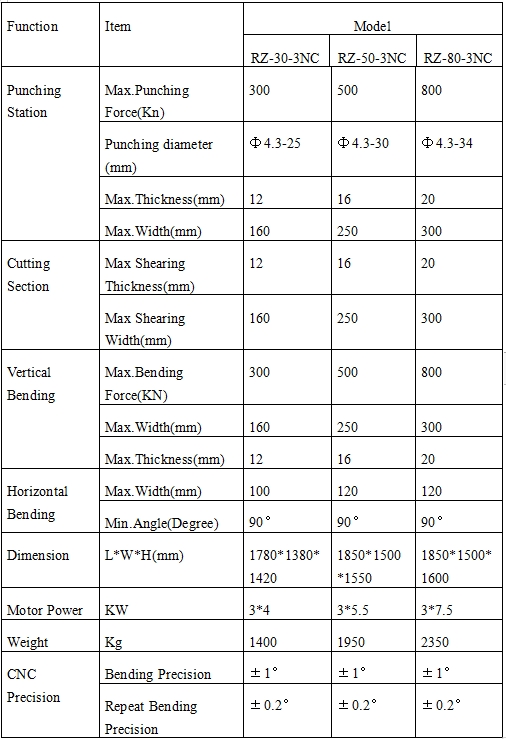

Parameters:

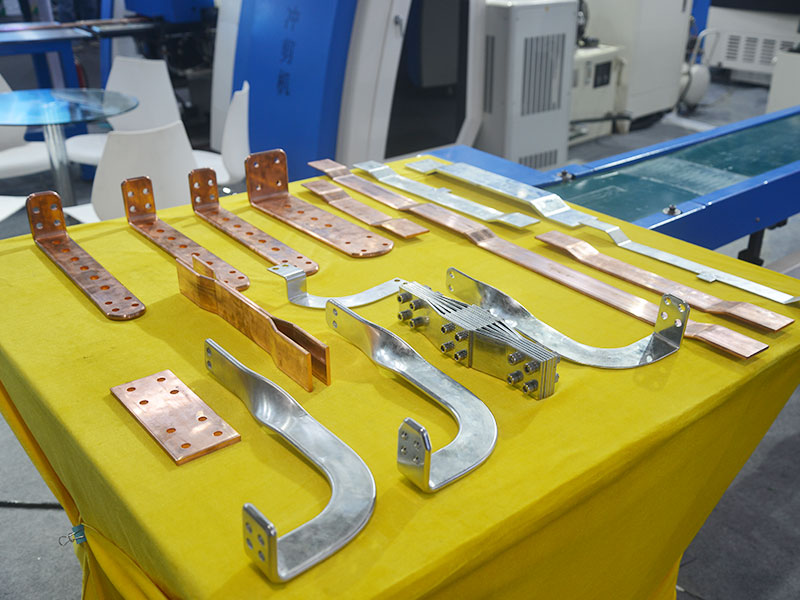

Final Products:
