This machine is suitable for all kinds of wire materail.It can bend wire to circle,semicircle,or ARC(concentric).It is widely used in fan guard ,lamp shade,artware,flower pot frame,luggage fasteners,hardware,kitchen ware and so on.
Feature:
The circle butt welding machine uses hydraulic power to cut the wire.Power is strong
and stable.Precision is high.The machine is compact and small footprint.Noise is low.
The machine circle butt welding machine special controller ,counter is precision,
property is table.Working speed is fast,life is long,machine is compact,size is precision.
The machine can forward and reversal.The machine adopts upset welding.Welding parts is flat and smooth.(It also has medium frequency butt welding and argon arc
butt welding). Feed wire rolls ,straigntening wheel,forming wheel use high quality alloy steel and vacuum heat treatment,life is prolonged.
Parameters:

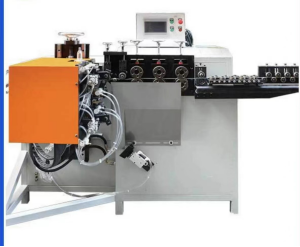

Automatic CNC ring making machine | |||||||
Model | 2-6 | 2-8 | 2-10 | 8-13 | 8-16 | 8-16 | 8-16 |
Power | 380v | 380v | 380v | 380v | 380v | 380v | 380v |
Feeding wheel | 2 | 2 | 3 | 4 | 5 | 6 | 8 |
Hydraulic Power | 1.5kw | 2.2kw | 4kw | 5.5kw | 7.5kw | 11kw | 18kw |
Hydraulic motor flow | 100ml/min | 160ml/min | 200ml/min | 100ml/min | 125ml/min | 200ml/min | 200ml/min |
Cylinder cutter | HOB63 | HOB63 | HOB80 | 80 | 100 | HOB100 | HOB125 |
Pressure | 0.3-0.4mpa | 0.3-0.5mpa | 0.3-0.6mpa | 0.3-1mpa | 0.3-1.2mpa | 0.3-1.5mpa | 0.3-1.5mpa |
Hydraulic Oil | 46#68# | 46#68# | 46#68# | 46#68# | 46#68# | 46#68# | 46#68# |
Wire Types | Round ,Flat and square line
| ||||||
Wire diameter(mild steel) | φ1-6mm | φ2-8mm | φ2-10mm | φ4-13mm | φ5-16mm | φ8-18mm | φ8-20mm |
Size | 1500*800*1460 | 1500*800*1460 | 1750*780*1450 | 1800*950*1550 | 2550*1030*1550 | 2300*1500*1700 | 2700*1500*1700 |
Circle diameter range | 80-750 | 80-800 | 80-800 | 80-850 | 80-950 | 80-950 | |
code detector | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Mechanical properties | The encoder reads the wire feeding data, and the microcomputer controls the wire circumference to determine the circle size. The control is simple, and the production is automatically produced after inputting the output and wire speed. | ||||||
The machine has manual and fully automatic control, can control slow-speed material advance and retreat (easy to adjust the machine), and automatically detects material shortage and shuts down the alarm. | |||||||
Different setting data can be modified | |||||||
Application:
The looping machine is widely used to roll various wires into circles, semicircles or arcs at any angle (concentric angle). With special molds and adjustable pressure wheels, it can also produce square and oval workpieces; wires with non-circular cross-sections , the plate can be processed by simply replacing the wire adjusting wheel, wire feeding wheel, wire pressing wheel and cutter. It is suitable for industries such as cement poles, mining air ducts, environmentally friendly dust removal frames, fan grilles, lampshades, handicrafts, flowerpot stands, luggage fasteners, daily hardware kitchenware (such as stove racks, wine/cup holders) and other industries to improve product quality, The first choice equipment to reduce production costs and improve production capacity.
