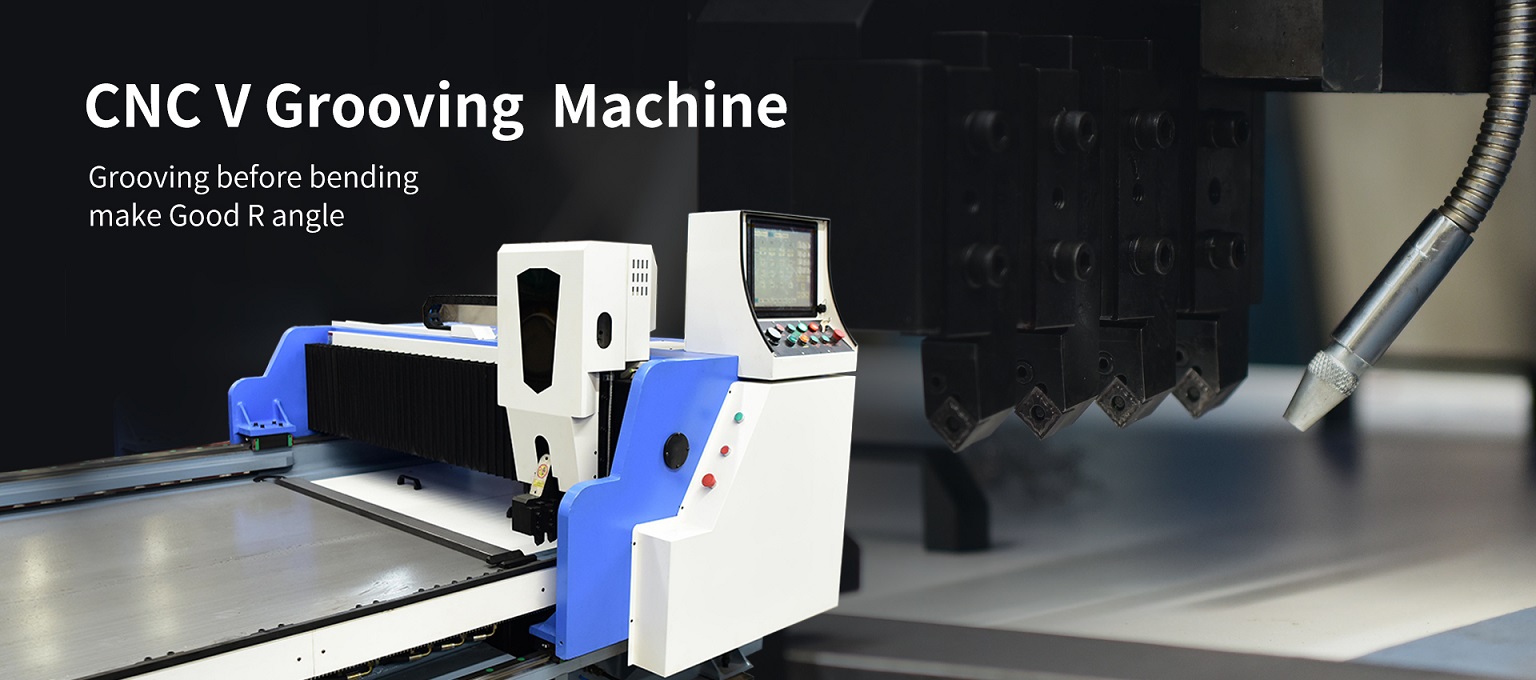

Metal sheet grooving machines are often used in the construction and decoration industry. They can perform V-shaped grooving on stainless steel sheets, aluminum plates and other metal sheets, making the edge arc radius of the bent workpiece extremely small and reducing the time required to bend the sheet. The bending force can also be used to pre-position the bending side length to ensure that the size of the bending side length is accurate. It is a new equipment that has been vigorously promoted in recent years.
Features:
1. After the metal sheet grooving machine performs V-shaped grooving on the metal sheet, it reduces the bending force required to bend the sheet, allowing long sheets to be bent on smaller tonnage bending machines.
2 The grooving machine can also score wire grooves on metal sheets to accurately pre-position the length of the bending side of the bending machine, and then bend it on the bending machine according to the pre-marked wire grooves, which ensures High precision in bending edge length dimensions.
3. The grooving machine can control the depth of grooving in the metal sheet, so that some special bending shapes can be formed on ordinary bending machines. If the metal sheet is not grooved, some special bending material types will not be able to be bent on the bending machine, or a specially designed mold will be used to complete the work.
Confijuration:
1. The imported high-power air-cooled spindle has high precision, long life, smooth operation, good starting performance and large torque. It can give full play to the advantages of high-speed operation of the grooving machine and is more efficient.
2. Equipped with a unique tool changing mechanism, the required tools can be exchanged at will, and a dedicated tool setting table can accurately compensate for tool length errors. The tool changing time only takes 10 seconds, and the tool magazine comes with 8 tools as standard, and a larger capacity tool magazine can be customized.
3. Use imported PMI square linear guide rails, double rows and four rows of ball sliders, with large load-bearing capacity, smooth operation, high precision, and high strength high-quality rails to ensure the accuracy and wear resistance of the machine, and its service life is longer than that of circular guide rails. 10 times, the imported ball screw cuts the knife accurately.
4. Advanced file preprocessing function to help users promptly correct errors in processing files. The software has good compatibility and is compatible with various CAD and CAM design and production software such as Types/Artcam/Caste.
5. High-power vacuum pump, stable performance, low temperature, low noise, environmentally friendly, long service life, easy to maintain, effectively solving the problem of difficulty in replacing water in the water circulation vacuum pump in cold weather.
6. The countertop is the world's leading vacuum adsorption countertop. It is made of bakelite and has high adsorption force. It can absorb materials of different areas with little density and deformation.
7. Intelligent protection of the work surface prevents damage to the work surface caused by misoperation or software errors. Intelligent processing cross-border protection prevents mechanical collisions caused by the design layout exceeding the processing width.
8. Automatic oil filling and lubrication system, one-click operation, easy to use, better machine maintenance.
9. It adopts a high-power servo motor drive system imported from Japan. The Y-axis is driven by dual motors, allowing it to run at high speed and reach an idle speed of more than 60 meters/min.
10. The electrical system uses imported frequency converters, drives and motors from Japan's Mitsubishi Servo, electrical components from Siemens, etc. High stability, durability and safety.
11. Equipped with precise adjustment of the tool holder position and automatic tool setting system, the tool operation is more convenient and simple, which directly improves production efficiency.
12. Separately control the cabinet control system, making operation more convenient.
Application:
The metal sheet grooving machine is specially used in the high-end construction metal material decoration industry. It can perform V-shaped grooving on stainless steel sheets, aluminum plates, composite aluminum plates, steel plates and other metal sheets. It meets the needs of hotels, restaurants, restaurants, commercial buildings, banks, airports, etc. The special needs of medium and high-end decoration in places.
Comparation:
Sheet metal slotting machines are usually designed in two forms: gantry type and vertical type.
1 Accuracy advantage: The groove depth is directly related to the effect of the bending angle. If the depth error reaches 0.05mm, the bending position R will be obviously inconsistent. When the vertical grooving machine is working, the planer blade table is fixed in a straight line and the distance accuracy from the blade tip to the table is controlled within the range of 0.02mm. When the gantry slotting machine is working, the blade surface
The accuracy of a platform that is 1.5 meters wide and 4 meters long is difficult to control within 0.1mm. Therefore, the accuracy of the gantry grooving machine is far inferior to that of the vertical grooving machine.
2. Electrical energy loss: When the vertical slotting machine is grooving, the tool holder part makes a reciprocating motion, and its weight is about 60kg. When the gantry slotting machine is grooving, the gantry and the tool holder part make a reciprocating motion together, and its weight is about 1000kg. The energy consumption is more than 10 times that of the vertical slotting machine, so the vertical slotting machine is an energy-saving and environmentally friendly equipment
3. Processing scope: The vertical grooving machine has more than a dozen independent pressure plates and more than a dozen independent clamps to automatically clamp sheet materials. It can process all materials regardless of their size. It can be grooved both horizontally and vertically. The minimum workpiece to be processed is 80x80 mm. The gantry grooving machine is only suitable for grooving large sheets. After longitudinal grooving, the sheet deforms and cannot be clamped horizontally, resulting in the inability to groov horizontally.
4. Processing technology: The working surface of the vertical grooving machine is made of high-quality mold steel and then finely ground by a grinder after overall heat treatment. The surface fineness reaches a mirror effect. The work surface of the gantry slotting machine is welded and processed by ordinary iron plates. Stainless steel materials are higher in hardness than it. Grating, damaged blades, etc., make
The countertops are pitted. This is also the reason why the processed products have spots.
5. Easy to install: The vertical router is made of welded steel plates. It has high strength and stable operation. It can work stably only by placing it on a flat and solid cement floor for leveling and installation. It is also very convenient for relocation and hoisting. Because the gantry grooving machine runs at high speed, the impact force is large. In addition, the platform needs to be adjusted based on the foundation, so the concrete foundation must be made according to the installation drawing.
6. Safe to use: The vertical grooving machine automatically clamps the workpiece by hydraulic pressure, automatically positions and works automatically, and the operator stays away from the moving parts of the machine tool. When the gantry grooving machine clamps the workpiece inside the movement range of the machine tool, the gantry moves at high speed, and the control part runs together with the gantry, which can easily cause personal injury to the operator and poses a great safety hazard.
7 Comprehensive recommendation: According to the characteristics of the two forms, if there are many irregular grooved sheets (laser cutting shape), it is recommended to choose a vertical slotting machine. If the whole board or specifications are more symmetrical (square or rectangular), it is recommended to choose Gantry slotting machine.
CNC System

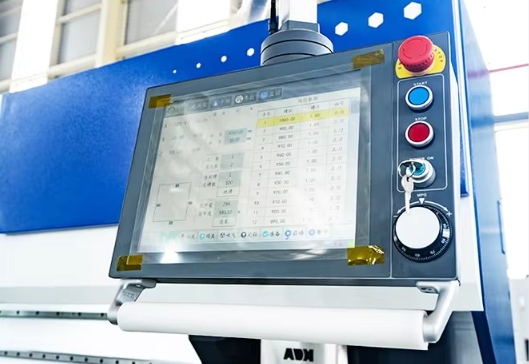

The grooving machine features a CNC system from Taiwan easycat with an intelligent touch screen,with simplifies the operation interface and allows for quick and easy use.
1.This syetem incorporates various advanced functions to enhance processing efficiency and deliver top-quality grooving results.
2.Only keyboard input data and the processing program are required to complete the slot.
3.The processing speed can be adjusted using the knob ,depending on the materials,to facilitate operation.
4.The processing procedure can be monitored and any abnormalities in the v grooving machine will be displaced on the screen as alarm information,making it easy to repair.

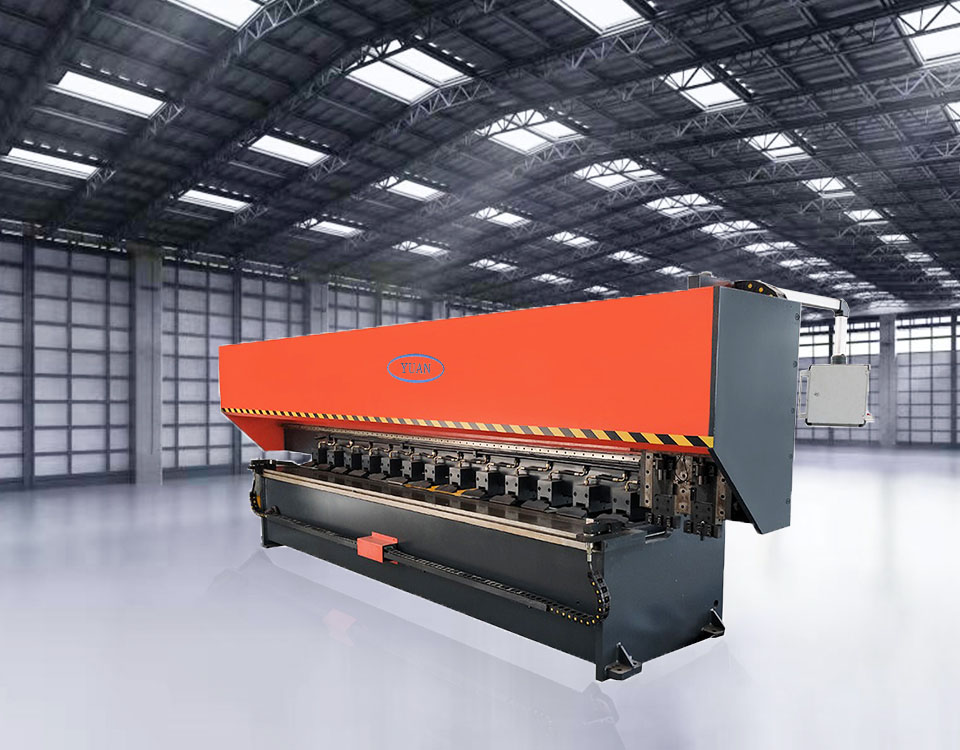

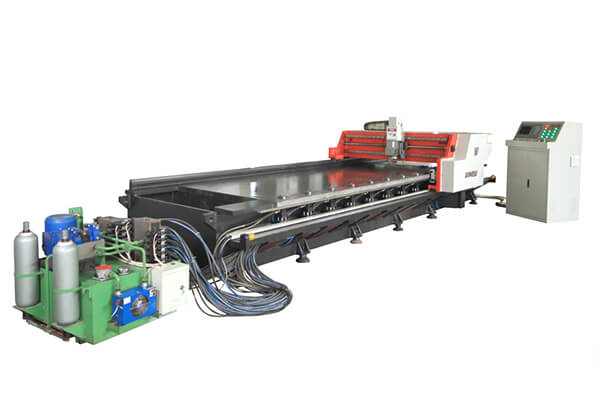

Horizontal V Grooving Machine
The machine base and beam are designed using a frame structure,utilizing 60mm low alloy high-strength structural steel for the wortable and Q345 steel plate for the frame.

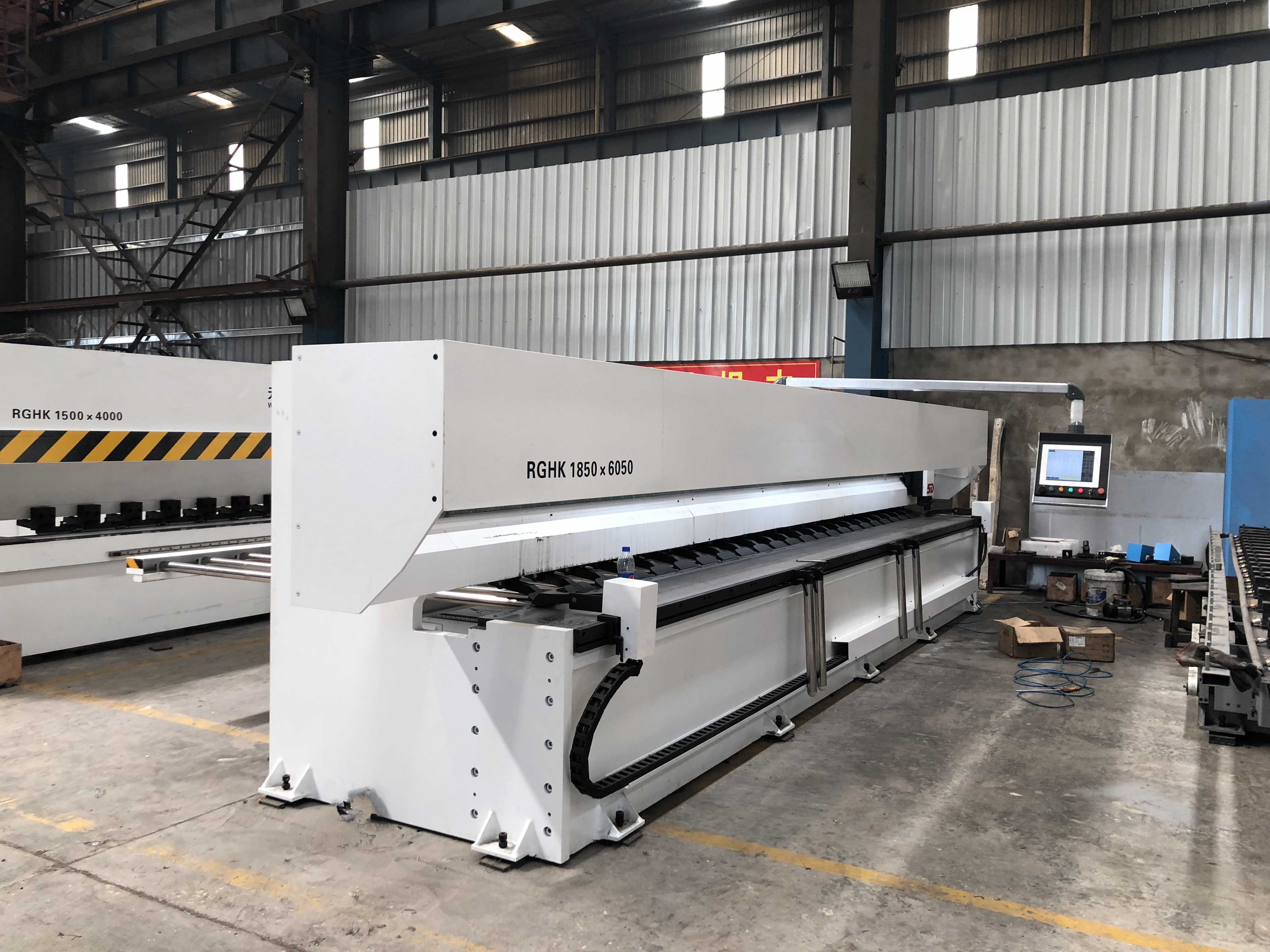

Vertical V Grooving Machine
The machine frame structure utilized high-strength bolt connections,ensuring optimal rigidity and minimal deformation.Additionally ,the workbench is equipped with front and rear materail supporting devices to prevent plate scrating during the grooving procedure

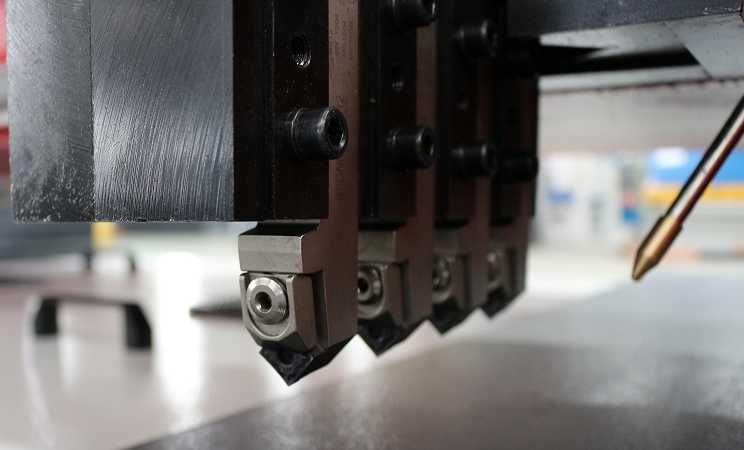

Alloy blade
The balde is made of alloy steel.
1The grooving machine use a four-cutter processing technology,ensuring that each blade is grooved evenly during the processing operation.
2.The grooving machine employs double nozzle blowing to effectively clean debris and ensure a thorough cleaning process.
3.The V slot is processed by 4 knives,so the cutting quantity is evenly disftributed to reduce the deoformation of the workpiece.

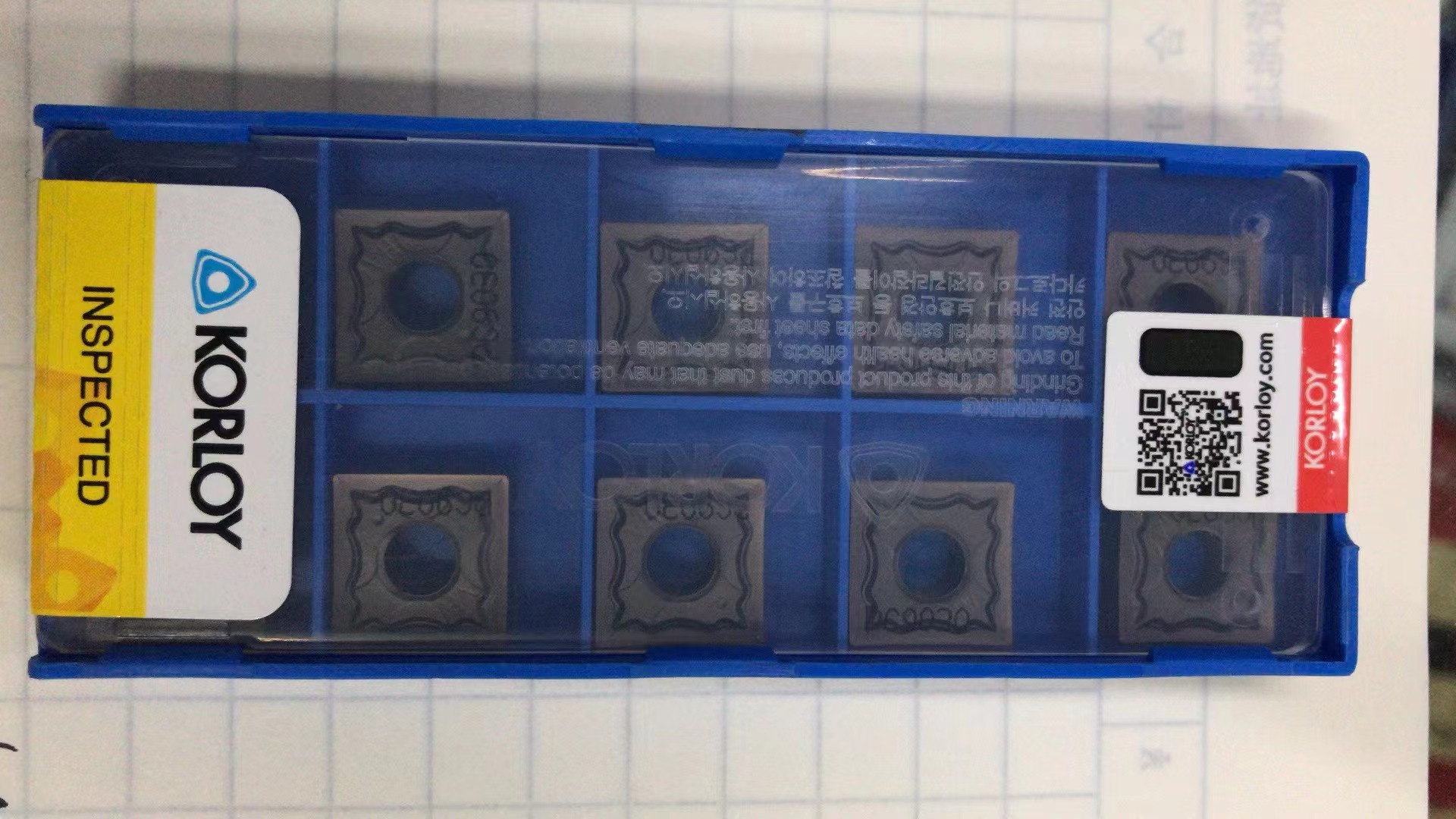

We also have cncV grooving machine blades ,if you need ,ask us freely.
