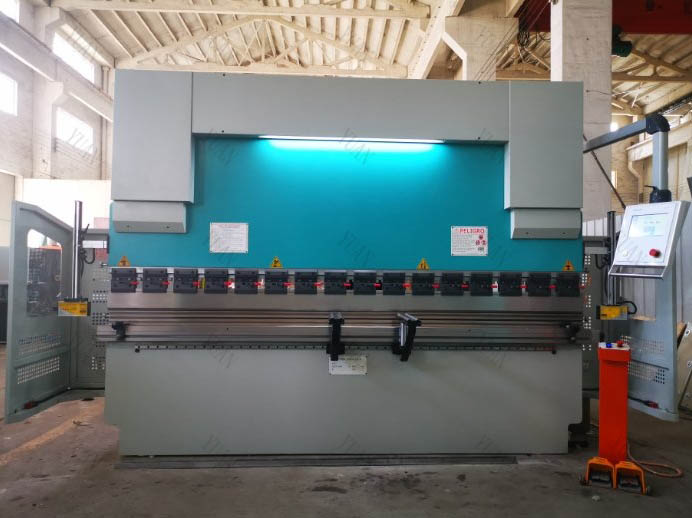

Ship Convention Series Press Brakes For UK Client



The conventional series press brakes are manufactured with a heavy duty welded steel frame, a strong torsion bar and a hydro mechanical balancing system ensuring a long working life. The range spans capacities from 40 tonnes through to 300 tonnes with bending lengths of up to 4100mm.

All models are fitted with euro style tooling and are supplied with a programmable NC controlled backgauge system and down stroke control with a digital read out display of the current position. Side and rear guards with electrical interlock switches are fitted as standard for increased safety.

Machine Features

• User friendly NC control for backgauge depth – X axis

• 750mm stroke backgauge with two finger stops with manual height adjustment

• Ram stroke control by precision mechanical stops built into each cylinder and electricallyadjusted by push-buttons with a digital position display

• Independent position control of one cylinderstop to provide fine angle adjustment

• Two-speed bending cycle giving fast proach, slow bending and fast return

• 3-function footswitch: normal bending, beam pause at any stroke point, automatic beam return upon release offootswitch

• AKAS laser tooling guards for enhanced ease of use

• Pendant control unit

• Euro style top tool holders with wedge adjustment

• Sectionalised gooseneck top tool and onepiece multi-vee bottom die

• Two front support arms

Machine parameters:

No

Name

WC67K-200T/3200

1

Nominal pressure

2000 KN

2

Working table length

3200 mm

3

Distance between uprights

2600 mm

4

Ram stroke

200 mm

5

Max.opening height

490mm

6

Throat depth

380mm

7

Approaching speed

80 mm/s

8

Working speed

8-10 mm/s

9

Returning speed

70 mm/s

10

Main Motor power

15 kw

11

Overall dim. (L*W*H

3200*2350*3110mm

12

Weight

17,000 KGS
