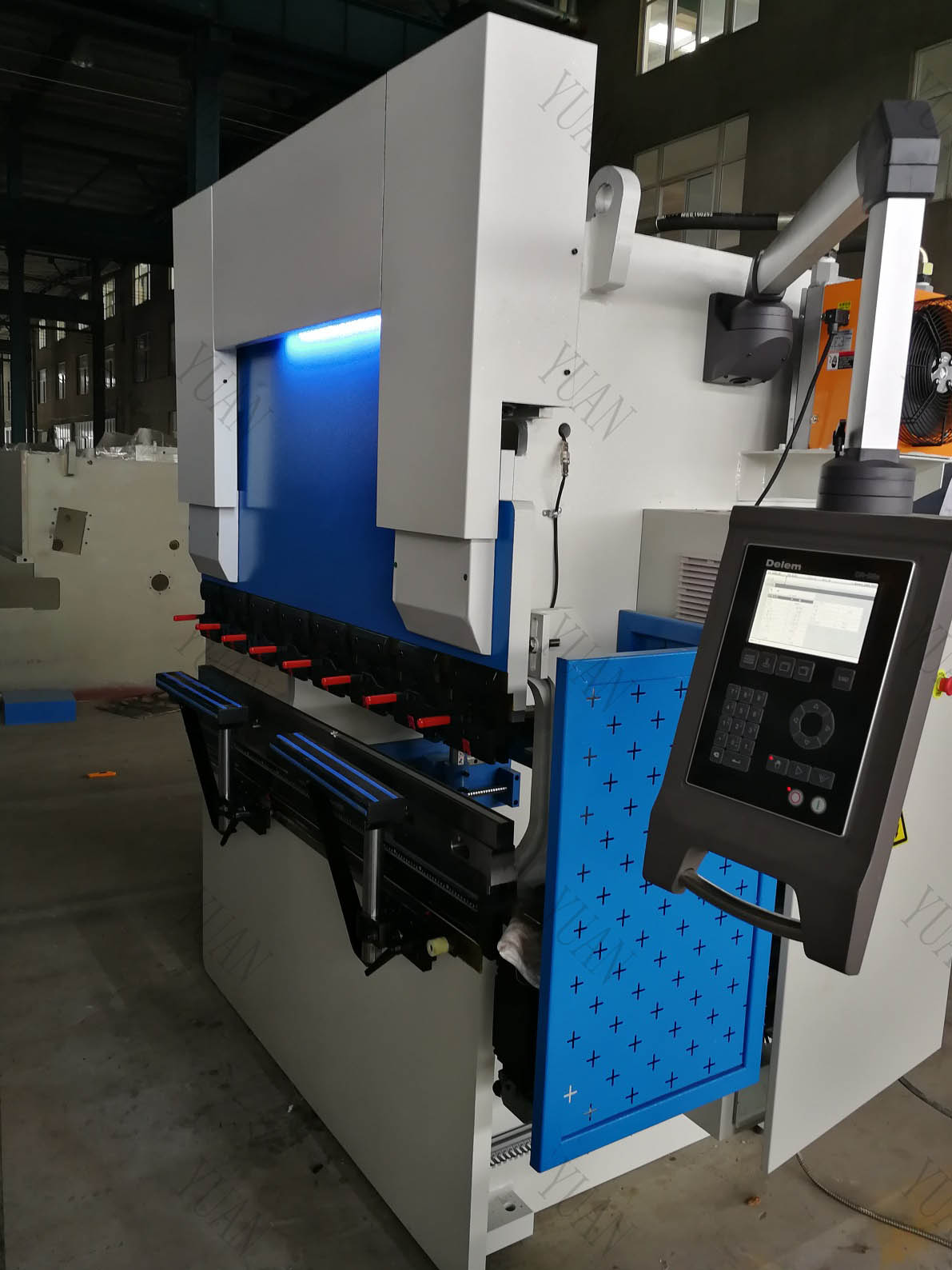

45 TON Hydraulic Press Brake For Sheet Metal Bending

45 Ton CNC Press Brake.jpg

Description:

1. Brand-new industry design combined with modern aesthetic concept, high-quality
production technology, simpleappearance.

2. Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.

3. Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic crowning structure jointly ensure the bending precision of WE67K series Press Brakes.

 4. Optimal ratio of parameters and core configuration ensure stable performance, and easy operation.

 5. DA53T controller is equipped with standard 4+1 axis (Y1, Y2, X,R axis and W axis crowning).

 At the same time, suitable die can be selected to realize bending processing of various  workpieces with complex shapes.

 6. The Press Brake adopts full closed-loop electro-hydraulic servo synchronous control
technology. The position signal of the slide block is fed back to the CNC controller by the
grating ruler on both sides, and then CNC controller controls the opening size of the
synchronous valve and adjusts the quantity of the oil cylinder, so as to control the slide block
(Y1,Y2)to run at the same frequency and always keep the parallel state to the working table.


Standard Equipment:

1.Robosoft Electro-hydraulic ram-table parallesim and depth stop setting

2.Pendant control panel with Delm DA53T CNC system

3.Backgauge  on ballscrews ,stroke 500mm ,programmable in 0.01mm

4.Programmable automatic beam return

5.Automatic hydraulic table crowning

6.Quick manula system top tooling clamping

7.European type 2 V Die tooling

 8.2 Sheet supports

9.Foot Pedal command

10.CE safty specification

11.Side and back safety cover

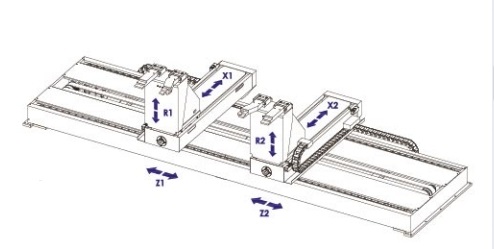

BAG Series Multi Axis Backgauge for Choose:


2 axes(X+R)

3 axes(X1+X2+R)

4 axes(X+R+Z1+Z2)

5 axes(X1+X2+R+Z1+Z2)

6 axes(X1+X2+R1+R2+Z1+Z2)

Rapid and Precise back support systems with Servo Motor.

They enable tou to increase the productiin performance and quality.

Parameters:

Name

Imperial

Metric

Bending Force

45 ton

400 KN

Brake Length

63 inch

1600 mm

Distance between columns

51 inch

1300 mm

Throat

8.66 inch

220 mm

Clear Opening

14.37’’

365 mm

Bending Speed

43’’/sec

11 mm/sec

Rapid Speed

3.54’’/sec

90mm/sec

Return Speed

3.54’’/sec

90 mm/sec

Main Motor

5.4hp

4 KW

Hydraulic tank volume

40 gal

151L

Dimension

60*83*89

1524*2108*2260

Weight

5291 ibs

2400kg

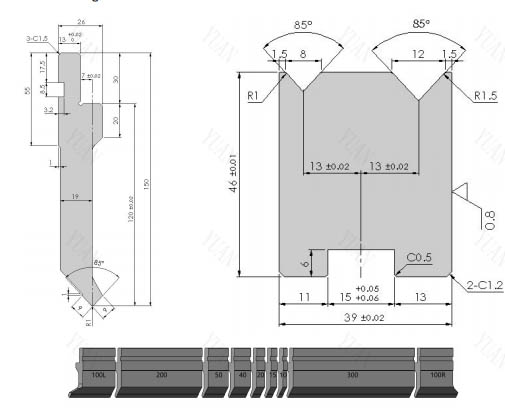

Punch and dies:
