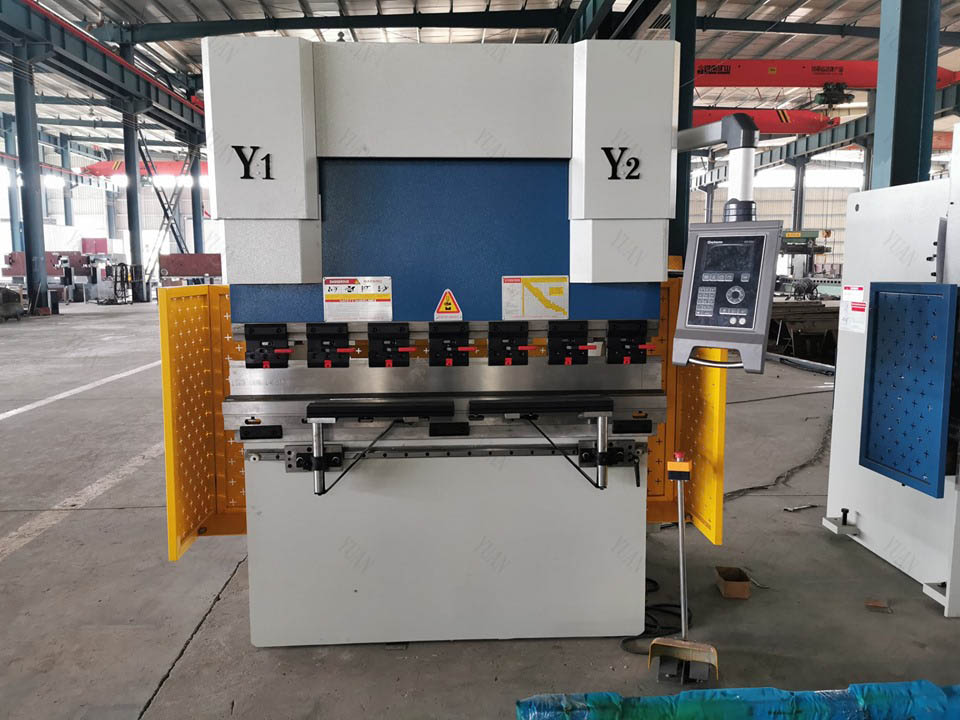

The small cnc hydraulic press brake bending force is 33ton,bending length is 5ft .It is a compact press brake ,small footprint.
Key Features:
1.Advanced CNC Control:

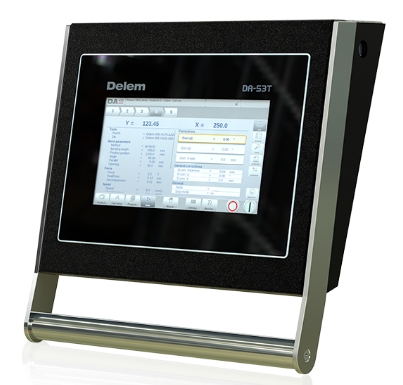

Equipped with the DELEM DA53T CNC system, which provides enhanced control capabilities, user-friendly interface, and precise operation for complex bending tasks.
The DELEM DA53T system offers graphical programming, real-time simulation, and diagnostic functions.
2.High Precision:
Offers precise bending with high repeatability and accuracy, making it suitable for producing parts with stringent dimensional tolerances.
The machine features a robust structure that ensures stability and accuracy during the bending process.
3.Versatile Bending Capabilities:
Capable of handling various types of sheet metal materials, including steel, aluminum, and stainless steel.
Supports a wide range of bending angles and complex geometries.
4.Smart Technology Integration:
Integrates smart technology for efficient operation, including automated back gauge positioning and angle measurement.
Allows for quick setup and reduced manual intervention, increasing productivity and reducing cycle times.
5.Safety Features:
Includes comprehensive safety systems such as light curtains and emergency stop buttons to ensure operator safety.
The machine adheres to international safety standards.
6.Energy Efficiency:
Designed with energy-saving features to reduce power consumption without compromising performance.
Incorporates efficient hydraulic systems that optimize energy use during operation.
Technical Specifications:
Press Force: 33 tons
Bending Length: 1520 mm (5ft)
Control System: DELEM DA53T CNC
Configuration:
1.CNC system: Holland DA53T control 4+1 axes(Y1,Y2,X,R,)
2.Hydraulic system:original Rexroth Germany.
3.Grating ruler:GIVI,Italy.
4. Pump:Sunny, USA
5. Electrical element:Schneider.
6. Servo motor and driver:DELTA,TAIWAN.

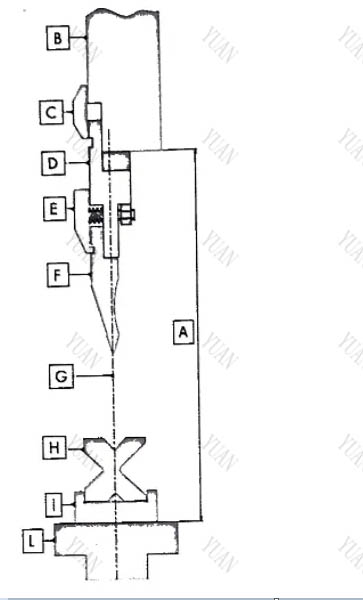

7. Toolings:upper tools fast clamping and with compensate, lower tool with multi V.Segmented tools according to your requirement.
8. Seal ring: NOK,Japan.
9.Front support with table, it can move right and left.
10.Lower-table mechanical crowning mechanism by controlled manual.
11.With safety side doors and back doors.
12.Hydraulic system with security valve, with spool position and manometer
13.With All Security equipment monitored.
Parameters:
Name | Imperial | Metric |
Bending Force | 33 ton | 300 KN |
Brake Length | 5ft | 1520 mm |
Distance between columns | 51 inch | 1100 mm |
Throat | 8.66 inch | 220 mm |
Clear Opening | 14.37’’ | 365 mm |
Bending Speed | 43’’/sec | 11 mm/sec |
Rapid Speed | 3.54’’/sec | 90mm/sec |
Return Speed | 3.54’’/sec | 90 mm/sec |
Main Motor | 5.4hp | 4 KW |
Hydraulic tank volume | 40 gal | 151L |
Dimension | 60*83*89 | 1524*2108*2260 |
Weight | 5291 ibs | 2400kg |

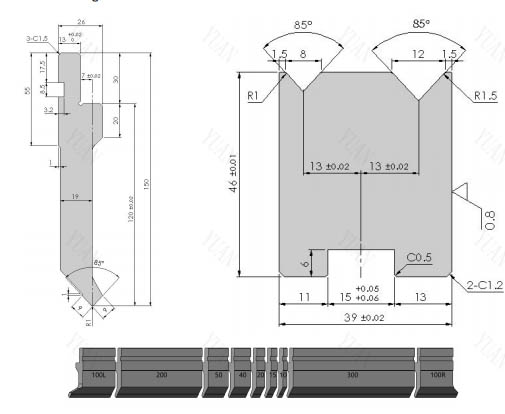

European Tooling
