Korean Client Nam order the two rollers rolling machine from us in June and the machine is finsihed and deliveried today.
The machine is a special plate bending machine.It has two rollers ,one is top roller which is made of steel.Another is low roller
,which is made of urethane material.This plate rolling machine can roll steel thickness from 0.5mm to 6mm.
The width is from 100mm to 1500mm.The diameter range is 100mm to 600mm.
The two rollers plate bending machine no need pre bending ,no need press head,one time shape,rolling speed fast.
This machine is ordered by our Korean Cleint Nam.Nam is looking for bending 2mm thickness stainlesss steel 120mm width to 80mm diameter cylinder.The difficult is 2mm stainless steel is very hard materail ,it is not easy to bend to so smaller a cylinder.
Our engineers tested a lot ,and then design the small cylnder rolling bending machine for Nam.Nam is very happy to get this machine.Becuase this machine helps him to improve his production.
Specificationof small cylinder rolling machine:
Item | 2x500 | Unit |
Rated Power | 3 | KW |
Hydraulic Pressure Range | 3-8 | Mpa |
Working-piece thickness | 0.6-2.5 | mm |
Working –piece diameter | 70-300(exchange mould) | mm |
Working-piece length | <=500 | mm |
Diemension | 2100x1000x1300 | mm |
Weight | 1800 | Kg |

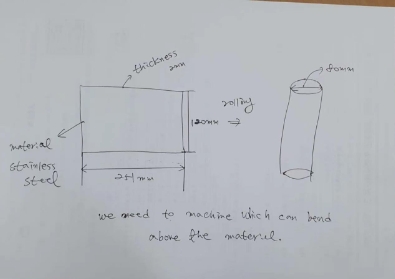

The drawing of 80mm diameter cylinder from Nam:

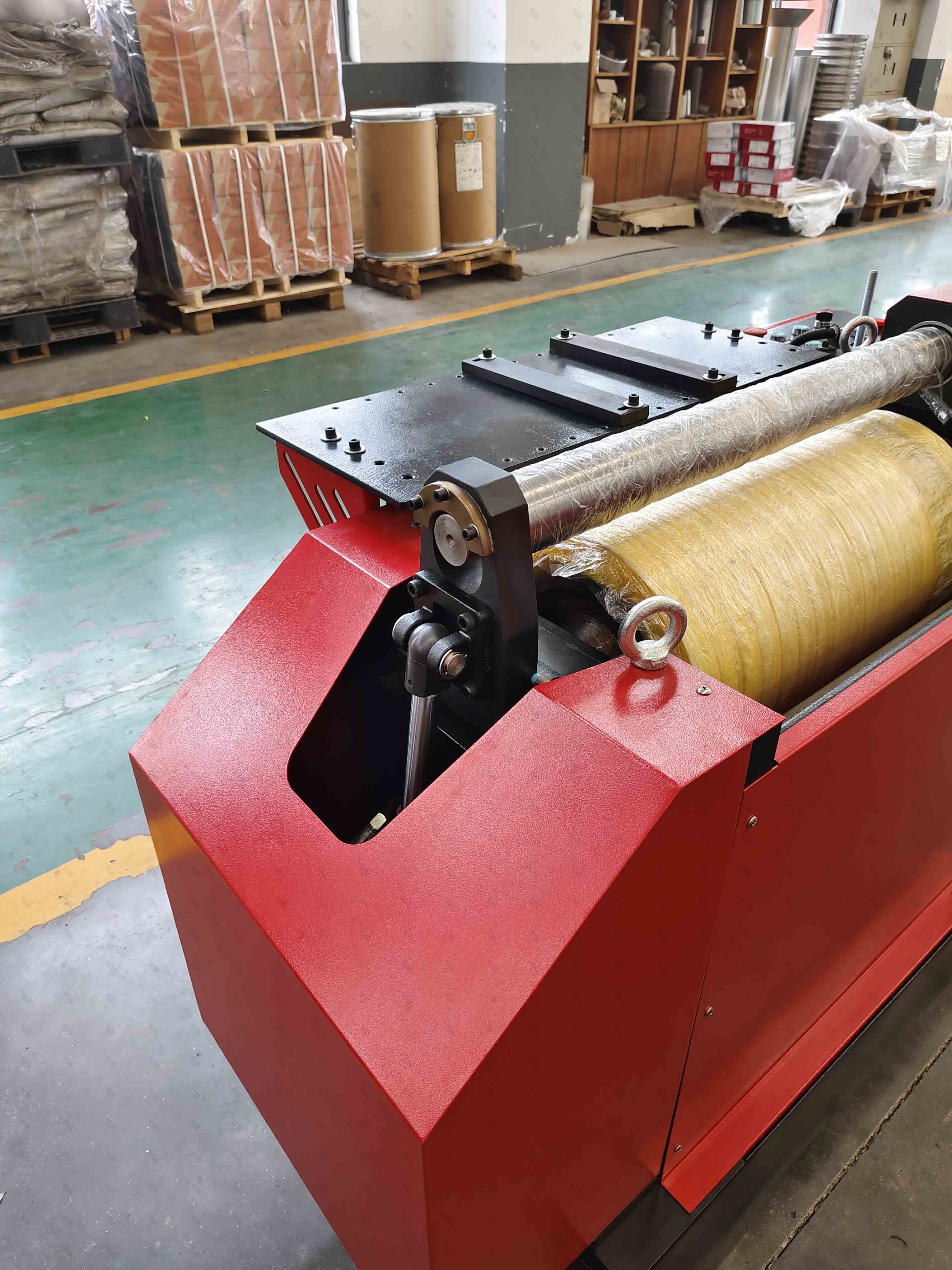

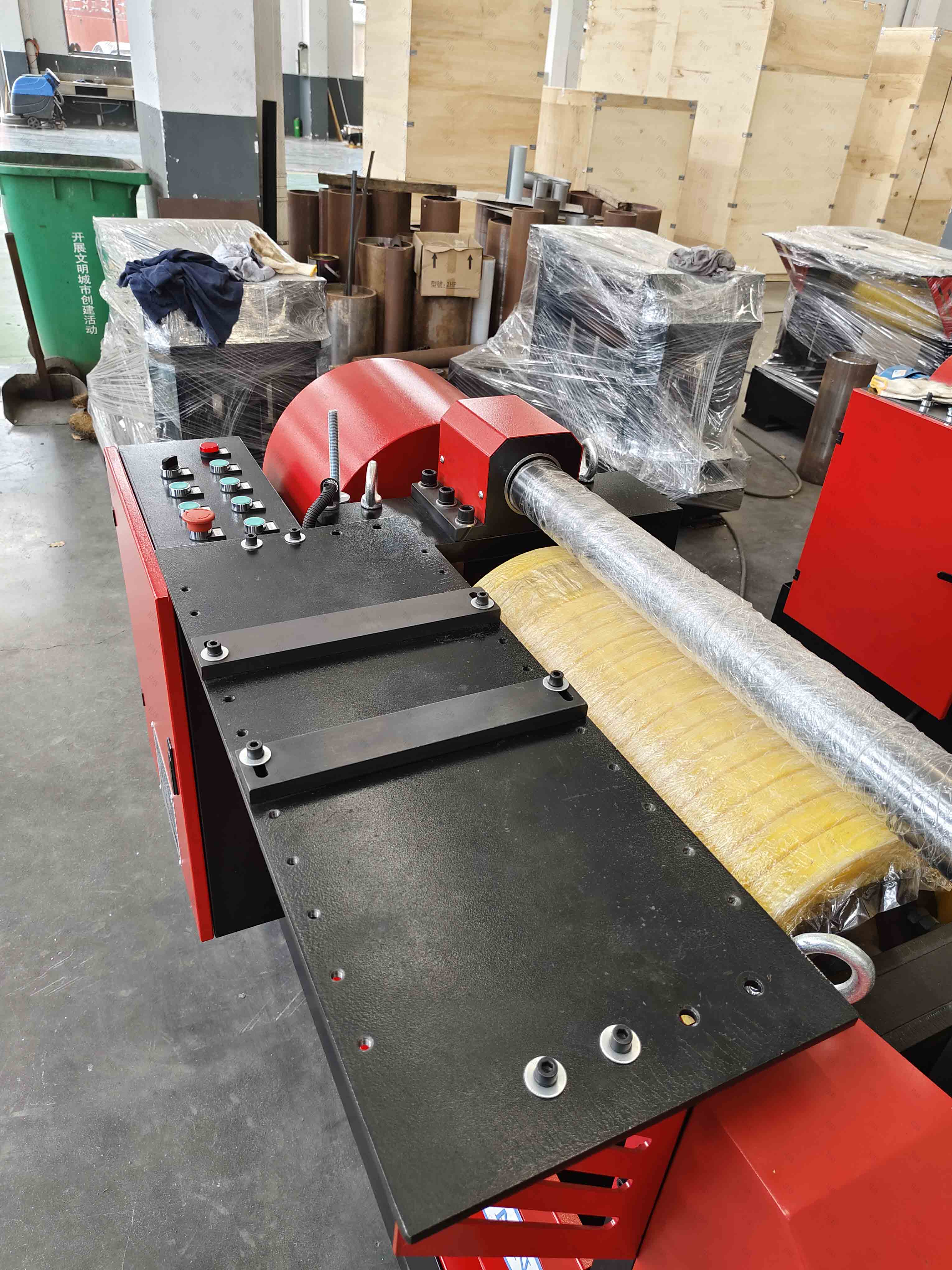

Test the products in our workshop before delivery:

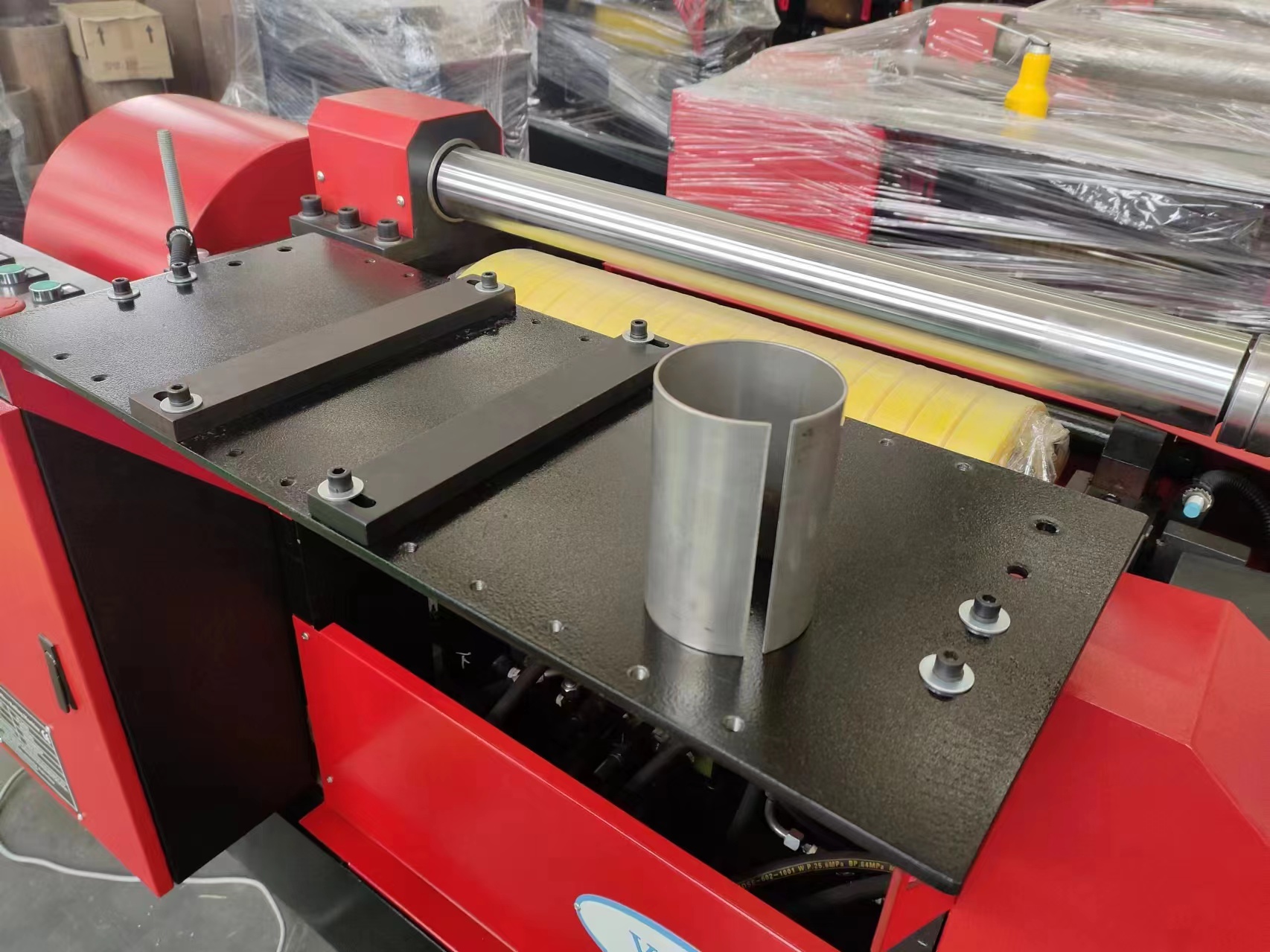

The following picture is the 2mm thickness stainless steel wih 80mm diameter ,2 rolls bending machine.
Working video of small cylinder bending machine in client workshop:
