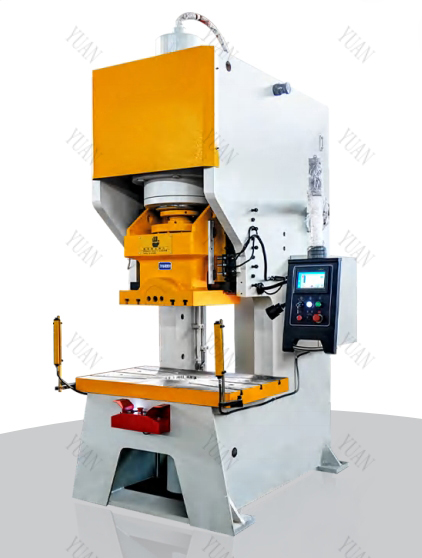

High Speed C Type Hydraulic Press Machine

Y27 Series C type Hydraulci press machine is a kind of multifunctional machine whcih has strong generality.

It is suitable for the press fitting of shaft components and axles sleeve parts as well as the movements of coining and overprinting.It can also be used to press powder and plastic products which requirements are not strict.At the same time,it mainly applied to the fields of machine tools,engineering machinery,electric components,bearings ,washing machine,automobile parts and motor components.It can enen be sued as assembly line.

The pressure ,stroke and the time of pressure maintaining can be regulated.

Performance:

CNC hydraulic fast speed press machine is the replacement of mechanical press.It has the advantage of mechanical press and one column hydraulic press.It can punch hole,cut angle steel ,cut ,stamping and deep drawing and sheet metal forming shape.

It uses PLC control,touch screen operation.It can be operated by  hand and automatic operation,the machine work more stable,the noise is small,high precision.If with feeder,it can work without man,one man operate many machines.It can also access to the web.

The machine all technology use program operation,slider stroke,speed,pressure,deep drawing.

It can use as following:

Automobile,metallurgy,aviation,shipping ,hardware,household electric appliances,building material LED light screen mesh punching hole.

Subordinate function:Pressure display,count display, stroke display,speed display,time display,fault display order of execution:work as mechanical press.

Work as one column hydraulic press

Fast down-fast to slow-begin to press-keep the pressure-fast return-return

Fast down-compression and blanking /pressing-fast return-return to original

Main Features:

1.C type Hydraulic Press

2.Foot Pedal Control

3.Two hands press start,easy to operate

4.Steel welded body high rigidity,high precision

5.Advanced configuration and fashion appearance

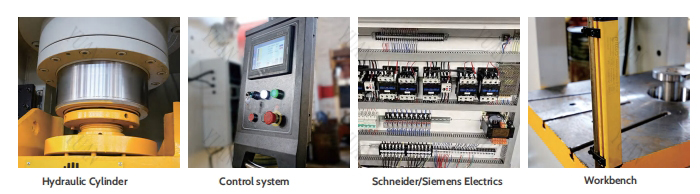

6.Schneider/Siemens Electrics

Applicable Fields:

This series of hydraulic presses are suitable for various stamping precesses such as secondary stretch forming ,bending,

forming,blanking and flanging of thin metal sheets to meet the pressing of multi-plannar complex structures,and are especially suitable for the following fields.

Y27 Series Type Hydraulic Press Products Features

The machine adopts a handle-pedal linkage system and is easy to operate.The hydraulic system uses integrated value block with the characteristic of compact structure and sensitive action.The machine also bears the features of low energy consumption and low noise.

Y27 Series Type Hydraulic Press Product Application

The type of machine is used for straightening and pressing spindle and other similar type of components.It can also be used for  stretching simple shapes of parts or forming and blanking from sheets.

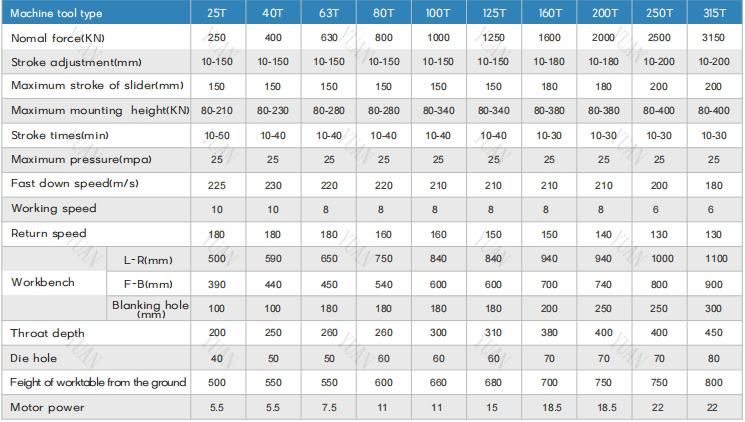

Y27Y Series Hydraulic Press Machine Parameters:

Optional:

1.Automatic lubrication

2.light curtain

3.Air conditioner for electric cabinet

4.Oil cooling equipment
