Robust :Extra welded-steel side frame to increase machine's rigidity and minimize deformation.
Accuracy &Speed double upper and lower for accurate and fast beam movement.
Flexibitity:Multi axes backgauge.
Easy Operating: User Freindly Color Touch-Screen Controller,with 2D graphics.

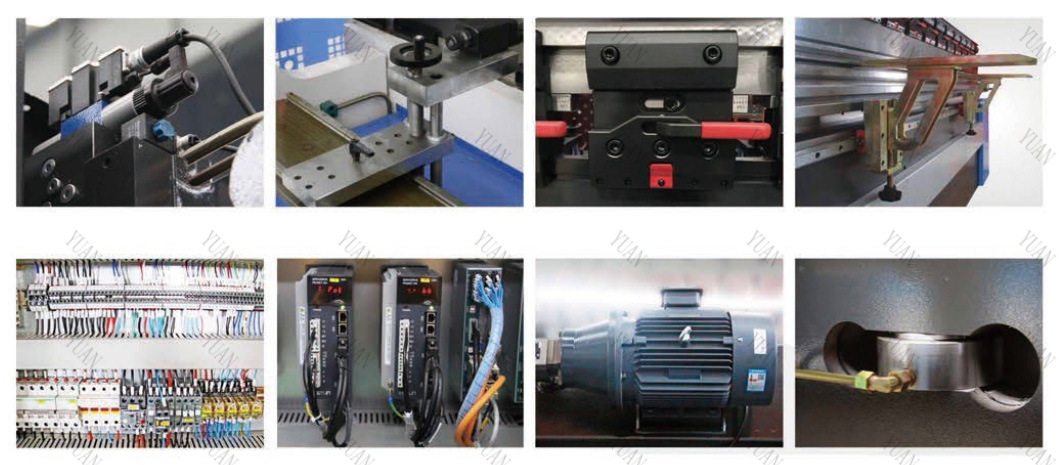

Standard equipment:
1. 2D graphic controller,12'' color touch-screen,Cybtouch 12
2.Y1,Y2 independent hydraulic cylinders,proportional valve technology
3.Robotic welded steel side frames
4.Fast mechanical upper clamping with side tooling extraction
5.CNC Crowing
6.Front Supports movable on linear guide,height adjustable
7.Efficient ,low-noise and accurate hydraulic system
8.Strong and stable construction.

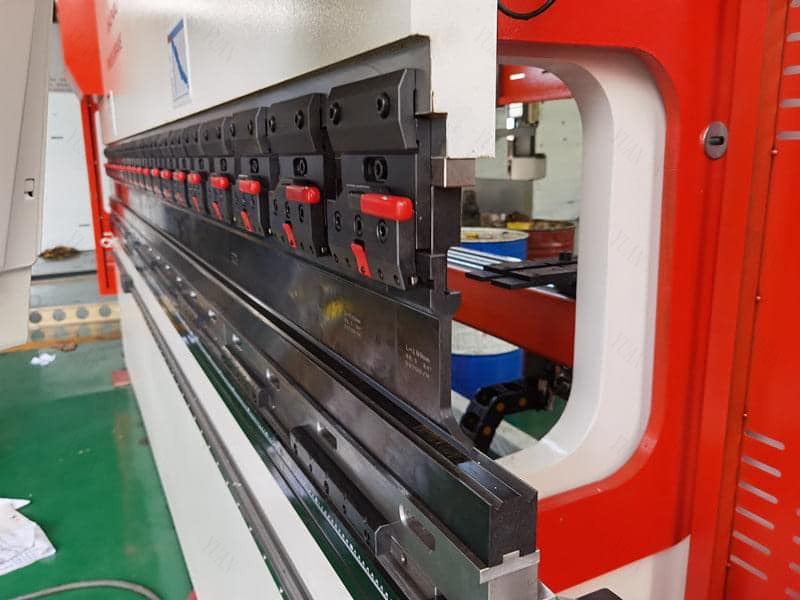

Standard press brake punch and dies
Standard configuration:
Cybtouch 12PS Controller:

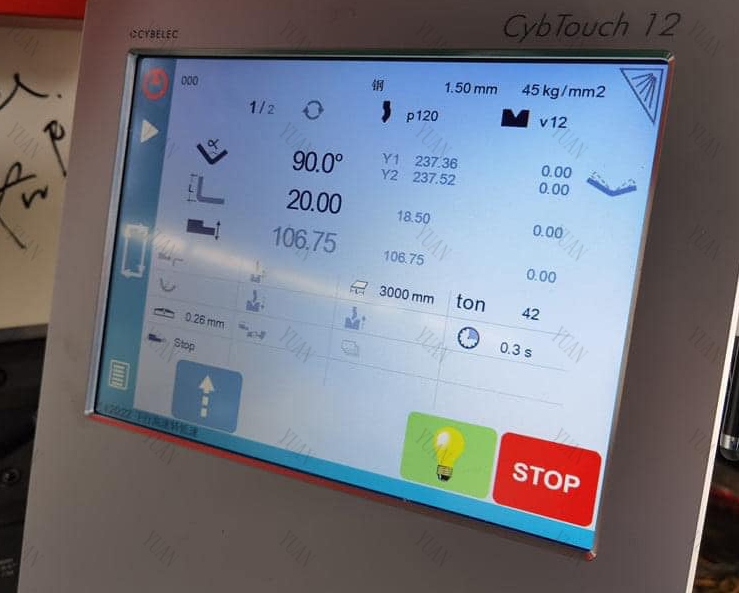

Easy Operating • Large touchscreen, with vivid colors and high-contrast. • Hand drawing TouchProfile function. • Simple pages, clear display, large keys. • Intuitive and user-friendly interface. • Complete programming for efficient mass-production with multiple bends. • Easy single bends thanks to the EasyBend page. • Online help and interactive warning pop-up. • Comfortable wireless software updating and data back-up using PC or Notebook. • USB port for memory sticks. • Large selection of languages available. | Better Bending • Various automatic calculations of bend functions. • Bending sequences and programs can be memorized. • Angle, pressure and crowning management. • Easy manual movement. | Powerful • 4 axes control (Y1-Y2-X-R). • TouchProfile 2D graphic part creation with manual sequencing. • Bend allowance calculation. • Pressure – crowning calculation. • Modulable tools for each part or bend. • Punch depth calculation. • Angle and back gauge correction. • Delivered with PC-ModEva offline software. |

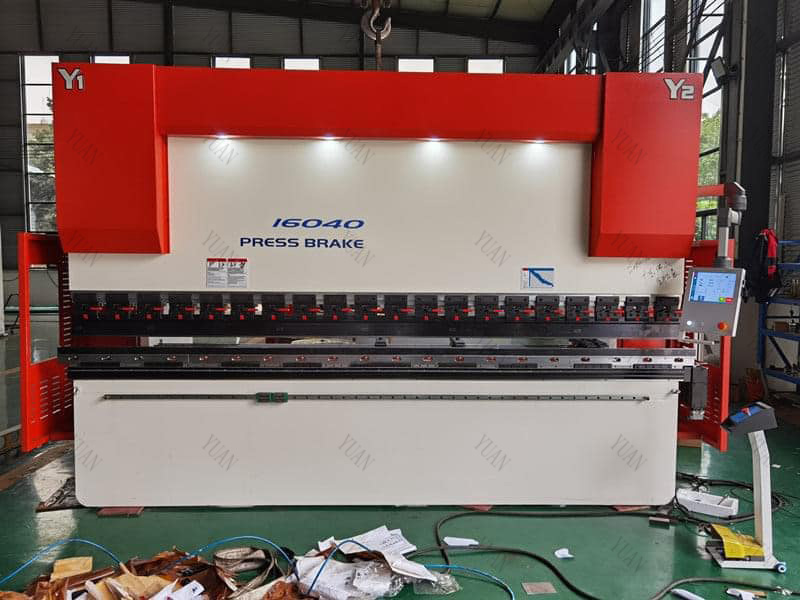

Machine parameters:
No | Name | WC67K-160/4000 |
1 | Nominal pressure | 1600 KN |
2 | Working table length | 4000 mm |
3 | Distance between uprights | 3100 mm |
4 | Ram stroke | 120 mm |
5 | Max.opening height | 380mm |
6 | Throat depth | 320mm |
7 | Approaching speed | 80 mm/s |
8 | Working speed | 8.5 mm/s |
9 | Returning speed | 80 mm/s |
10 | Main Motor power | 15kw |
11 | Overall dim. (L*W*H) | 4400*2000*2450mm |
12 | Weight | 10,800 KGS |

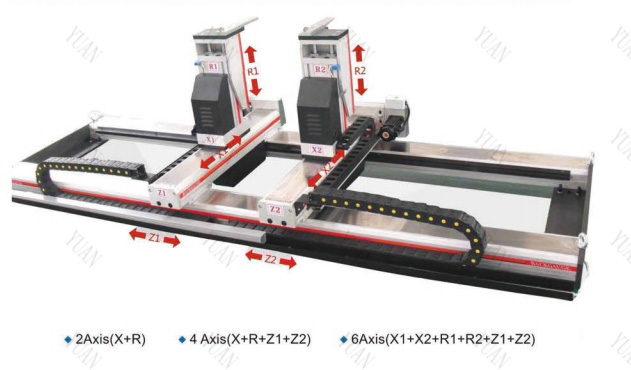

Multi Axes Backgauge
Y(Y1,Y2) axis:Ram synchronous control axis,controlling bending depth and angle.
X(X1,X2) axis:Controlling back gauge front-back stroke,using controlling bending flange size
R(R1,R2) axis:Controlling back gauge beam up and down
Z(Z1,Z2) axis:Controlling back gauge finger left-right movement.
V axis:Working table auto-hydraulic crowning.
