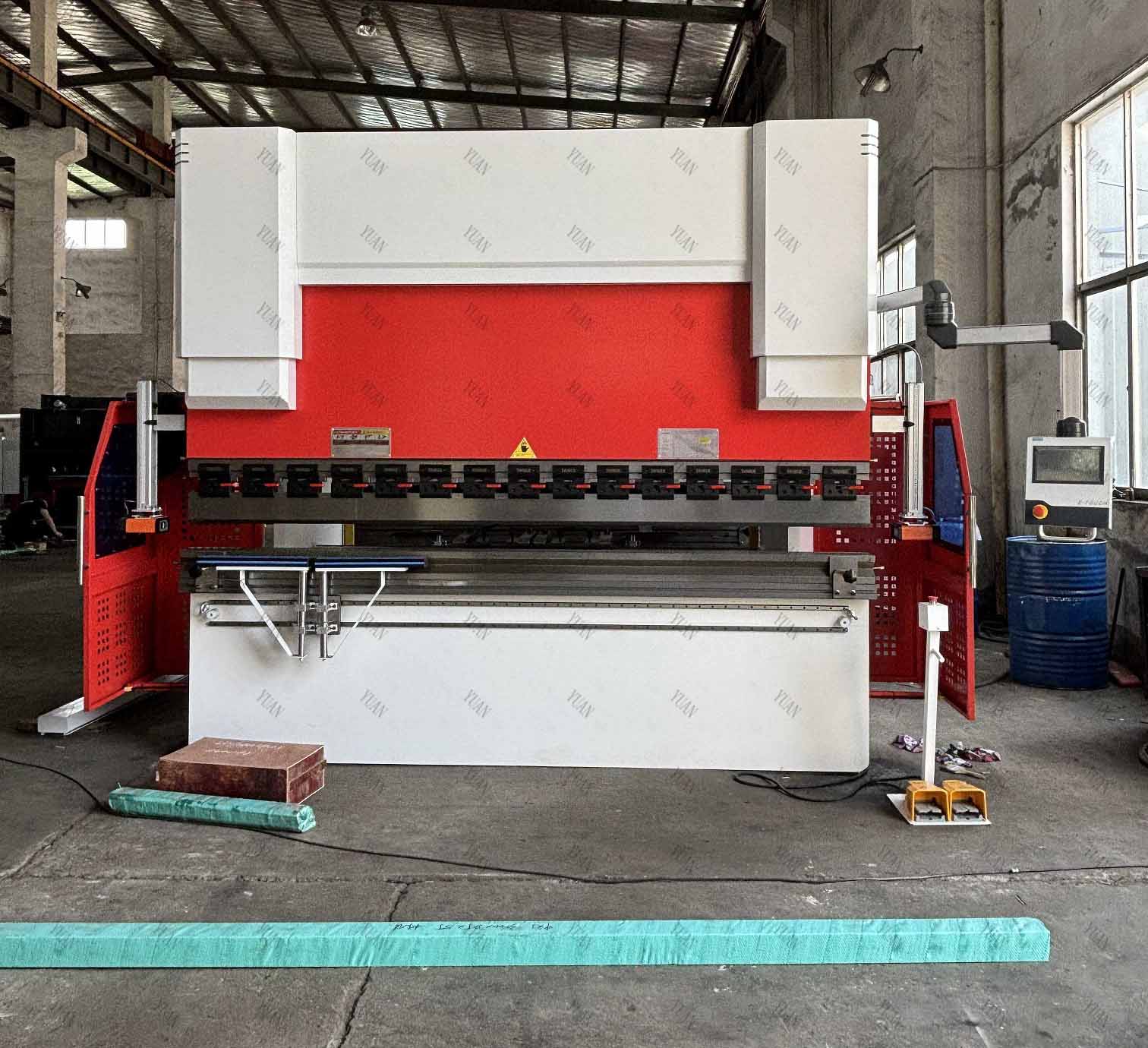

This is CNC Type Torsion Bar Press Brake,the bending angle is programmable.So it is easy to operate.
It is easy and economical bend series cnc press brake.The machine is equipped with laser safe to protect work's safety.
■Angle programming and automatic bending position calculation
■ Using CAN bus technology,servo control X ,Y axis,control precision is high, resolution up to 0.001;
■ Support multi-step programming, complex workpieces can be completed at one time
■ Built-in PLC,with machine tool motion control function, at the same time built-in dwell time, pressure unloading delay setting function
■ With adjustable return distance function to change opening height
■ With self-diagnosis and real-time alarm functions
■ Reservation security interface for easy expansion.
■ Having a key parameter backup and restore function
■ Program memory of to 100 programs ,25steps per program
■ Tool library:20 dies
Machine Parameters:
No | Name | WC67K-160/3200 |
1 | Nominal pressure | 1600 KN |
2 | Working table length | 3200 mm |
3 | Distance between uprights | 2550 mm |
4 | Ram stroke | 200 mm |
5 | Max.opening height | 450mm |
6 | Throat depth | 320mm |
7 | Working Table Width | 200mm |
8 | Approaching speed | 120 mm/s |
9 | Working speed | 8-12 mm/s |
10 | Returning speed | 70 mm/s |
11 | Main Motor power | 11kw |
12 | Overall dim. (L*W*H) | 3200*1900*2700mm |
13 | Weight | 11,000 KGS |
