Hydraulic Press Brake 160Ton 3200mm with Estun E310P

A hydraulic press brake, also known as a brake press, is a machine tool used to bend sheet and plate materials, typically sheet metal. The E310P Servo Drive CNC Press Brake is designed for bending and processing materials such as stainless steel, iron, copper, and aluminum. It offers high production efficiency and precise bending accuracy.

The E310P forms predetermined bends by clamping the workpiece between a matching punch and die, each with different shapes, allowing the metal to be bent into a variety of configurations.

Machine Introduction:

1.1Machine Frame Processing: A large floor boring and milling machine is used for the overall processing of the bending machine frame.

1.2Forced Synchronization of the Mechanical Torsion Shaft: The shaft is made from forged material, offering high rigidity and excellent elasticity. It features a fine adjustment device and provides good resistance to eccentric loads.

1.3Dual Servo Control: Two servo motors independently control the Y1 and Y2 cylinders. The system automatically detects and corrects any position differences between Y1 and Y2, ensuring synchronization accuracy similar to electric-hydraulic servo systems.

1.4 Professional CNC System: The machine is equipped with a specialized CNC system, featuring a large touch screen and a color display for ease of operation.

1.5 Electrical Deflection Compensation: By inputting plate thickness and length parameters into the digital system, the system automatically compensates for deflection.

1.6High-Precision Back Gauge Structure: The back gauge uses a ball screw and linear guide system, driven by a servo motor, enabling fast and accurate positioning.

1.7Manual Finger Height Adjustment: The finger height can be manually adjusted, with a design that allows for overall adjustment to meet specific needs.

1.8 Quick Mold Clamping Structure: This design speeds up mold changes, improving overall work efficiency.

1.9 Quality Assurance: Our machines undergo rigorous pre-factory testing and specialized tests based on customer requirements. They fully comply with international quality standards. Choosing YUAN means choosing success—let’s work together to create a better future.

Machine standard configuration:

Controller: Estun E310P with three operation modes: inching, single, and continuous.

Heavy-Duty Torsion Bar: Ensures precise parallelism during operation.

Electrical Components: Schneider Electric (France).

Main Motor: Siemens Motor (Germany).

Servo Motor: Estun servo motor controls the back gauge and ram stroke.

Foot Switch: KACON (South Korea).

Hydraulic System: Bosch Rexroth (Germany).

Oil Pump: First (USA).

Sealing Ring: Parker (USA).

High-Efficiency Motor: Class IE3 for optimal energy efficiency.

Tube Connector: EMB (Germany).

Back Gauge: X and R axes are controlled with advanced servo technology.

Y-Axis Travel Switch: Schneider.

Adjustable Material Support Arms: Fully adjustable for different workpiece sizes.

Back Gauge and Ram Position Display: Positions are shown on the controller for easy monitoring.

Light Curtain Safety System: Ensures operator safety during operation.

Emergency Stop Buttons: Conveniently located on both the control panel and foot control.

Space-Saving Sliding Door: Features safety sensors for added security.

NC Hyraulic Press Brake E310P Introduction:

The E310P is Estun’s next-generation, user-friendly CNC press brake controller. It provides control over Y, X, R axes and Auto Crowning.

1. Servo Control: X, Y, and R axes are controlled via CAN bus for precision and efficiency.

2. Crowning Modes: Supports both mechanical and hydraulic crowning options.

3. Built-in Work Logic: Features multiple work modes tailored to different applications.

4. Tool Library and Material Table: Includes a comprehensive library for tools and materials.

5. Configurable I/O Ports: Input/Output ports can be freely configured to suit your needs.

6. USB Interface: Allows for easy backup and system upgrades.

7. Parameter Backup and Restore: Simplifies system recovery and settings restoration.

8. Language Options: Available in both Chinese and English.

9. Measurement Units: Switchable between metric and imperial units.

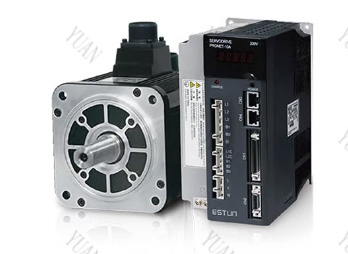

ETS Pronet series servo：

The system uses the latest high-speed digital signal processor (DSP) along with advanced motion control software. Combining feedforward control and command smoothing technology, it achieves high-speed response, precision, and reliability in servo performance. With automatic inertia detection, adjustments are made easier.

High-Speed Performance: Fast response, with speeds up to 3,000 RPM.

Stable Quality: Built for long-lasting reliability.

Easy Installation: Standard wiring simplifies setup.

CAN Bus Control: Offers simple wiring and excellent resistance to interference.

Electric Cabinet

ISO 9001 Certified: Meets international quality management standards.

High-Quality Cabinet: Built to comply with EMC standards for electromagnetic compatibility.

Premium Components: Key components are sourced from trusted international brands.

Advanced Electrical Design: Designed using the latest electrical design software (E_Plan).

Reliable Production & Installation: Manufactured with cutting-edge production and installation technology.

Automated Manufacturing: Produced on a fully automated assembly line for consistent quality.

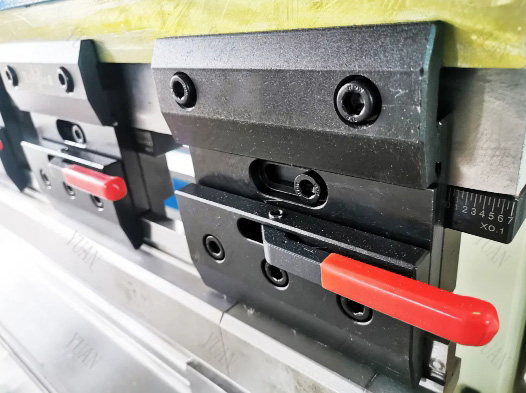

Punch with fast clamp

Standard Punch and Die

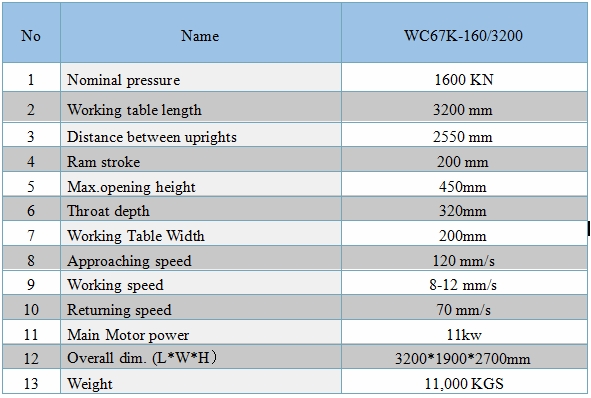

NC Press Brake Machine E310P 160Ton 3200mm Parameters:
