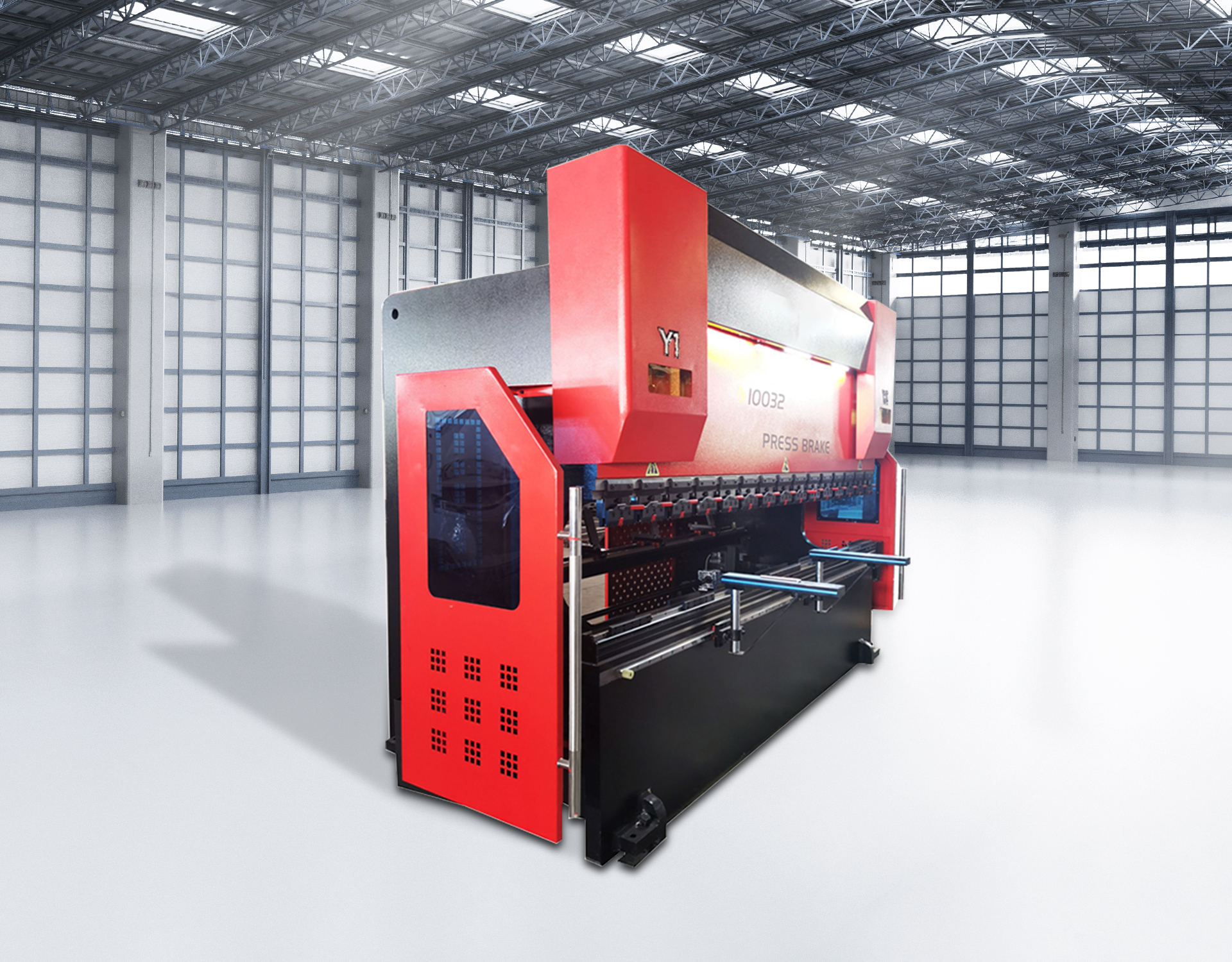

CNC Brake Press Machine

Main Features:

1.Overall welded and processed structure.

2.Closed loop control mode composed of electric-hydraulic servo valve and grating ruler.

3.Encure the highest control precision ,bending accuracy and repositioning accuracy are also reach to the highest level.

4.Back gauge mechanism can be multi-axes controlled

5.Integrated hydraulic system decreases the pipe connections ,oil leakage and increases the stability and overall beautifies.

6.Worktable equipped with hydraulic and mechanic compensation to avoid the deformed upper beam from affecting the quality

of the work piece,it is automatic adjusted by the CNC controller with convenient and accuracy.

7.CNC controller normally uses Holland DELEM ,Italy ESA ,Swiss CYBELEC,all with multi-languages.

cnc brake press machine

Key parameters:


Bending Force :40ton to 2500ton

Bending Length:1600 mm to 13000mm

Throat depth:250mm to 1200mm

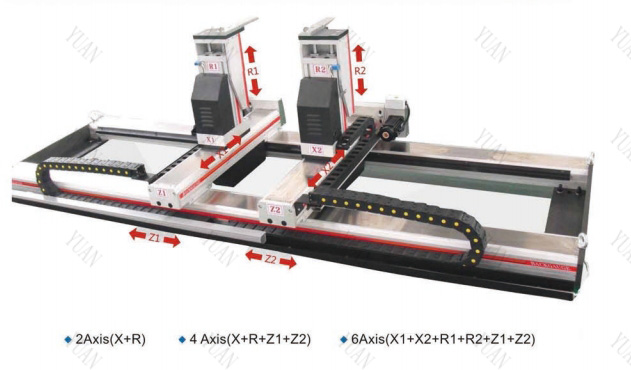

CNC Axis Function

Y(Y1,Y2) axis:ram synchronous control axis,controlling bending depth and angle.

X(X1,X2) axis:Controlling back gauge front-back stroke,using controlling bending flange size.

R(R1,R2)  axis:Controlling back gauge beam up-down.

Z(Z1,Z2) axis:Controlling back gauge finger left -right movement.

V axis:working table auto-hydraulic /mechanical crowing

press brake backgauge

CNC Control Axis

CNC Control axis

Axis Name

Note

2+1 axis

Y1,Y2 +crowning

For pole customized press brake

3+1 axis

Y1,Y2,X+crowning

Standard model

4+1 axis

Y1,Y2,X,R+crowing

Popular model

5+1 axis

Y1,Y2,X,R,Z+crowing

Special model

6+1 axis

Y1,Y2,X,R,Z1,Z2+crowning

Higher model

8+1 axis

Y1,Y2,X1,X2,R1,R2,Z1,Z2+ crowing

Best model

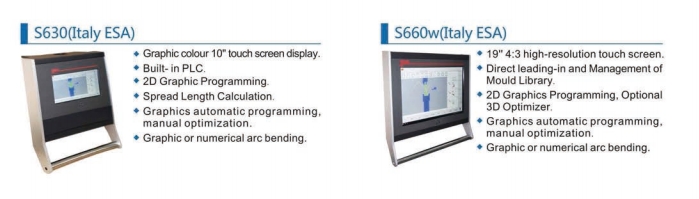

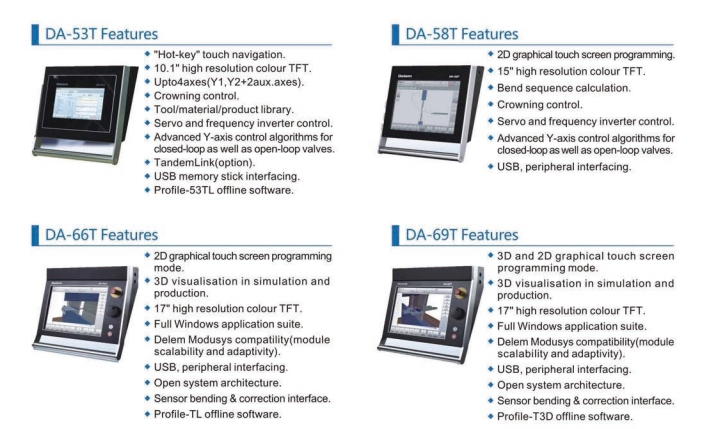

Press Brake Controller

Holland Delem

Switzerland CYBELEC

Italy ESAUTOMOTION

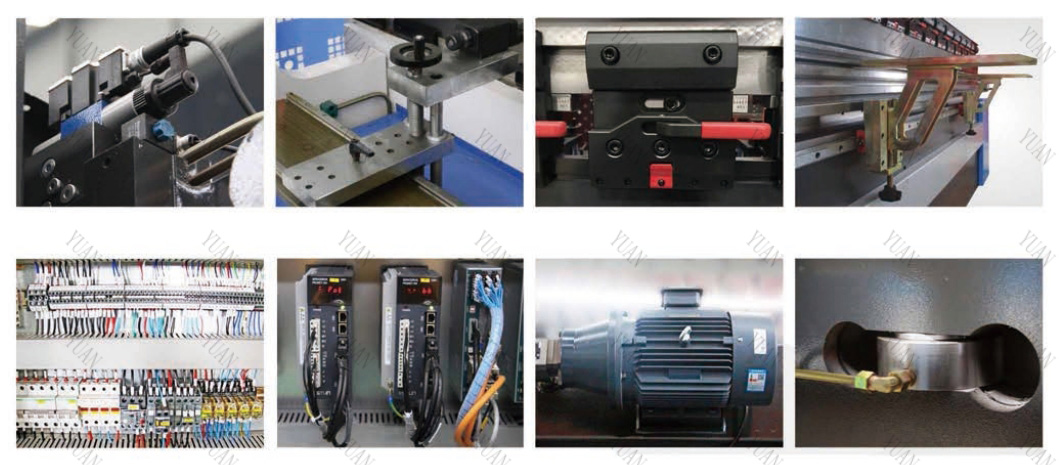

Standard configuration:


Parts Name

Brand

Original

Main Motor

Siemens

Germany

Servo motor and drive

Estun

Nanjing China

Electrics

Schneider

France

Seal Ring

FIETZ/NOK

Germany/Japan

Hydraulic Valve

Rexroth

Bosch Germany

Pump

Rexroth

Bosch Germany

Pipe connector

EMB

Germany

Foot switch

Karcon

South Korea

Ball screw

HIWIN

Taiwan

Guide rail

HIWIN

Taiwan

Grating ruler

Fagor

Spain


press brake components

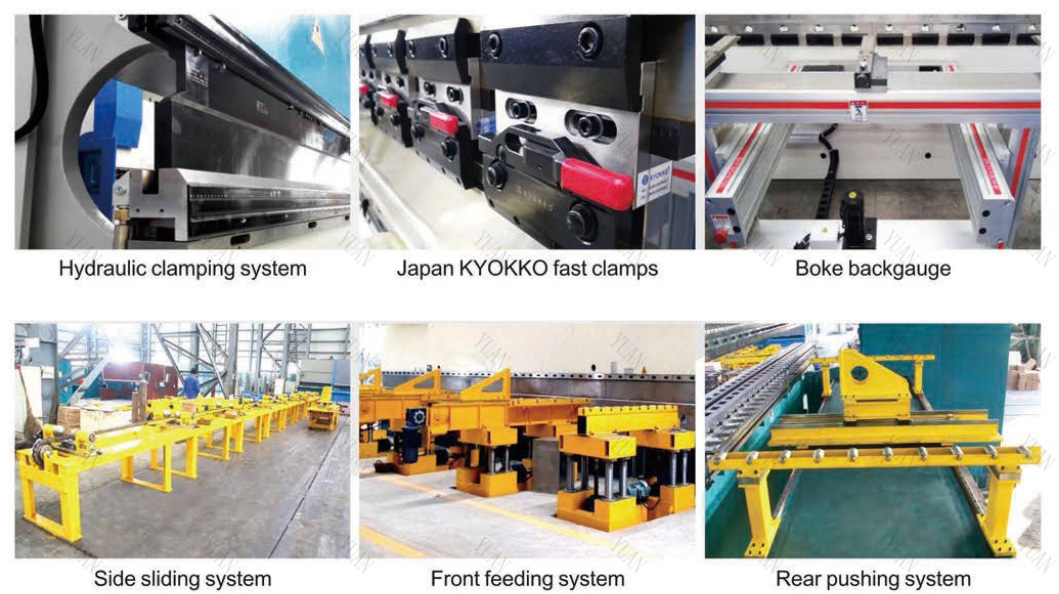

Optional parts:

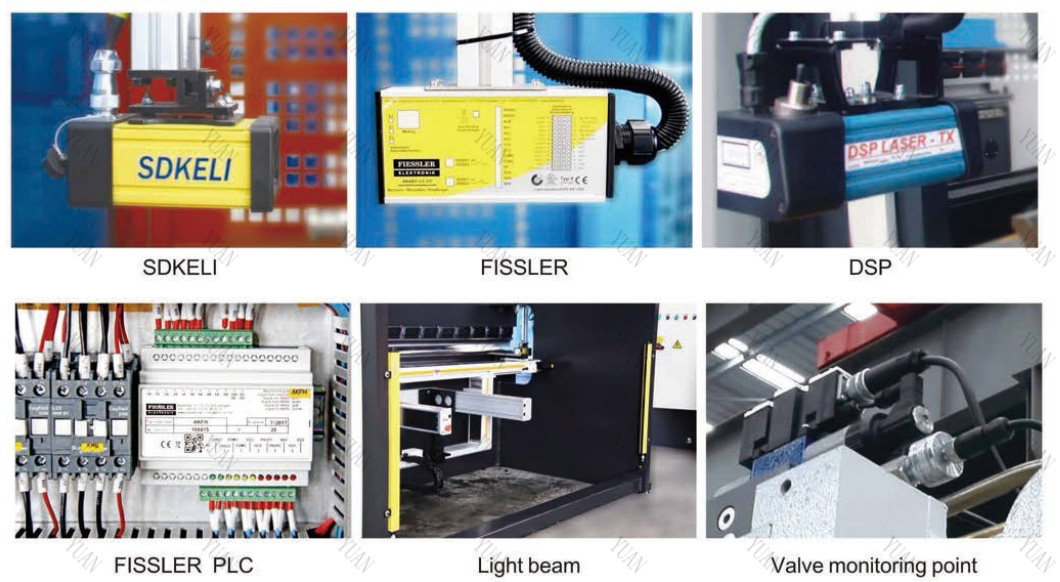

1.CNC control following front supporter

2.Multi-axes,it can achieve to 16 axes.

3.Safety laser protection device.

4.Automatic detection bending angle device.

5.Upper tool Wila hydraulic clamps.

6.Working table using the mechanical crowing mechanism.

7.Special tool

press brake optional

CE Optional:

Press Brake Safety

CNC Press Brake Parameter:

Model

Nominal Pressure(KN)

Worktable Length(mm)

Pole Distance(mm)

Throat Depth(mm)

Ram Stroke(mm)

Motor

WE67K-40T/2500

400

2500

1900

250

100

5.5

WE67K-63T/2500

630

2500

1900

250

100

5.5

WE67K-80T/2500

800

2500

1900

250

120

7.5

WE67K-80T/3200

800

3200

2600

250

120

7.5

WE67K-100T/2500

1000

2500

1900

320

120

7.5

WE67K-100T/3200

1000

3200

2600

320

150

7.5

WE67K-100T/4000

1000

4000

3200

320

150

7.5

WE67K-125T/2500

1250

2500

1900

320

150

7.5

WE67K-125T/3200

1250

3200

2600

320

150

7.5

WE67K-125T/4000

1250

4000

3200

320

150

7.5

WE67K-160T/3200

1600

3200

2600

330

200

11

WE67K-160T/4000

1600

4000

3200

330

200

11

WE67K-200T/4000

2000

4000

3200

330

200

11

WE67K-250T/5000

2500

5000

4000

330

200

15

WE67K-300T/3200

3000

3200

2600

400

250

22

WE67K-300T/4000

3000

4000

3200

400

250

22

WE67K-400T/4000

4000

3200

2600

400

250

37

WE67K-600T/6000

6000

6000

5000

400

350

60


Choose suitable punch and die

press brake punch and die
