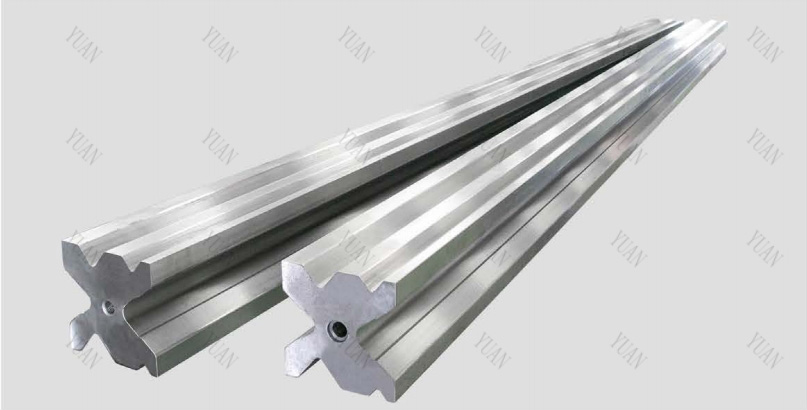

Press Brake 4 Way Dies

Press brake tooling and Dies. It is a tool used by the bending machine to form and process sheet metal.

It mainly realizes the processing of the shape of the article by changing the physical state of the formed material.

A tool used to make a blank into a specific shape and size under the pressure of a bending machine.

Press Brake has many types of punch and die.

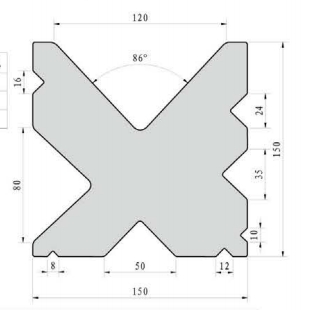

The 4 way dies may  be the oldest press brake tooling ,it has muti V slot can bend different thickness plate.

4-way dies for press brakes offer significant versatility and production efficiency benefits in metal forming processes, but they come with higher initial costs and maintenance demands. Companies should carefully consider their production needs and budget when deciding to use 4-way dies.

Material: 42CrMo
Processing equipment: gantry milling machine, planer, plane grinder, horizontal milling machine, multifunctional milling machine, high-precision grinder,demagnetization
Tolerance: ± 0.002
Overall heat treatment: 835mm 800mm 550mm 508mm,2500mm,3200mm,4000mm

Advantages

Versatility:

One set of dies can perform various bending operations, reducing the time and cost associated with changing dies.

They can be used with different thicknesses and types of materials, offering great adaptability.

Space-saving:

With four different V-grooves integrated into one die block, the number of dies needed is reduced, saving storage space.

Increased Production Efficiency:

Operators do not need to frequently change dies, reducing downtime and increasing overall production efficiency.

Changing the die only requires rotating the die block, simplifying the operation process.

Cost Reduction:

Reduces the cost of purchasing multiple individual dies.

Simplified die changes reduce the potential for errors and wear-related repair costs.

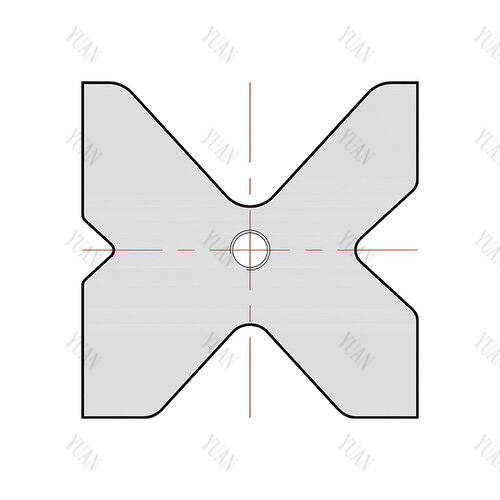

Self center 4 way dies

Self Center 4 Way Dies are an excellent tool for routine bending and fast changes.

Self center 4 way dies parameter(unit:inch)
