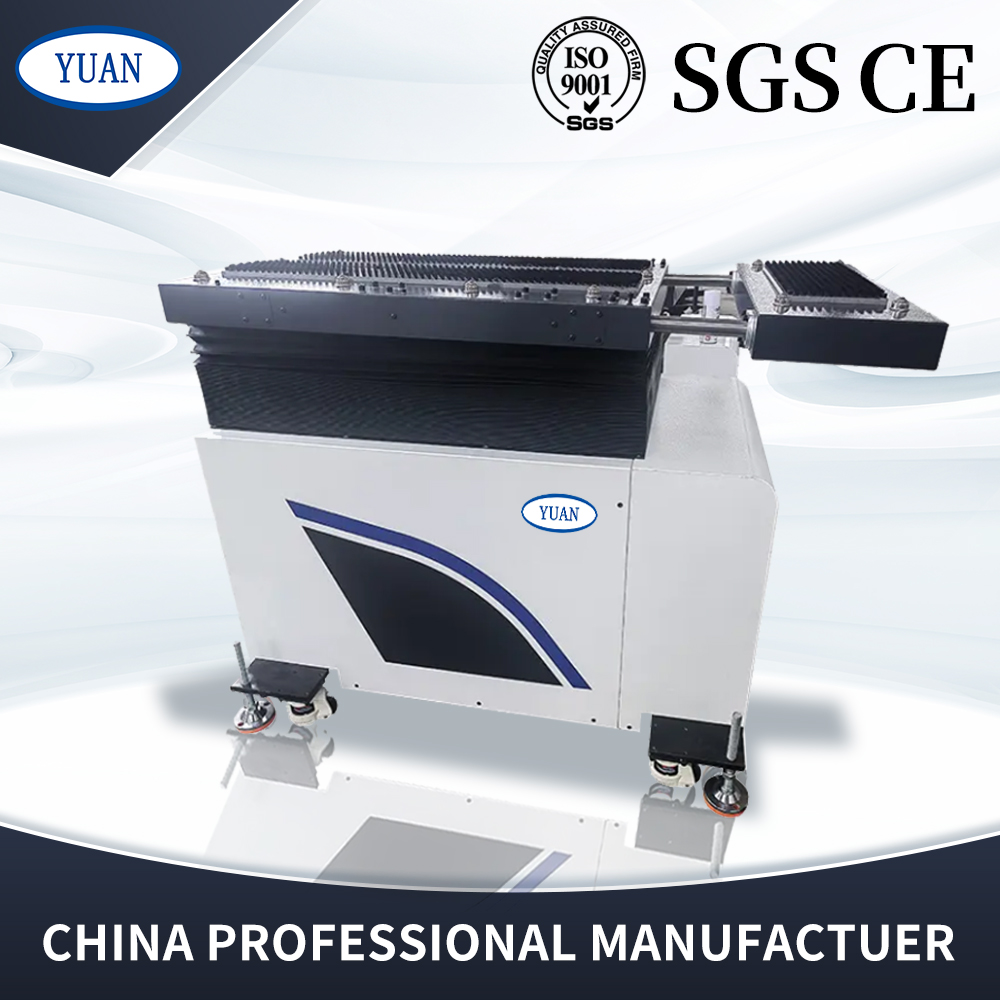

RZ Bending sheet follower car is a press brake auxiliary device which is used to accessorily support the material when the press brake bending the large workpiece
It adopts the independent control system, with no requirements for press brake controller and types. The rotation and lifting of the platform are driving by the servo motor. The rotation mechanism consists of servo motor, decelerator, reduction gear and multi-connecting rods. The lifting mechanism has two types of NC and CNC.
The bending machine lifter is compatible with press brake machines from: ACL, Accurpress, AM Machinery, Amada,Atlantic, Adira, Baykal, BL, Boschert, Boutillon, Bystronic-Beyeler Euro-B, Coastone, Colgar,Darley, Dener, Deratech, Durmazlar, Ermaksan, Farina, Gade, Gasparini, Gizelis, Haco, Hindustan,Iturrospe, Jfy, JMT, LFK, Metfab, MVD, Newton, Oriance, Prima Power, Promecam, Rico, Safan,Salvagnini, Schiavi, SMD, Sorg, Somo, Vicla, Vimercati, Warcom, Yangli, Yawei, Ysd, etc.
Feature:
1.The Press Brake Front Sheet Metal Support Arms designed for reducing workload of press brake operators.It can load various large plate,improve efficiency and accuracy.
2.The machine table is equipped with brush balls ,so no scratches on the workpiece.
3.The follow -up front suppoting material is easy to operate ,the seat is equipped with a blessing horse wheel.It is easy to install and can move.
4.Independent operating system.
5.The sheet metal follower car has magnetic scale to match the press brake ,so it can be installed on any brand press brake.Like Amada,EHT, Weinbrenner, American, Gasparini, Ajial-Axial, Colgar, LVD, Colly, Hämmerle-Bystronic, etc
6.The follower is driven by servo motor.
7.It is an important press brake accessory.
Parameters:
No | Name | Data | Unit | Remark |
1 | Lift Weight | 100/200/300/450 | Kgs | |
2 | Lift angle | 60 | degree | Lifting angle is calculated by bending angle |
3 | Table Length | 1100 | mm | |
4 | Length extension | 2300 | mm | |
5 | Table width | 700 | mm | |
6 | Height adjustment | 120 | mm | |
7 | Rotary Motor | 1.8/2.9/4.4/6 | KW | |
8 | Flip Accuracy | 0.3 | Degree |
Follower parts name:
No | Name | Brand | Note |
1 | Servo motor | Delta/Inovance | |
2 | Main electric parts | Schneider | |
3 | Touch Screen | China | |
4 | Magnetic ruler | Givi,Italy |
Press Brake Support Arm Application:
1.Metalworking Industry: In manufacturing, the metalworking industry often employs bending techniques to process metal sheets into various products such as automotive parts, aerospace components, furniture, electronic enclosures, etc. Particularly for products requiring strength and lightweight properties, using thin and long metal sheets and bending processes can meet design requirements.
2.Construction and Building Materials Industry: In the construction sector, thin and long bent boards are commonly used for manufacturing decorative materials, roof and wall coverings, etc. These boards can be utilized for making roof tiles, wall panels, window frames, etc.
3.Shipbuilding Industry: Shipbuilding typically requires the use of thin and long metal sheets for constructing ship structures and components. These sheets often need to undergo bending and shaping processes to fit specific design requirements of the vessels.
4.Electronics Manufacturing Industry: In electronics manufacturing, thin and long boards are frequently used for making electronic product enclosures, heat sinks, brackets, etc. These boards usually require bending and cutting processes to meet the design requirements and functionalities of the products.
How to choose your press brake sheet follower?
Choose the press brake bending follower,you need to consider the following
1.work-piece width and length and weight
2.types of press brake ,upward or downward ?If upward press brake ,choose the CNC Type.
3.Positive bending and negative bending ,choose the CNC Type Follower
4.Torshion bar press brake ,CNC Press Brake,electro-hydraulic press brake machine, twist axis press brake machine, all-electric press brake machine, down the moving press brake machine all can match the sheet aids.
