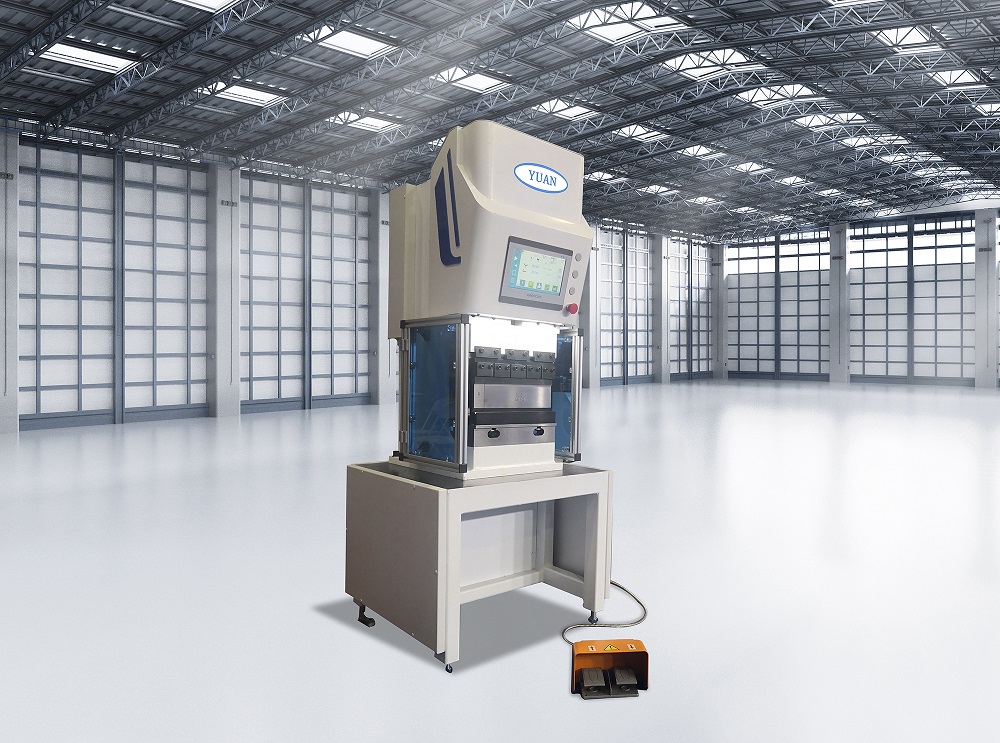

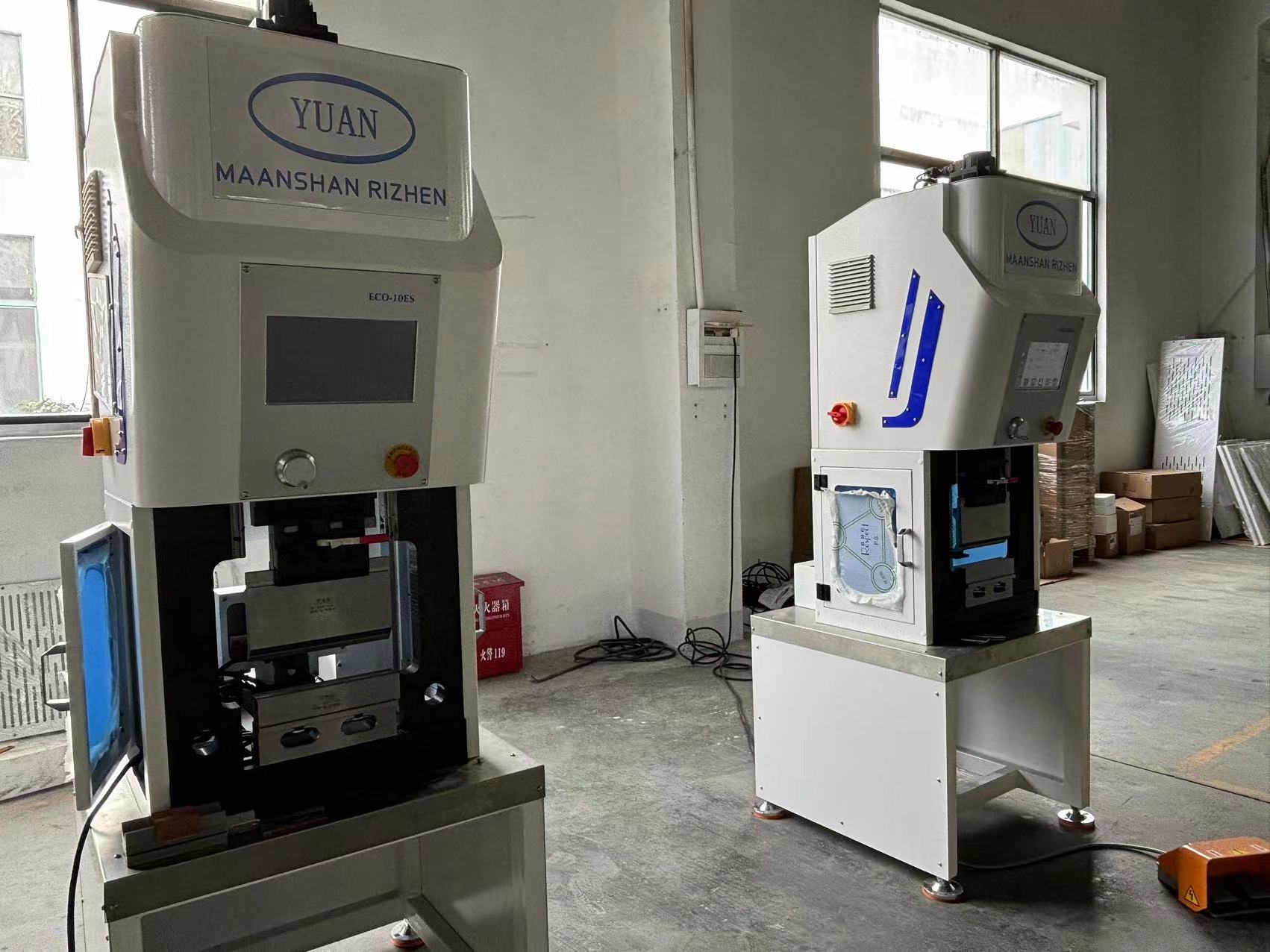

Our small press brake is pure electric press brake.The tonnage is 3ton,6ton,12ton,20ton,30ton,40ton,63ton.
Excellent build quality, superior productivity, industry leading operator interface and unrivalled support, has contributed to exponential growth both in China and Worldwide.
Specifically designed for high accuracy bending of high precision sheet metal components .The RZ series represents a new generation of environmentally friendly press brake.It is an ideal compact press brake for small sheet metal needs high precision.
The power of precision.
Why buy a RZ electric press brake?
Green
No oil to change &dispose of.Compared with small hydraulic press brake,its advantage is on needing hydraulic oil.
It can work at any time ,at any places.
Ultra Accurate
10 times more accurate than a hydraulic press brake
Y axis repeating
Accuracy +-0.002mm
Easy to operate
Industry leading operator interface with 10 inch or 15 inch touch screen control.The bending angle is programable.Compared with torshion bar press brake ,it is very
freindly to operator.Donnot take much time for learning.

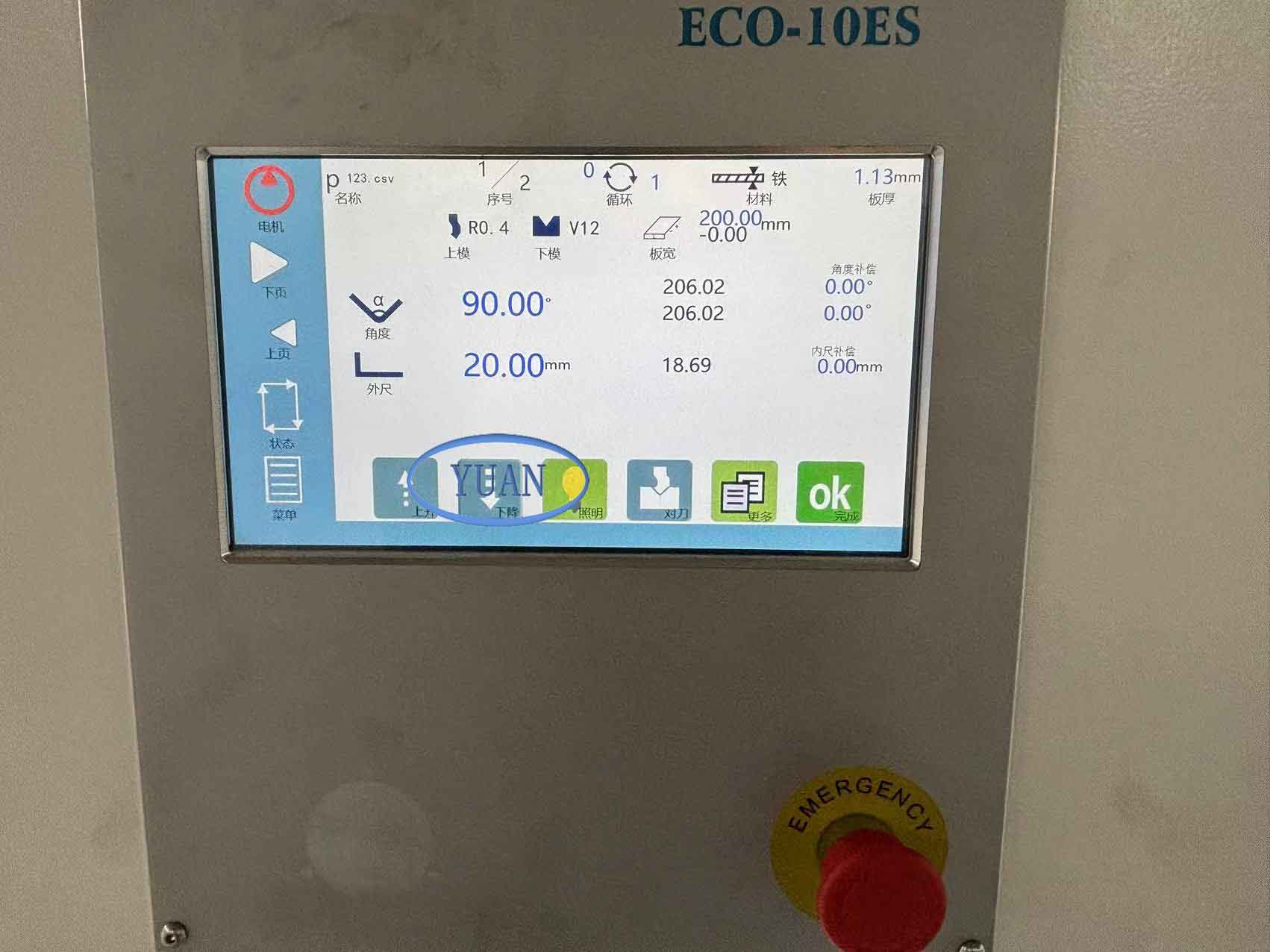

The small press brake controller ECO-10ES,both in English and Chinese.
It can also choose Holland Delem DA-53T,Delm DA-58T,Delem DA-66T,Switzerland CYBELEC CT8,CYBELEC CT12.
Highly productive
More cycles per hour: no hydraulic delay.
Ultra Reliable
Virtually maintenance free.
No costly service contratcs required
Support
Industry leading after sales service support from a team of fully trained engineers.
Laser safe guards make machine even more productive, reducing operator movement.

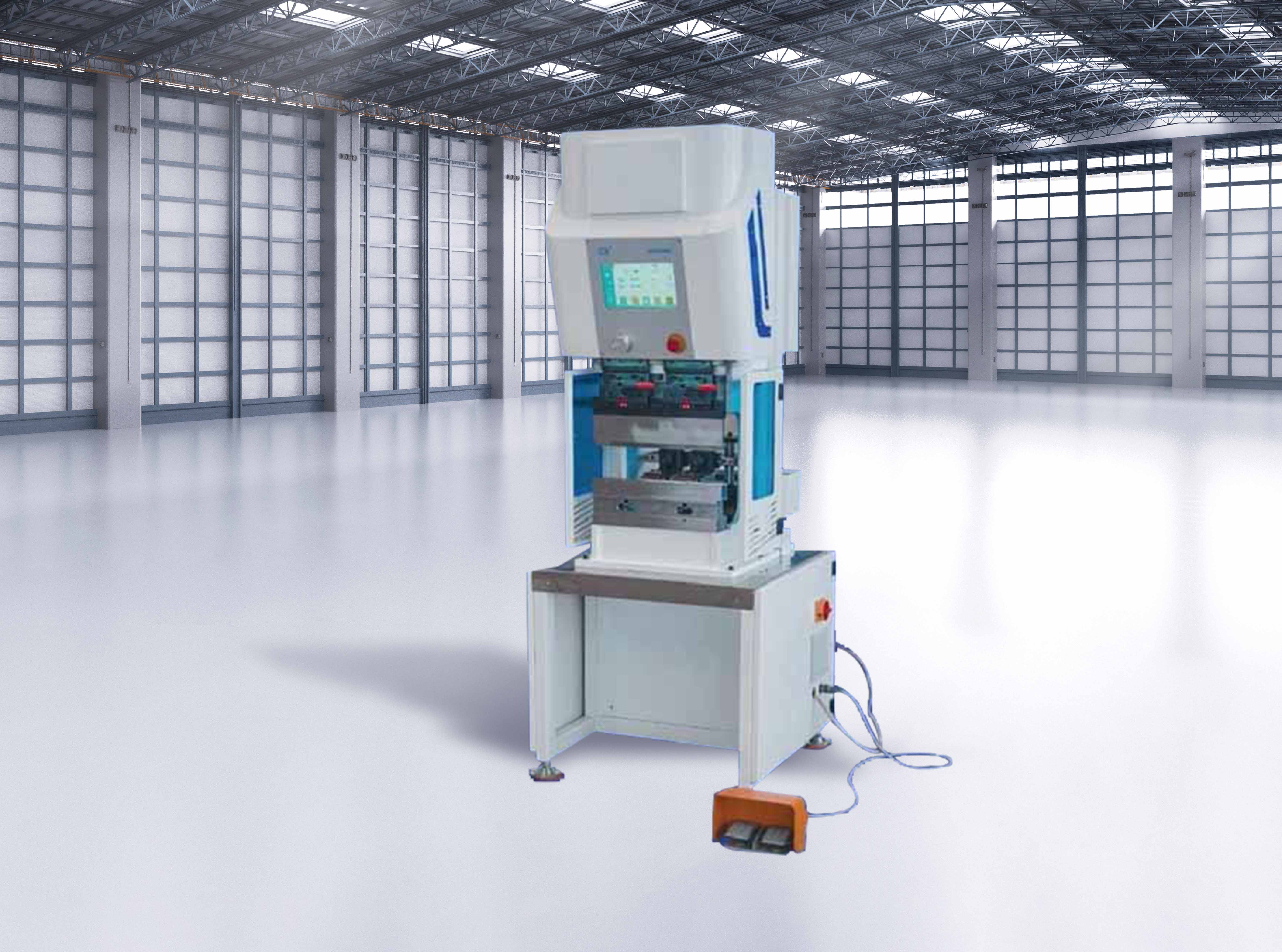

Electric, Servo-driven Pressbrake
*Big daylight,big stroke

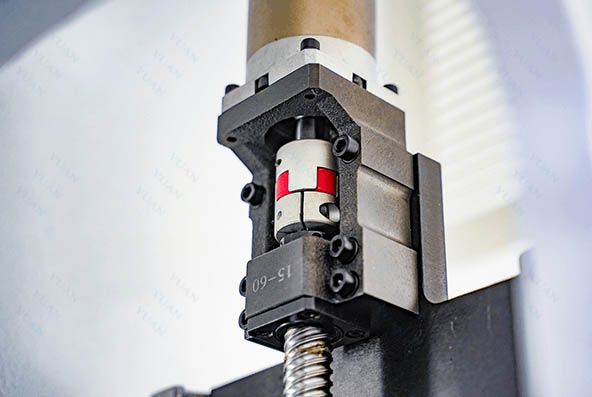

*Servo-driven ball screws.
*Fast&Accurate(Y axis repeating accuracy +-0.02mm)
*Average power consumption 2-5.5kw.
*No hydraulics, no oil changes,no valve or cylinder failures.
*User freindly operator programming allowing very short set up times.
*Forklift around factory to required working area.
Parameters:
Model | Tonnage(KN) | Width(mm) | Storke(mm) | Max Opening (mm) |
RZ03-02 | 30 | 200 | 120 | 420 |
RZ06-04 | 60 | 400 | 120 | 420 |
RZ12-06 | 120 | 600 | 120 | 420 |

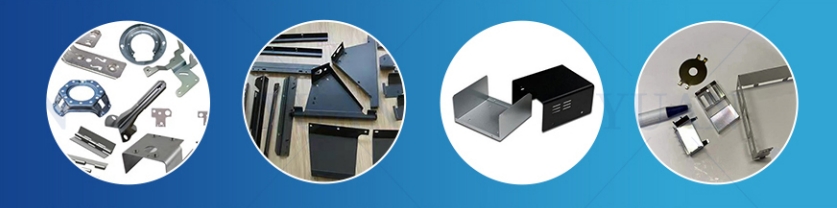

Working piece display
