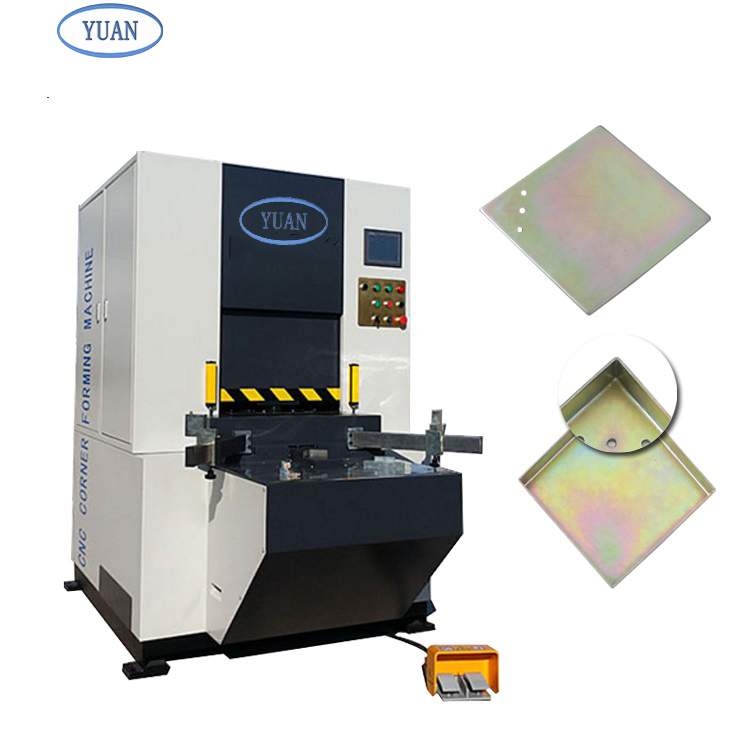

Corner Former Machine

1.Install corner former machine in workshop.

Place the corner former machine in an appropriate position in the workshop.The palce should be flat.

The corner forming machine no need to fixed on anchor bolt.

2.Corner former machine usage.

The corner forming machine is used for thin sheet (thickness less than 3mm ) for  forming corner without welding.

It sheet metal firstly bend by  a cnc press brake with special press brake mould.Then forming the corner in corner forming machine mould station.Then shearing the edge in shearing station.

The machine can proceed a wide of materail,from aluminum,cold-rolled plate ,stainless steel,copper.

Max bending height:30mm

Max Plate thickness :3mm

Dimension part size:>140x140mm

3.Corner Former Machine Structure:

The corner moulding machine is closed type.The machine has cabinet,main machine body,hydraulic system ,pneumatic system,PLC control system and the seat.

4.Host Machine Of Corner Former Machine:

The machine is consist of two station.One is forming the  corner station,one is  trimming station.

5.Corner Former Machine Hydraulic System:

Hydraulic system provide pressure for pressing ,forming and shearing.

6.Corner Former Machine Pneumatic system :

The pneumatic system is for change corner forming mould ,stock plate and lift the safety window.

7.Safety operation of Corner Former Machine:

1) Before operating this machine, operator must be trained. The operator must be familiar with the machine’s instruction manual and understand the structural performance of the machine.

2)A trained worker should be specially assigned for operating this machine.

3) When the machine is working, the Operator must not be away from his/her job, if he/she will be away from the machine for special reasons, the machine must be shut down and power cut.

4) When the machine is operating, non-operating personnel are prohibited to enter the work area.

5) Hydraulic system of the machine have been adjusted before shipment, if re-adjustment is needed, it should be performed by professionals or trained operator.

6)Hydraulic system oil should be changed regularly according to the instruction manual, unfiltered oil is strictly prohibited to pour into the tank.

7) Manually change mode only for debugging, normal use must be properly set the PLC parameters and practical.

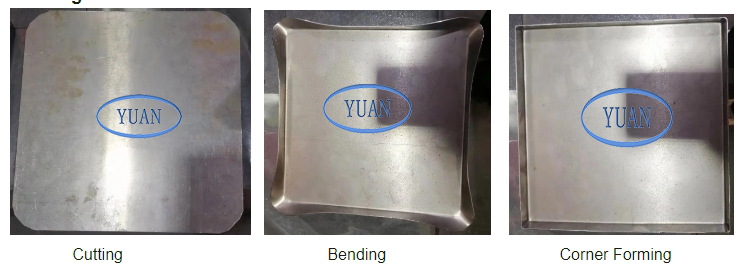

 Forming a corner process by corner former machine:

Application of corner former machine

1. Cold rolled plate

2. S.S cabinet

3. Color aluminum curtain

4. Aluminum curtain

5. Octagon special plate

6. Sign panel

7. Strong box

8. Cabinet door forming

9. Road sign forming

10. Sheet metal enclosures forming

11. Cabinet door forming

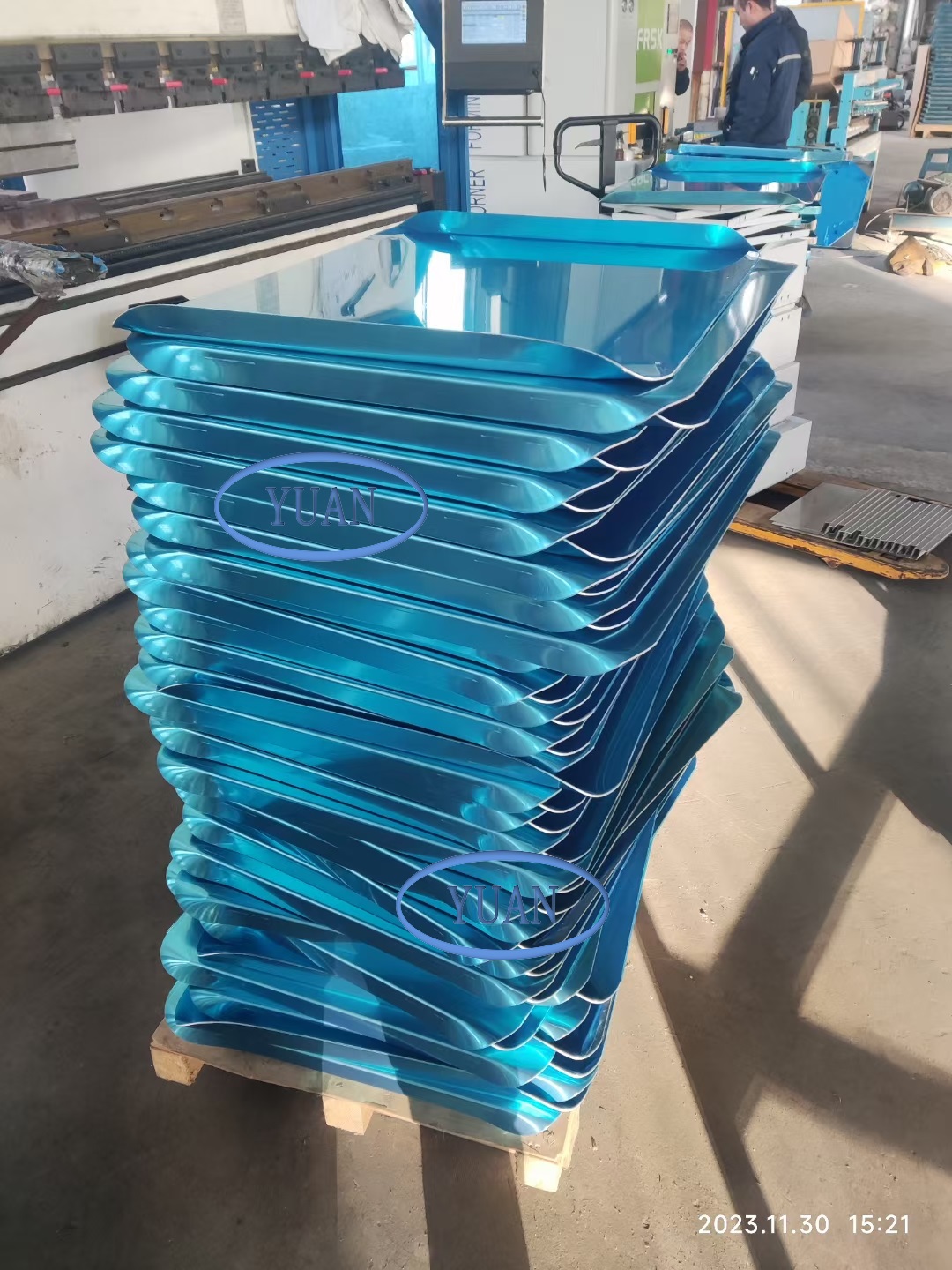

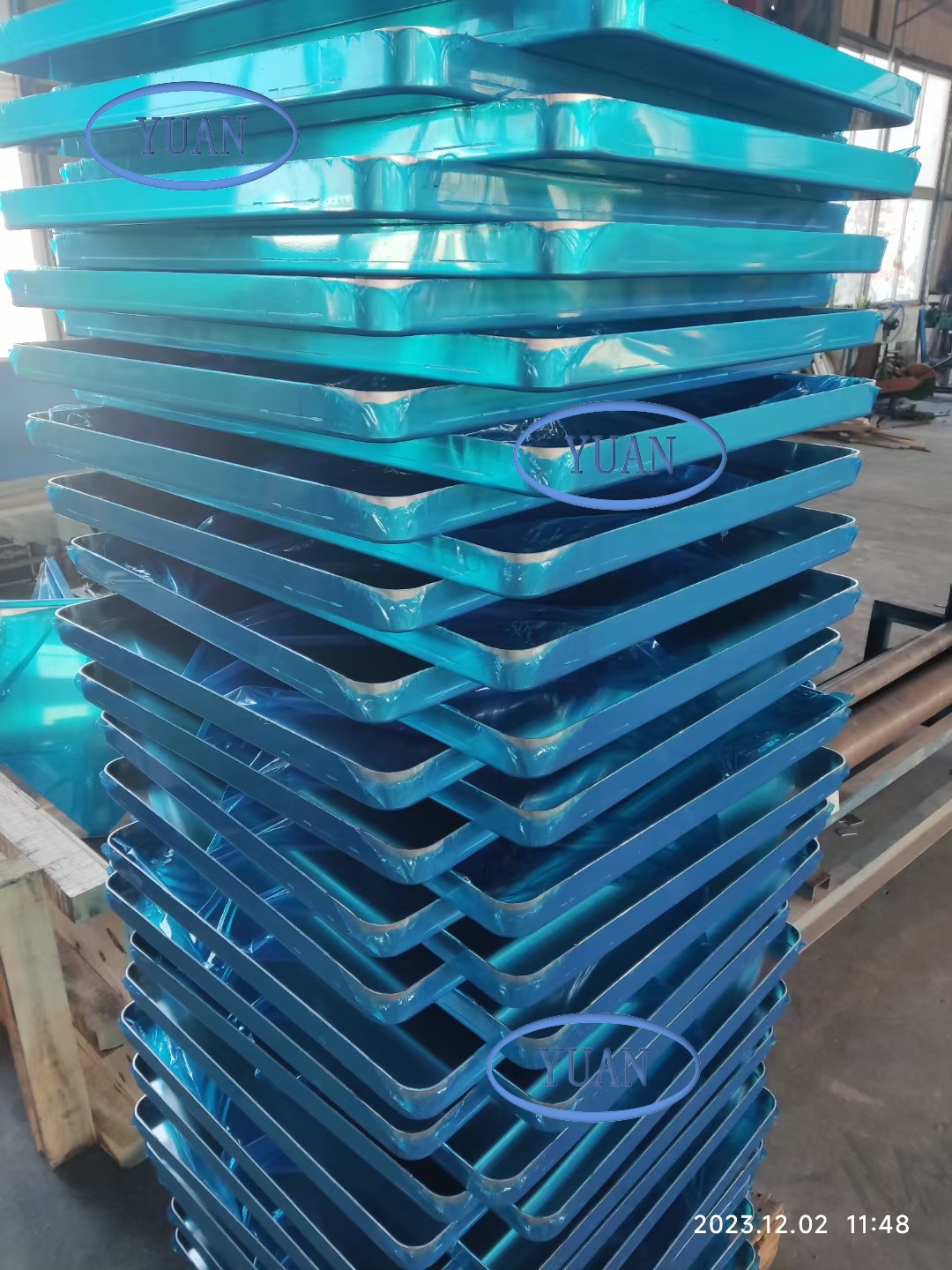

Products displace

RFQ

1.Which is suitable for corner rounding machine?

The same corner size ,mass production is the best one.

2.What materail is suitabe to use the coner forming machine?

Mild Steel,Aluminum Steel,Stainless Steel ,Color Steel,Cold Rolled Steel

3.What shape can the coner former form?

1.Quad corner

2.Rectangular corner

3.Triangle corner

4.Octagonal corner

5.Arrow road signs

6.Round corner

4.What parts can the corner moulding machine produce?

doors for electrical cabinets

drip trays for air conditions

fire oven doors

road signs in any shape

(Including octagonal shape and triangle

shape-even as beading machine)

trays

covers for communication equipment

covers for compressors

lids

cooking trays

bottom for vessels

ceilings

container covers

claddings

animal cages

any similar flat sheet parts
